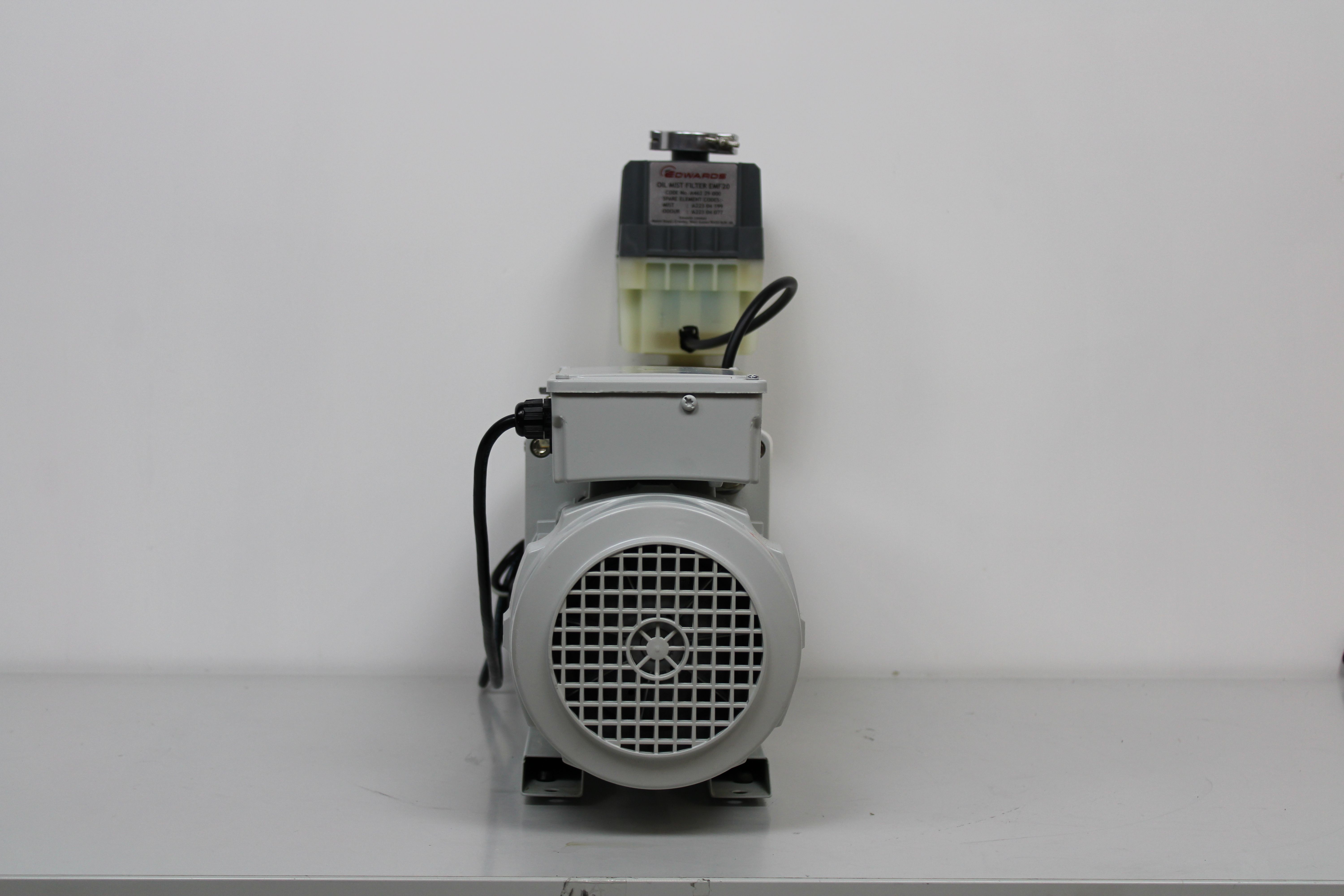

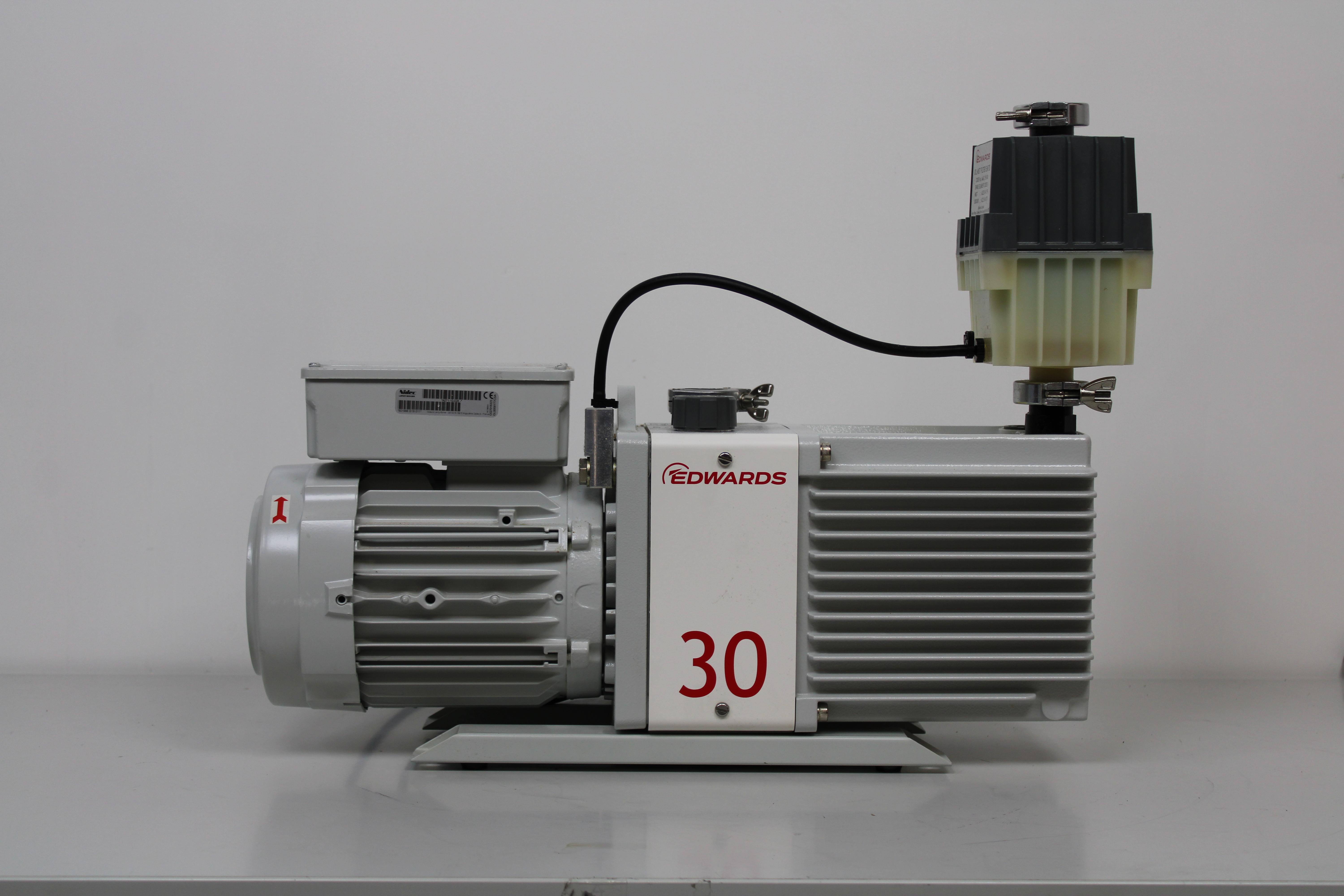

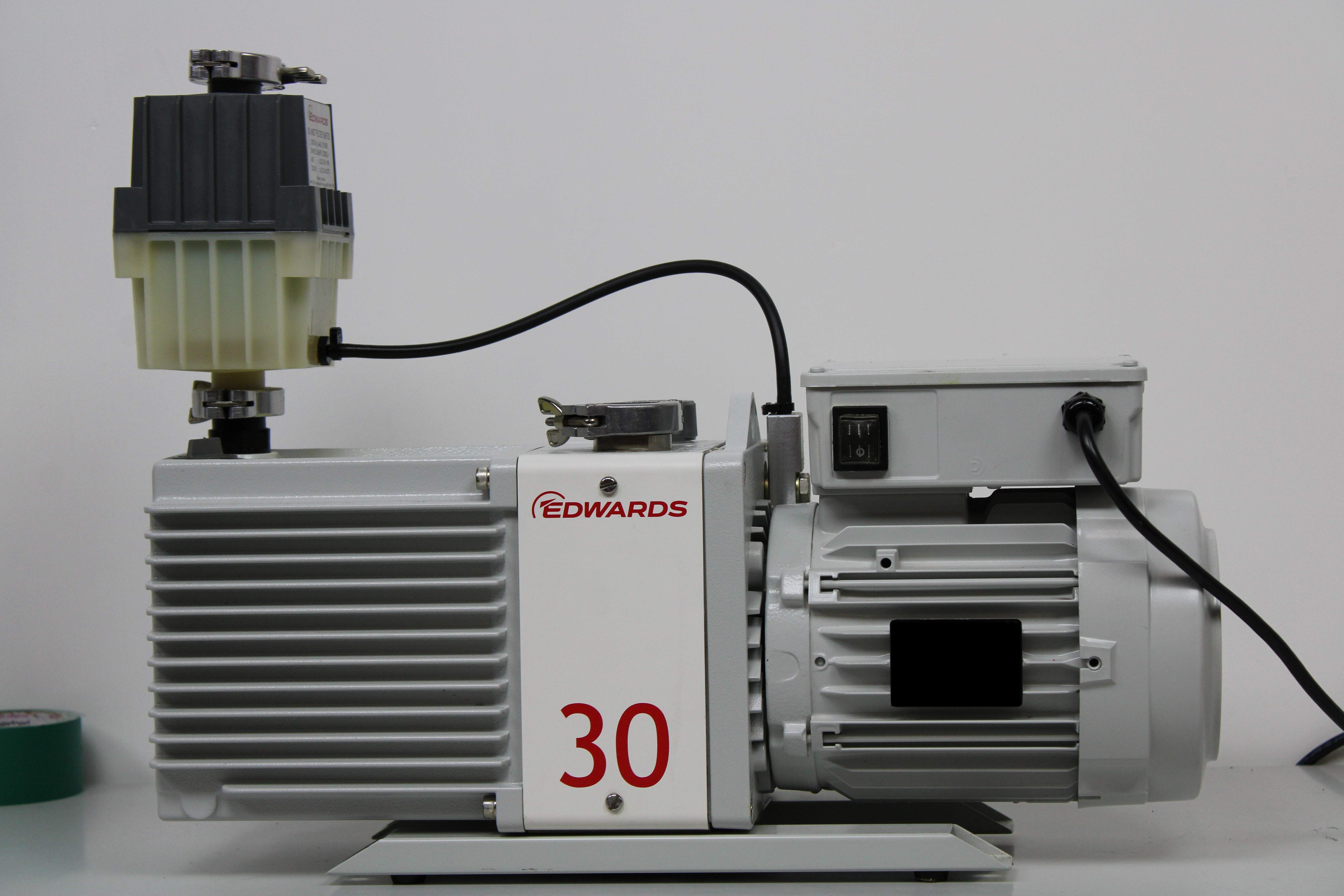

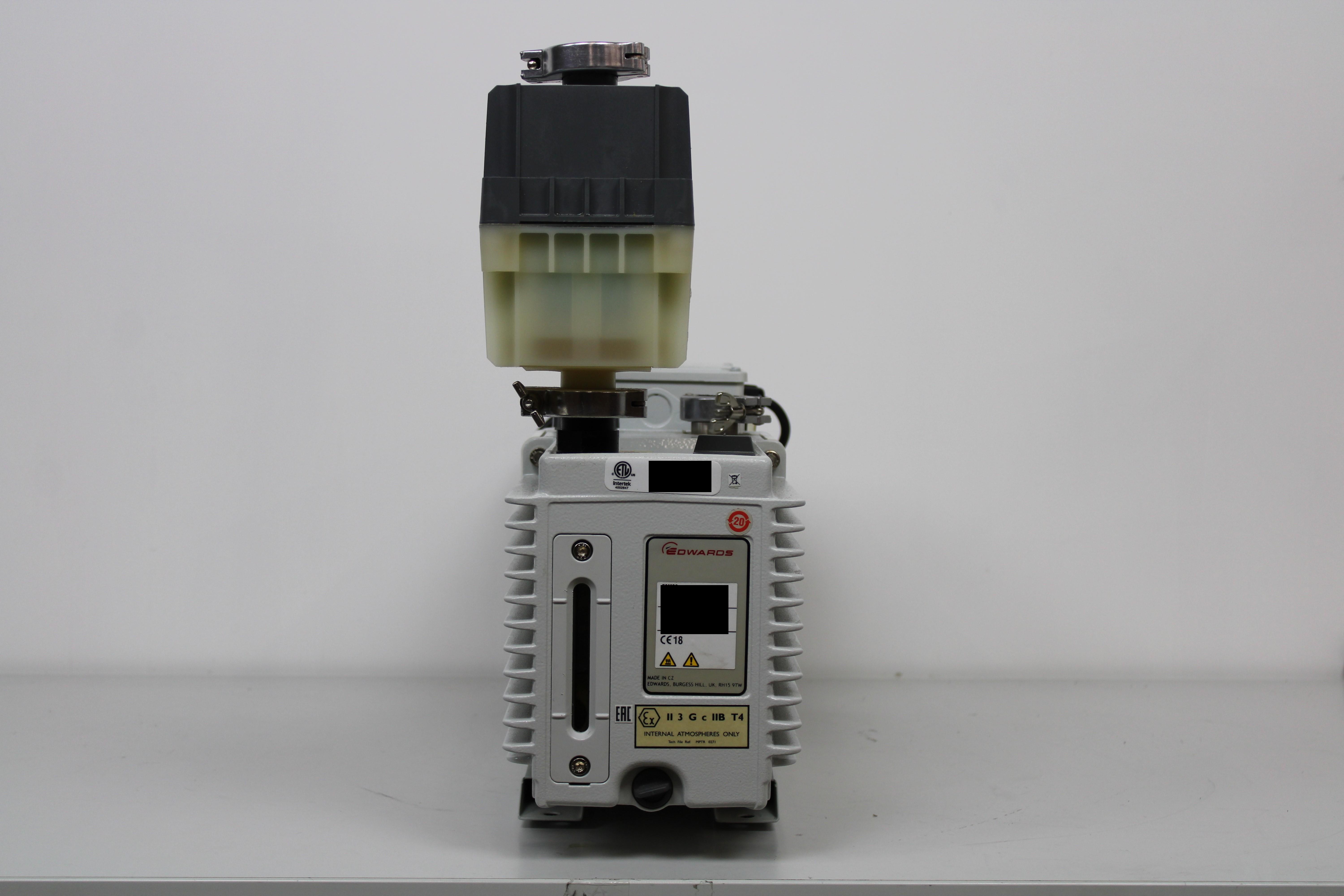

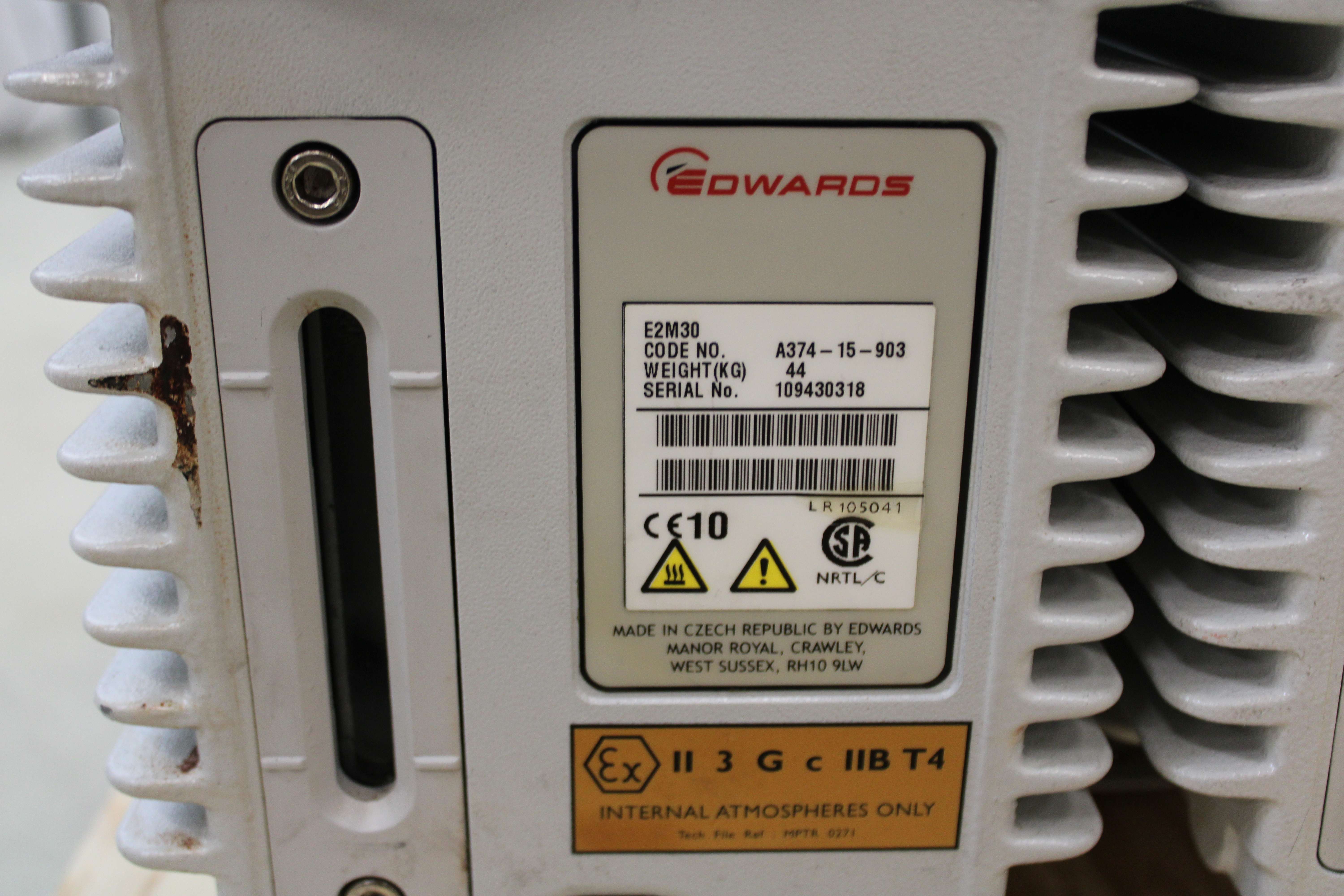

Edwards E2M30 Rotary Vane Vacuum Pump 11.4 CFM, 120V/220V, Used
Edwards
Details
-
CategoryPump
-
Dimension60.0cm x 20.0cm x 50.0cm
-
Serial169408389
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Edwards E2M30 is a rotary vane vacuum pump with a peak pumping velocity of 11.4 CFM and achieves an ultimate vacuum of 1 x 10⁻³ Torr, ideal for applications in gas analysis, leak detection, and mass spectrometry. Manufactured in Czechia, this used pump is in very good condition, efficiently cooling its enclosed motor with a motor-cooling fan. The single-phase motor, equipped with an automatic thermal overload device, provides automatic resetting after cooling. An oil pressure system lubricates vital components, preventing oil discharge into the pump interior after stopping, and its oil distribution valve mitigates air suck-back. Inspect oil levels through the sight-glass, replenish via the filler-plug, and drain effortlessly via the drain-plug. This pump is set on an aluminum baseplate with rubber pads for secure mounting. It operates on a voltage of 120V/220V at 50Hz/60Hz.
Key Features
- Peak pumping velocity: 11.4 CFM
- Ultimate vacuum: 1 x 10⁻³ Torr

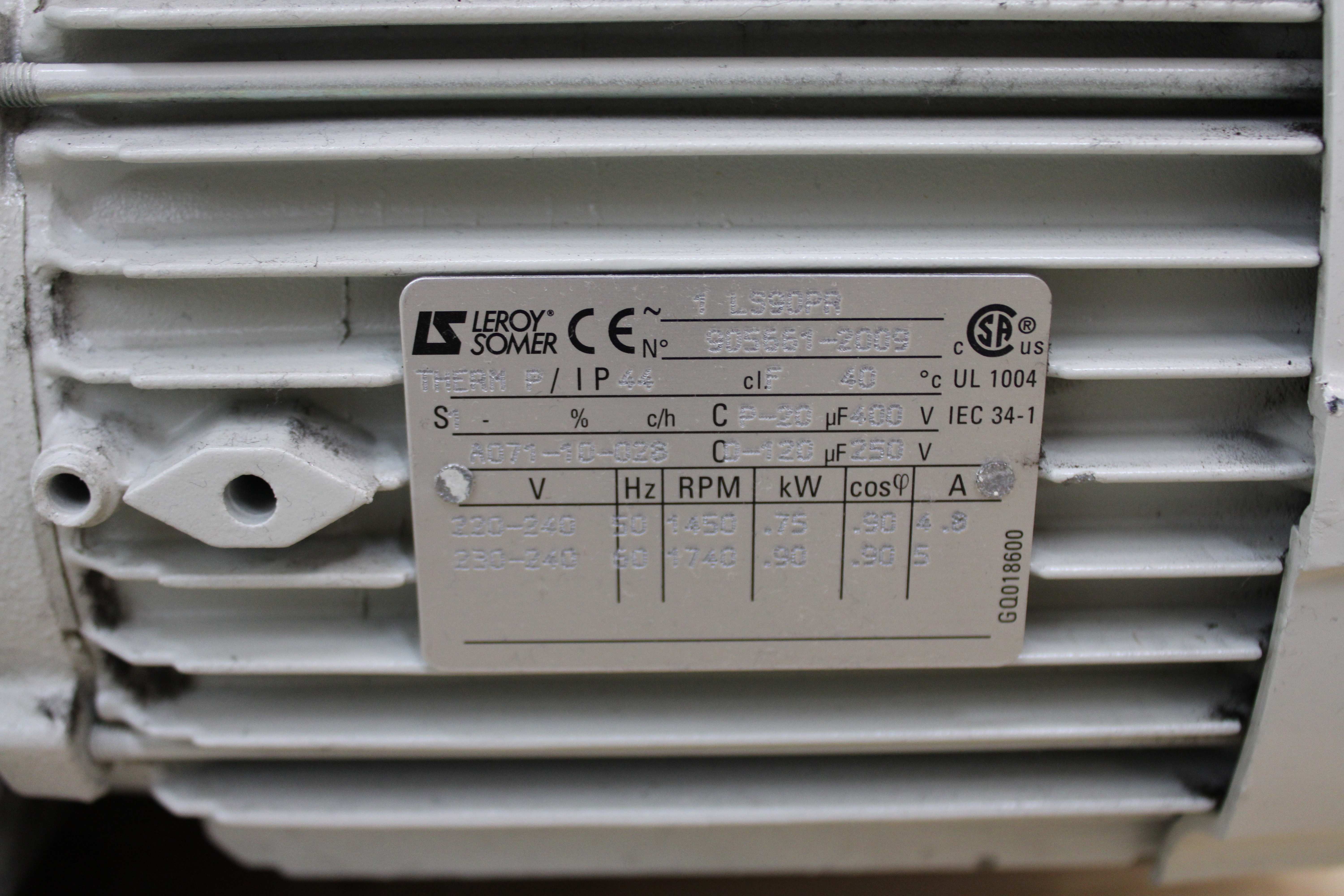

- Single-phase motor with automatic reset thermal overload device
- Oil pressure system prevents suck-back
- Integral motor-cooling fan
- Voltage: 120V/220V, Frequency: 50Hz/60Hz
- Aluminum baseplate with rubber pads for stability
Specifications
- Maximum displacement: 19 CFM at 50 Hz, 23 CFM at 60 Hz
- Maximum speed: 16.2 CFM at 50 Hz, 19.4 CFM at 60 Hz
- Motor rotational speed: 1440 RPM at 50 Hz, 1720 RPM at 60 Hz
- Noise level: 57 dB(A) at 50 Hz
- Maximum water vapor inlet pressure: 30 mbar / 23 Torr
- Maximum water vapor pumping rate: 0.7 kg/h
- Maximum permitted outlet pressure: 0.5 bar gauge, 1.5 bar absolute
Weight
Imperial: 116.4 Pounds
Metric: 52.8 Kilograms
Shipping Dimensions
Imperial: 28.35 lb x 9.45 lb x 23.62 lb
Metric: 72.01 cm x 24.0 cm x 59.99 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Vacuum pumps. This code applies as the E2M30 is specifically designed for vacuum applications in laboratory and industrial settings, consistent with the technical attributes of vacuum pumps.
