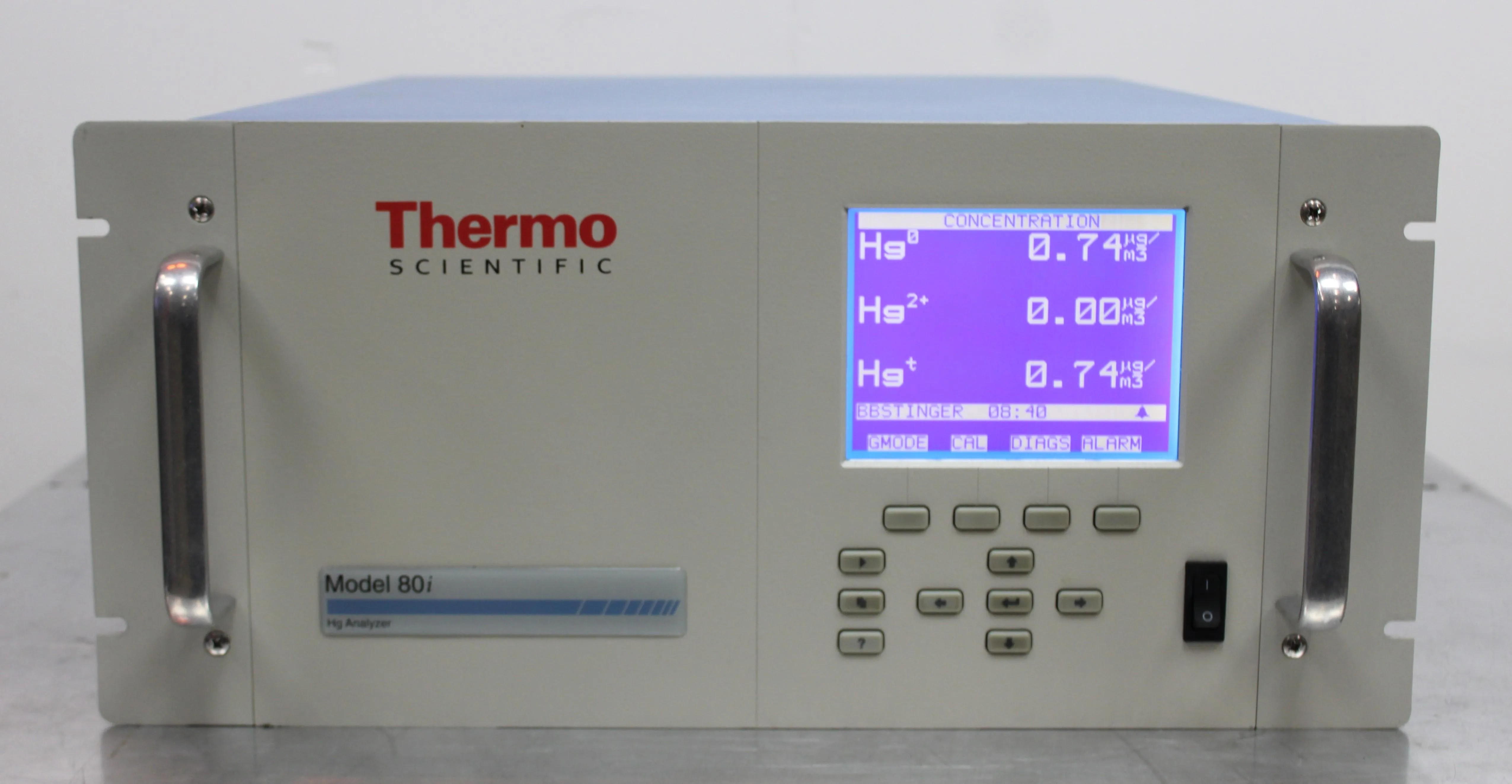

Thermo Scientific Model 80i Hg Analyzer Gas Analyzer
- Make Thermo Scientific
- Hertz 50Hz/60Hz
- Model Model 80i Hg Analyzer

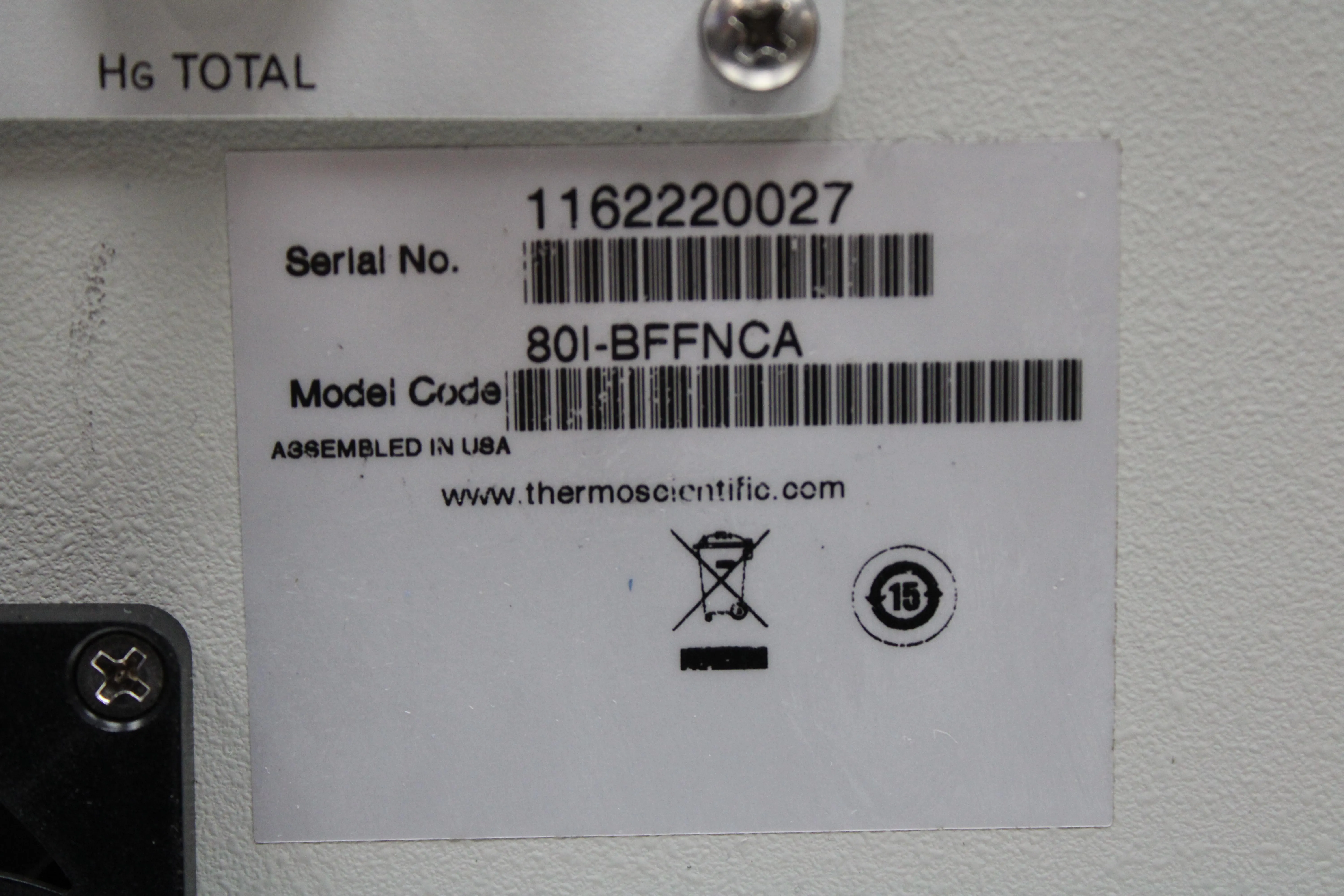

- Serial 1162220027
- Weight 26.0 Kg
- Voltage ecb89b1afb
- Warranty 30-Day Warranty On Part
- Dimensions 73.0cm x 58.0cm x 30.0cm
- Shipping Type FedEx Ground
- Item Condition Good
- Manufacturing Date Does Not Apply
Product Information
The Thermo Scientific Model 80i Hg Analyzer is a powerful system designed for the unattended, true continuous monitoring of mercury in exhaust stacks from various industrial combustion sources, ensuring complete regulatory compliance. This equipment uses direct cold vapor atomic fluorescence technology and features a modular design, reduced umbilical temperature, and no expensive consumables, providing consistent high sensitivity and performance in harsh conditions. The Mercury Freedom System is a complete integrated solution comprised of an analyzer, calibrator, probe controller, and probe/converter, ensuring a reliable and efficient mercury emissions monitoring system. This unit also meets U.S. EPA 40 CFR Part 75 requirements with true continuous monitoring and provides consistent performance in harsh conditions. Software not included. Typical applications include monitoring mercury emissions in exhaust stacks from coal-fired boilers, waste incinerators, cement kilns and other industrial combustion sources.
Key Features
- Unattended, true continuous monitoring of mercury
- Direct cold vapor atomic fluorescence technology
- Modular design for reduced maintenance time and cost
- Highly sensitive and consistent performance in harsh conditions
- 30-Day Warranty On Part
Specifications
- Detectable Analytes: Mercury
- Detection Limits: 1 ng/m3 (60 sec. averaging time)
- Flow Rate: 0.5 L/min.
- Linearity: ±1% full scale
- Response Time: 90 sec. (60 sec. average time)
- Temperature Range: 5°C to 40°C

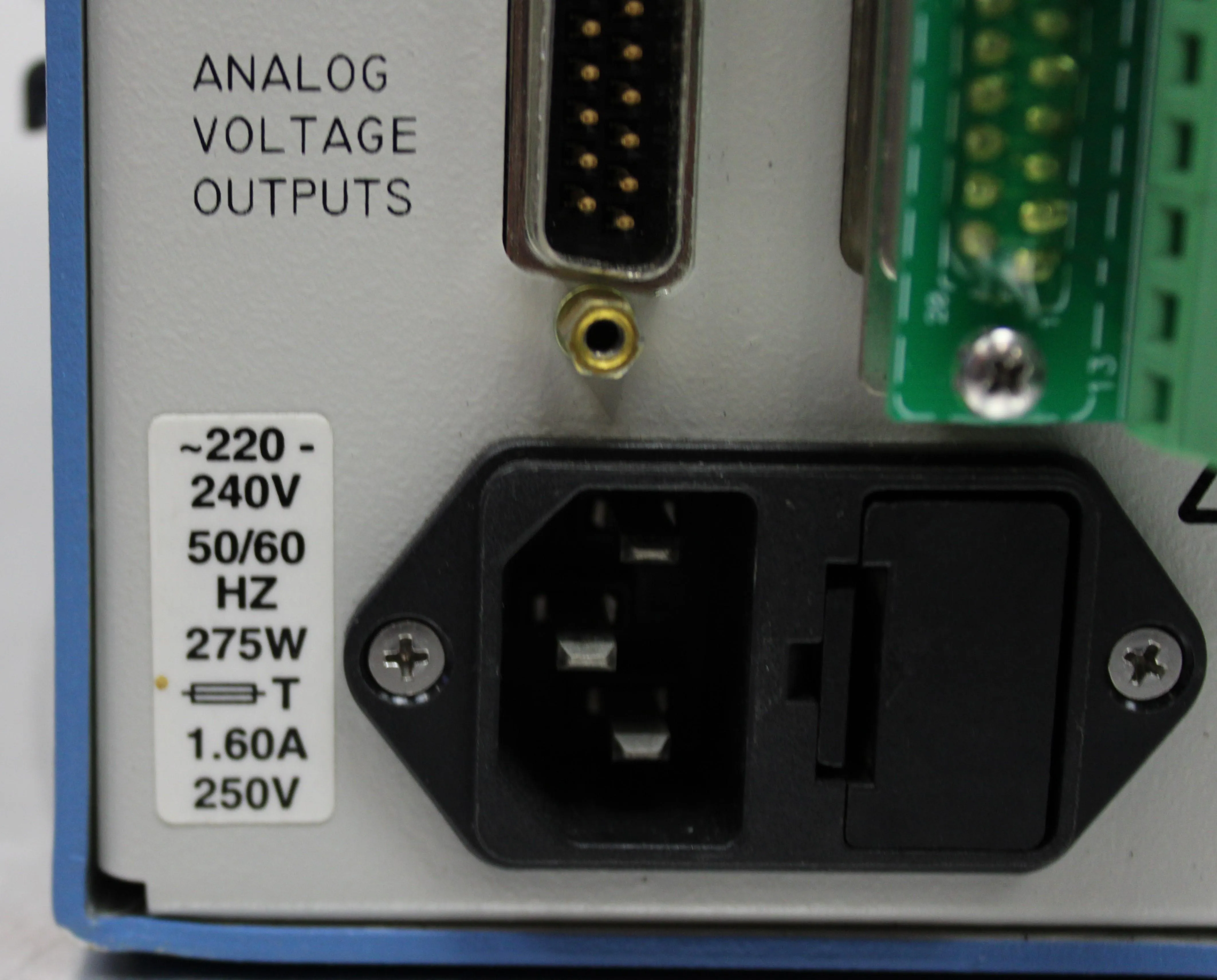

- Voltage: 100/115 V
- Wattage: 275 W

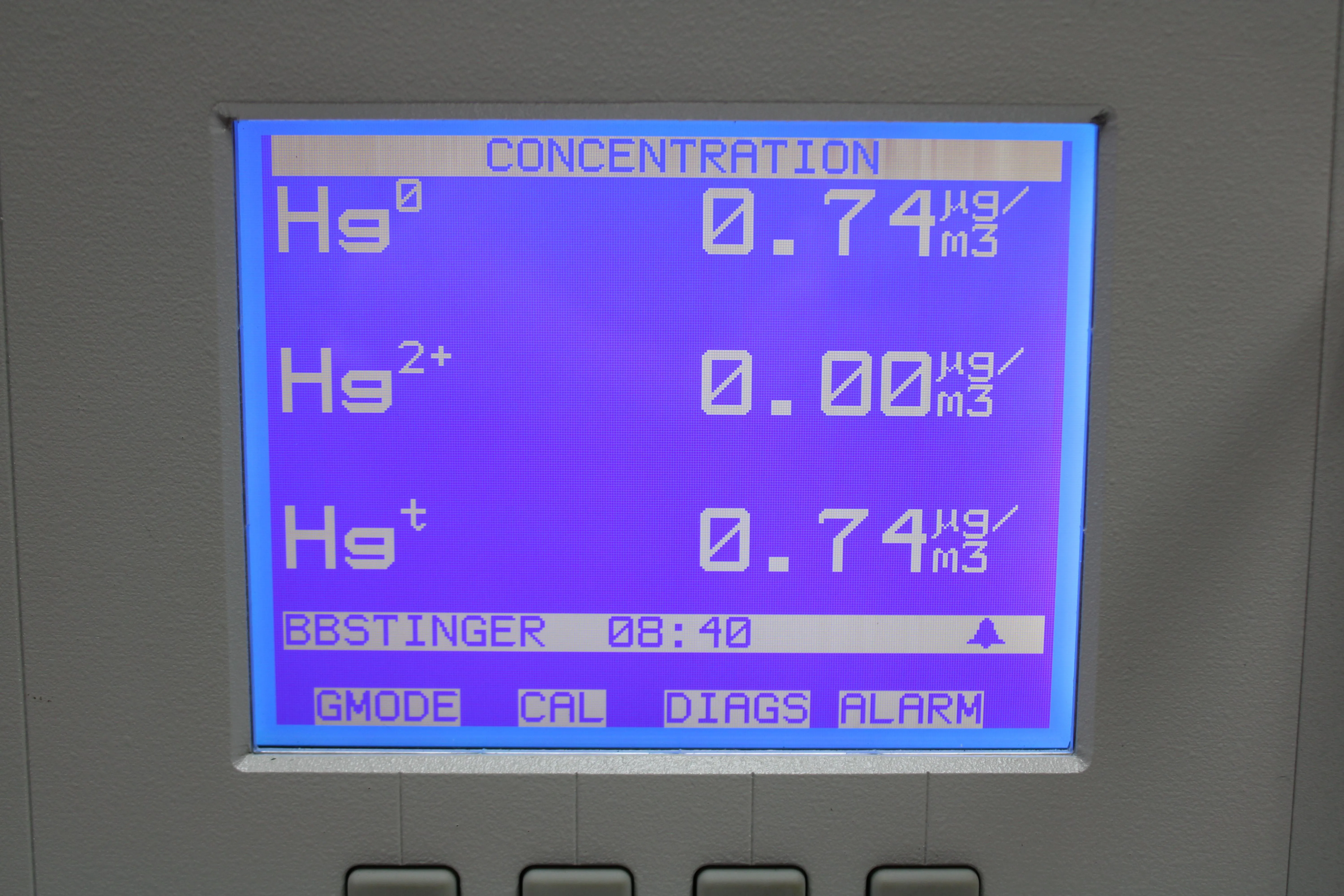

- Measurement Range: Elemental Hg Measurement Range: 0-600µg/m³

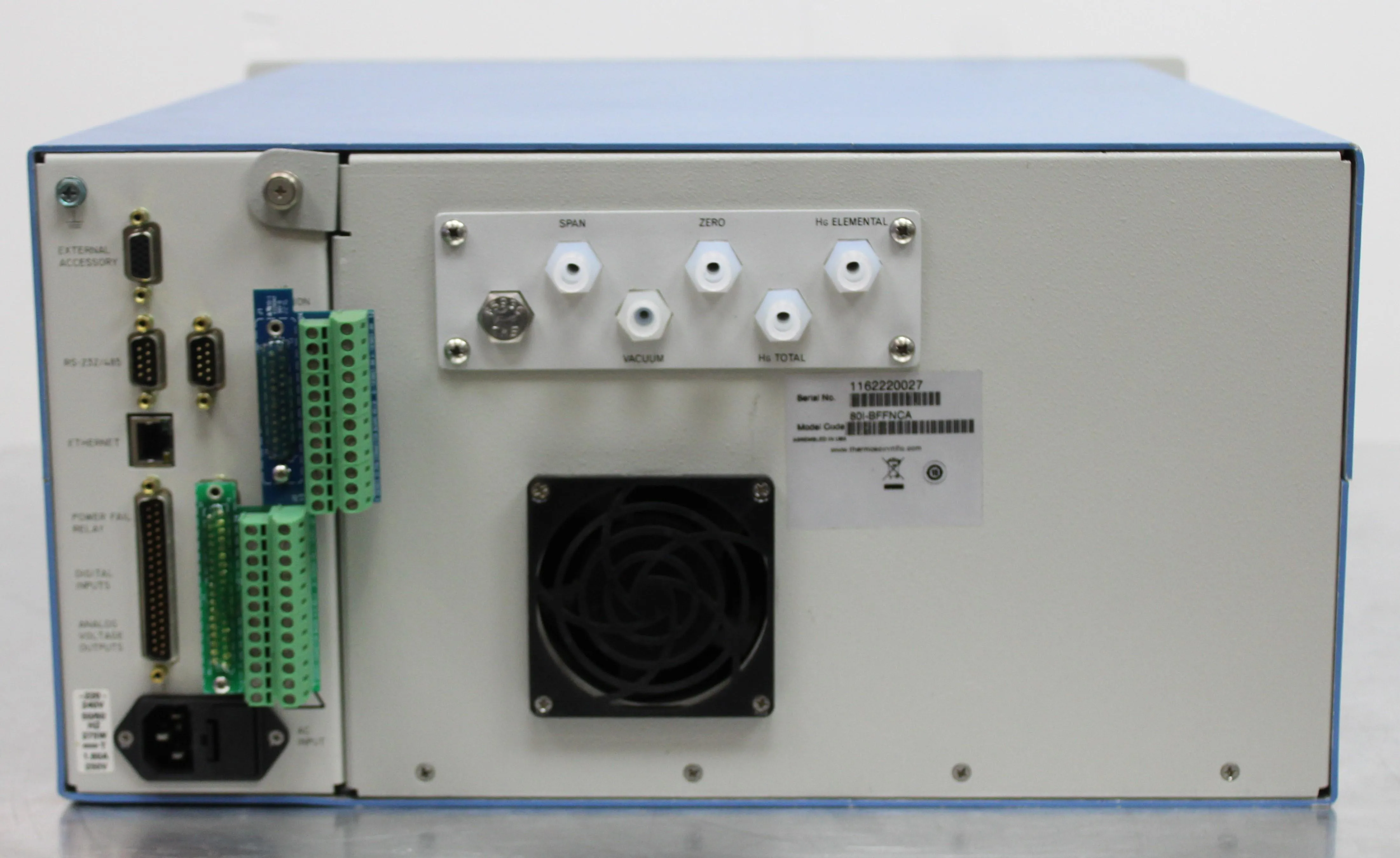

- Outputs: Selectable voltage, RS232/RS485, TCP/IP, 10 status relays, and power fail indication. 0 to 20 or 4 to 20mA isolated current output
Weight
Imperial: 57.6 Pounds
Metric: 26.13 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 22.8 lb x 12.0 lb
Metric: 73.15 cm x 57.91 cm x 30.48 cm
Harmonized Code
9027300000
Harmonized Code Details
The product falls under category 9027300000, which pertains to instruments and apparatus for physical or chemical analysis, aligning with the product's analytical nature and application in monitoring mercury emissions.
