MMS Membrane System Pilot System SW18, Laboratory Membrane Device, Computer/Software
MMS Membrane System
Details
-
CategoryBioprocessing
-
Dimension31.0in x 49.0in x 67.0in
-
SerialDoes Not Apply
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

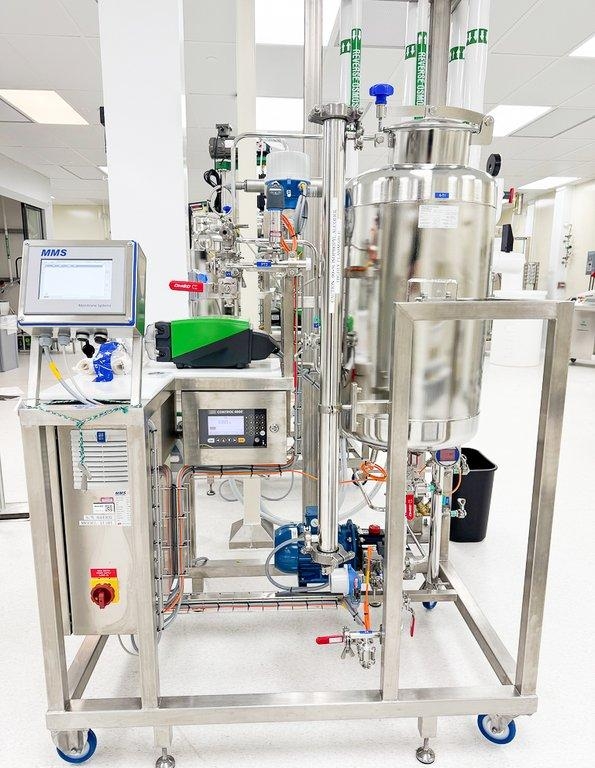

The MMS Membrane System Pilot System SW18 is an advanced bench membrane device, unutilized and in pristine condition, equipped with essential cables and computer/software for seamless operation. Originating from the United States, it stands out in applications ranging from microfiltration to reverse osmosis, accommodating pressures up to 40 bar. This system is ideal for diverse sectors, including Bio-Pharmaceuticals, Food & Extract, Biofuels, and more, offering versatility in fractionation, purification, and concentration processes. Featuring a high-pressure pump with speed control, HMI interface with data logging, and various module capabilities, this system is engineered for the precise demands of laboratory settings. Its stainless steel construct ensures durability, while the 316L tubing and fittings guarantee high reliability. The SW18 is particularly suited for applications such as fermentation broth clarification, protein concentration, and solvent recovery, ensuring optimal performance with a wide range of membranes.
Technician comment
NEW item in crate
Key Features
- Unused MMS SW18 system
- Microfiltration to reverse osmosis
- Handles up to 40 bar pressure
- Includes essential cables & software
- Stainless steel construction with 316L tubing
- HMI interface for data logging
Specifications
- Capacity to operate at pressures up to 40 bar
- High pressure circulation pump with speed control
- Multitube heat exchanger for temperature regulation
- Permeate flow rate: 1 – 5 L/h
- Flow rate: 450 L/h
- Integrated HMI touch panel for process control
- Dimensions (mm): 1020 x 600 x 850
- Weight: 100 kg
- Power requirement: 1.5 kW (220/110V)
- Construction: Stainless steel 316L feed tank, Tubing 316L
Weight
Imperial: 1080.0 Pounds
Metric: 489.88 Kilograms
Shipping Dimensions
Imperial: 37.2 lb x 58.8 lb x 80.4 lb
Metric: 94.49 cm x 149.35 cm x 204.22 cm
Harmonized Code
84212190
Harmonized Code Details
84212190: Centrifuges, including centrifugal dryers; filtering or purifying machinery and apparatus, for liquids or gases. This system classifies here due to its filtration and purification functionality using membranes.
