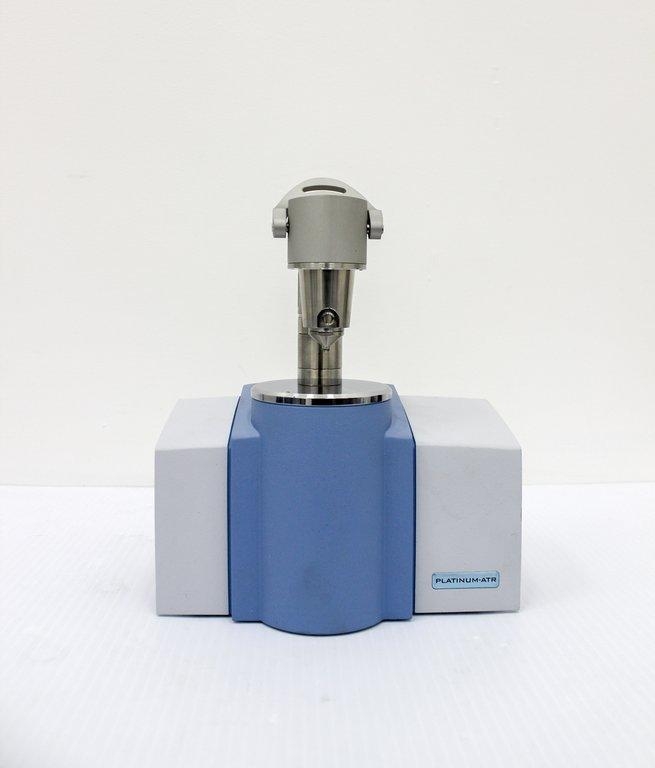

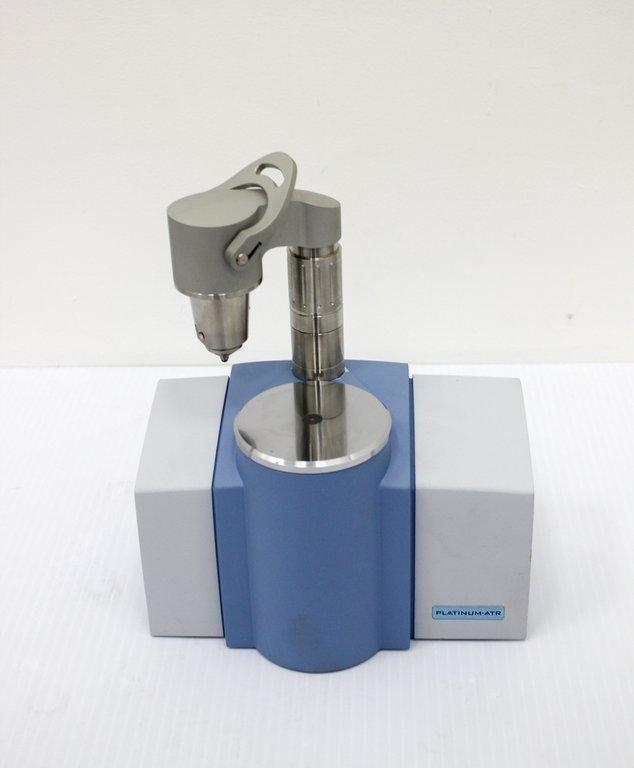

Bruker Platinum-ATR Temperature Controlled Spectrometer Module
Bruker
Details
-
CategoryAnalytical
-
Dimension8.0in x 7.0in x 11.0in
-

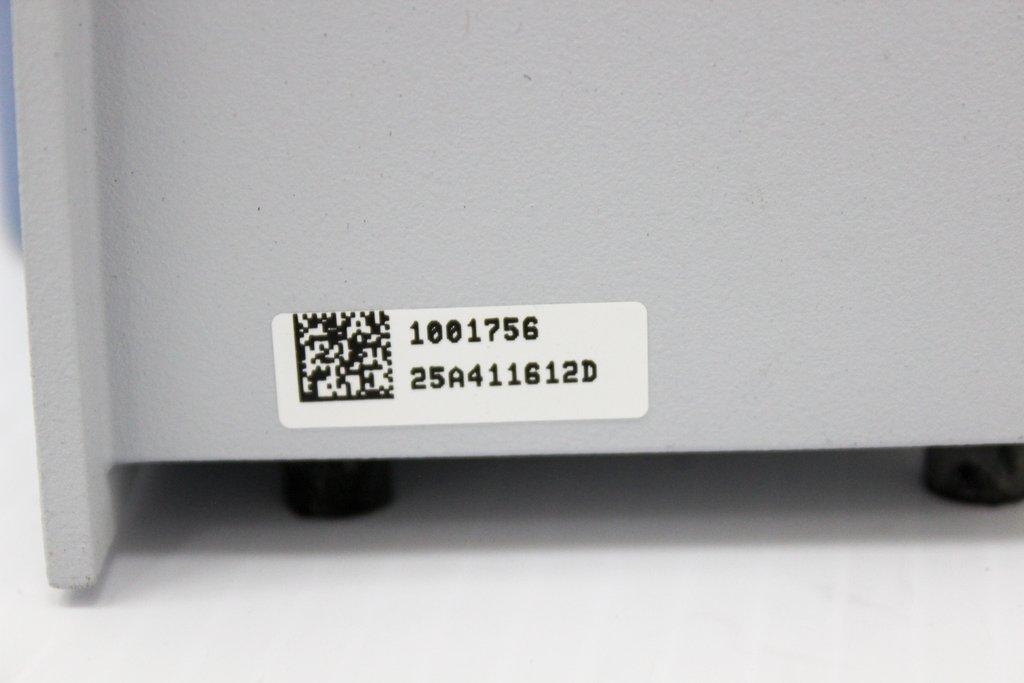

Serial1001756
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Bruker Platinum-ATR Temperature Controlled module is a vital part of the Alpha FT-IR spectrometer, designed for efficient analysis of solids and liquids without the need for sample preparation. Featuring a robust monolithic diamond crystal edged in stainless steel, it allows for reliable FT-IR analysis through its ergonomic one-finger clamp mechanism and temperature control via OPUS software. Despite some cosmetic wear, the unit powers on and performs basic tests. It offers flexibility with the ALPHA QuickSnap module system, ensuring easy exchange and automatic recognition by the spectrometer. Ideal for laboratories requiring precise FT-IR measurement of a wide range of materials, the module's high-capacity pressure control accommodates even hard samples.
Technician comment
Item need module for fully test. Looks in excellent conditions. See photos
Key Features
- Platinum-ATR QuickSnap sampling module
- Diamond ATR-crystal with single reflection
- Temperature control: room temp to 120°C
- Easy module exchange with automatic recognition

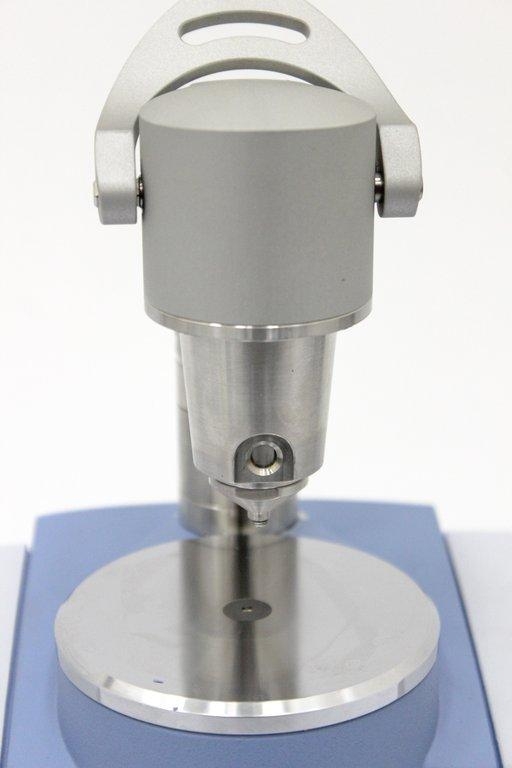

- Ergonomic one-finger clamp mechanism
- Spectral range: 350-8000 cm-1
Specifications
- Monolithic diamond ATR-crystal
- Trough-like stainless steel work disk
- Automatic recognition and parameter loading
- Pressure control and hygienic design
- Max sample height: 20mm
- 360° rotation of pressure applicator
Weight
Imperial: 7.2 Pounds
Metric: 3.27 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 8.4 lb x 13.2 lb
Metric: 24.38 cm x 21.34 cm x 33.53 cm
Harmonized Code
90273000
Harmonized Code Details
90273000 - Spectrometers, spectrophotometers, and similar instruments. This code is appropriate as it aligns with the description of FT-IR spectrometry technology.
