Cole Parmer 77420-18 Peristaltic Pump Digital 26000 ml/min, US Plug
Same item available with different options / conditions
- Make Cole Parmer
- Hertz 50Hz/60Hz

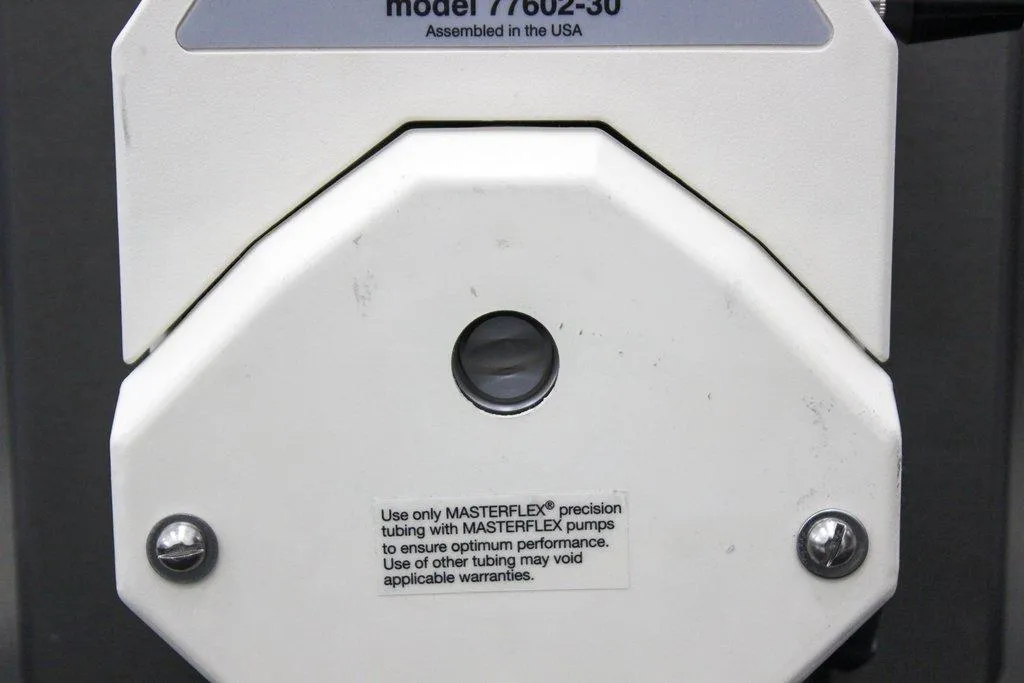

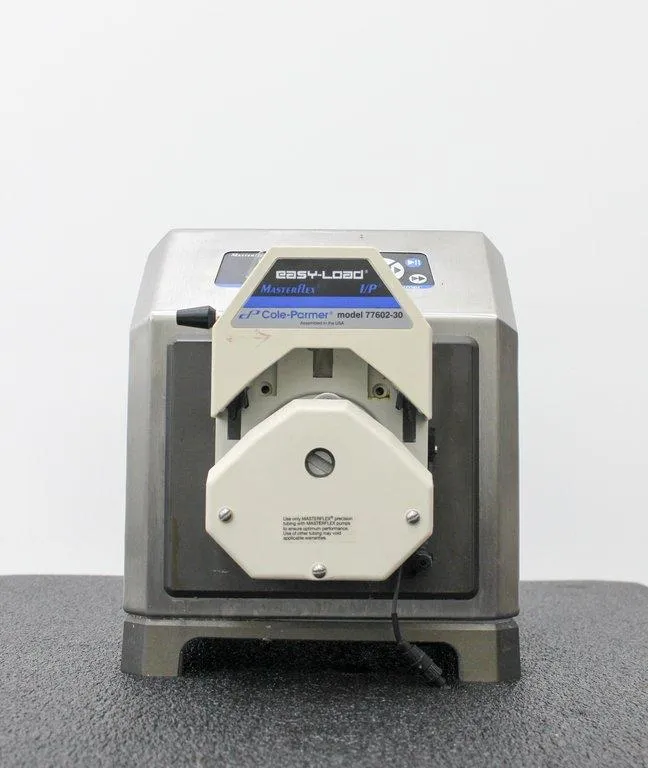

- Model 77420-18 MasterFlex I/P Digital Perisaltic Pump With 77602-30 Head

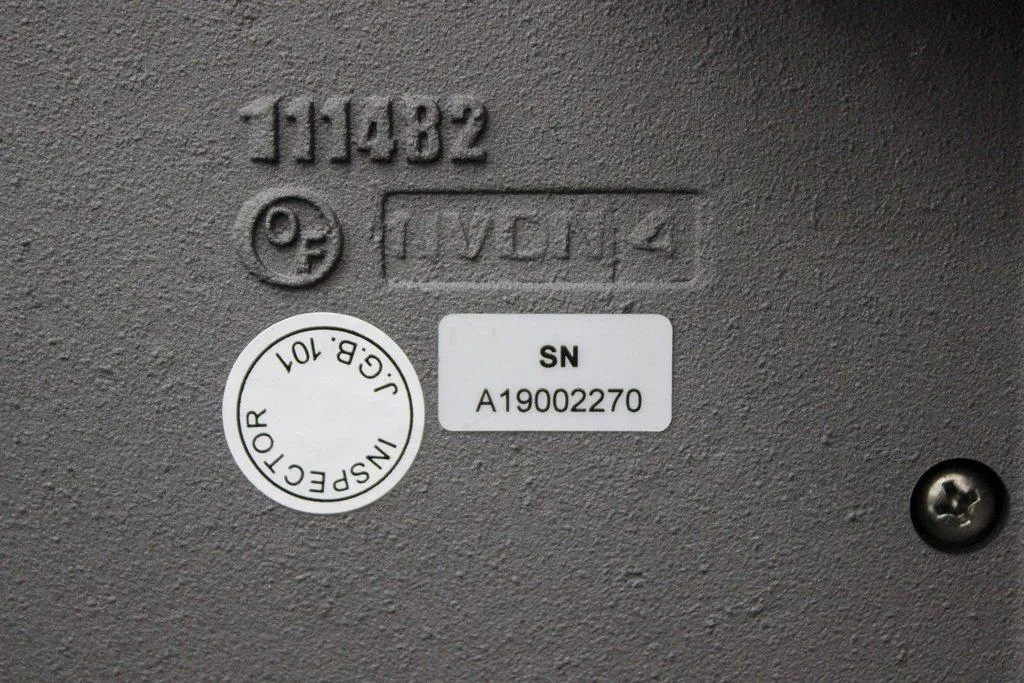

- Serial A19002270
- Weight 54.0 Lb
- Voltage 55974cbe37
- Includes Power cord included |
- Warranty 30-Day Warranty On Part

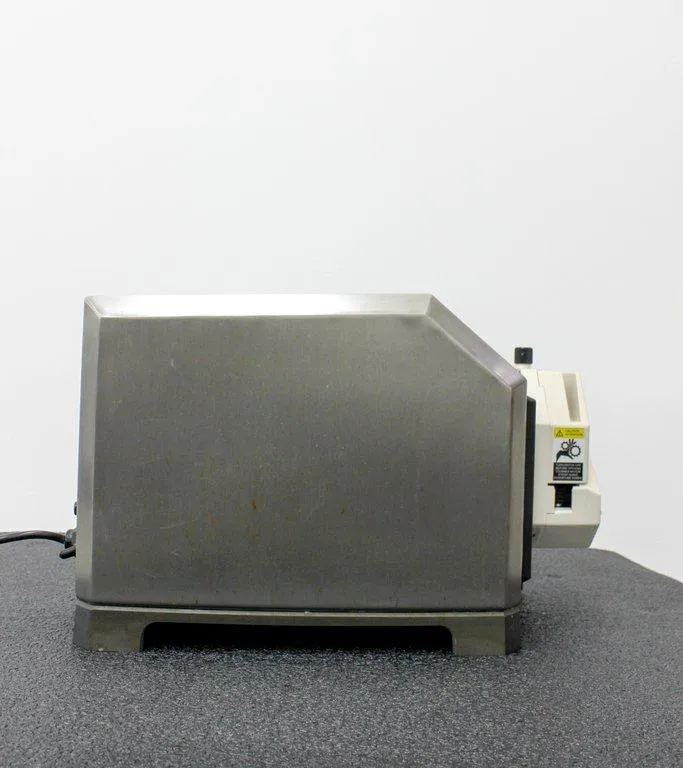

- Dimensions 26.0in x 13.0in x 17.0in
- Shipping Type FedEx Ground
- Item Condition Good
- Manufacturing Date Does Not Apply

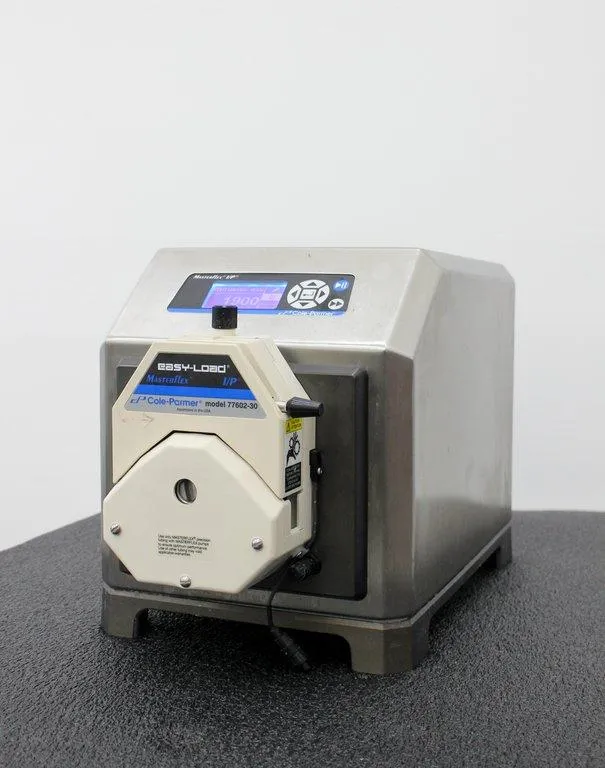

The Cole Parmer 77420-18 MasterFlex I/P Digital Peristaltic Pump with 77602-30 Head, originating from the United States, is in very good condition, showing minor cosmetic wear from previous use. Tested to ensure it functions as intended, this pump is ideal for pharmaceutical, biotech, and food and beverage applications. Featuring a flow rate of 0.0006 to 26 LPM with I/P tubing, the digital interface displays pump performance and allows operation in continuous run, timed dispense, or volume dispense modes. Remote control through analog communication provides added flexibility. Its rugged housing is NEMA 4X (IP66) rated, constructed with a 316 stainless steel housing, and enhanced with EtherNet/IP remote communication. This pump is brushless, maintenance-free, and offers precise speed control. Key specifications include a max RPM of 650, compatibility with I/P 26, 73, and 82 tubing, with adjustable occlusion and automatic tubing retention, ensuring reliable performance across various applications.
Key Features
- Flow rate from 0.0006 to 26 LPM

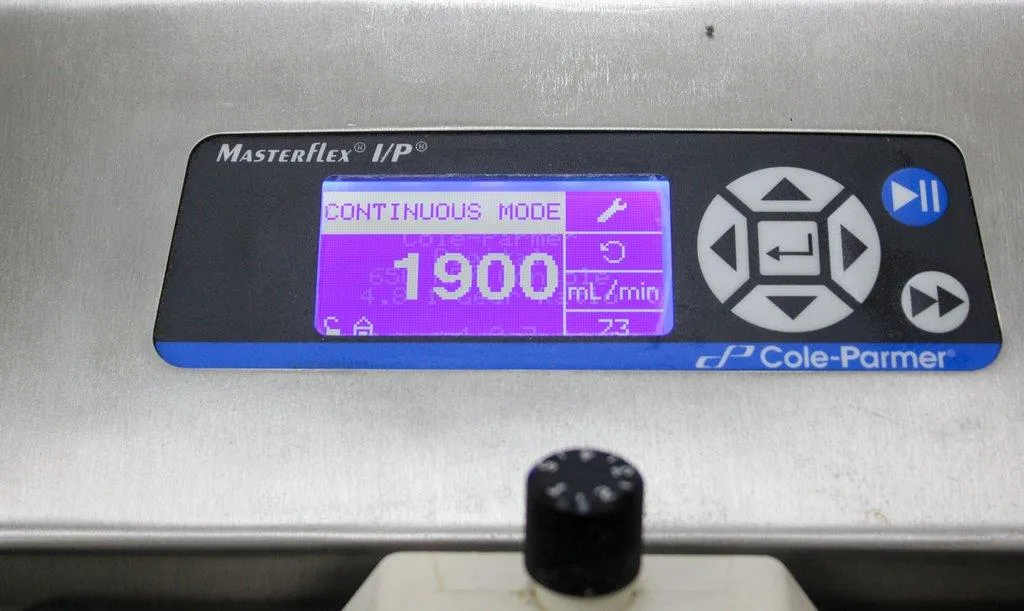

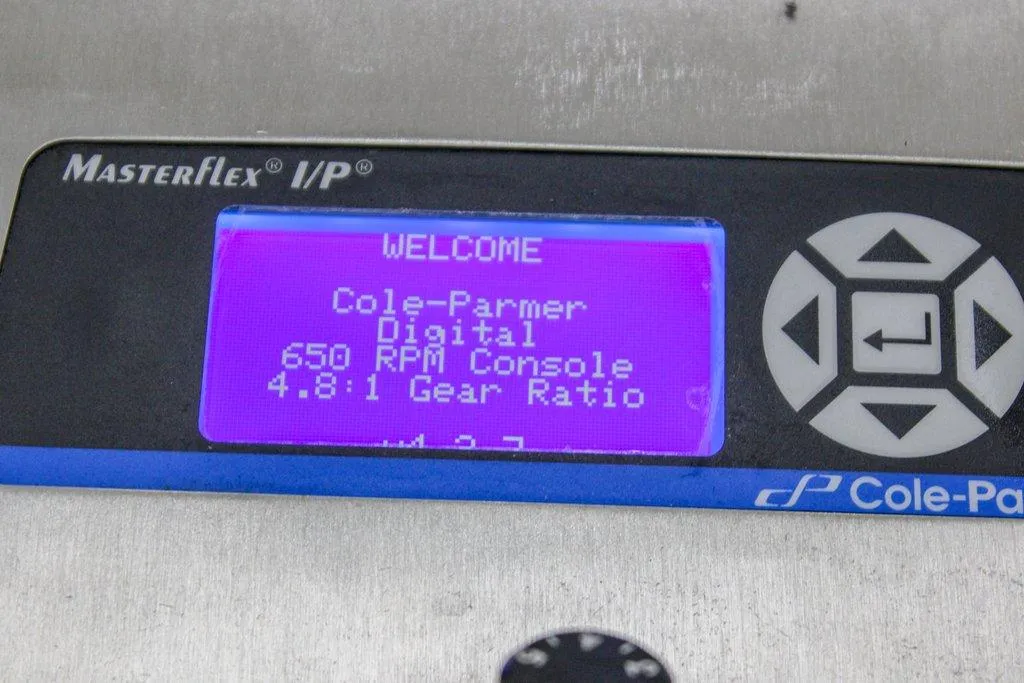

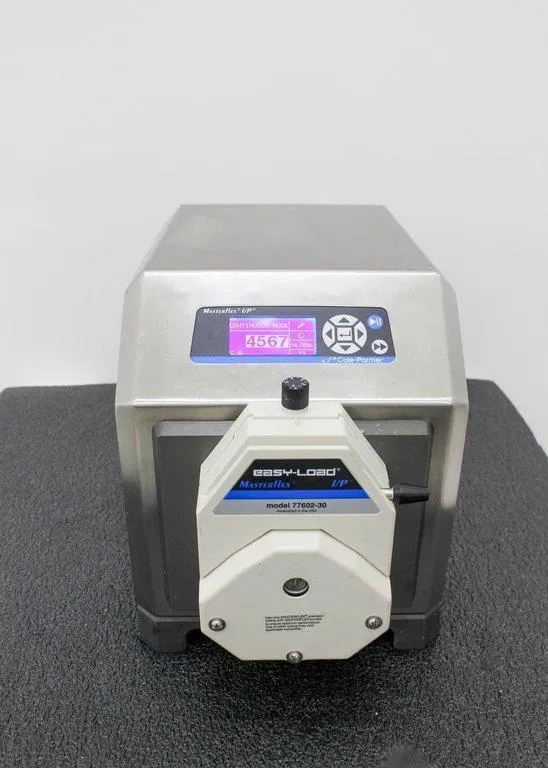

- Digital interface with LCD display
- Remote control via analog communication
- 316 stainless steel housing, NEMA 4X (IP66) rated
- Brushless motor with ±0.1% speed control
- Enhanced with EtherNet/IP remote communication
- Open-head sensor for user safety
- Compatible with I/P 26, 73, and 82 tubing
Specifications
- Flow rate: 0.0006 to 26 LPM with I/P tubing
- Digital interface with LCD for performance and mode display
- Remote control: Voltage, current, and contact closure
- Operational modes: Continuous run, timed dispense, volume dispense
- Antidrip function for dispensing accuracy
- Motor: Brushless, maintenance-free with ±0.1% speed control
- Housing: 316 stainless steel, anodized aluminum base
- Max RPM: 650, Variable speed control
- Tubing compatibility: I/P 26, I/P 73, I/P 82
- Drive IP rating: IP 66 (washdown capable)
- Remote I/O: EtherNet/IP, Bluetooth LE, USB
- Max flow rate: 26000 ml/min, Adjustable occlusion
- Pump series: I/P, Reversible motor

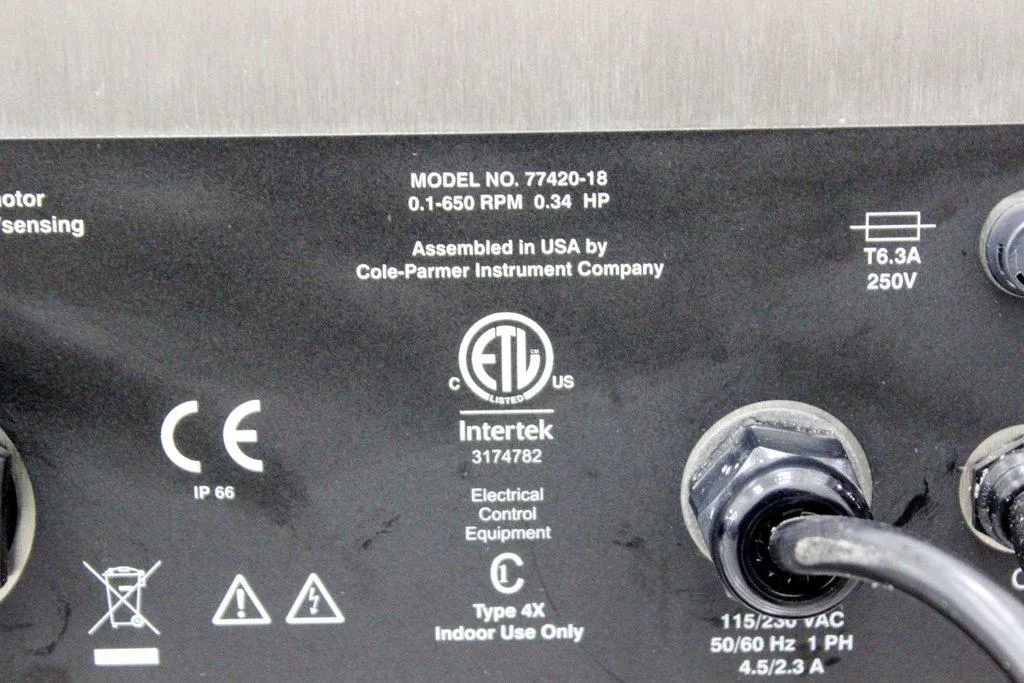

- Electrical: 115V-230V, 50/60Hz, 4.5 A
Weight
Imperial: 54.0 Pounds
Metric: 24.49 Kilograms
Shipping Dimensions
Imperial: 26.4 lb x 13.2 lb x 16.8 lb
Metric: 67.06 cm x 33.53 cm x 42.67 cm
Harmonized Code
841330
Harmonized Code Details
841330: Positive displacement pumps for liquids, whether or not fitted with a measuring device; relevant due to the pump's design for precise liquid handling in industrial applications.
