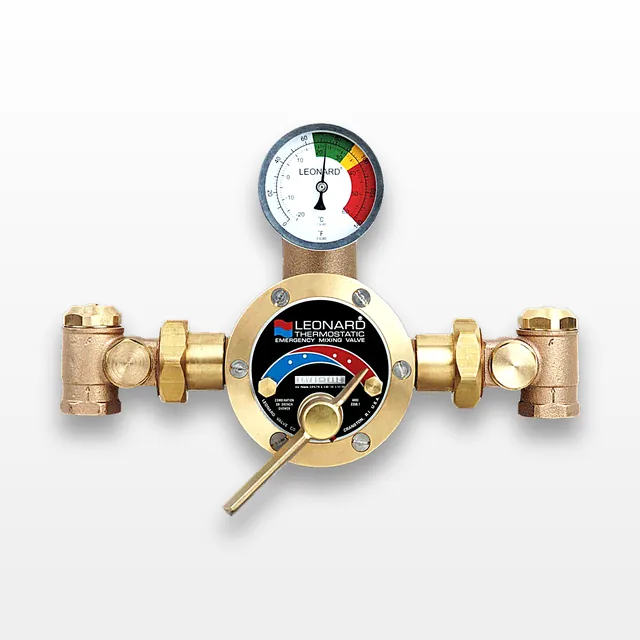

Leonard TM-600-LF Shower Valve with ECO-MIX DURA-trol for Precise Temperature Control
Leonard
Details
-
CategoryMiscellaneous
-
Dimension14.0in x 17.0in x 10.0in
-
SerialEMV658683LF
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Leonard LF Single Drench Shower Valve with model TM-600-LF, featuring the advanced ECO-MIX DURA-trol solid bimetal thermostat, offers precise control over hot and cold water intake. This highly responsive system automatically adjusts to temperature and pressure fluctuations and prevents damage from extreme temperatures. Installed with a locking temperature regulator set at 85ºF, this valve is suitable for applications with a recommended hot inlet temperature of 140°F. It features a robust mixing valve that ensures safety by shutting down in the event of cold water supply failure, while offering a 20 GPM cold water bypass during hot water supply disruptions. Boasting a rough bronze finish and integral wall support, the valve's inlets and outlet come with union angle check stops and an adjustable high temperature limit stop set for 90°F, ensuring constant output. Designed for facilities requiring stringent water control, it meets Low Lead requirements, making it both efficient and compliant.
Key Features
- ECO-MIX DURA-trol solid bimetal thermostat
- Automatically adjusts to temperature fluctuations
- Locking type temperature regulator set at 85ºF
- 20 GPM cold water bypass capability
- Adjustable high temperature limit stop at 90°F
- Rough bronze finish
- 3/4” top or bottom inlets and 1” top outlet
- Meets Low Lead requirements
Specifications
- Cold Water Bypass: 20 GPM
- Inlets: 3/4"
- Maximum Flow: 58 GPM
- Minimum Flow: 3 GPM
- Outlet: 1"
- Overall Depth: 9"
- Overall Width: 15"
- Options: Chrome Plated Finish, Inlet Thermometers
- Dial thermometer range: 0 to 140ºF (-10 to 60ºC)
Weight
Imperial: 21.6 Pounds
Metric: 9.8 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 20.4 lb x 12.0 lb
Metric: 42.67 cm x 51.82 cm x 30.48 cm
Harmonized Code
84818011
Harmonized Code Details
84818011 - Thermostatic mix group faucet or mixing valve; This code is selected as it caters specifically to thermostatic mixing valves, aligning with the product's design and function.
