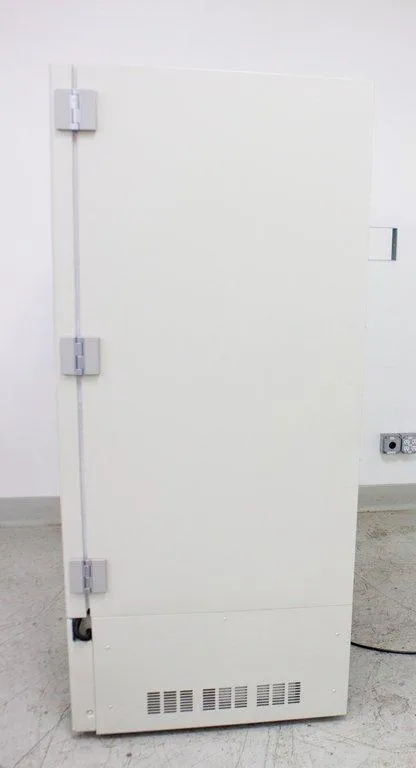

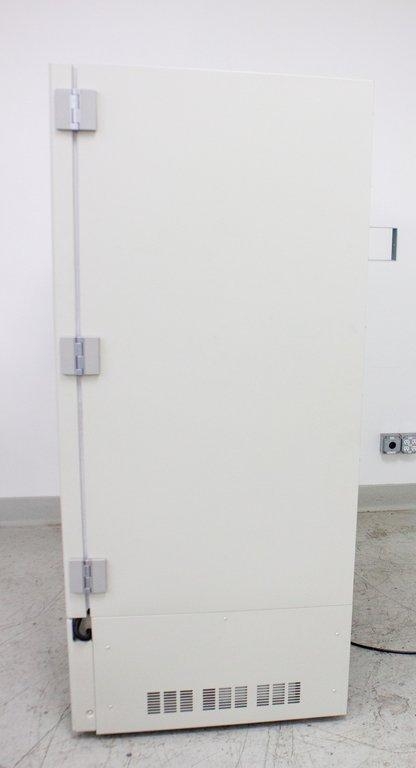

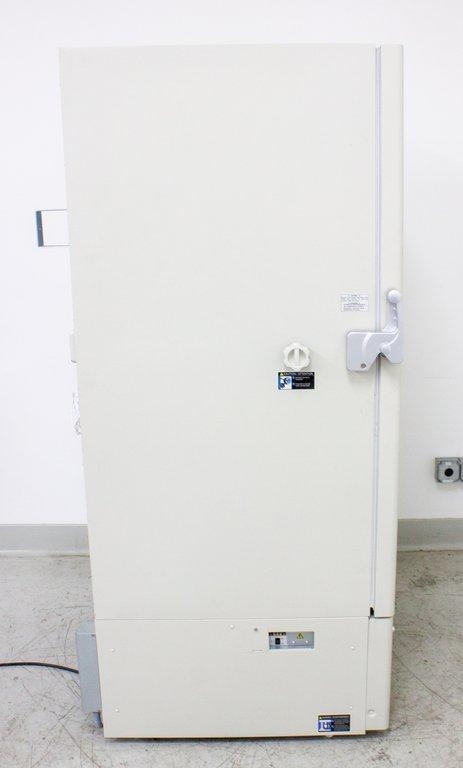

Panasonic MDF-U76VC-PA Ultra Low Freezer -86C 25.7 cu.ft. 220V 60Hz
Same item available with different options / conditions
- Make Panasonic
- Hertz 60Hz US

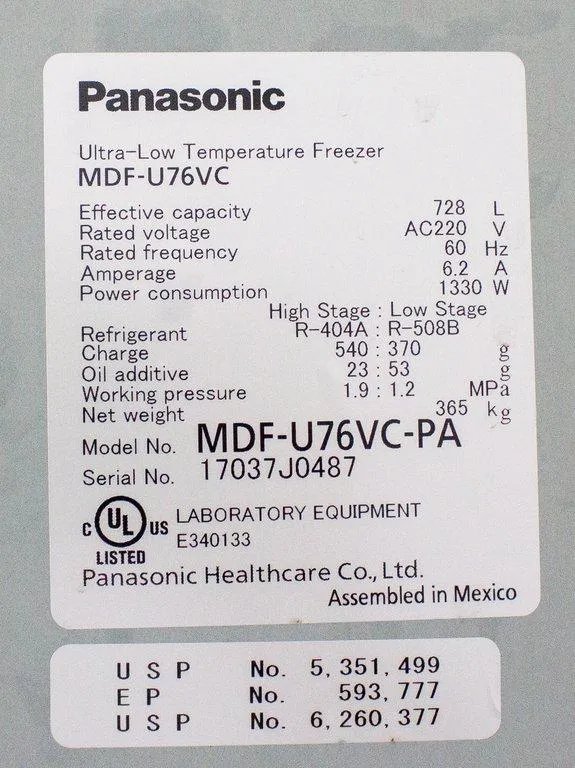

- Model MDF-U76VC-PA
- Serial 17037J0487
- Weight 720.0 Lb
- Voltage 220V
- Includes Power cord included |
- Warranty 30-Day Warranty On Part
- Dimensions 47.0in x 48.0in x 95.0in
- Shipping Type Freight
- Item Condition Excellent
- Manufacturing Date Does Not Apply

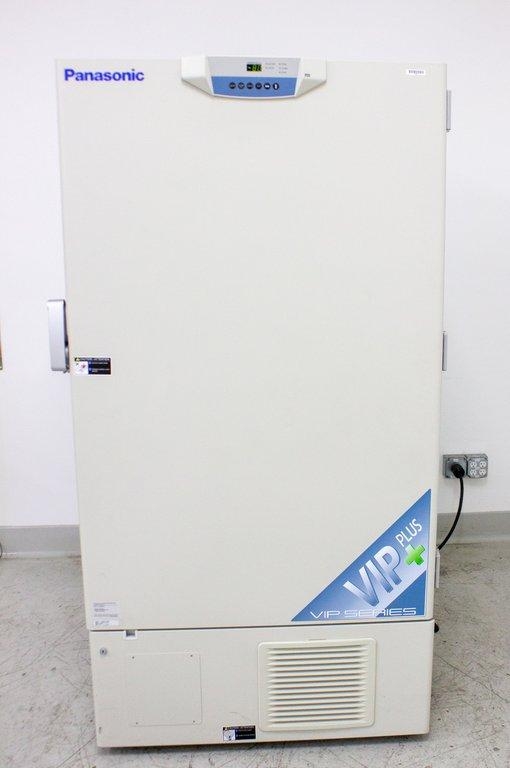

The Panasonic MDF-U76VC-PA VIP Plus Ultra Low Temperature Upright Freezer offers an impressive 25.7 cubic feet (728 L) capacity, ideal for safely storing biologicals, such as DNA and RNA samples. Engineered with a robust cascade refrigeration system, this cold storage unit balances temperature performance and energy management for superior reliability. With a temperature control range from -50C to -86C, it ensures sample integrity even in demanding laboratory conditions. The advanced cabinet design incorporates VIP Plus insulation panels, maximizing storage space while minimizing energy loss. Additionally, an integrated microprocessor-based controller with LED display offers precision monitoring and control, complete with alarms for power failure, temperature variance, and door status. Constructed from painted steel with insulated inner doors and ergonomic latches, this freezer combines durability with ease of access, making it a trustworthy choice for research and clinical applications.
Key Features
- Ultra-low temperature range: -50C to -86C
- Large capacity: 25.7 cu.ft. (728 L)
- VIP Plus Vacuum Insulation Panels for energy efficiency
- Dependable cascade refrigeration system

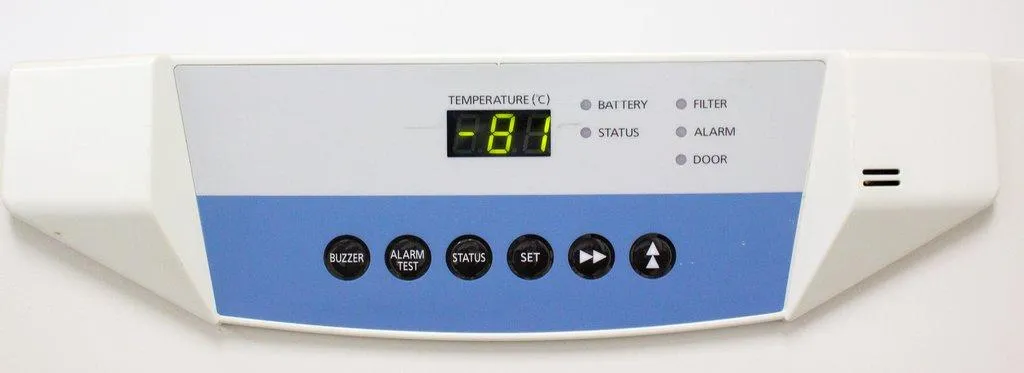

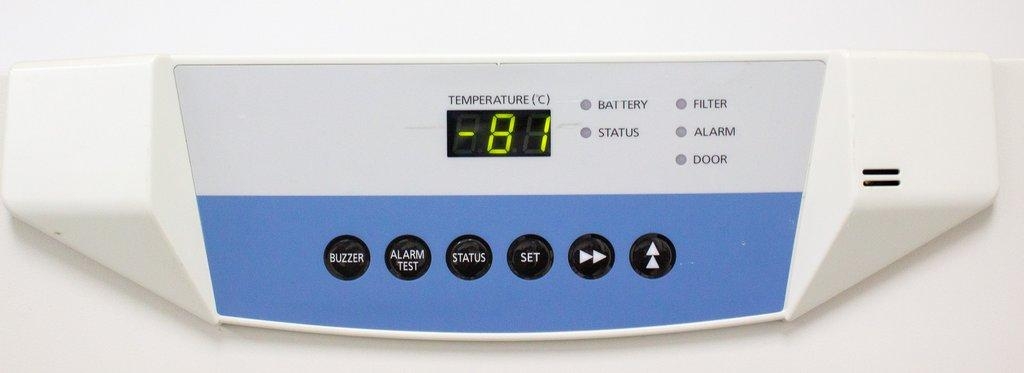

- Microprocessor-based controller with LED display

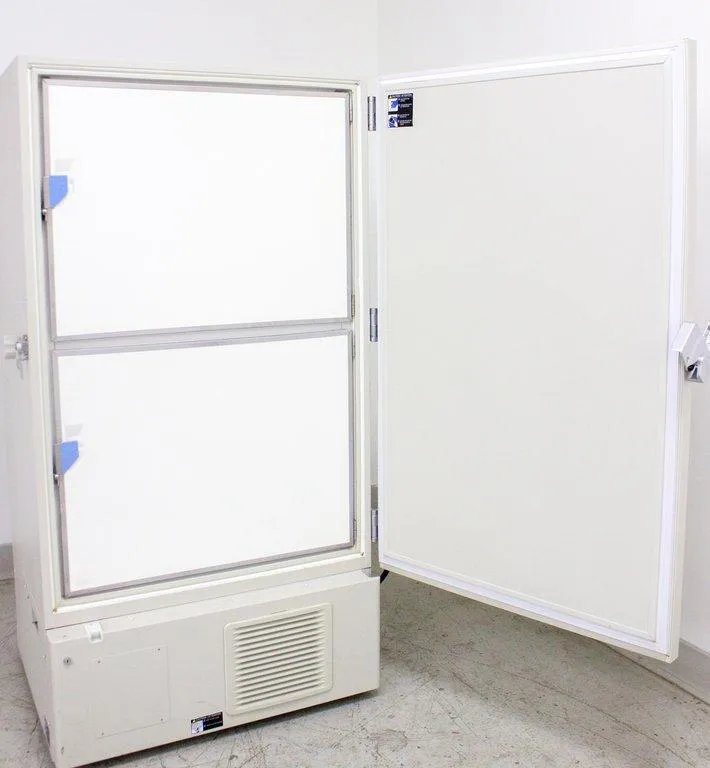

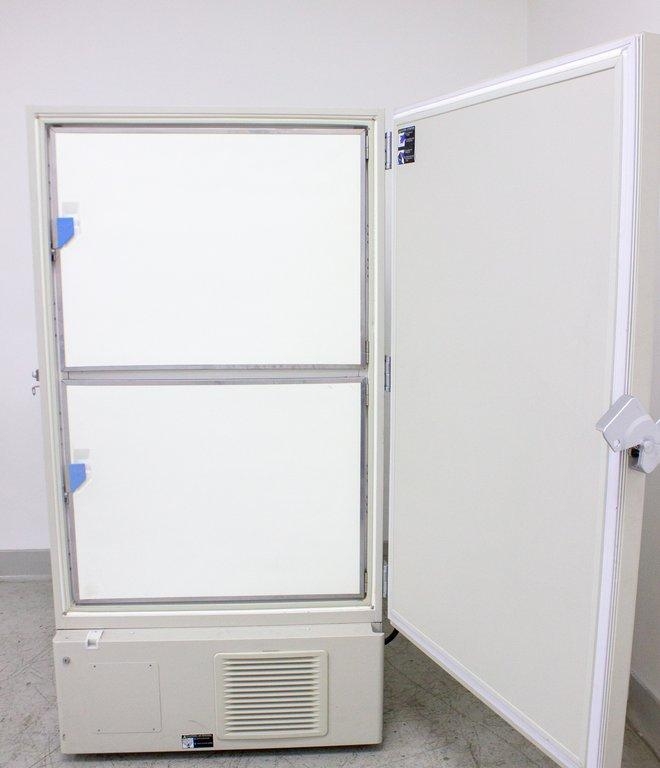

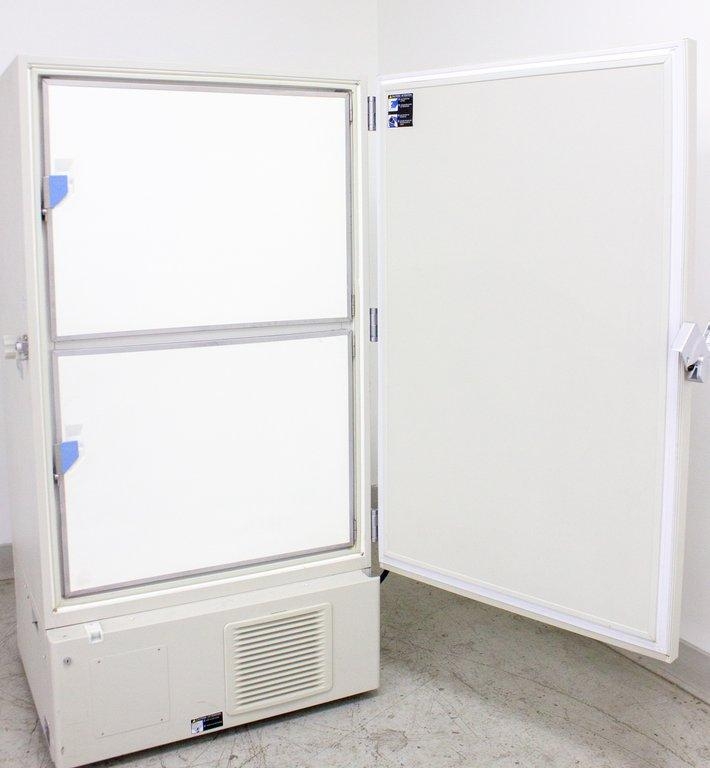

- Insulated inner doors with ergonomic latches
- High temperature uniformity: +/- 5C

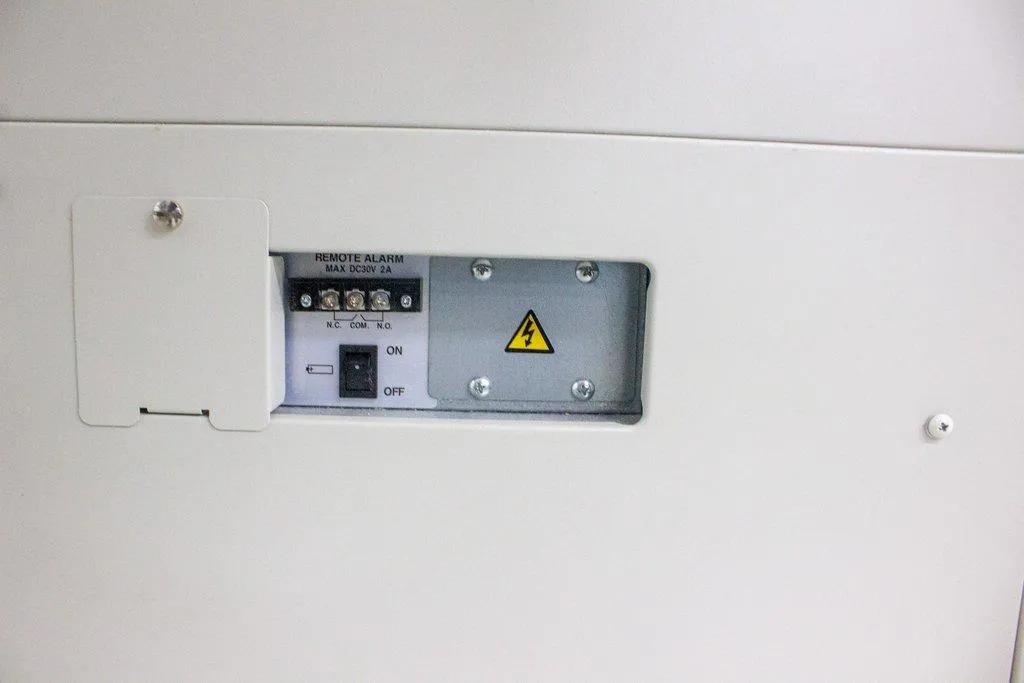

- Alarm systems for power failure, temperature, and door status
Specifications
- Temperature Setting Range: -50C to -90C

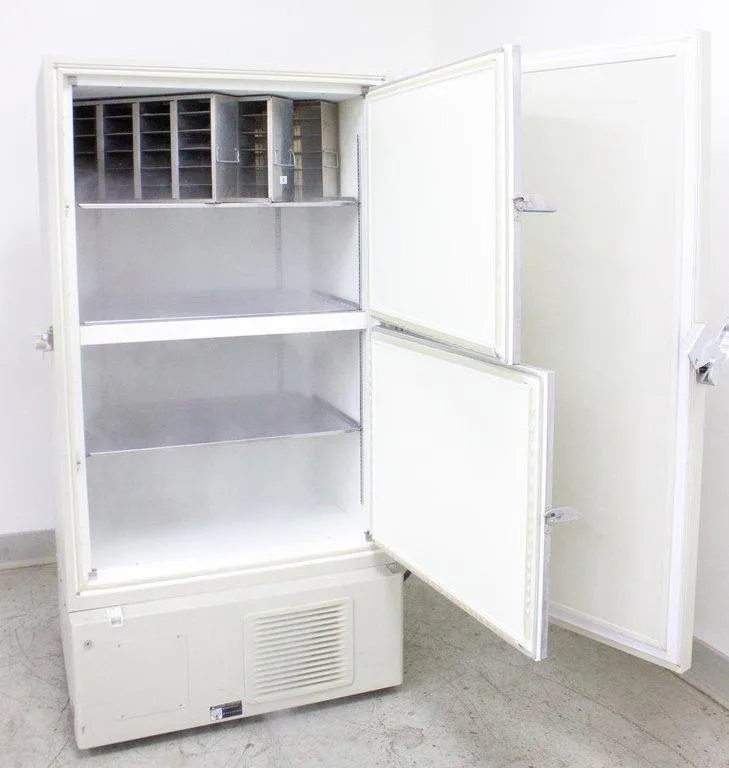

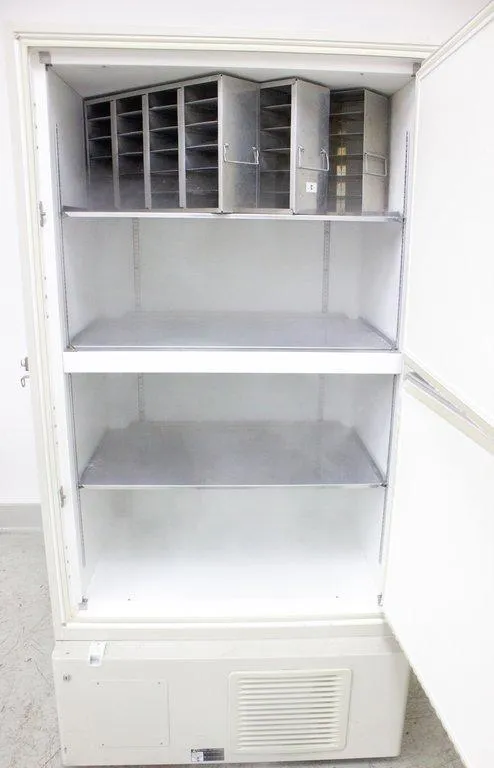

- Capacity: 576 x 2" boxes or 384 x 3" boxes
- Dimensions: External - 39.8 x 38.0 x 78.3 inches (1010 x 966 x 1990 mm)
- Net Weight: 816 lbs (370 kg)
- Cooling Performance: -86C
- Compressors: (1) 750 High-Stage and (1) 1100 Low-Stage
- Refrigerant: CFC-free R-404A and R-508B
- Door Locks: Standard
- Shelf Load: Max 110 lbs per shelf
- Noise Level: 49 dB(A)
Weight
Imperial: 720.0 Pounds
Metric: 326.59 Kilograms
Shipping Dimensions
Imperial: 46.8 lb x 48.0 lb x 94.8 lb
Metric: 118.87 cm x 121.92 cm x 240.79 cm
Harmonized Code
841830
Harmonized Code Details
841830 - Freezers of the household type: This code includes appliances designed for freezing storage applications, reflecting the Panasonic MDF-U76VC-PA's purpose as a commercial, large-capacity freezer for laboratory use.
