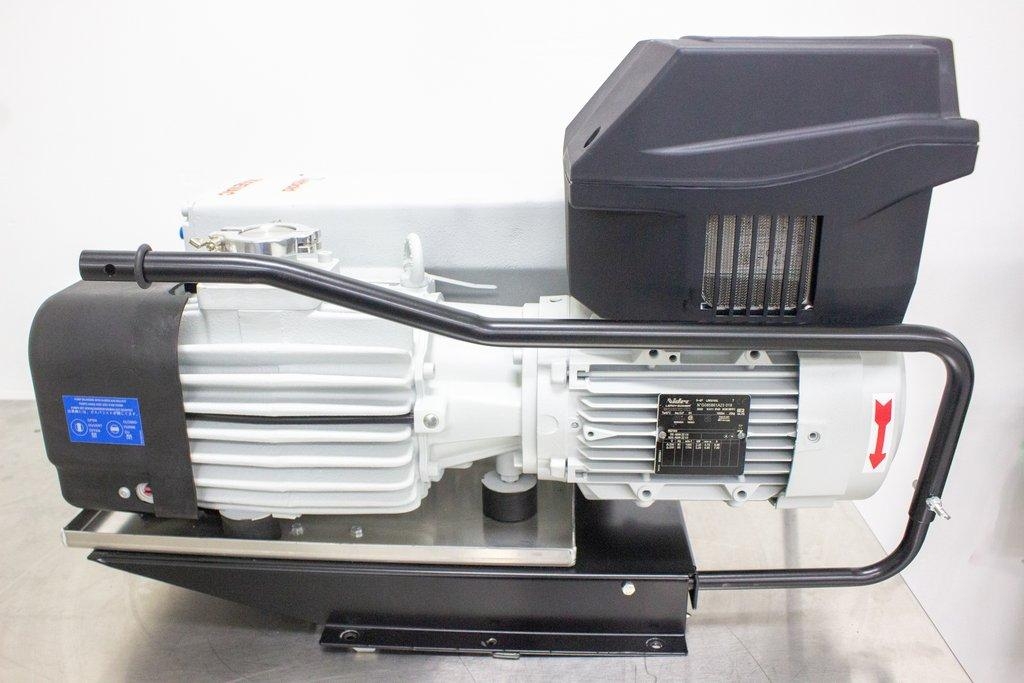

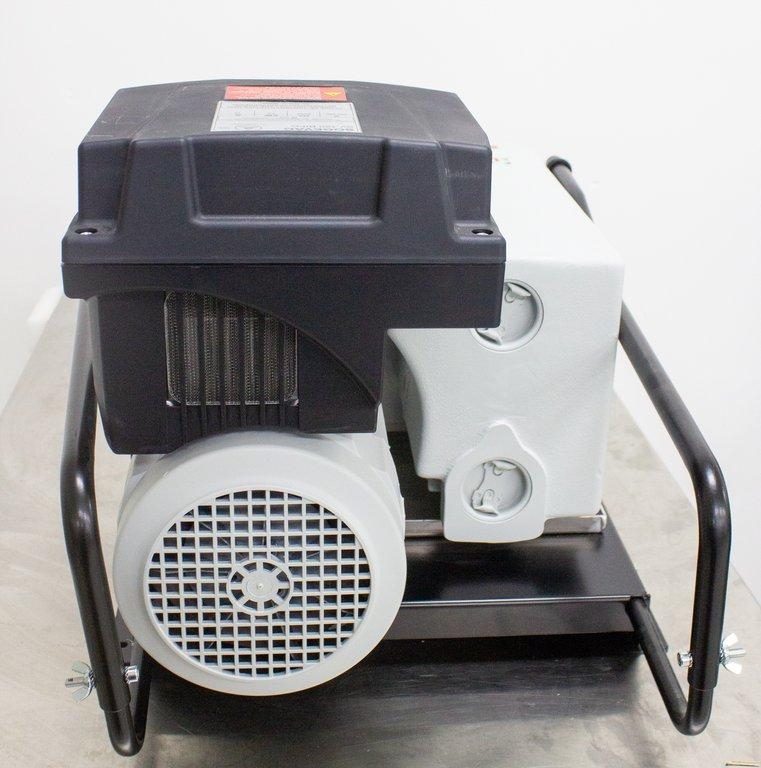

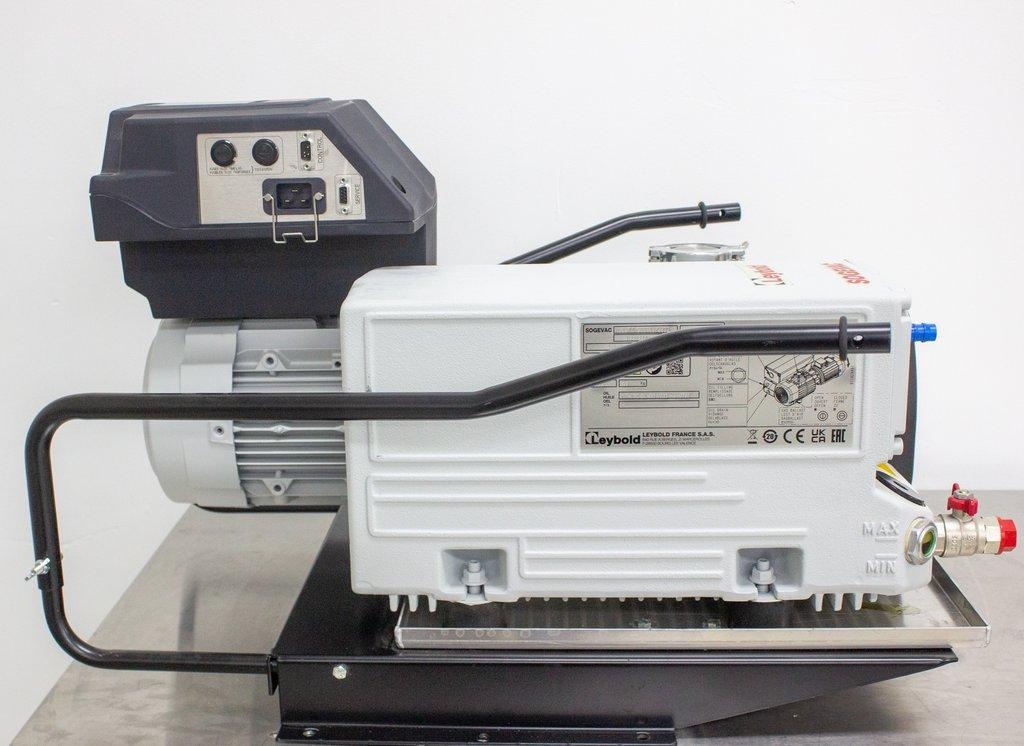

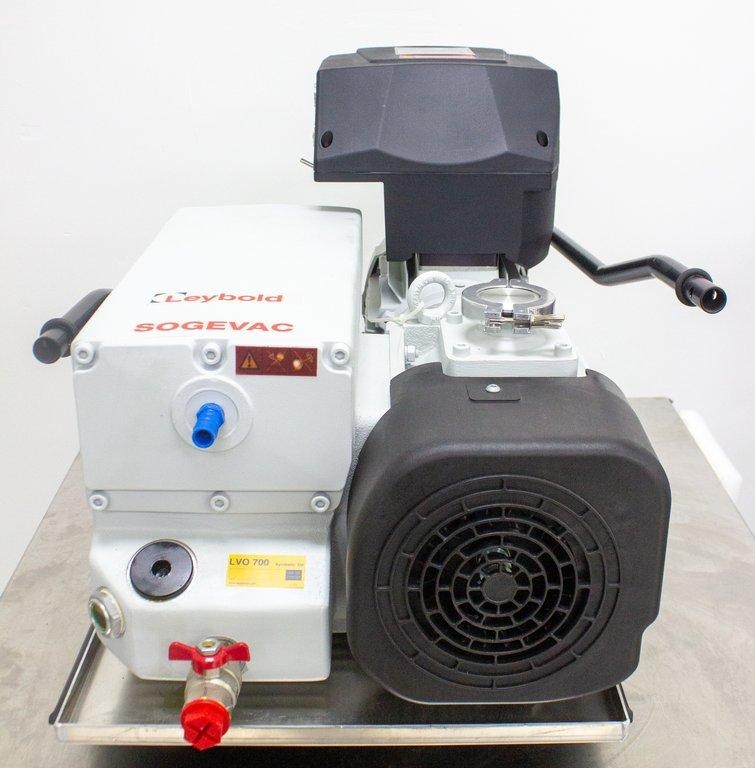

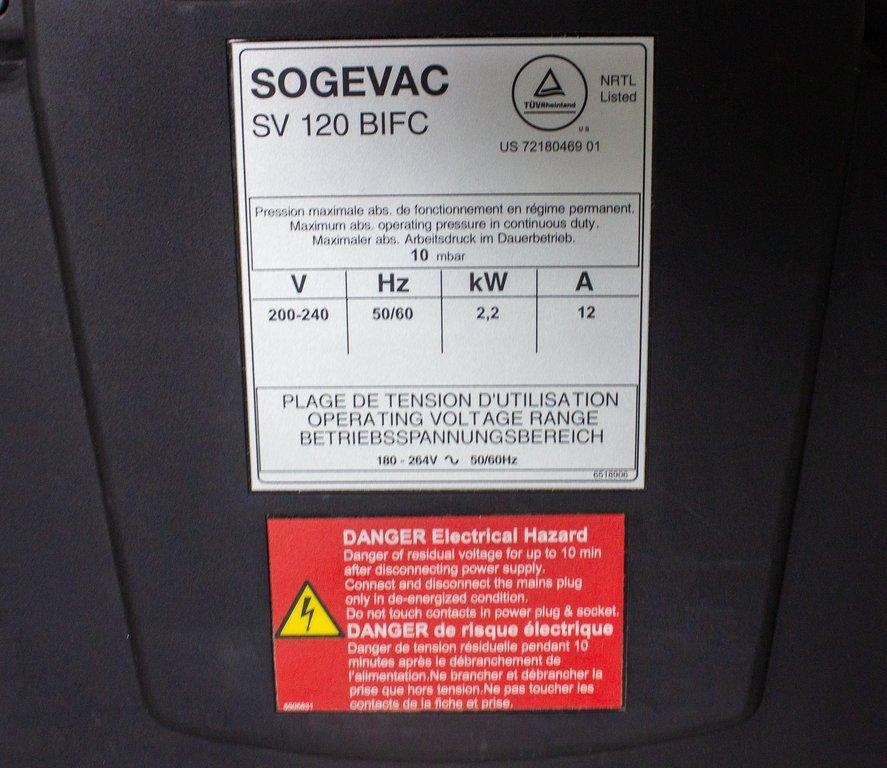

Leybold Sogevac SV 120 BIFC Single-Stage Oil-Sealed Rotary Vane Pump
Leybold Sogevac
Details
-
CategoryPump
-
Dimension17.0in x 32.0in x 19.0in
-
Serial31002844769
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz200-240V / 50Hz/60Hz
Description
The Leybold Sogevac SV 120 BIFC is a reliable single-stage oil-sealed rotary vane vacuum pump designed for pumping inert gases in the range of rough vacuum, from atmospheric pressure to the ultimate pressure of the pump. This model is in excellent condition with minimal use and exhibits little to no cosmetic damage. The design features a rotor with three slots containing sliding vanes, which separate the interior into three chambers. Gas is sucked into the inlet chamber, compressed, and expelled out the exhaust valve. The injected oil ensures air-tightness, lubrication, and cooling. This model features a gas ballast valve for handling condensable vapors, an anti-suckback valve to prevent backflow, and a frequency converter for consistent pumping speed. It operates on a voltage of 200-240V at 50/60Hz and achieves a noise level of ≤ 61 dB(A).
Technician comment

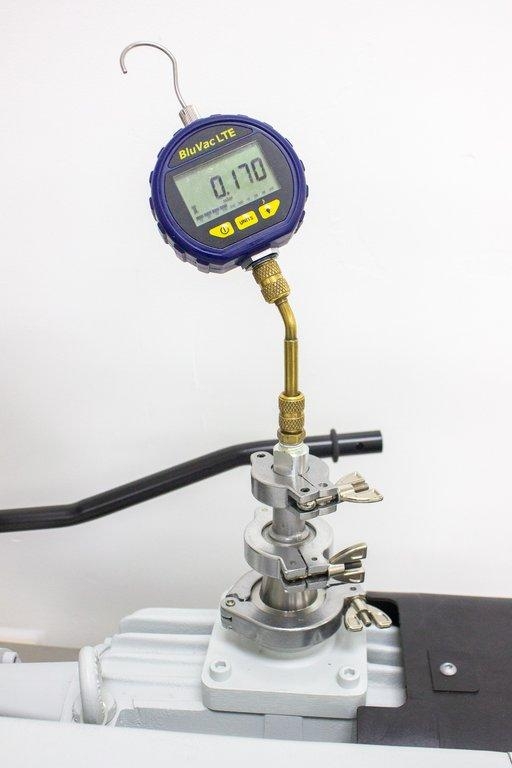

0.170 Mbar
Key Features
- Single-stage oil-sealed rotary vane design
- Designed for rough vacuum, inert gas pumping
- Gas ballast valve for condensable vapor management
- Anti-suckback valve to prevent oil backflow
- Frequency converter for constant pumping speed
- Low noise level ≤ 61 dB(A)
- Operating voltage: 200-240V at 50/60Hz
Specifications
- Nominal pumping speed: ≥ 147 m3/h
- Pumping speed at 2 mbar using 50 KF inlet: ≥ 100 m3/h
- Ultimate partial pressure without gas ballast: ≤ 0.2 mbar
- Ultimate total pressure with small gas ballast: ≤ 1.0 mbar
- Water vapor tolerance: approx. 10 mbar

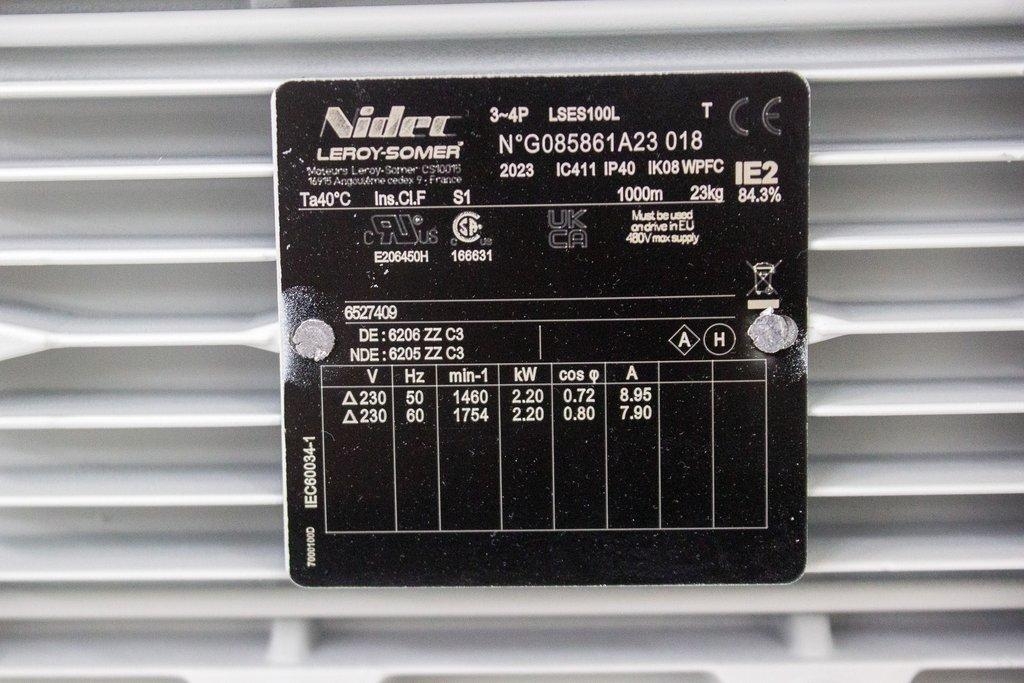

- Motor power: 2.2 kW
- Ambient temperature: 18 ... 40°C
Weight
Imperial: 261.6 Pounds
Metric: 118.66 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 38.4 lb x 22.8 lb
Metric: 51.82 cm x 97.54 cm x 57.91 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Vacuum pumps; air or gas compressors and fans, blower or suction type, with or without bellows. This classification is appropriate as the product is a type of vacuum pump for gases.
