Thermo Savant SpeedVac SPD140DDA Vacuum Concentrator Nitrogen Evaporator
- Make Thermo Scientific
- Hertz 60Hz US

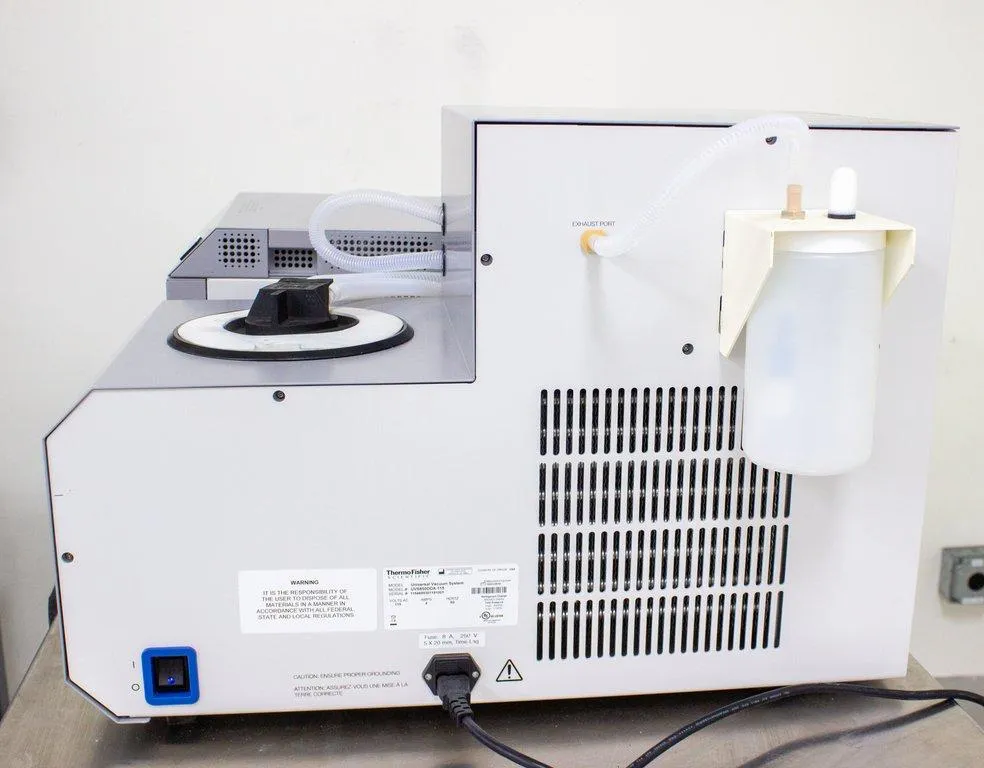

- Model Savant SpeedVac SPD140DDA Vacuum Concentrator & UVS850DDA Universal Vacuum System

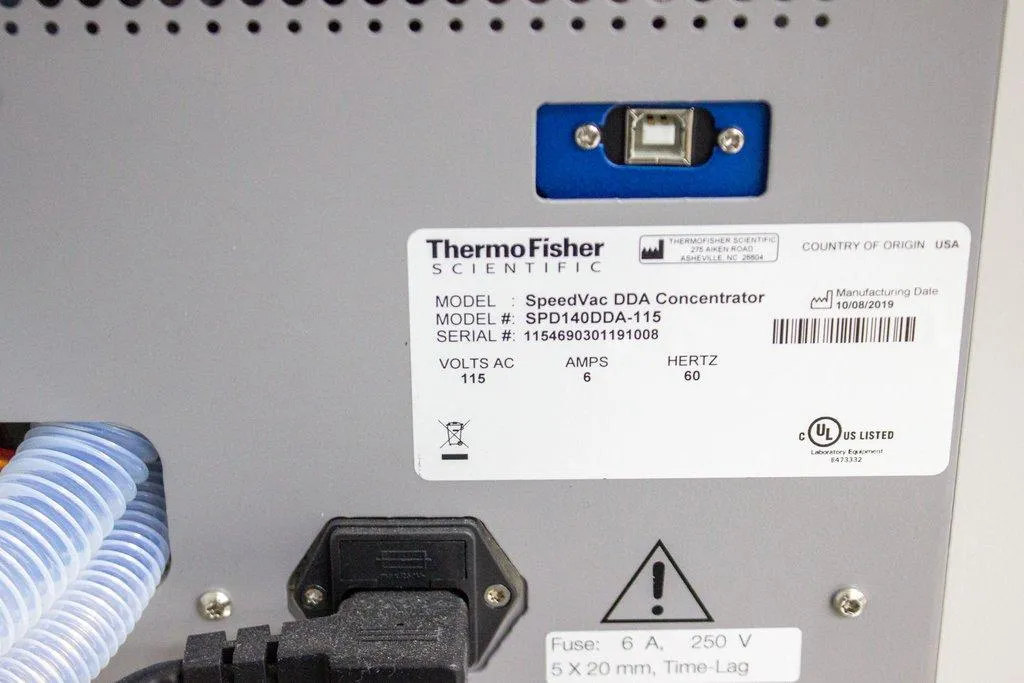

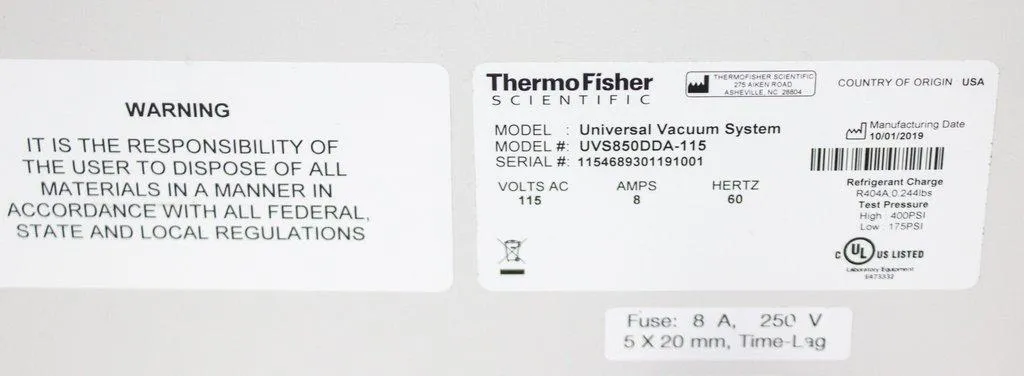

- Serial 1154689301191001 &1154690301191008
- Weight 230.0 Lb
- Voltage 120V
- Includes Power cord included |
- Warranty 30-Day Warranty On Part
- Dimensions 32.0in x 38.0in x 22.0in
- Shipping Type Freight
- Item Condition Excellent
- Manufacturing Date Does Not Apply

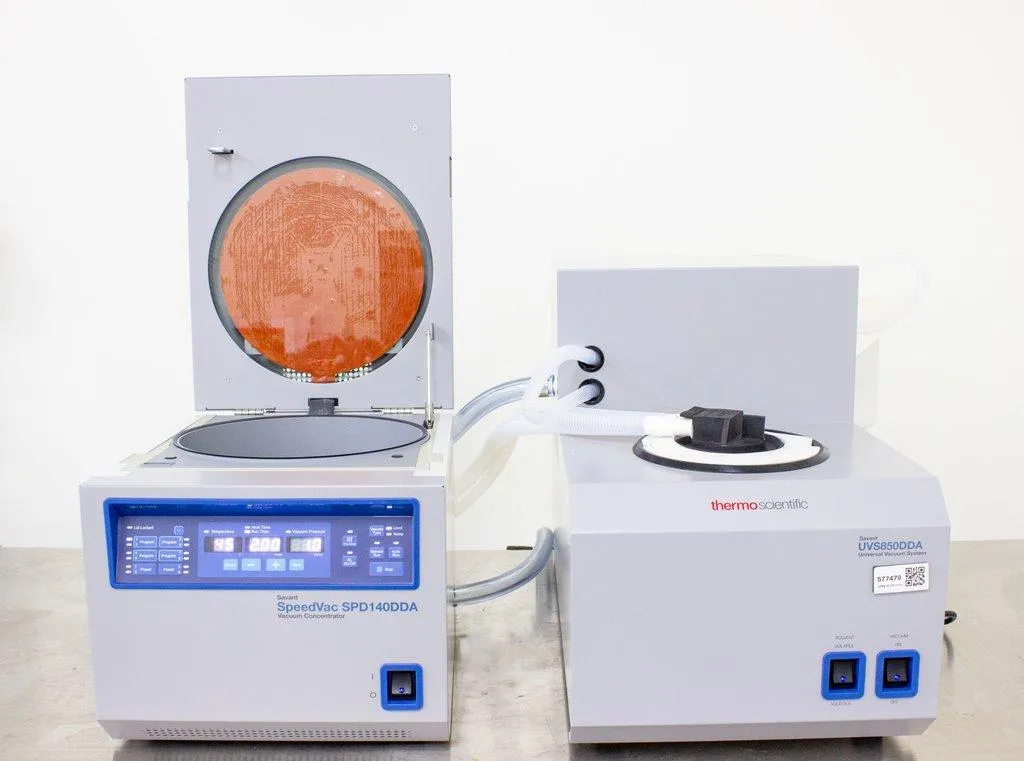

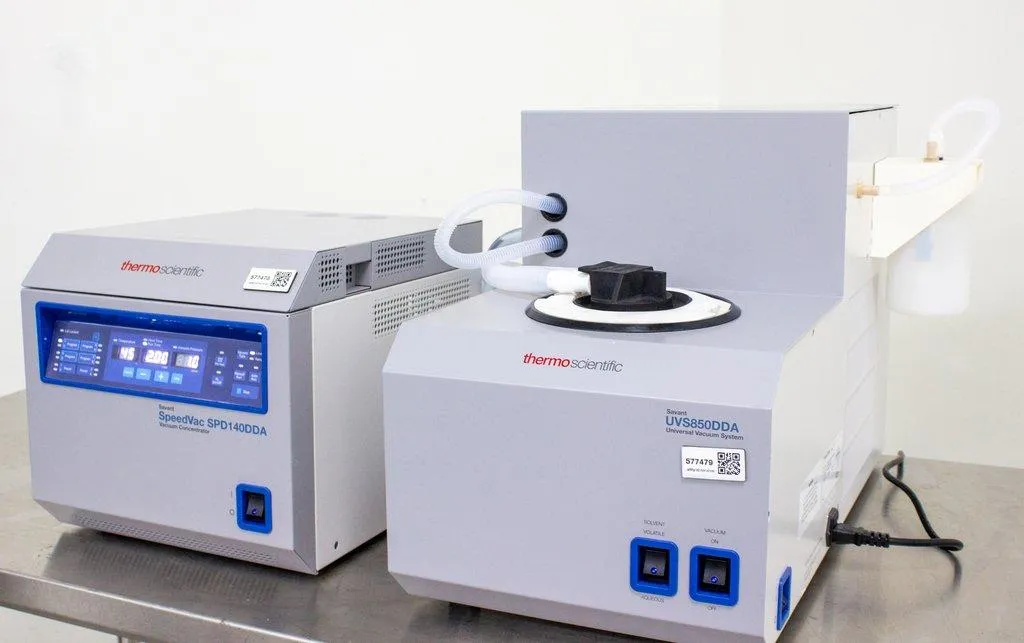

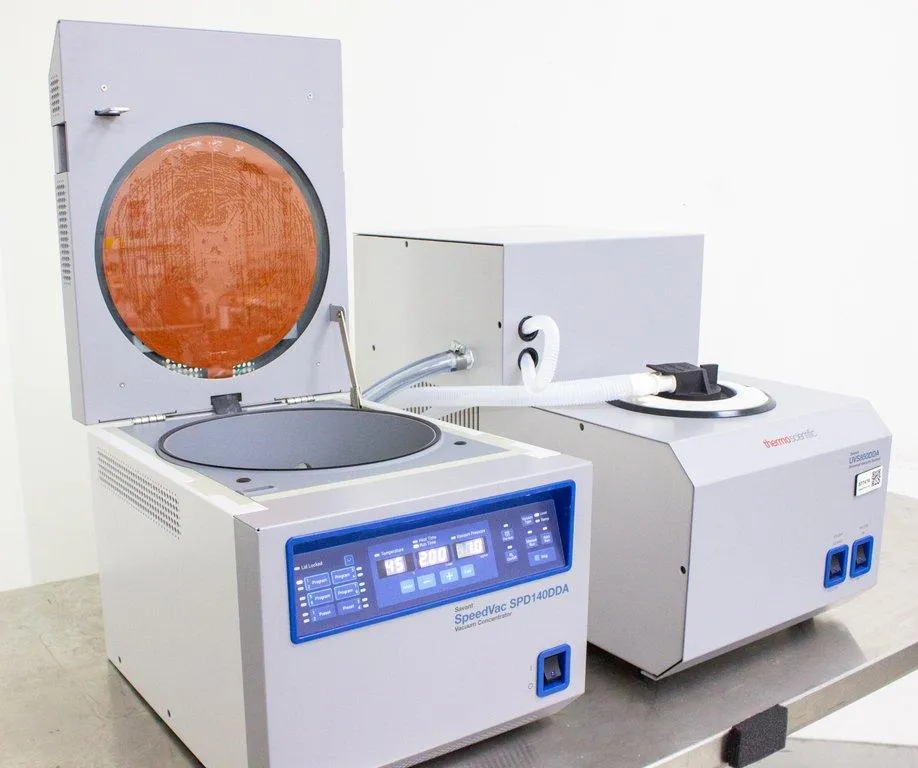

Discover the Thermo Savant SpeedVac SPD140DDA Vacuum Concentrator and UVS850DDA Universal Vacuum System, a powerful combination from 2023 designed to streamline your laboratory processes. The SPD140DDA is equipped with radiant lamps within the chamber and a heated lid that allows processing of high boiling point solvents such as DMSO and DMF. It features independent timers for both heat and run functions, an audible alarm for operation completion, and a built-in vacuum gauge. The unit's wider vapor port and tubing contribute to reduced drying times, while an adjustable vacuum level prevents solvent bumping. The -5°C Cold Trap is specifically designed for trapping high boiling point solvents efficiently. The UVS850DDA includes a three-stage, high-efficiency oil-free pump with a maximum vacuum of <0.6 torr, capable of managing 36 liters per minute. This system utilizes PTFE tubing and features the VaporNet technology, enhancing molecule retention in the cold trap. Ideal for labs seeking efficient drug development or life sciences research solutions.
Key Features
- Radiant lamps in chamber
- Heated lid for high boiling points
- Independent heat/run timers

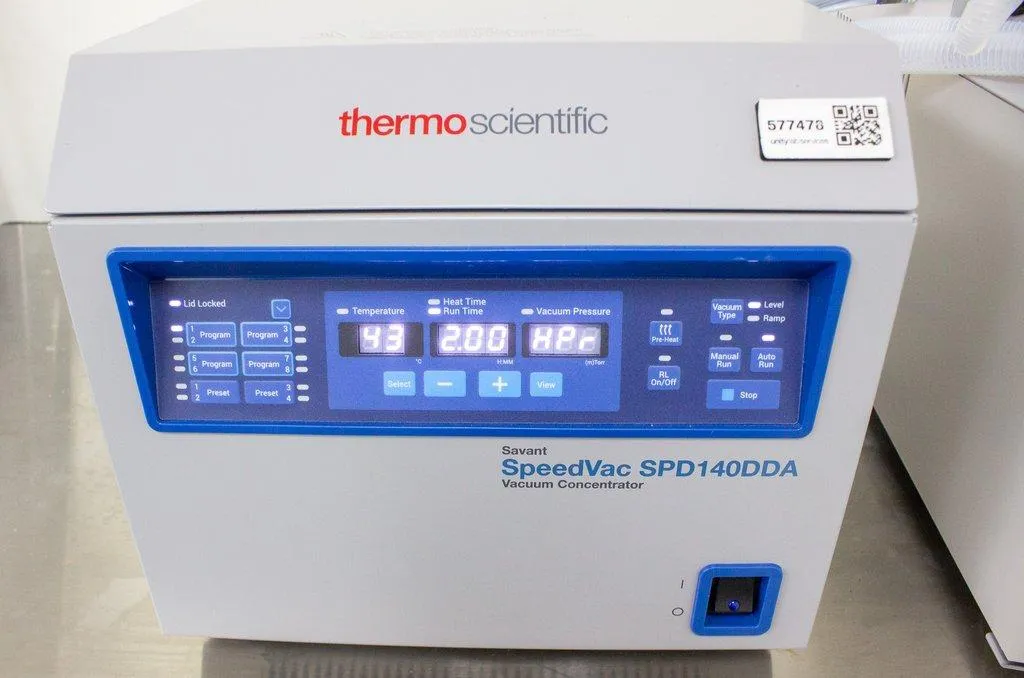

- Built-in vacuum gauge and display
- Adjustable vacuum level
- Three-stage oil-free pump
- VaporNet technology for molecule retention

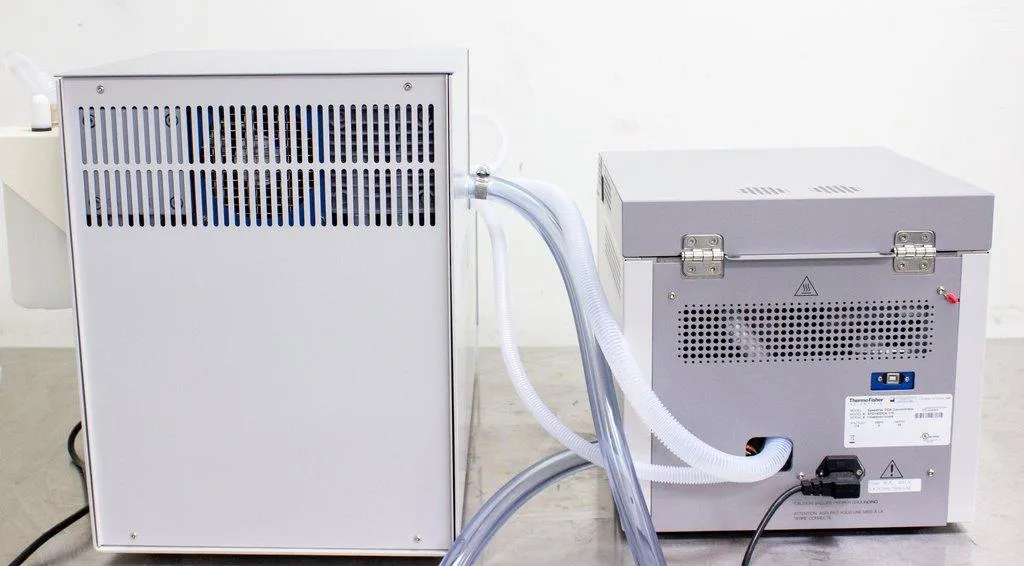

- PTFE tubing construction
Specifications
- - Max. Vacuum: <0.6 torr
- - Throughput: 36 liters/minute on 60Hz; 20 liters/minute on 50Hz models
- - Cold Trap: -5°C tailored for high boiling solvents
- - VaporNet technology for enhanced cold trap efficiency
- - Functional range supported by VaporNet valve modulation
- - PTFE tubing offers chemical resistance
- - Operates on 120V, 60Hz
- - Minimum operational noise due to oil-free pump technology
Weight
Imperial: 230.4 Pounds
Metric: 104.51 Kilograms
Shipping Dimensions
Imperial: 32.4 lb x 38.4 lb x 21.6 lb
Metric: 82.3 cm x 97.54 cm x 54.86 cm
Harmonized Code
841981
Harmonized Code Details
Harmonized Code 841981 - Machines and mechanical appliances having individual functions. This code is appropriate due to the unit serving specific concentration and evaporation purposes, integral to laboratory settings.
