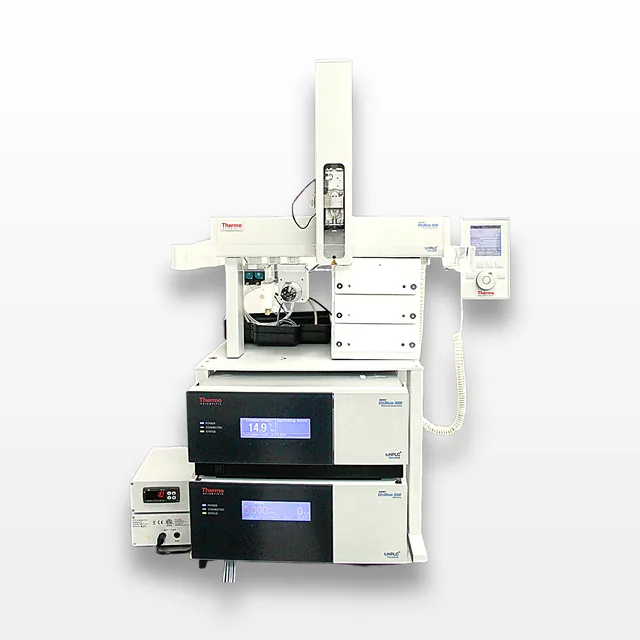

Thermo Scientific OAS-3300TXRS Autosampler with TCC-3000RS and LPG-3400XRS
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension28.0in x 29.0in x 46.0in
-
Serial281946OAS3000
-
Shipping TypeFedEx Ground
-
Manufacturing2013-01-01
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Thermo Scientific Dionex UltiMate 3000 TXRS system includes an OAS-3300TXRS Open Autosampler, TCC-3000RS Column Compartment, and LPG-3400XRS Pump, offering robust functionality for analytical UHPLC applications. Manufactured in 2013, this previously owned unit shows minimal wear from normal use and powers on with no errors. The OAS-3300TXRS, an XYZ robotic system, delivers versatile automation and sample handling, ideal for both UHPLC and mass spectrometry applications. The TCC-3000RS allows high temperature operations to optimize liquid chromatography precision and efficiency, while the LPG-3400XRS provides precision solvent gradient capabilities. The system supports multiple HPLC systems and control via Chromeleon Chromatography Management System, bringing flexibility to various laboratory settings.
Technician comment

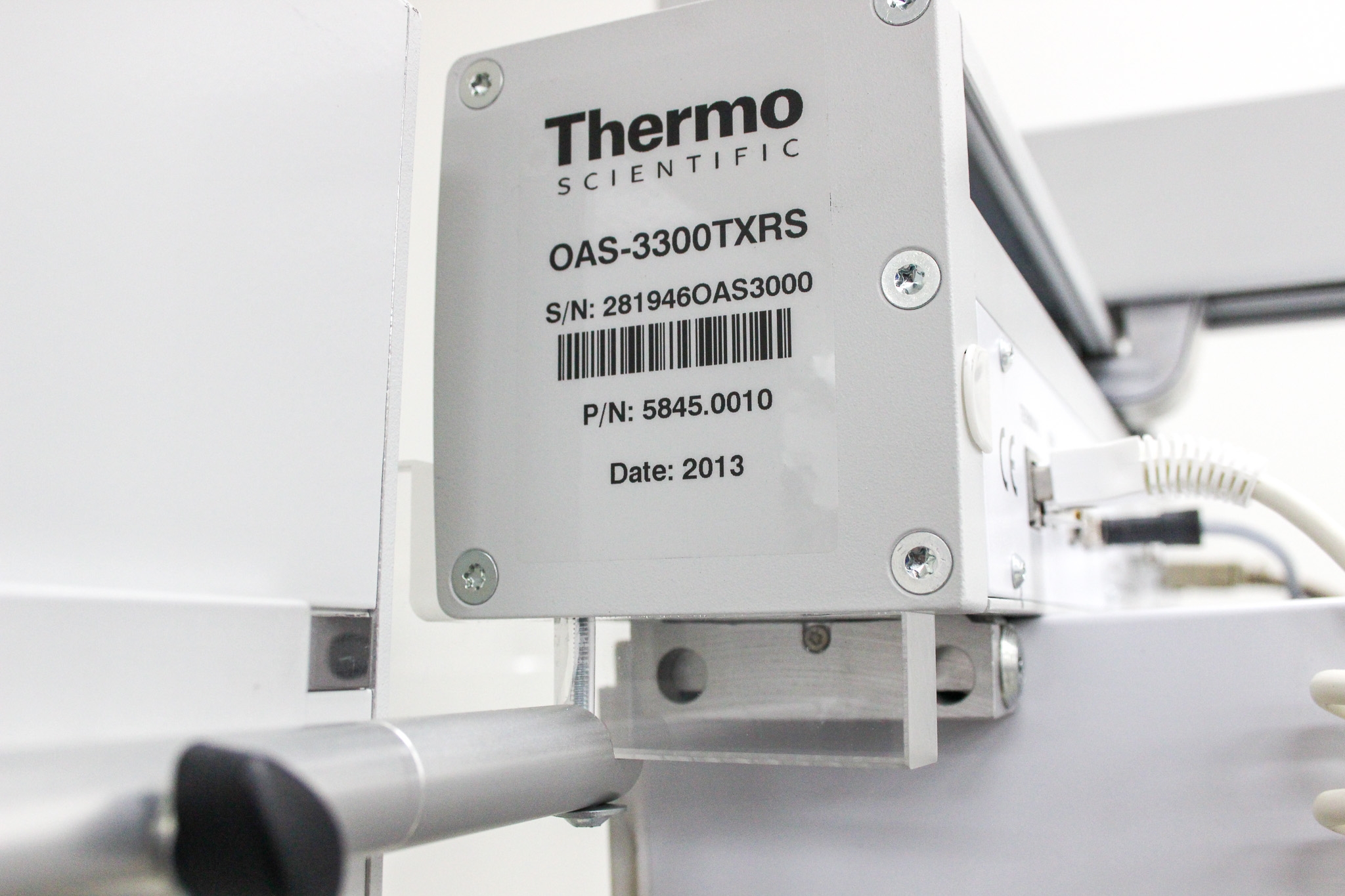

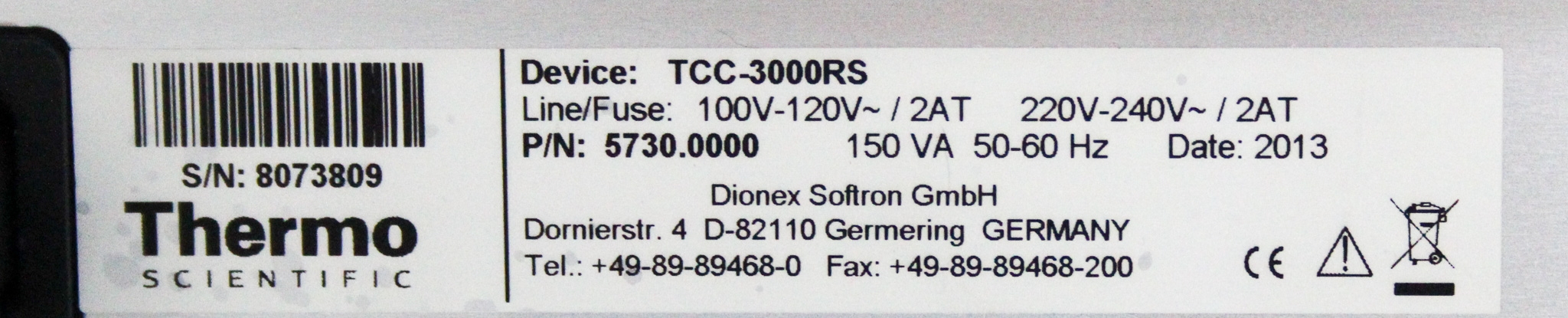

Includes: OAS-3300TXRS Open AutoSampler P/N 5485.0010 TCC-3000RS Column Compartment P/N 5730.0000 LPG-3400XRS Pump P/N 5043.0036
Key Features
- OAS-3300TXRS Open Autosampler for UHPLC and mass spectrometry
- TCC-3000RS thermostatted column compartment enables precise temperature control up to 110C
- LPG-3400XRS pump supports multi-solvent gradients with high accuracy
- Compatible with various data systems and Chromeleon Management System
- Robust design for efficient liquid chromatography applications
Specifications
- Autosampler: XYZ robotic system for straightforward automation
- Column Compartment: Accurate temperature control from 5C to 110C
- Pump: Supports up to 4 solvents with proportioning accuracy of 0.5%
- Flow Rate: 0.001 mL/min to 8 mL/min, Pressure range: 2 to 103.4 MPa
- Interfaces: USB connectivity, 2 digital inputs, and 2 relay outputs
- Weight: 45 lbs (actual)
Weight
Imperial: 54.0 Pounds
Metric: 24.49 Kilograms
Shipping Dimensions
Imperial: 33.6 lb x 34.8 lb x 55.2 lb
Metric: 85.34 cm x 88.39 cm x 140.21 cm
Harmonized Code
90273000
Harmonized Code Details
Instruments and apparatus for physical or chemical analysis (e.g., polarimeters, refractometers, spectrometers). Chosen because UHPLC systems like the Dionex UltiMate 3000 are primarily for chemical analysis.
