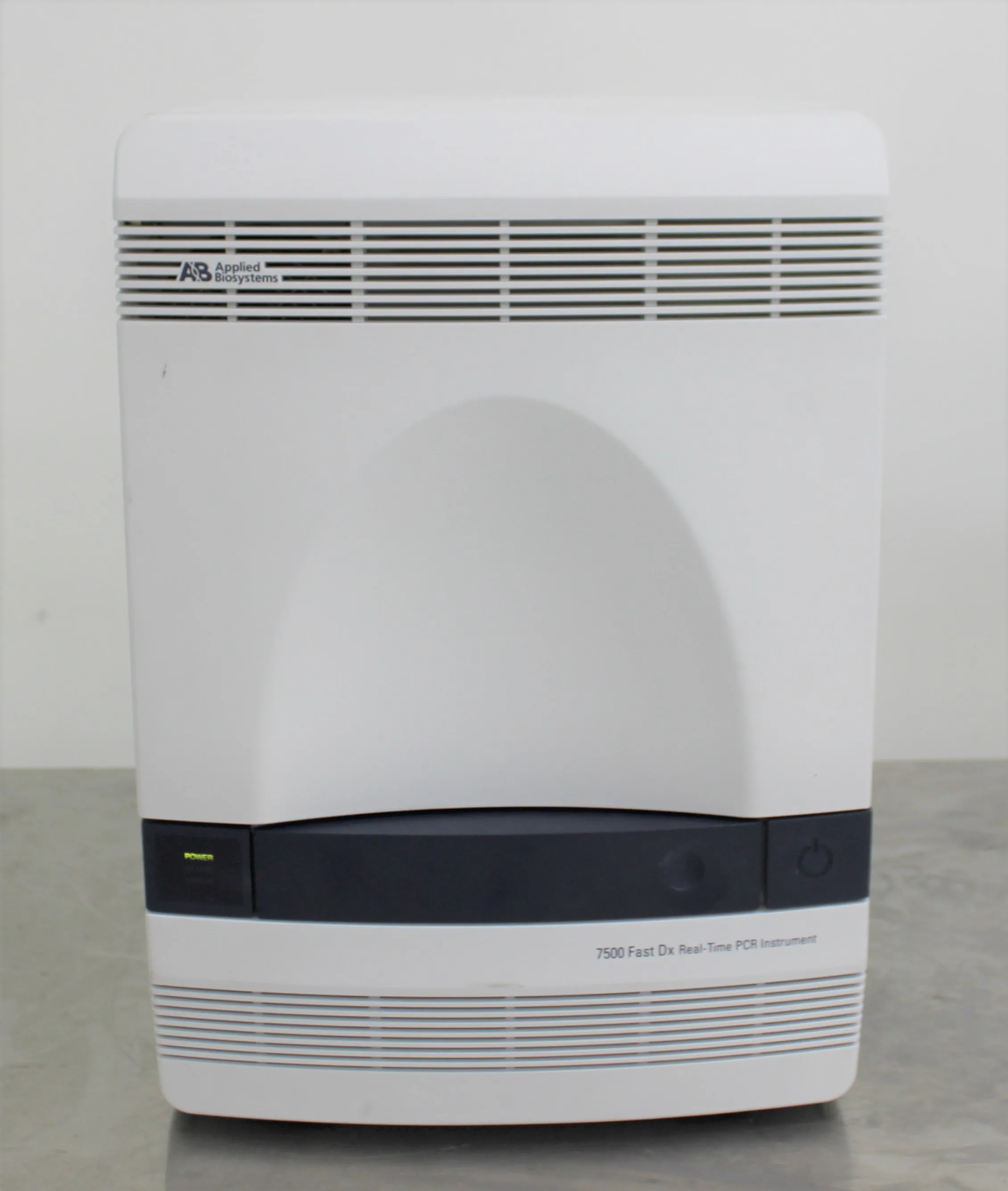

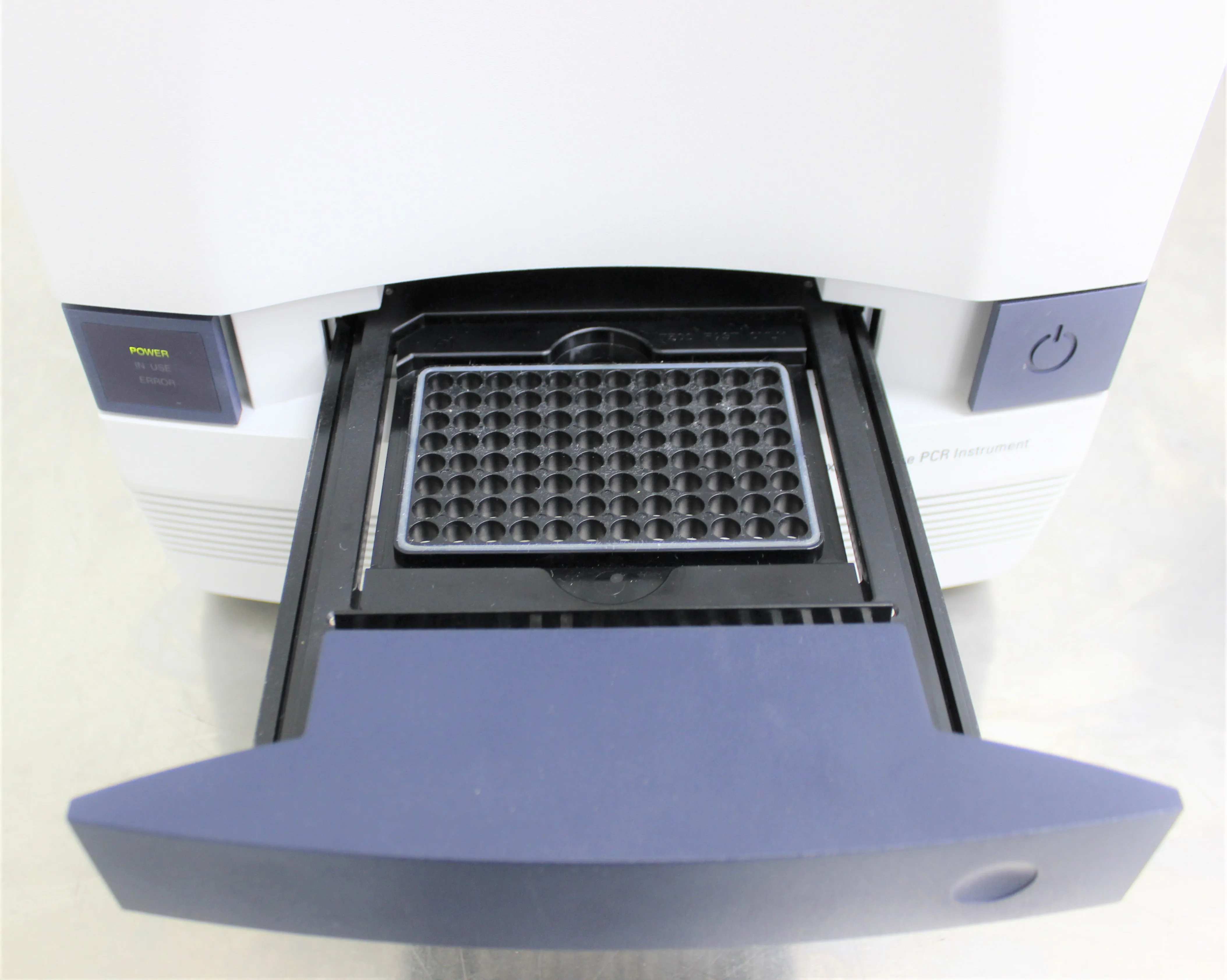

Applied Biosystems 7500 Fast Dx Real-Time PCR Instrument with SDS Software

Product Information

The Applied Biosystems 7500 Fast Dx Real-Time PCR Instrument with SDS Software is a real-time nucleic acid amplification and five-color fluorescence detection system available for in vitro diagnostic use. This instrument delivers the performance required for high-quality results in a 96-well format. It accommodates tube strips and allows for fast mode runs in less than forty minutes. The 5-color variable excitation enables multiplex assays, and its precision allows for distinguishing between 5,000-10,000 genome equivalents with 99.7% confidence. The system has a throughput of 4 to 5 96-well plates per day and a dynamic range of 9 logs. The temperature range is 4.0-99.9°C, and it offers a reaction volume range of 10-30 l. This PCR instrument is an essential tool for various applications in molecular biology, research, and medical diagnosis.

• 5-color variable excitation enables multiplex assays
• Fast mode completes runs in less than forty minutes
• Distinguishes between 5,000-10,000 genome equivalents with 99.7% confidence
• Accommodates tube strips for easier plate setup

• Format: 8-well strips, 96-well plate
• Optics: Halogen light source, Five excitation and five emission filters, CCD Camera
• Capacity: 1 x 96-well plate (Fast), 12 x 8-tube strips
• Precision: Distinguish between 5,000-10,000 genome equivalents (two-fold copy number difference) with 99.7% confidence
• Dimensions: 34 cm (W) x 49 cm (H) x 45 cm (D)
• Throughput: 4 to 5 96-well plates per day
• Sensitivity: Down to 1 copy of human RNAse P gene
• Dynamic Range: 9 logs of linear dynamic range
• Calibrated Dye: TAMRA, JOE, Cy5, Texas Red, NED, ROX, VIC, Cy3, FAM, SYBR Green
• Reaction Speed: Standard, Fast
• Sample Ramp Rate: Standard mode: 1.6°C/sec, Fast mode: 3.5°C/sec
• External Computer: Computer tower provided
• Peak Block Ramp Rate: 5.5°C/sec
• Temperature Accuracy: 0.5°C
• Passive Reference Dye: ROX (Separate Tube), Other Passive Reference Dye, ROX (Pre-mixed)
• Reaction Volume Range: 10-30 l
• Temperature Uniformity: ±1°C
• Thermal Cycling System: Peltier-Based System
• Temperature Range (Metric): 4.0-99.9°C

Metric: 72.57 kg
Imperial: 160 lb

Metric: 45 cm x 34 cm x 49 cm
Imperial: 17.72 in x 13.39 in x 19.29 in

902780

The harmonized code 902780 is for instruments and apparatus for physical or chemical analysis. It is used for PCR instruments and closely related laboratory equipment.
