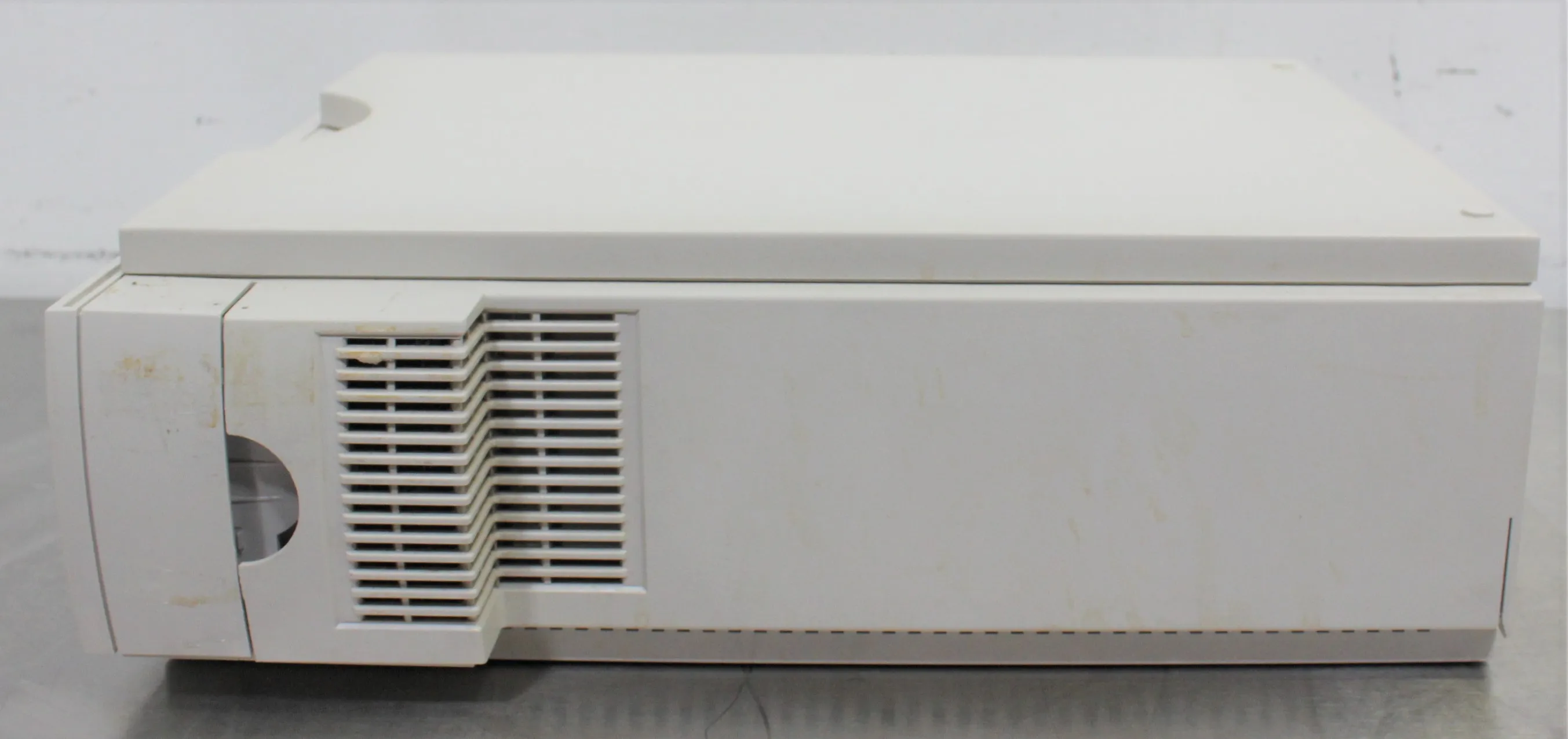

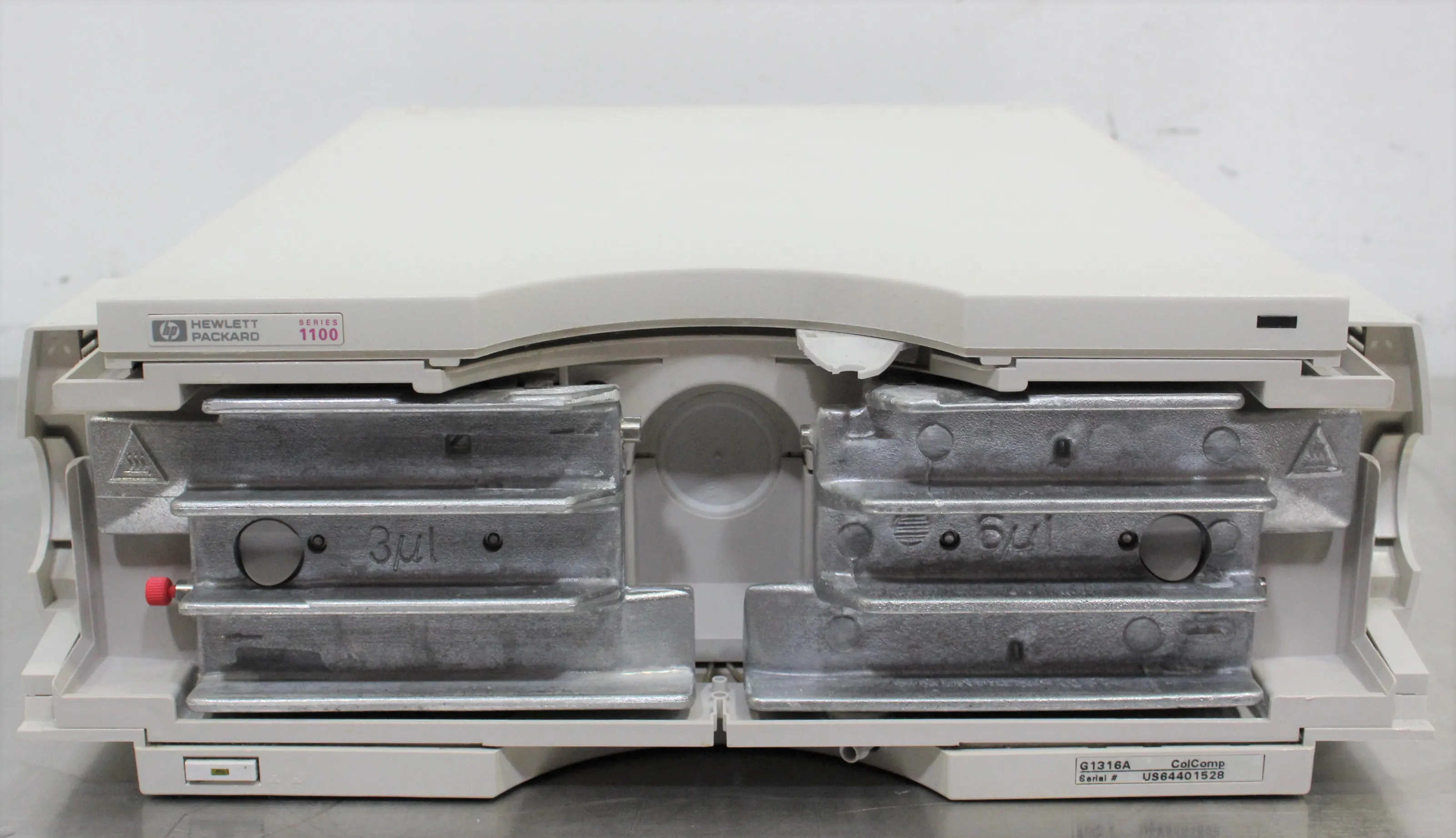

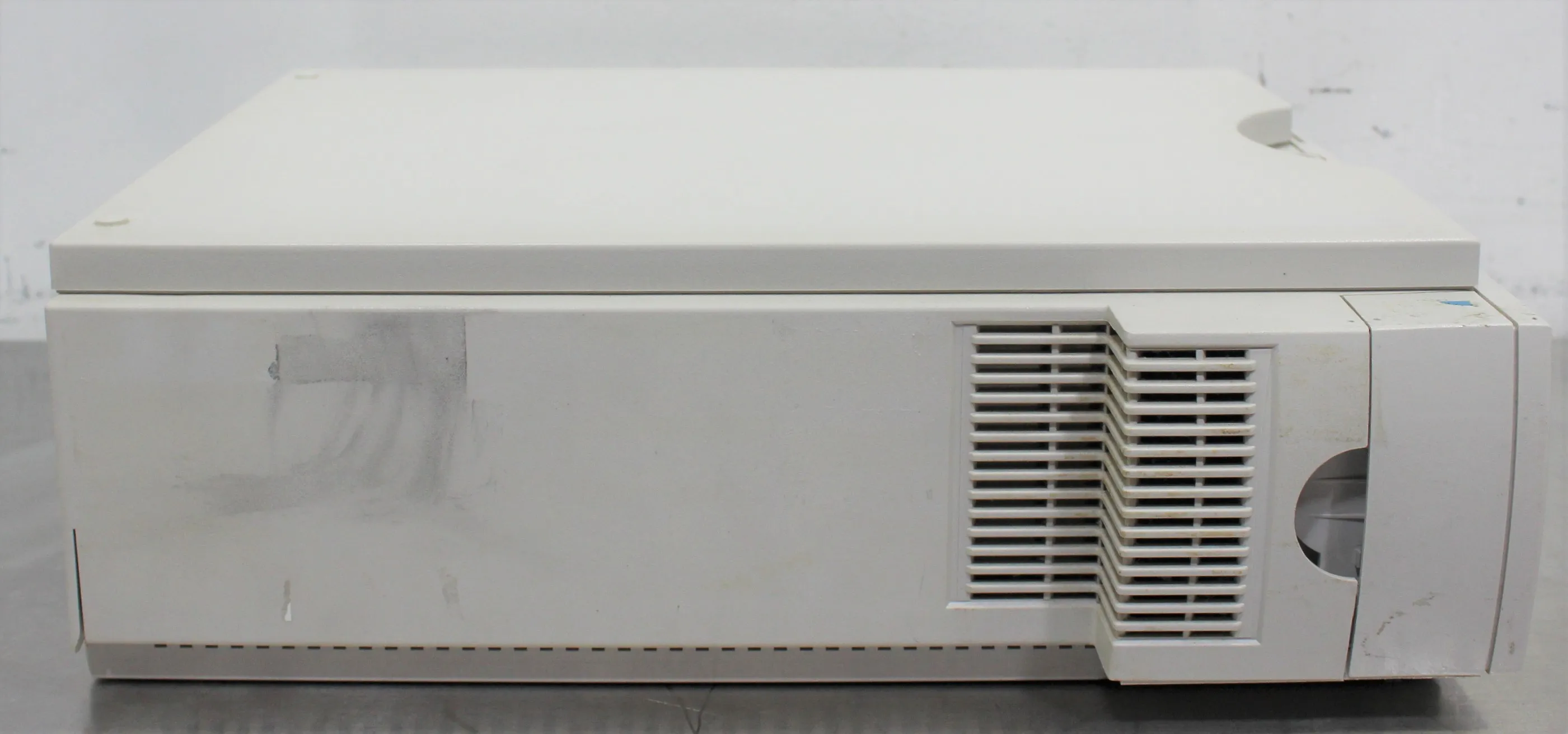

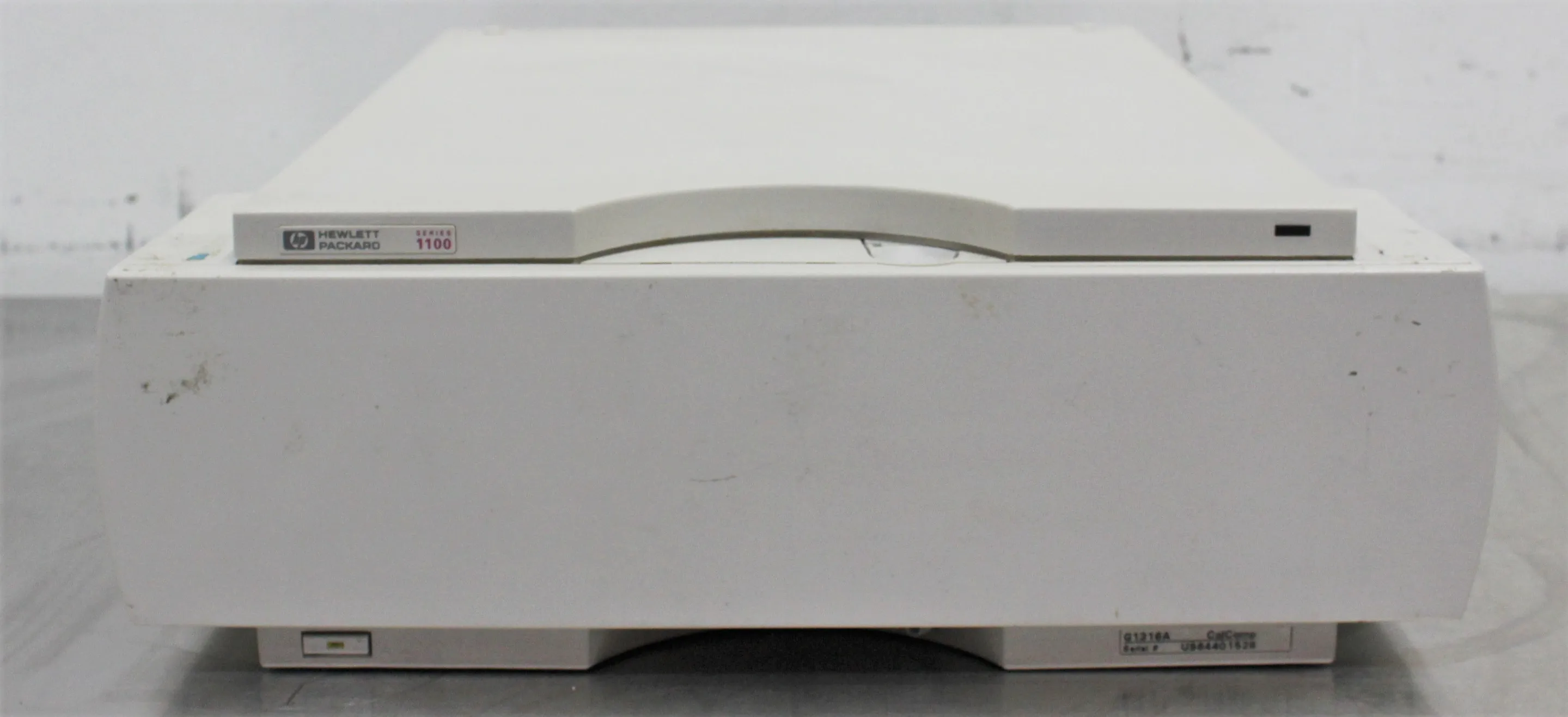

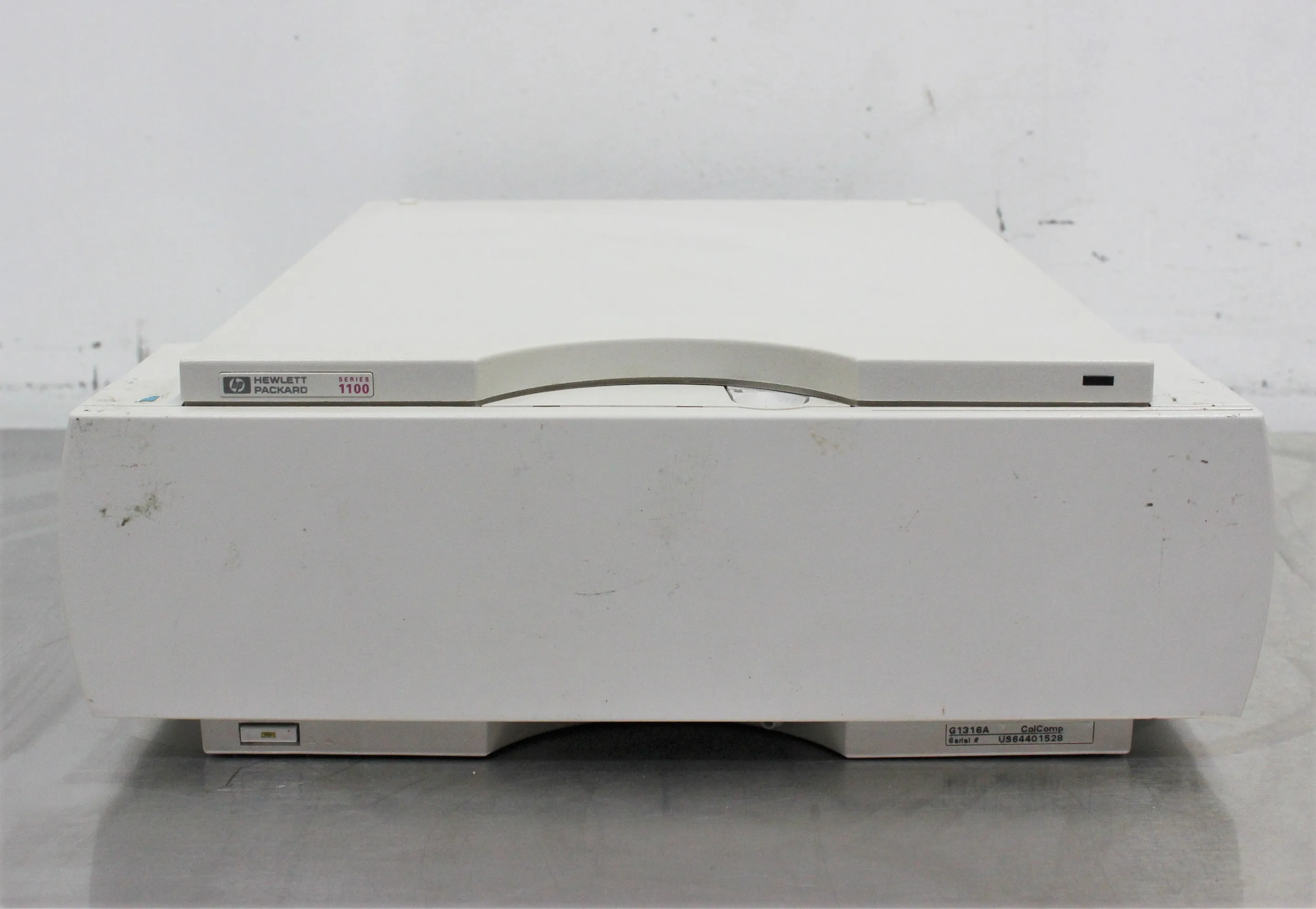

Hewlett Packard G1316A HPLC Column Compartment

Product Information

As part of the renowned Agilent 1100 Series, the Hewlett Packard G1316A HPLC Column Compartment maximizes laboratory space by fitting in a single stack. With the ability to hold three 30-cm columns, this compartment features Peltier heating and cooling for stable operation across ambient temperatures. It also offers faster operation, simultaneous column identification, and a unique internal volume design. This used equipment is ideal for HPLC, FPLC, GC, and CE applications.

• Peltier heating and cooling
• Internal volume design
• Simultaneous column identification
• Three 30-cm column capacity
• Integrated rack space for efficient bench use

• Temperature Range: 10 degrees below ambient to 80°C
• Temperature Stability: 0.15°C
• Temperature Accuracy: 0.8°C, 0.5°C with calibration
• Column Capacity: Three 30 cm columns
• Warm-up/cool-down: 5 minutes from ambient to 40°C, 10 minutes from 40 to 20°C
• Internal Volume: 3L left heat exchanger, 6L right heat exchanger
• Column Switching Valve: (Optional) 8 position software controlled column valve switch
• Connection Capillaries: 0.17-mm ID

Metric: 15.42 kg
Imperial: 34 lbs

Metric: 25.4 cm x 24.38 cm x 14 cm
Imperial: 10 in x 9.6 in x 5.5 in

9027200000

The harmonized code 9027200000 is for chromatographs and electrophoresis instruments. This code is applied because the Hewlett Packard G1316A HPLC Column Compartment is used for chromatography applications and is based on the make and model of the equipment.
