Thermo Scientific RetroFit TF75/100 Compressor Installation Kit 42,500 BTU
Thermo Scientific
Details
-
CategoryFacility
-
Dimension14.0in x 11.0in x 19.0in
-
SerialNA
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

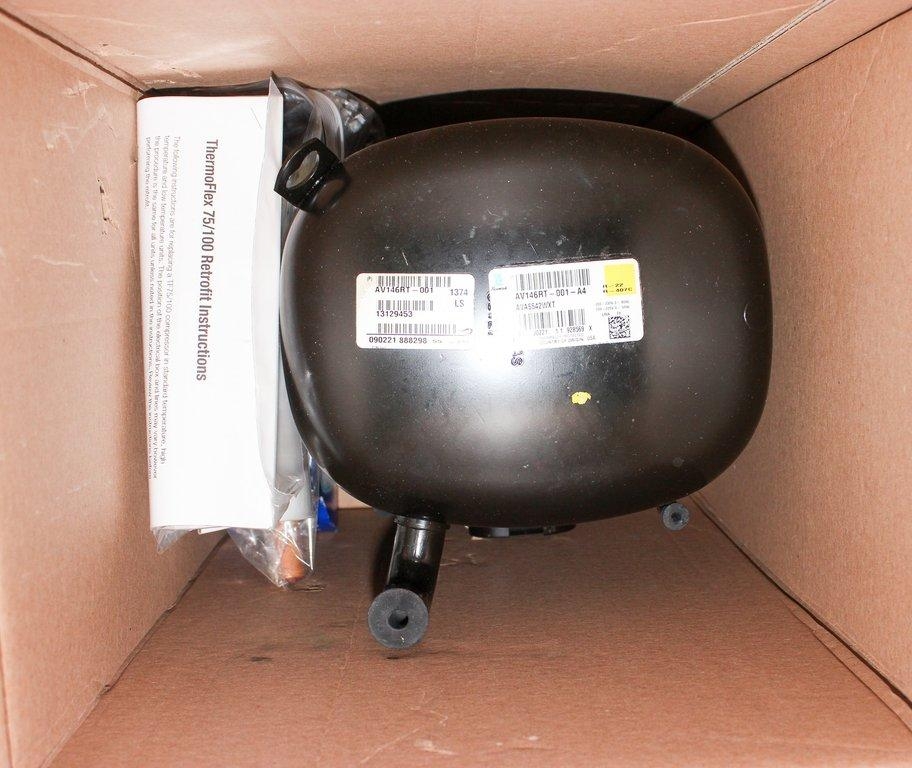

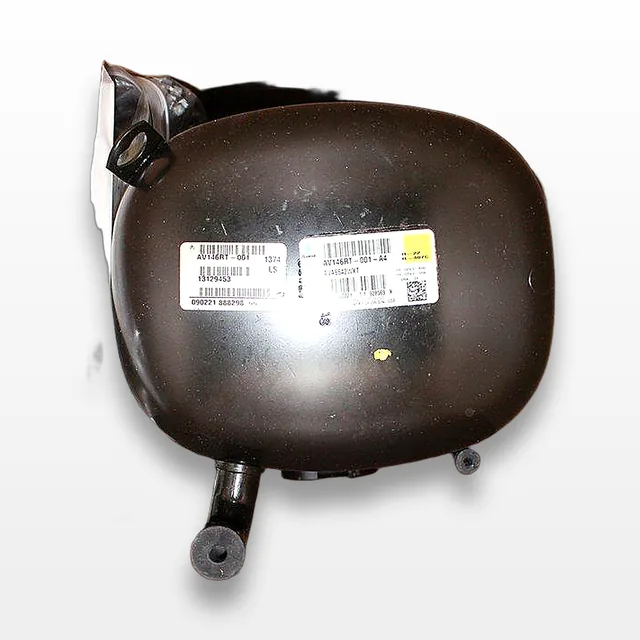

This Thermo Scientific RetroFit, TF75/100 Compressor ThermoFlex Installation Kit is a high-performance component designed for efficient cooling solutions. Featuring an OEM Upgraded Tecumseh 3-1/2 HP, 200-230V, 3 PH, 42,500 BTU R22 Hermetic Compressor, it ensures optimal functionality in refrigeration systems. The compressor includes a fan cooling mechanism, operates within a displacement of 73.271 CC, and is equipped with a low start torque motor. It offers an evaporating range of -23.3°C to 12.8°C (-10°F to 55°F), accommodating a wide variety of applications. Internal overload protection enhances its reliability. Built with high-quality materials, its dimensions are compact, allowing easy installation. Polyolester oil type with 1624 cc charge maintains smooth operations. Ideal for laboratories or industrial settings requiring robust thermal management.
Key Features
- OEM Upgraded Tecumseh 3-1/2 HP Hermetic Compressor
- 42,500 BTU cooling capacity
- 200-230V, 3 Phase power configuration
- Evaporating range from -23.3°C to 12.8°C
- Fan cooling for compressor
- Internal overload protection
Specifications
- Discharge Line Size: 1/2 in (12.7mm)
- Suction Line Size: 7/8 in (22.2mm)
- Compressor Cooling: Fan
- Displacement: 73.271 CC
- Oil Charge: 1624 cc, Oil Type: Polyolester
- Electrical: 3 Phase, Voltage 180-254V at 50-60Hz
- Overload Type: Internal, Low Start Torque
- Motor Resistance - Main: 1.31
- LRA: 74, MCC: 21.3, RLA 60Hz: 12
Weight
Imperial: 98.4 Pounds
Metric: 44.63 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 13.2 lb x 22.8 lb
Metric: 42.67 cm x 33.53 cm x 57.91 cm
Harmonized Code
841430
Harmonized Code Details
841430 - Compressors of a kind used in refrigerating equipment. This code is appropriate for the product, as it directly pertains to refrigerating system compressors.
