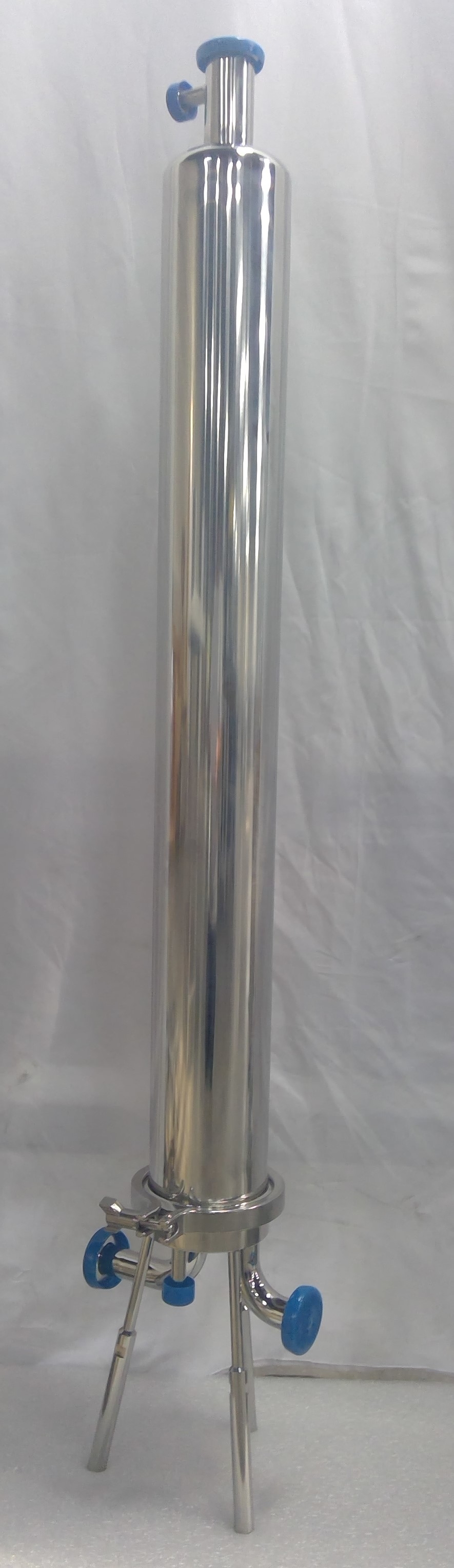

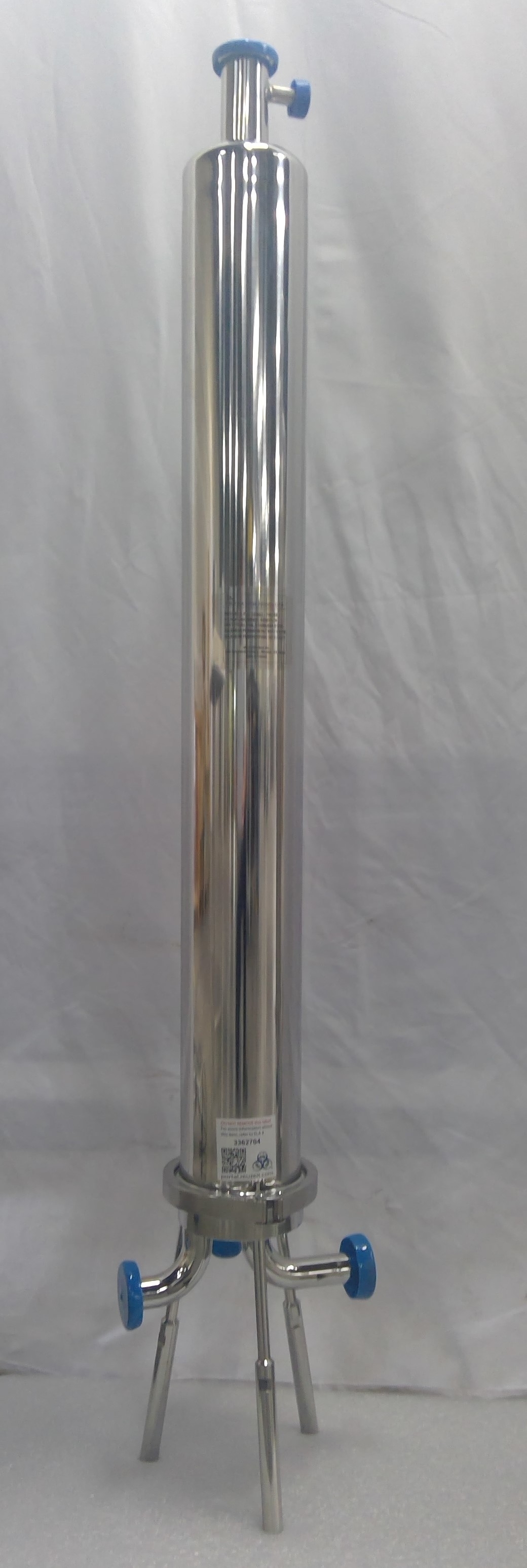

3M 1ZMS3 Filter Housing Liquid Gas Service Sanitary Steel CIP SIP
3M Purification Inc.
Details
-
CategoryProcess / Scale-Up
-
Dimension9.0in x 9.0in x 46.0in
-
Serial101417-001
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
Discover the precision and reliability of the 3M Filter Housing Model 1ZMS3, specially designed for crucial clarification and sterile filtration applications in the pharmaceutical industry. Manufactured by 3M Purification Inc. using high-quality 316L stainless steel, this system embodies durability and compliance with strict quality standards. The ZMS Series T-Line Housings suit a single code 7 style filter element, featuring double 226 o-rings with bayonet locking tabs and spear top, available in 10" or 30" lengths. Essential for liquid or gas service, the housing integrates 1/2" sanitary vent and drain ports with optional valves. With 1" sanitary inlet and outlet connections, the unit offers versatile sanitization methods including CIP, SIP, or hot water sanitization. Maximize your lab's efficiency with a maximum operating temperature of 100°C (212°F), suiting life sciences from Taiwan, Province of China
Key Features
- 316L stainless steel construction
- Accepts code 7 style filter element
- 1/2" sanitary vent and drain ports
- 1" sanitary inlet and outlet
- Maximum operating temperature of 100°C (212°F)
- CIP, SIP, and hot water sanitized
Specifications

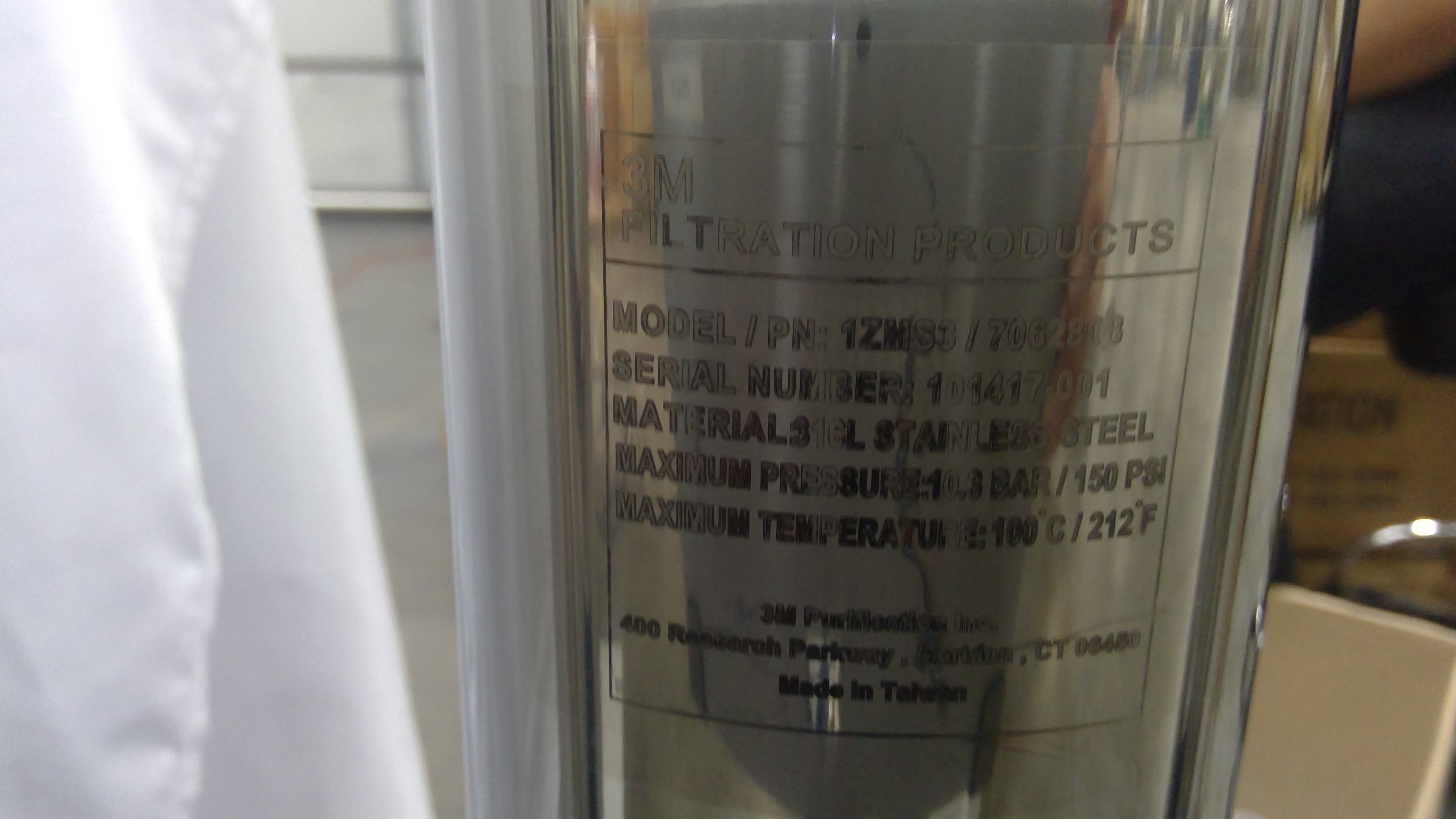

- Model: 1ZMS3
- Manufacturer: 3M Purification Inc.
- Material: 316L Stainless Steel
- Filter Element Compatibility: Code 7 style
- Vent and Drain Ports: 1/2" sanitary
- Inlet/Outlet Connections: 1" sanitary
- Temperature Range: Up to 100°C (212°F)
- Application: Liquid or Gas Service
- Cleaning: CIP, SIP, hot water
Weight
Imperial: 18.0 Pounds
Metric: 8.16 Kilograms
Shipping Dimensions
Imperial: 10.8 lb x 10.8 lb x 55.2 lb
Metric: 27.43 cm x 27.43 cm x 140.21 cm
Harmonized Code
84212990
Harmonized Code Details
The code 84212990 falls under the category for other filtering or purifying machinery, used for gases. It is suitable due to the equipment's function in filtering and servicing both liquid and gas applications, aligning with the product's intended filtration functions.
