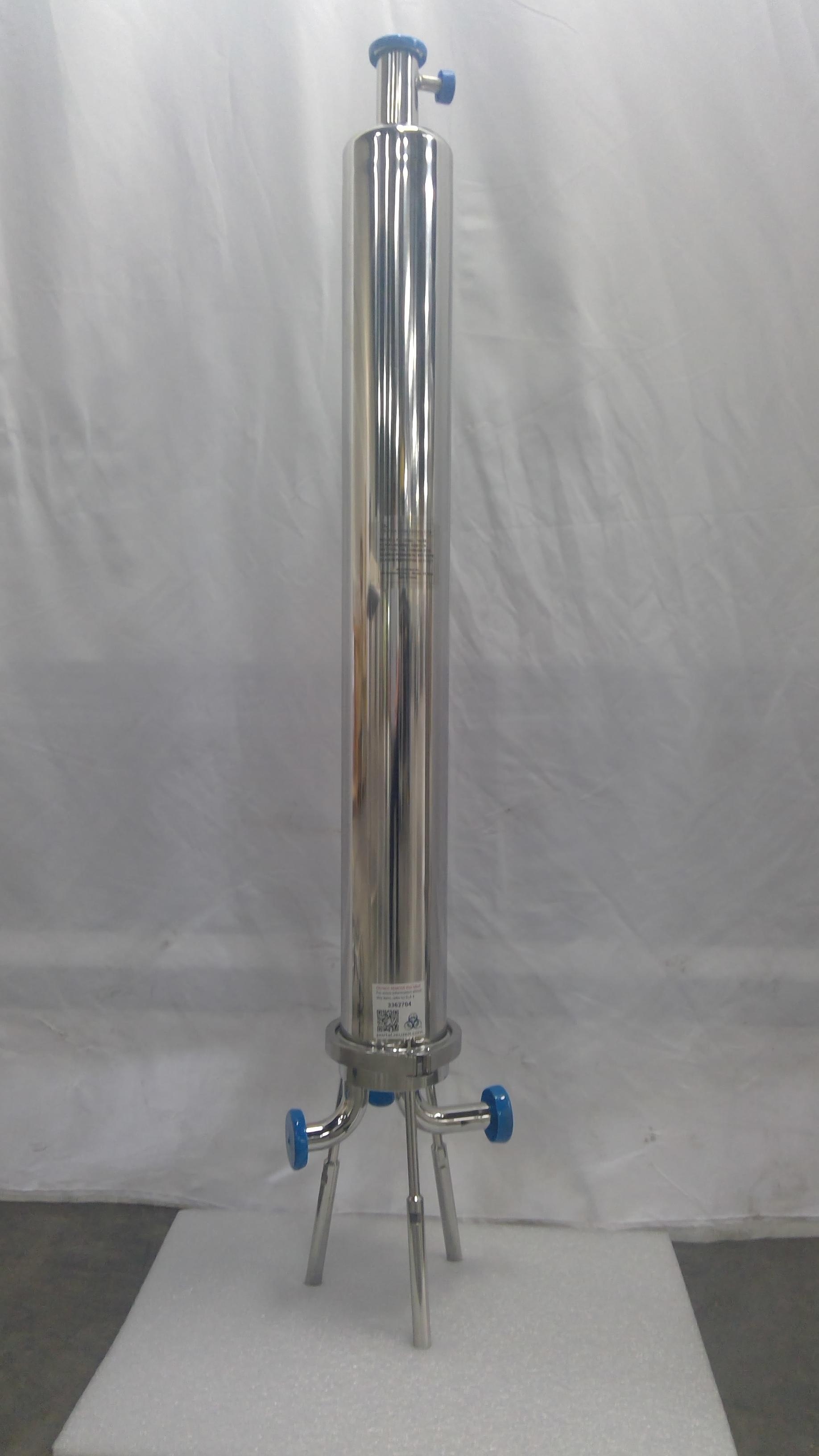

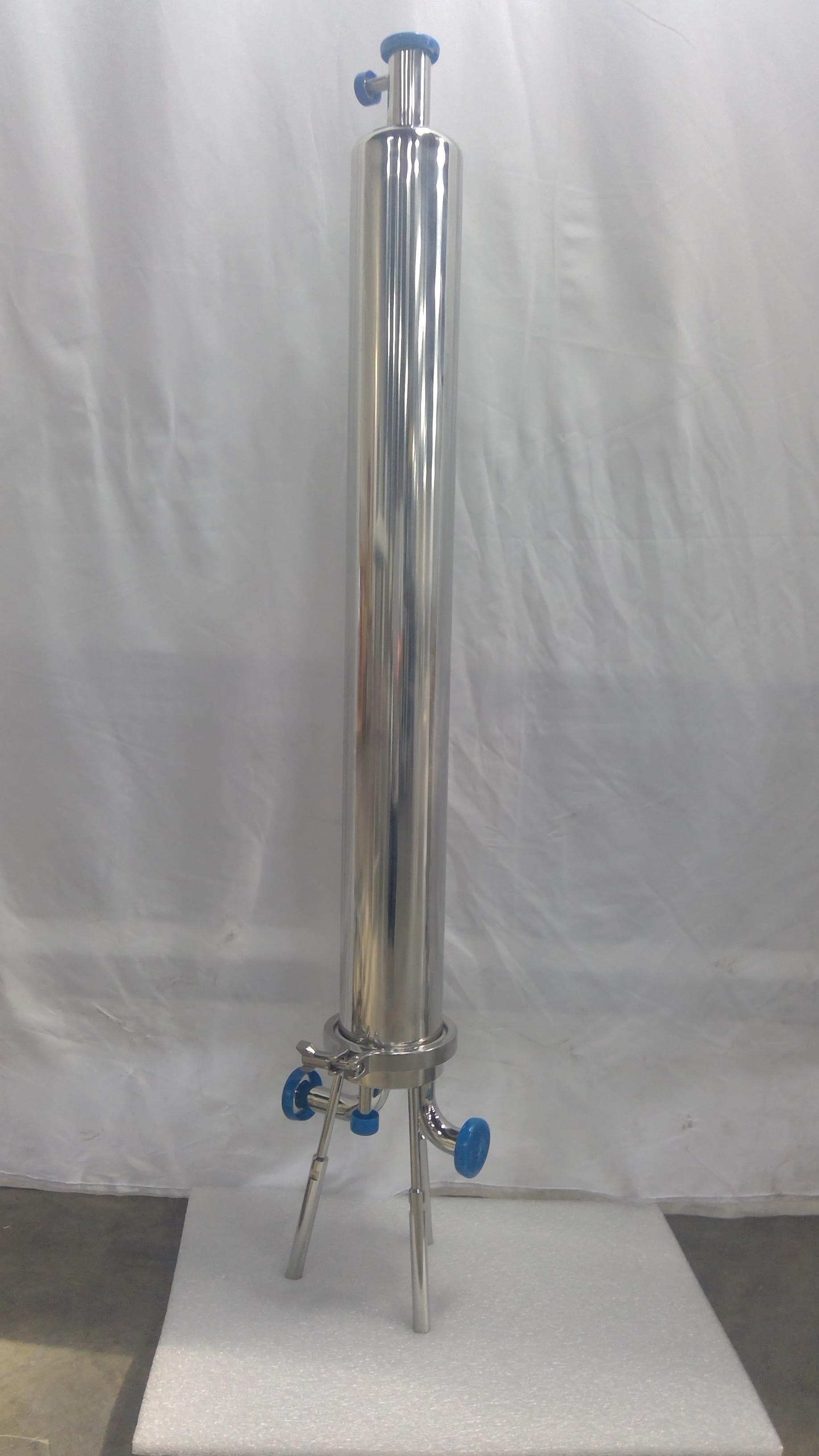

3M 1ZMS3 Sanitary T-Line Housing Sterile Filtration 316L Stainless Steel
3M Filtration Products
Details
-
CategoryProcess / Scale-Up
-
Dimension9.0in x 9.0in x 46.0in
-

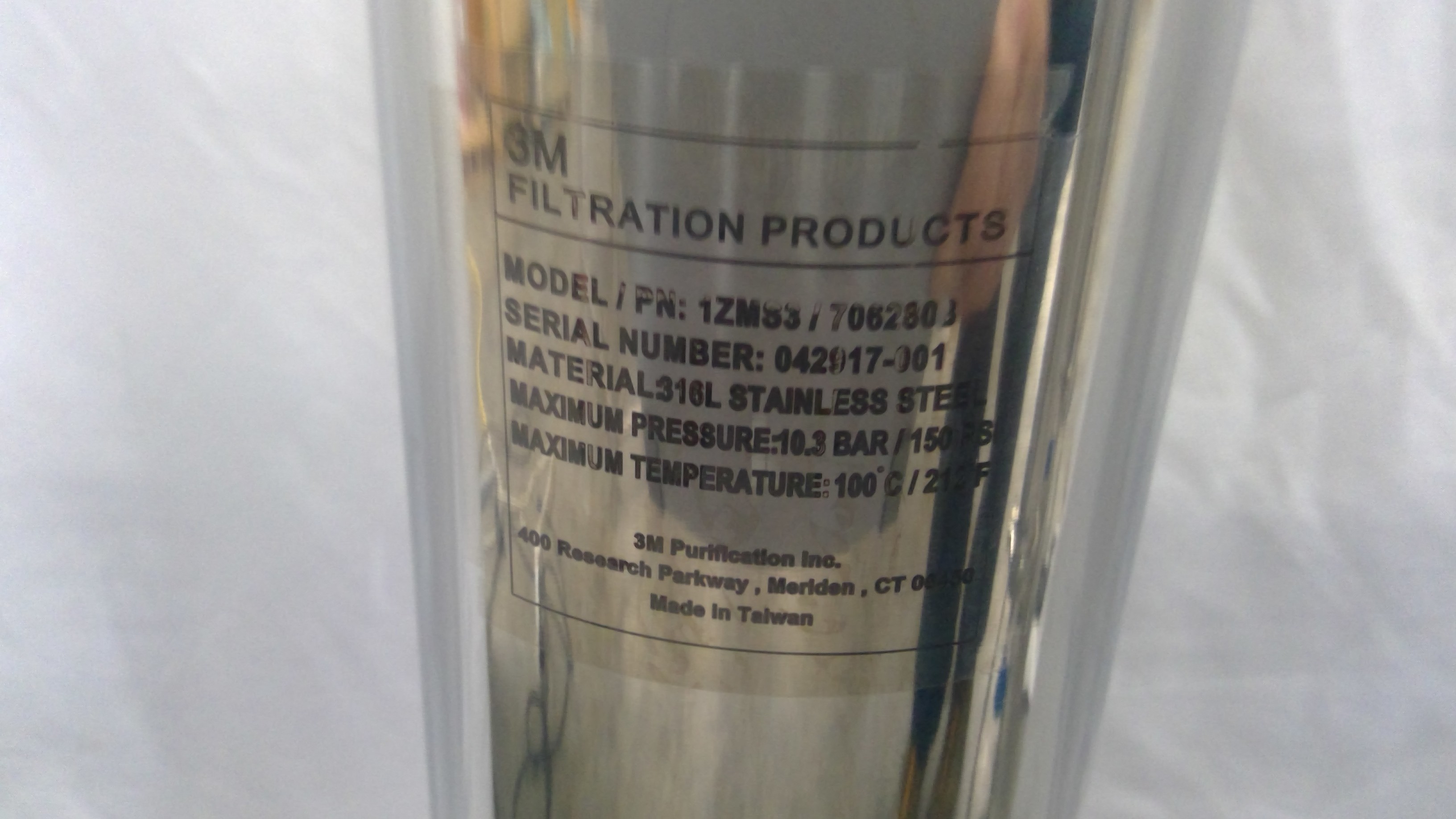

Serial042917-001
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The 3M 1ZMS3 Sanitary T-Line Housings are designed for critical clarification and sterile filtration applications, ideal for the pharmaceutical industry. Constructed from high-quality 316L stainless steel, these filter housings accommodate one code 7 style filter element with bayonet locking tabs and a spear top in 10" or 30" lengths. Equipped with 1/2" sanitary vent and drain ports, and a 1 1/2" sanitary gauge port, the housings ensure efficient liquid or gas service. Designed to be cleaned-in-place, steamed-in-place, or hot water sanitized, these housings feature electropolished surfaces limiting bacterial adhesion. An innovative bayonet cartridge interlock design facilitates ease of cleaning, while the positive locking retention mechanism ensures filter security. Hydrostatic testing provides reliable operation, even under demanding conditions. Silicone gaskets comply with CFR 21 for direct food and drug contact.
Key Features
- 316L stainless steel construction
- Designed for critical clarification and sterile filtration
- Accepts code 7 style filter element
- Bayonet locking tabs with spear top
- Electropolished to 10 micro inch Ra
- 1/2" sanitary vent and drain ports
- 1 1/2" sanitary gauge port
- Hydrostatically tested for demanding environments
- Silicone gaskets comply with CFR 21
Specifications
- Max Operating Temperature: 212°F (100°C)
- Fitting Size: 1 inch (25.4 mm) Sanitary Quick Change
- Designed for liquid or gas service
- Easy to clean-in-place (CIP), steam-in-place (SIP), or hot water sanitized
- Equipped with 1" sanitary inlet/outlet connections
- Bayonet cartridge interlock design for easy cleaning
- Positive locking retention mechanism
Weight
Imperial: 18.0 Pounds
Metric: 8.16 Kilograms
Shipping Dimensions
Imperial: 10.8 lb x 10.8 lb x 55.2 lb
Metric: 27.43 cm x 27.43 cm x 140.21 cm
Harmonized Code
842121
Harmonized Code Details
Harmonized code 842121 covers filtering or purifying machinery and apparatus for liquids, largely used in industrial and pharmaceutical applications. This fits the product's use in filtration and purification processes within life sciences and is aligned with international trade classifications for such equipment.
