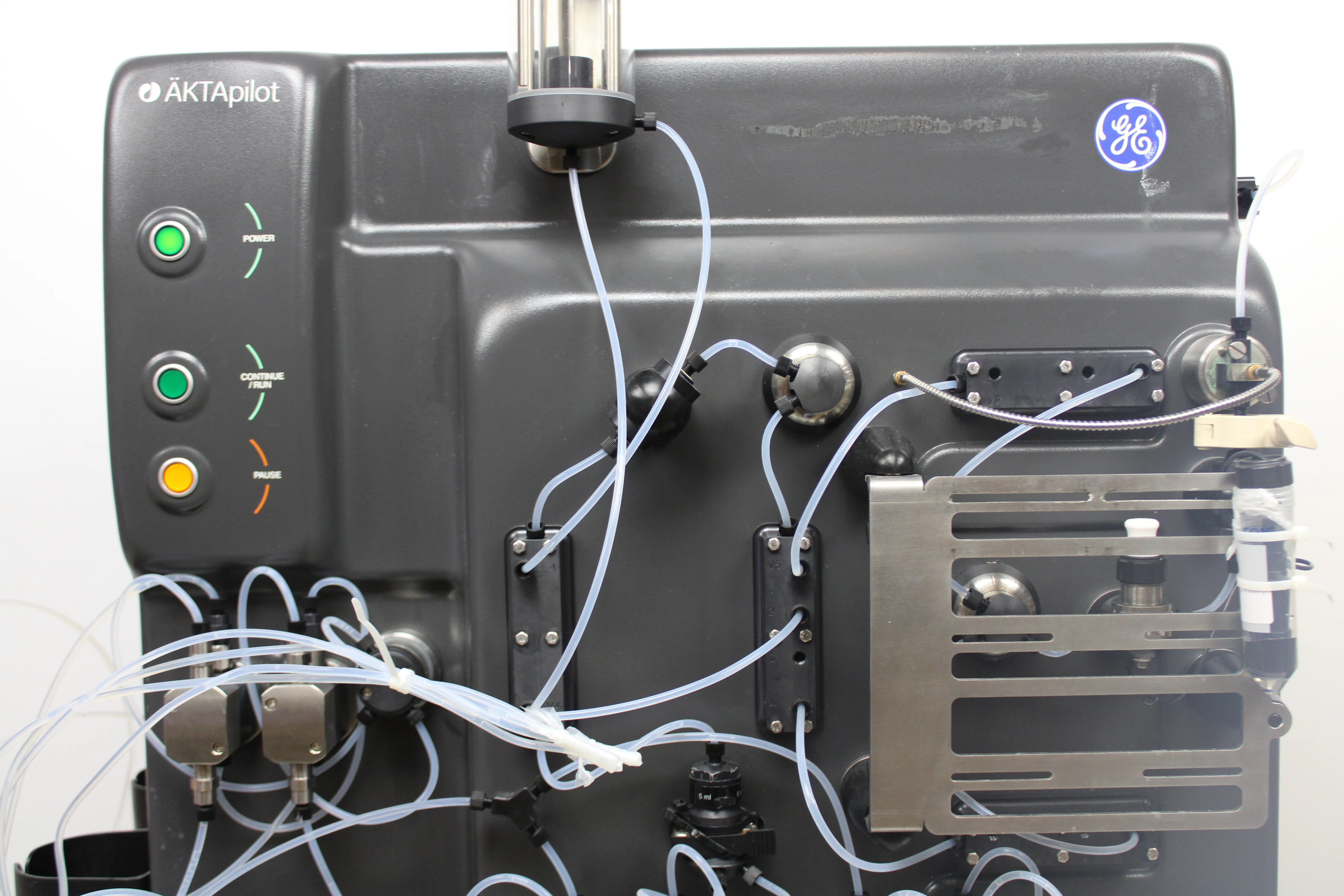

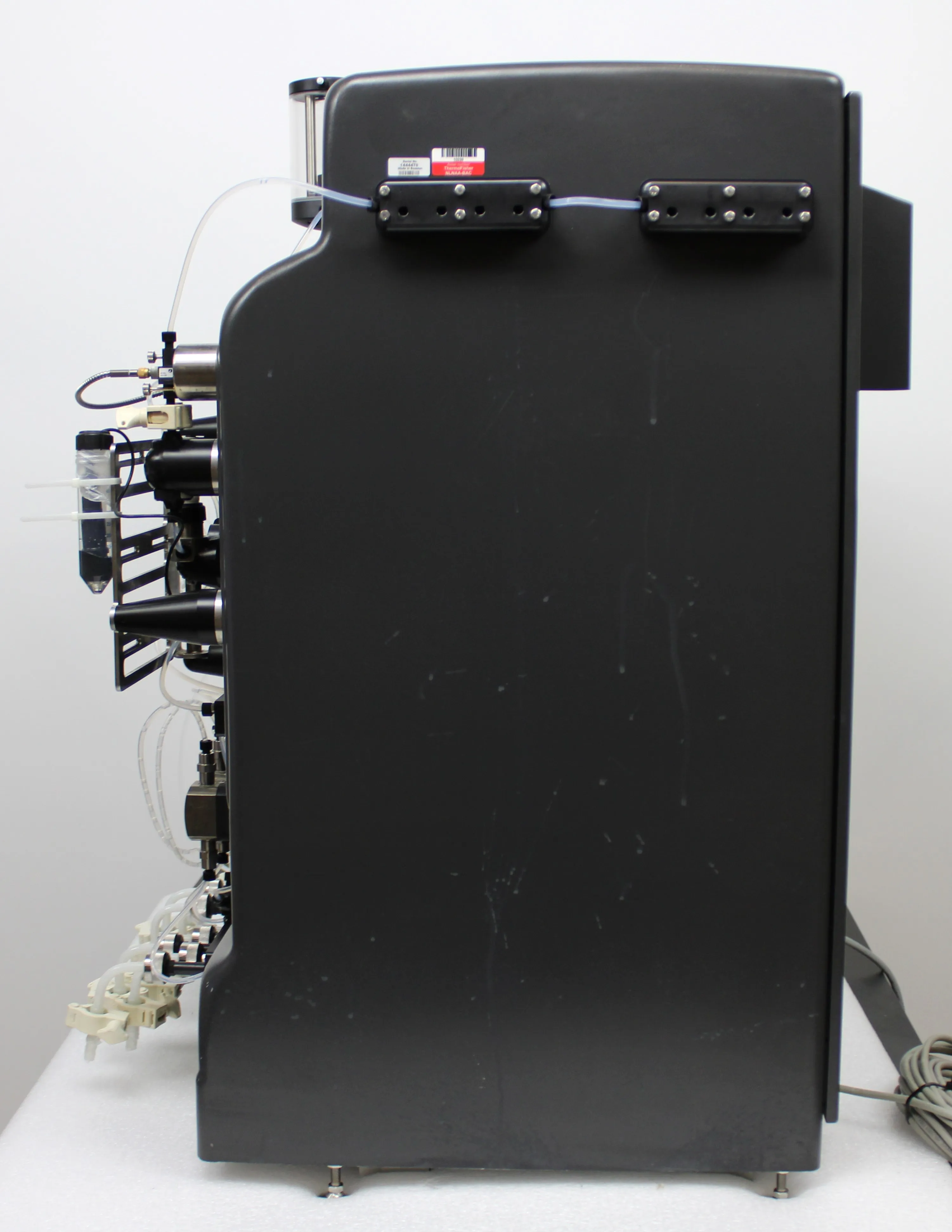

GE Healthcare AKTA Pilot - FPLC System

GE Healthcare AKTA Pilot, a dedicated automated liquid chromatography (LC) system carrying out development, scaling-up, and production processes. Ideal for purification of products in milligrams to tens of grams. Equipped with bio-compatible, hygienic, and sterilizable features, conforming to good laboratory practice (GLP) and current good manufacturing practice (cGMP) guidelines required in drug development. The system contains all fluid handling components necessary for smooth delivery, mixing, sample application, and in-line monitoring. Features pre-programmed method templates and optimized system configurations for rapid media screening, method scouting and optimization, as well as scale-up experiments. Equipped with UNICORN software for accurate and reliable monitoring of conductivity, UV, and pH. Features continuous in-line measurement of pH, conductivity, and UV absorbance. The system is easily accessible and provides accurate and reliable monitoring through self-test and self-calibration, reducing band broadening and time delay between detectors.

• Bio-compatible, hygienic, and sterilizable
• Conforms to good laboratory practice (GLP) and current good manufacturing practice (cGMP) guidelines
• Includes pre-programmed method templates and optimized system configurations
• Equipped with UNICORN software for accurate and reliable monitoring of conductivity, UV, and pH
• Continuous in-line measurement of pH, conductivity, and UV absorbance
• Self-test and self-calibration capabilities

• Isocratic and gradient flow rate: 4400 mL/min
• Double mode flow rate: Up to 800 mL/min
• Operating pressure: Up to 2 MPa (20 bar, 290 psi) between system pump and column inlet
• UV wavelength range: 190-700 nm in steps of 1 nm, 206-700 nm with AKTApilot cell, 3 wavelengths simultaneously
• pH range: 0-14 (spec. valid between 2-12)
• Conductivity range: 1 S/cm to 999.9 mS/cm
• Holdup volume: Up to 31 ml
• Max backpressure: Less than 0.06 MPa before column, 400 ml/min less than 0.045 MPa after column /400 ml/min
• Solvent compatibility: All commonly used chromatographic solvents
• Degree of protection: IP 24
• Power: 100-240 V 50-60Hz; 800 VA power max

Imperial: 238.1 Pounds

Metric: 108.0 Kilograms

Imperial: 31.18 lb x 42.52 lb x 45.83 lb

Metric: 79.2 cm x 108.0 cm x 116.41 cm

9027200000

The chosen harmonized code 9027200000 corresponds to liquid chromatographs, accurately representing the product and ensuring smooth international trade in this category of equipment.
