Wave 20/50EH Bioreactor System for Cell and Protein Culturing 50L Capacity
Wave Biotech
Details
-
CategoryBioreactor / Fermenter
-
Dimension24.0in x 22.0in x 10.0in
-

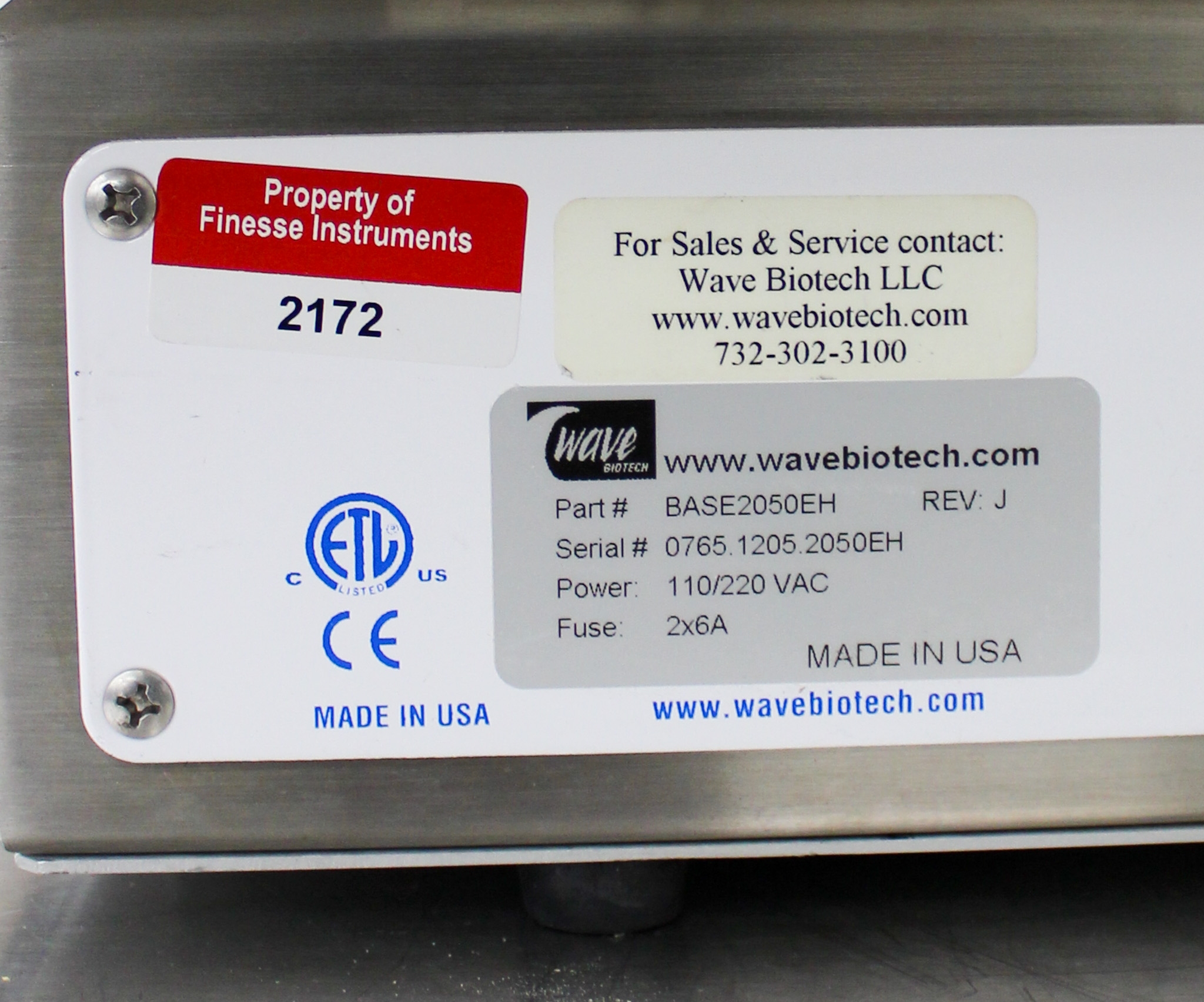

Serial0765.1205.2050EH
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Wave Biotech 20/50EH Bioreactor is an adaptable system designed for efficient cell culturing, protein manufacturing, and vaccine production. With a modular base rocker, this bioreactor minimizes cross-contamination risks through exclusive use of patented wave cell bags, shifting between 20 to 50-liter capacity with ease. It is equipped with a touch screen controller for setting temperature, time, and rocking speed to meet application-specific needs. Primarily used for CHO cell culture and pooling processes, this system boasts a heater range from 10 above ambient to 50C and a rocking angle from 2 to 10 degrees. Built-in safeguards ensure user alerts during operations, creating a reliable environment for producing consistent yields. The benchtop design provides straightforward access and control while pre-sterilized, single-use bags lead to reduced cleaning time and minimal validation for ease of use.
Key Features
- Adaptable for various applications such as cell culturing & vaccine production
- Modular design with versatile base rocker
- Capacity range from 20 to 50 liters

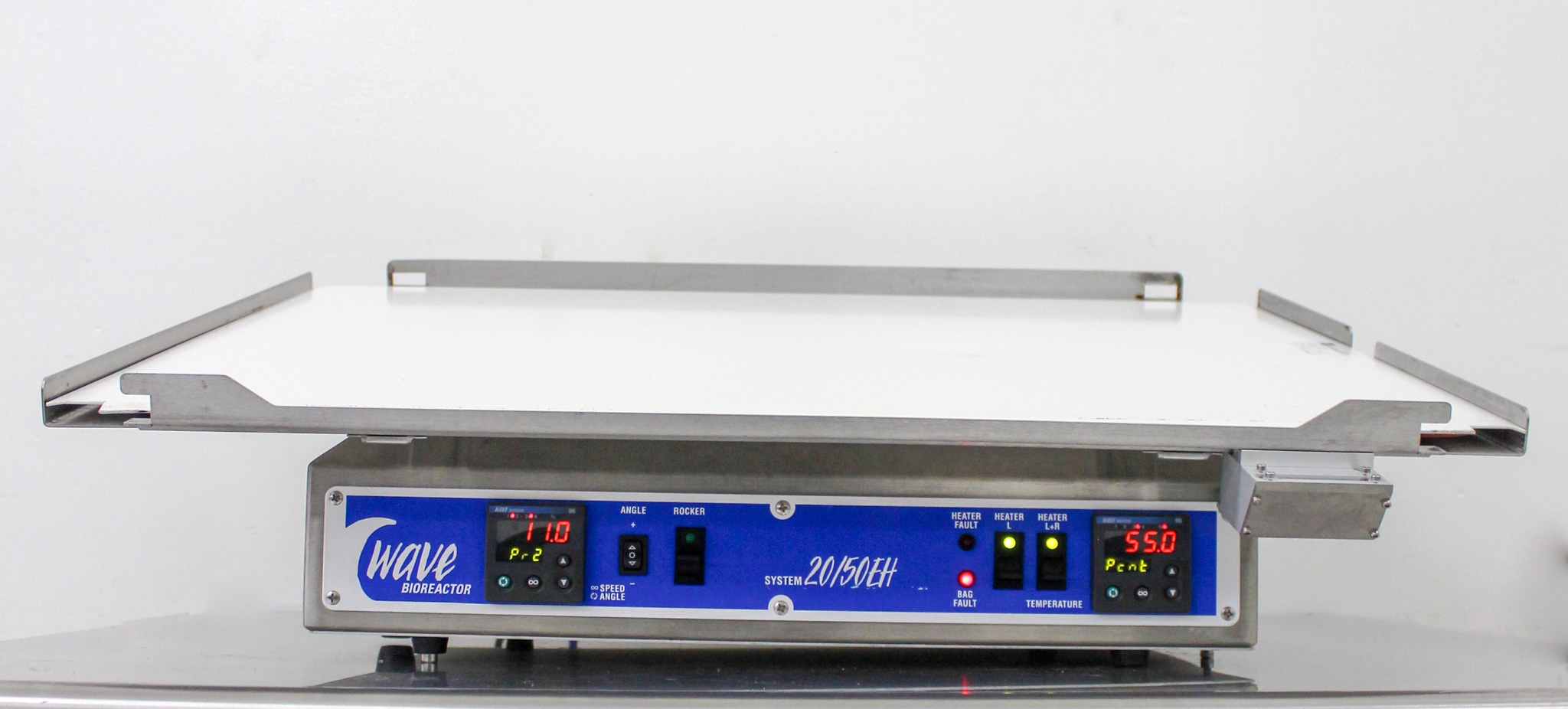

- Integrated touch screen controller for operational parameters
- Pre-sterilized, single-use cell bags prevent cross-contamination
- Heater range: 10 above ambient to 50C
- Rocking angle: 2 to 10 degrees
- Benchtop design for ease of access and control
- Alerts notify users during processes
Specifications
- Model: WAVE Bioreactor 20/50EH

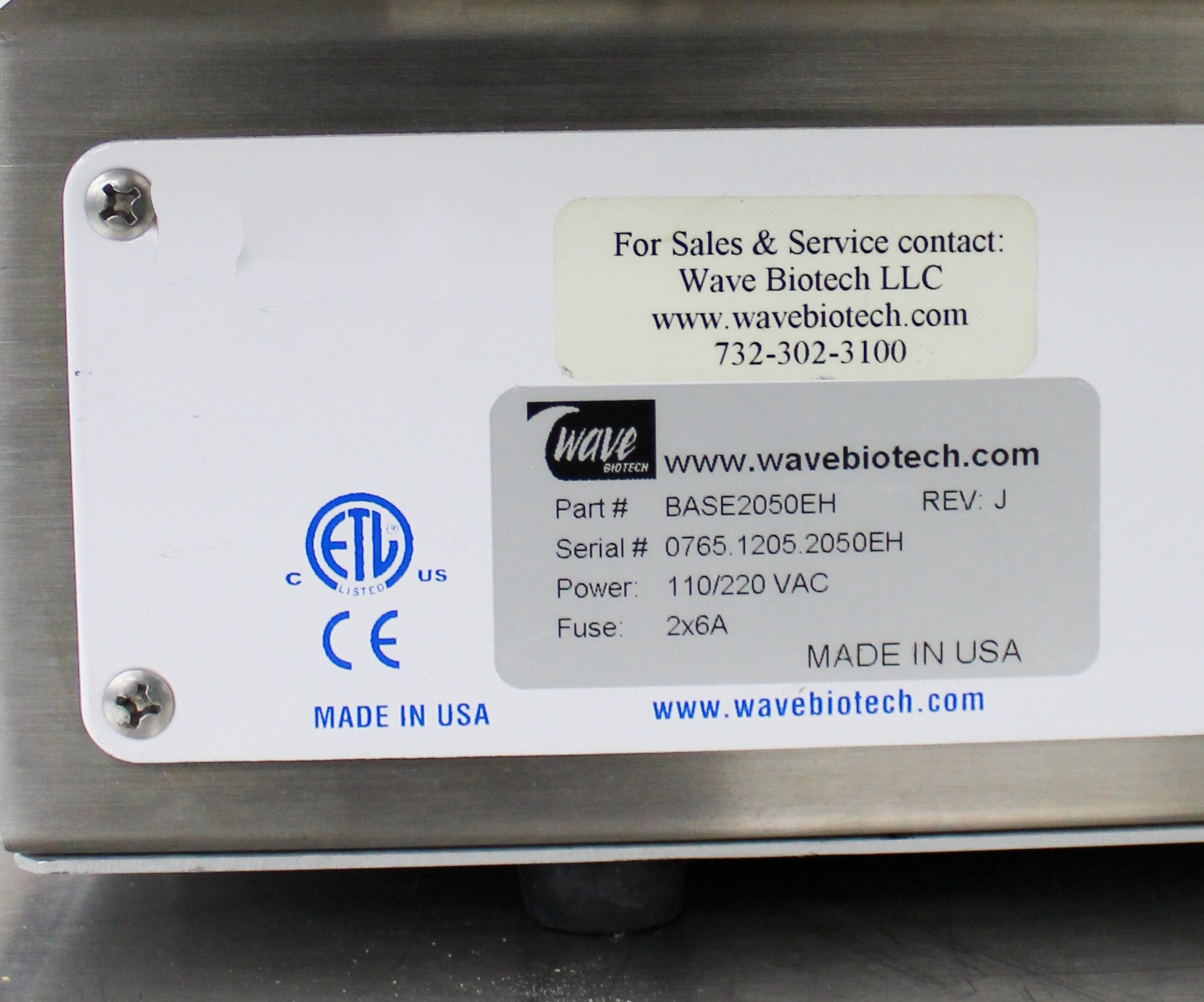

- Serial No.: 0765.1205.2050EH
- Supply voltage: 100-120 VAC or 220-240 V AC, 50 to 60 Hz
- Power: 630 VA
- Fuse Specification: T 4AL, 250V
- Ingression protection: IP 20
- Ambient temperature: 0C to 50C
- Rocking rate: 25 to 40 rocks per minute
- Heater temperature range: 10C above ambient to 50C
- Rocking angle: 2-10 degrees
- Handling culture volumes: 100 mL to 20 L
- Acoustic noise level: < 70 dB A
- Storage temperature: -40C to +80C
- Relative humidity tolerance: < 95%, non-condensing
Weight
Imperial: 43.2 Pounds
Metric: 19.6 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 26.4 lb x 12.0 lb
Metric: 73.15 cm x 67.06 cm x 30.48 cm
Harmonized Code
841989
Harmonized Code Details
841989 - Machinery, plant or laboratory equipment, whether or not electrically heated. Suitable for the Wave Bioreactor because it's recognized as laboratory equipment facilitating cell culture and industrial applications.
