Life Technologies PS0090 Electrophoresis Power Supply 2 to 300 V 500mA 90 W 120V

Product Information

Life Technologies PS0090 PowerEase 90W Electrophoresis Power Supply, Used, Condition Class G. This microprocessor-controlled unit provides constant voltage or constant current operation with automatic crossover for reliable agarose and PAGE gel runs. It powers on and passes basic checks; full functional testing was not performed. Minor cosmetic wear from prior use. Key ranges include 2 to 300 V, 4 to 500 mA, up to 90 W output, with 1 V and 1 mA increments. Features a backlit LCD graphic display, pause function, timer to 99.99 hr/min, and four output terminal pairs to run multiple gels. Built-in protections include no-load, load-change, overload, and ground-leak detection plus auto restart. Input power is switchable 115/230 VAC, 50/60 Hz (includes power cord). Housing is flame-retardant ABS. Operating environment: 0 to 40 C, up to 95 percent RH non-condensing, altitude <= 2000 m. Serial No. 0900322125. Backed by a 30-day parts warranty.

• Microprocessor-controlled electrophoresis power supply
• Constant Voltage and Constant Current modes with automatic crossover
• Wide output range: 2 to 300 V and 4 to 500 mA, up to 90 W
• Fine resolution: 1 V and 1 mA incremental settings

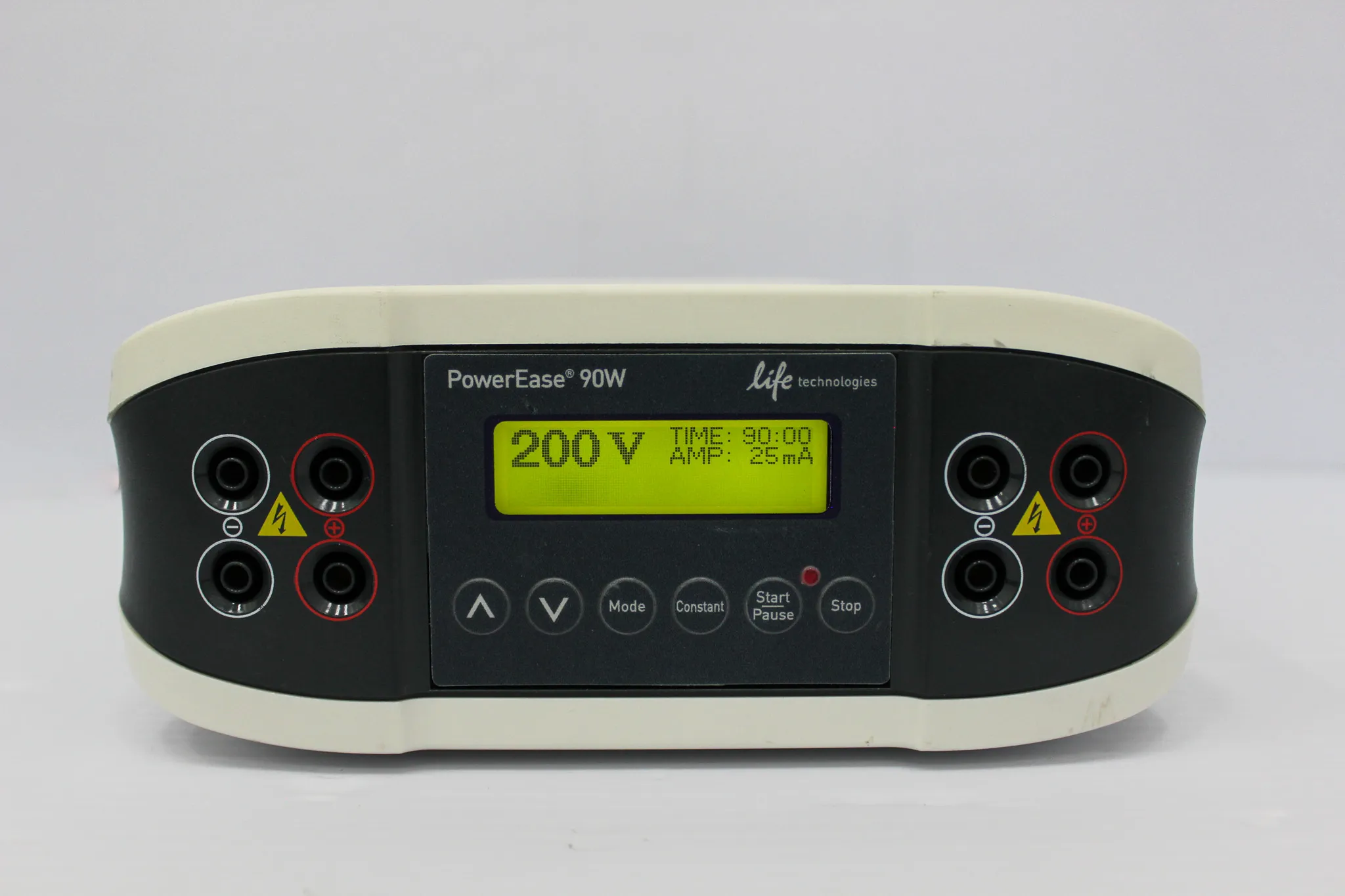

• Backlit LCD graphic display with intuitive interface
• Timer up to 99.99 hr or min with pause function
• Four terminal pairs to run multiple gels simultaneously
• Comprehensive safety: no-load, load-change, overload, ground-leak detection
• Auto restart and stackable design for flexible bench setups
• Switchable input power 115 or 230 VAC, 50/60 Hz
• Flame-retardant ABS housing; operating range 0 to 40 C
• Includes power cord; 30-day parts warranty

• Make and Model: Life Technologies PS0090 PowerEase 90W
• Condition: Used, Condition Class G (Good); powers on and passes basic checks; not fully tested; minor cosmetic wear
• Warranty: 30-day warranty on part
• Output Power: Up to 90 W
• Output Voltage Range: 2 to 300 V
• Output Current Range: 4 to 500 mA
• Increment Settings: 1 V and 1 mA steps
• Operating Modes: Constant Voltage, Constant Current with automatic crossover
• Display: Backlit LCD, graphic type
• Timer: Up to 99.99 hr or min; pause function supported
• Output Terminals: 4 pairs (4 positive and 4 negative) for multiple gels
• Safety Features: No-load detection, load-change detection, overload detection, ground-leak detection, auto restart

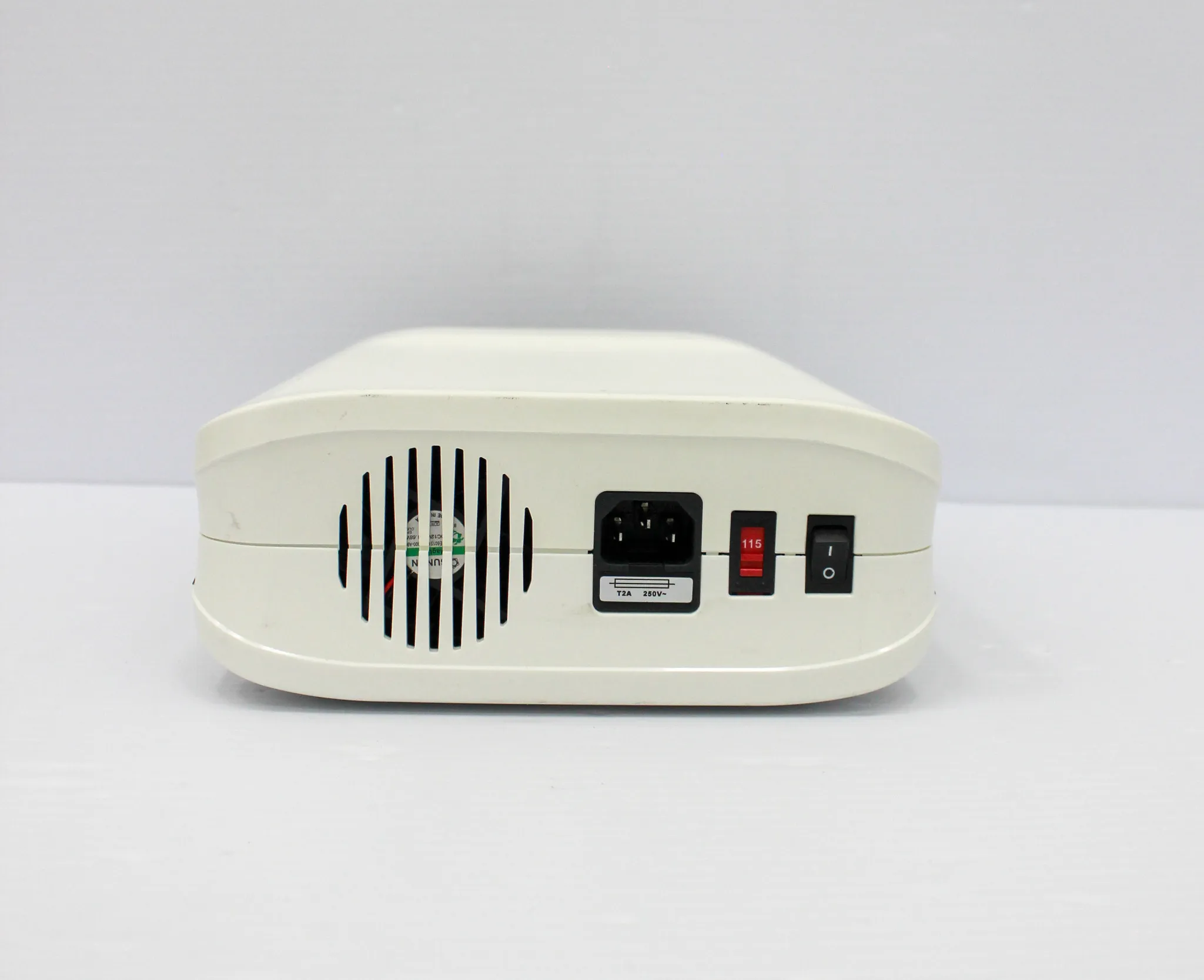

• Input Power: Switchable 115 or 230 VAC, 50/60 Hz
• Fuse: One 2 A/250 V fuse (plus one spare)
• Housing Material: Flame-retardant ABS
• Operating Environment: 0 to 40 C; up to 95% RH non-condensing; altitude up to 2000 m
• Stackable: Yes
• Country of Origin: United States
• Included: Power cord
• Not Included: Additional power/data cables, computer, manuals, or software (unless noted)
• Typical Applications: Agarose gel electrophoresis, PAGE, DNA RNA protein separations, blotting workflows

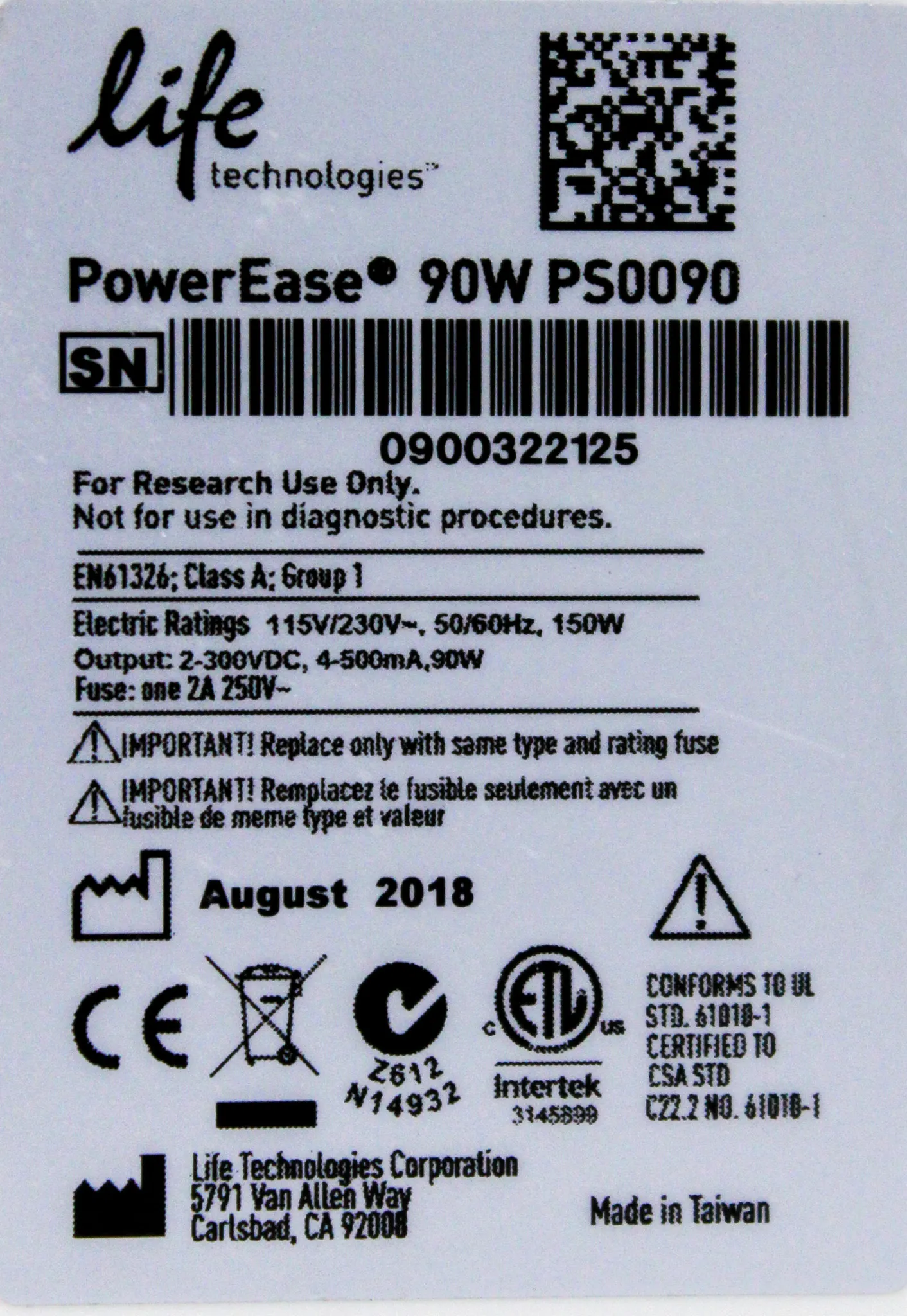

• Serial Number: 0900322125
• Approximate Dimensions (W x D x H): 8 x 12 x 3 in
• Approximate Weight: 6 lb

Imperial: 7.2 Pounds

Metric: 3.27 Kilograms

Imperial: 14.4 lb x 9.6 lb x 3.6 lb

Metric: 36.58 cm x 24.38 cm x 9.14 cm

850440

850440 - Static converters; power supplies. This unit is an electrical power supply used to convert and regulate output for electrophoresis systems, aligning with the static converters category.
