Chart MVE Lab10 Dewar Cryogenic LN2 Storage 10L Capacity High Efficiency
Chart Industries
Details
-
CategoryCold Storage
-
Dimension11.0in x 11.0in x 22.0in
-

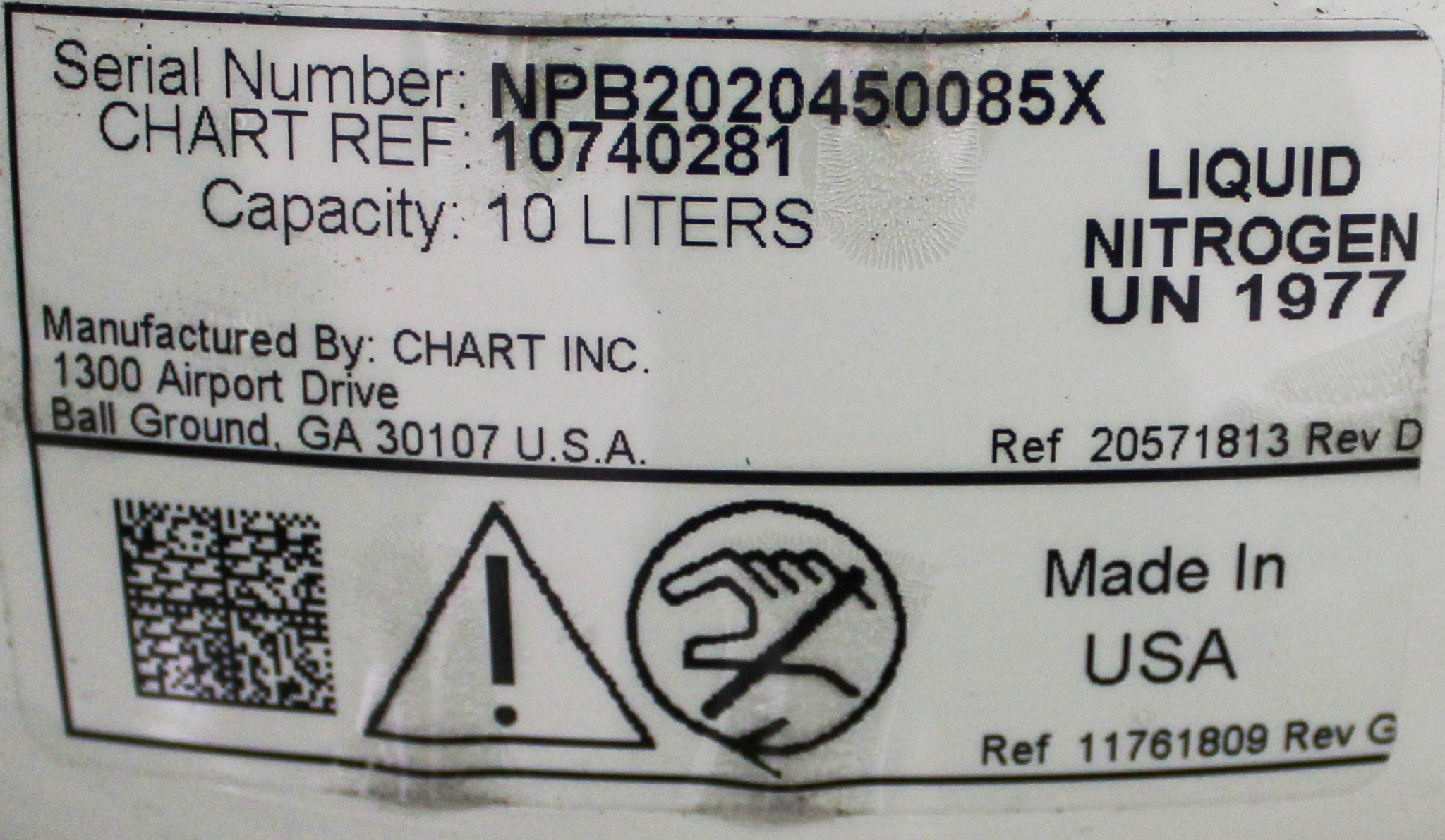

SerialNPB2020450085X
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

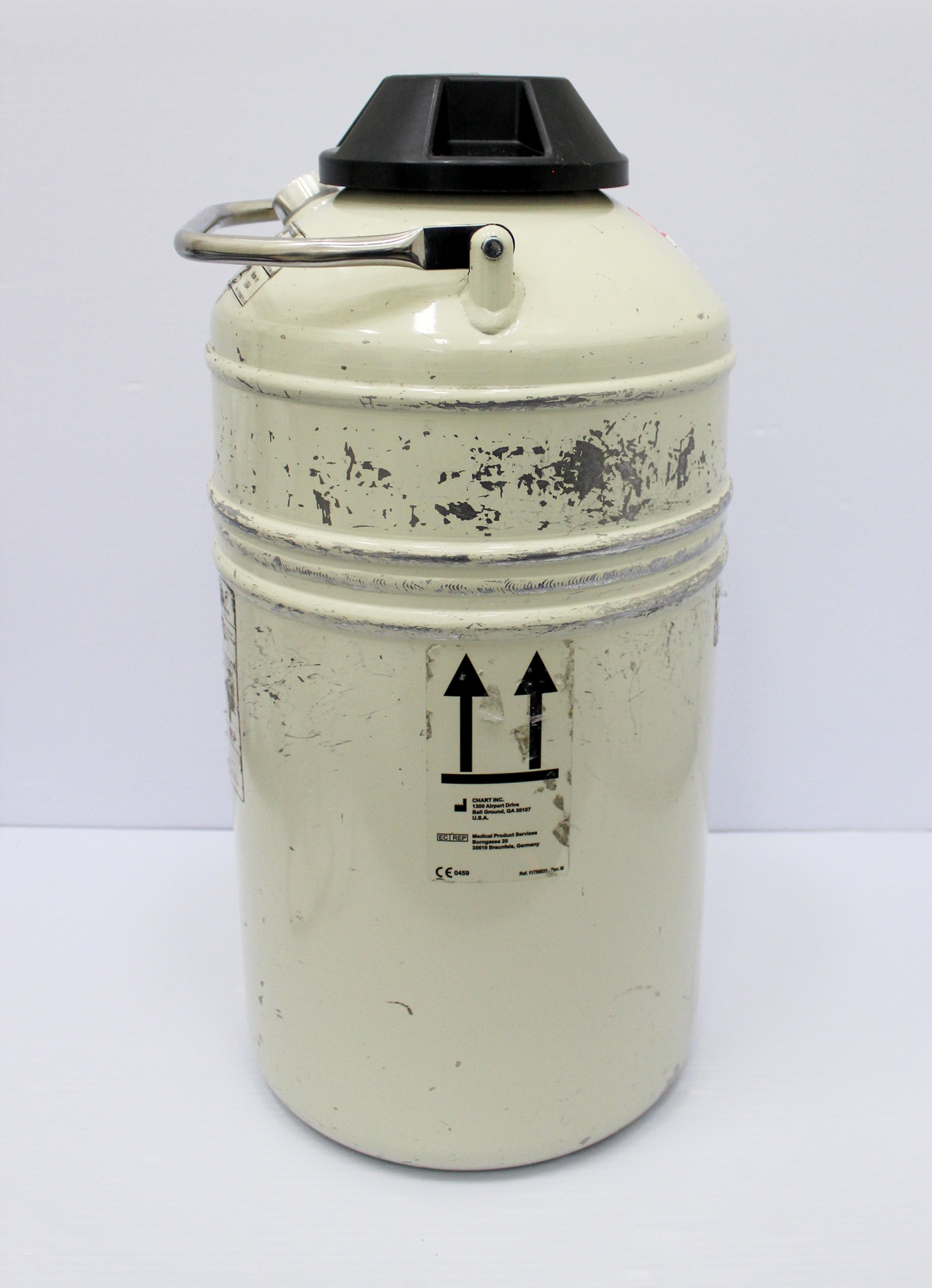

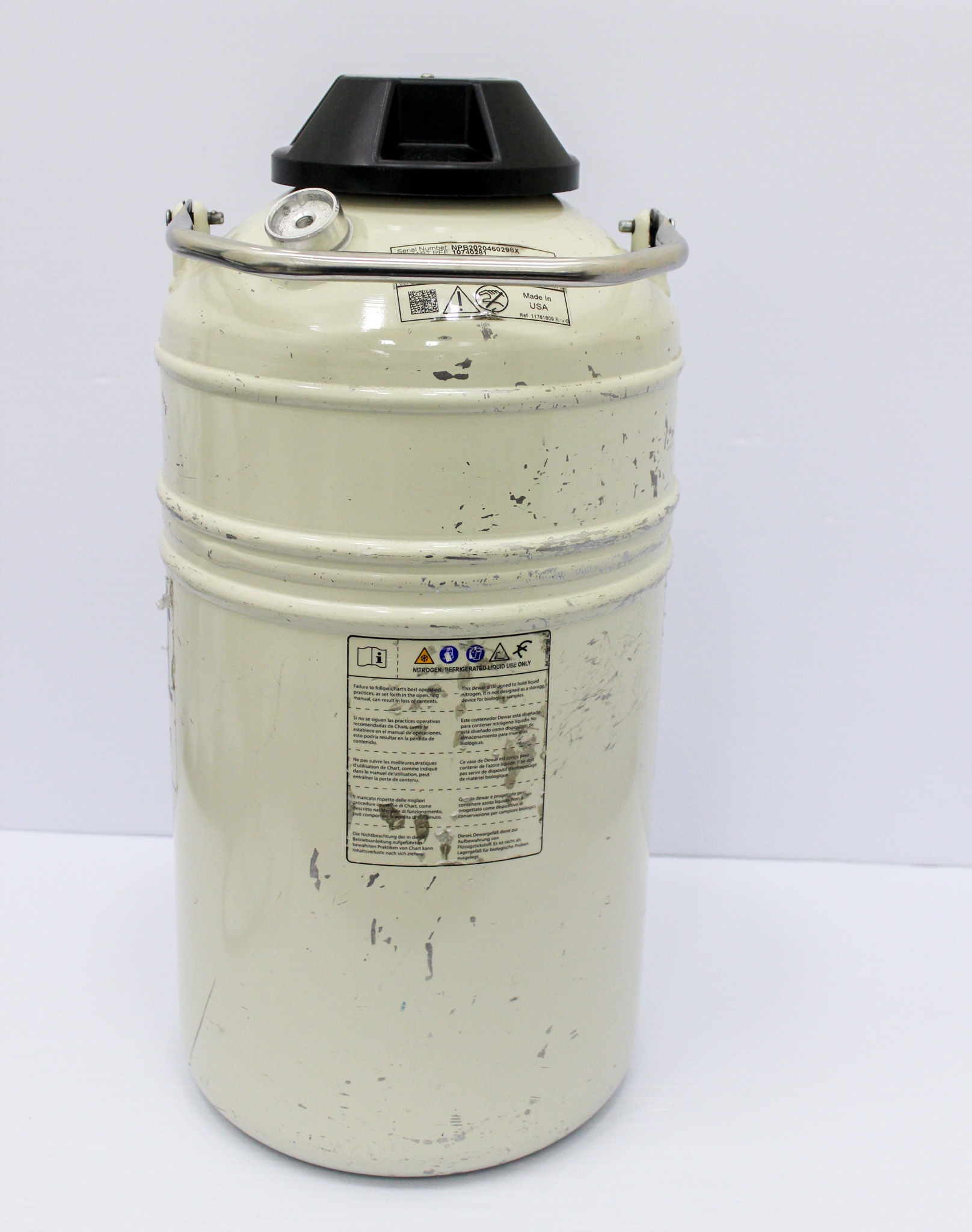

The Chart Industries MVE Lab10 Model is a cryogenic Dewar designed for the efficient storage and dispensing of liquid nitrogen, offering a 10-liter capacity. Manufactured in the United States, this used unit has been classified as 'Good' and has been powered on with no known functionality issues, despite cosmetic wear such as chipped paint. This model is recognized in laboratories and medical facilities worldwide for its high efficiency and super-insulated build. Notable features include a durable composite lid design, a high-strength neck tube to minimize nitrogen loss, and an advanced chemical vacuum retention system. It is lightweight for convenience and conforms to the EU's Medical Device Directive 93/42/EEC. Ideal for transferring liquid nitrogen, this Dewar can be fitted with various dispensing mechanisms.
Key Features
- High efficiency super-insulated design
- 10-liter cryogenic Dewar capacity
- Durable composite lid
- Low nitrogen consumption
- Advanced vacuum retention system
- Conforms to EU Medical Device Directive 93/42/EEC
Specifications
- LN2 Capacity: 10 liters
- Static Evaporation Rate L/day : 0.18

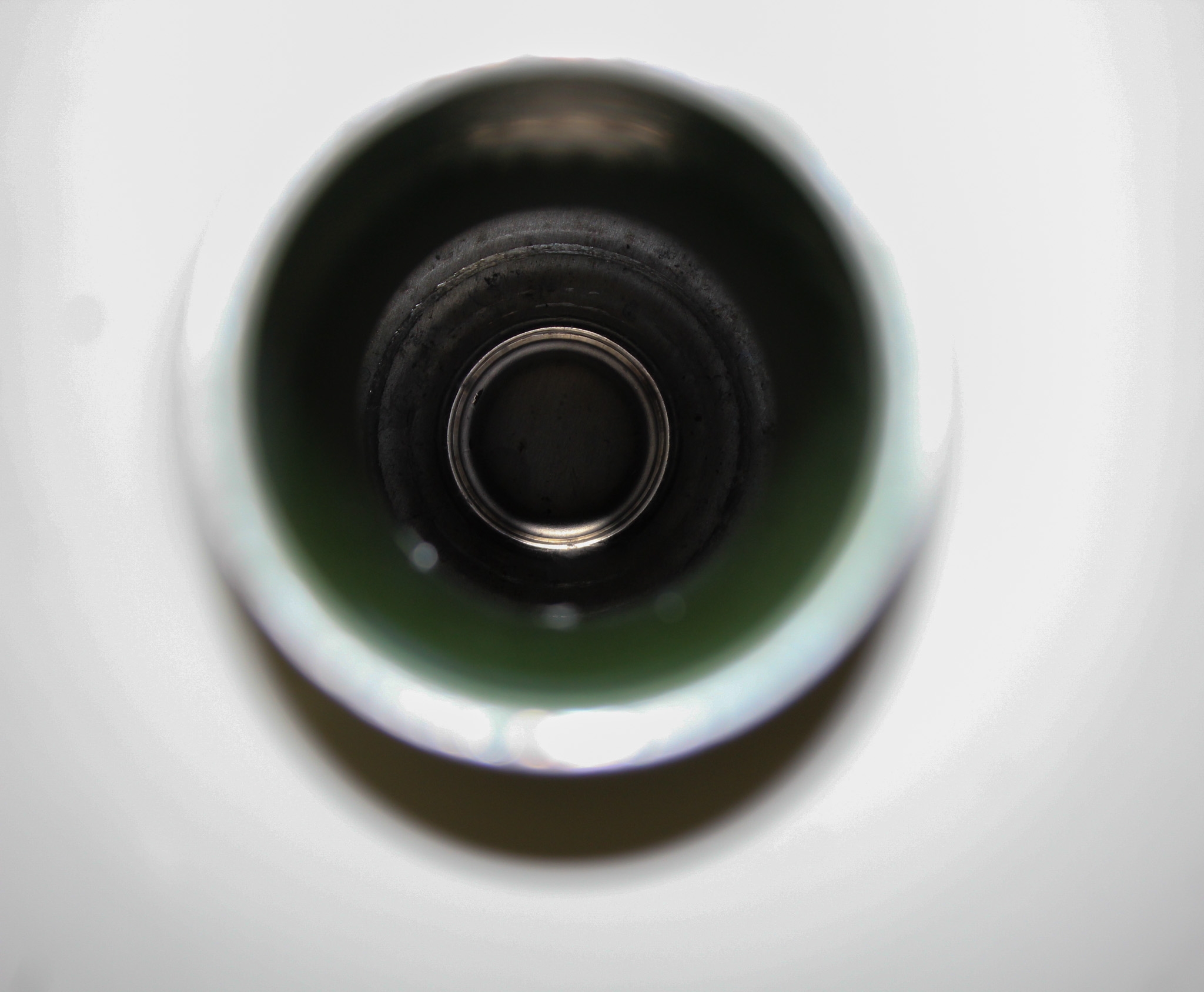

- Neck Opening: 2.18 inches (55.4 mm)
- Overall Height: 21.5 inches (546 mm)
- Useable Height: 13.5 inches (343 mm)
- Outer Diameter: 10.3 inches (260 mm)
- Internal Diameter: 8.3 inches (210 mm)
- Weight Empty: 12 lbs. (5.4 kg)
- Weight Full: 31 lbs. (14 kg)
Weight
Imperial: 14.4 Pounds
Metric: 6.53 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 13.2 lb x 26.4 lb
Metric: 33.53 cm x 33.53 cm x 67.06 cm
Harmonized Code
841830
Harmonized Code Details
The harmonized code 841830 pertains to freezers of the household type, which includes Dewars and similar cryogenic containers. This code is chosen due to the MVE Lab10's function as a cryogenic liquid nitrogen storage device.
