ABI 4470660 QuantStudio Dx Real-Time PCR 96-Well Platform IVD Test Mode
Applied Biosystems
Details
-
CategoryMolecular Biology
-
Dimension26.0in x 19.0in x 28.0in
-
Serial287880032
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

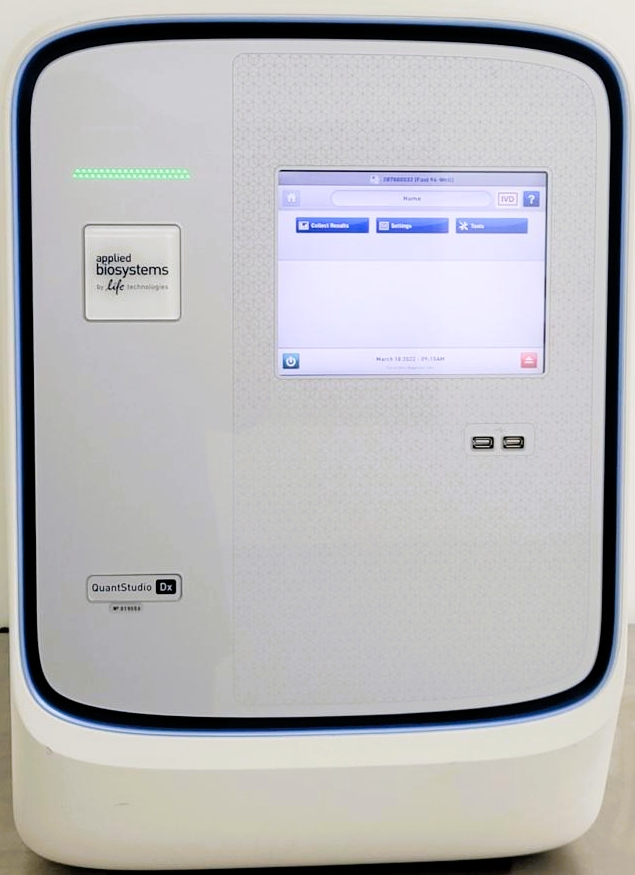

The Applied Biosystems QuantStudio Dx Real-Time PCR Instrument (Model: 4470660) provides reliable performance for clinical laboratories in a 96-well 0.1-mL format. It offers the flexibility needed for laboratories to expand with additional formats and can be operated in either IVD mode or Test Development mode. Key features include a user-friendly block change design that allows block replacement in under a minute without tools, temperature uniformity at 0.5C, and a dynamic range of up to 9 logs. Suitable for various applications like standard curve, comparative Ct genotyping, HRM, melt curve, gene expression, and quantitative assays, this model also assists with 21 CFR Part 11 compliance via its security and auditing features. Demonstrated sensitivity is as low as 1 copy, ensuring precise results. The instrument includes 6 excitation and detection wavelengths within the ranges of 450-670nm and 500-720nm, respectively, supporting a wide array of applications while maintaining high resolution and accuracy.
Key Features
- 96-well 0.1-mL format diagnostic platform
- Supports IVD and Test Development modes

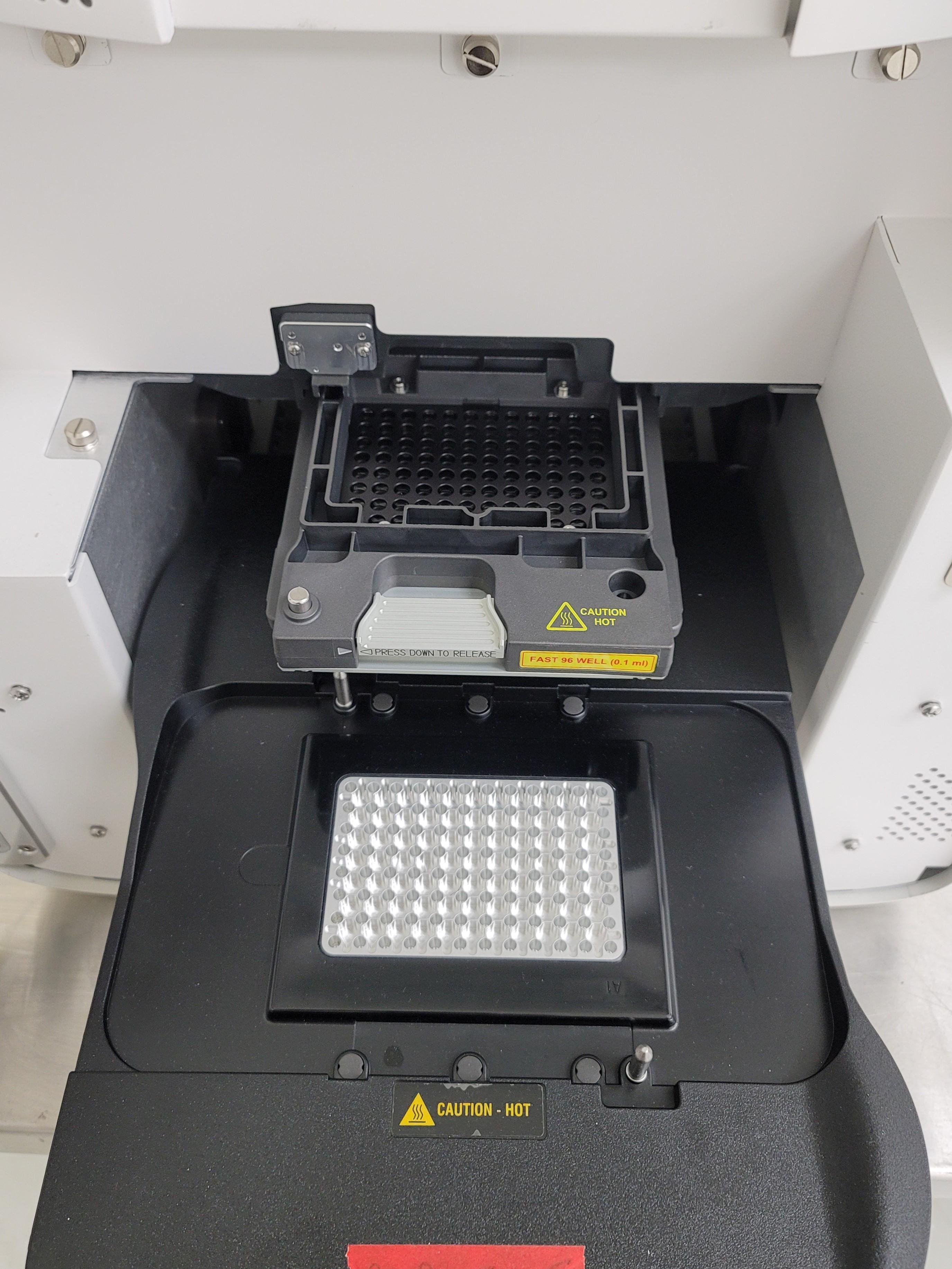

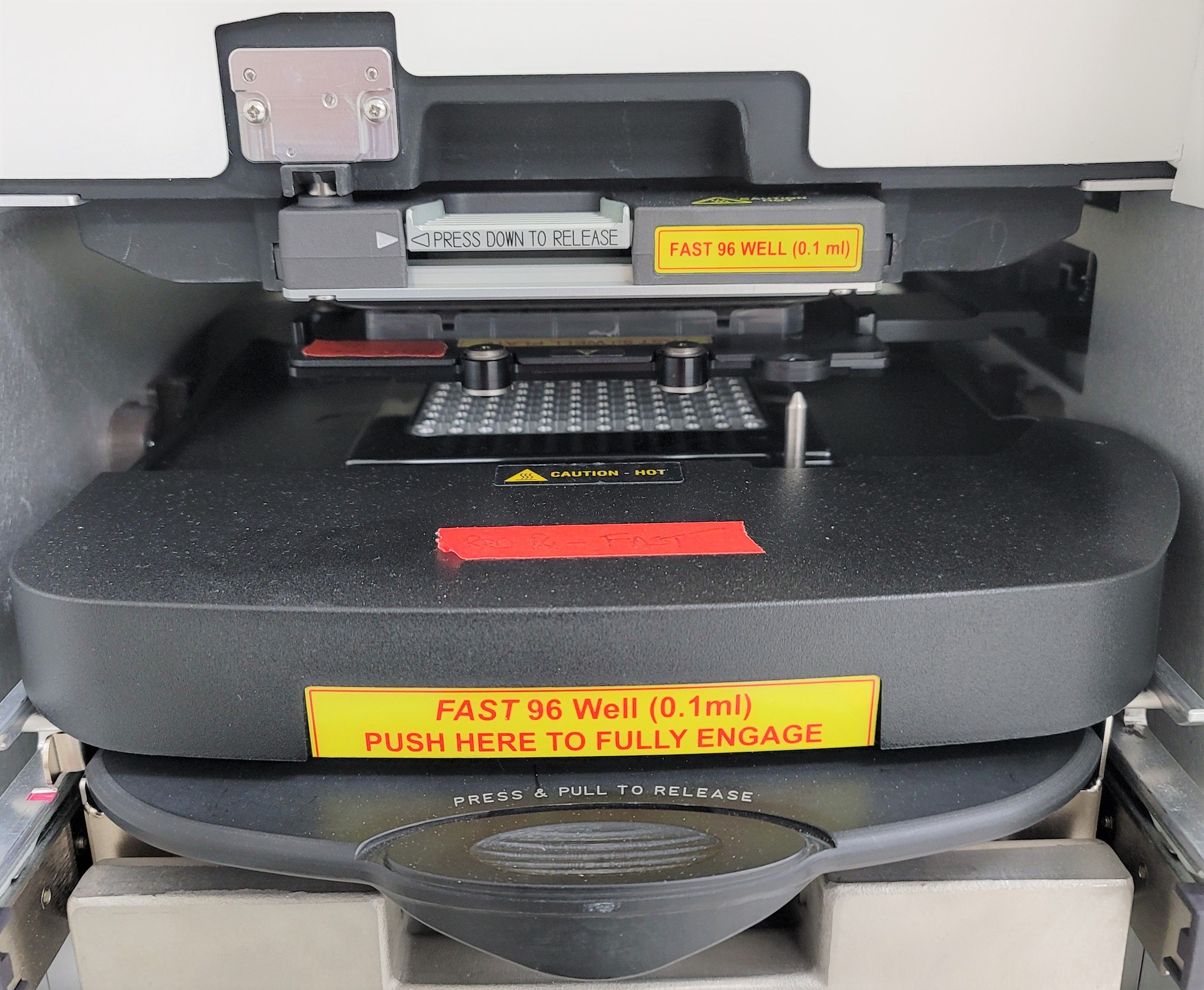

- Quick block change design under 1 minute
- Temperature uniformity of 0.5C
- Dynamic range up to 9 logs
Specifications
- Block change design facilitates quick swaps without tools
- Temperature uniformity maintained at 0.5C
- Run times vary: ~35 min for 384-well, ~30 min for 96-well
- Sensitivity down to 1 copy
- 6 excitation (450-670nm) and 6 emission (500-720nm) wavelengths
- Resolution detects 1.5-fold target changes
- Supports applications: standard curve, Ct genotyping, HRM, quantitative assays
Weight
Imperial: 240.0 Pounds
Metric: 108.86 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 22.8 lb x 33.6 lb
Metric: 79.25 cm x 57.91 cm x 85.34 cm
Harmonized Code
9027.90.54
Harmonized Code Details
9027.90.54: Instruments and apparatus for physical or chemical analysis, specifically those for PCR testing. This code is suitable as it aligns with the precision analytical nature of real-time PCR platforms in laboratory settings.
