Thermo CH-1000 ThermoFlex 10000 Chiller Heater Recirculating 10 kW 0.1C 20C 230V

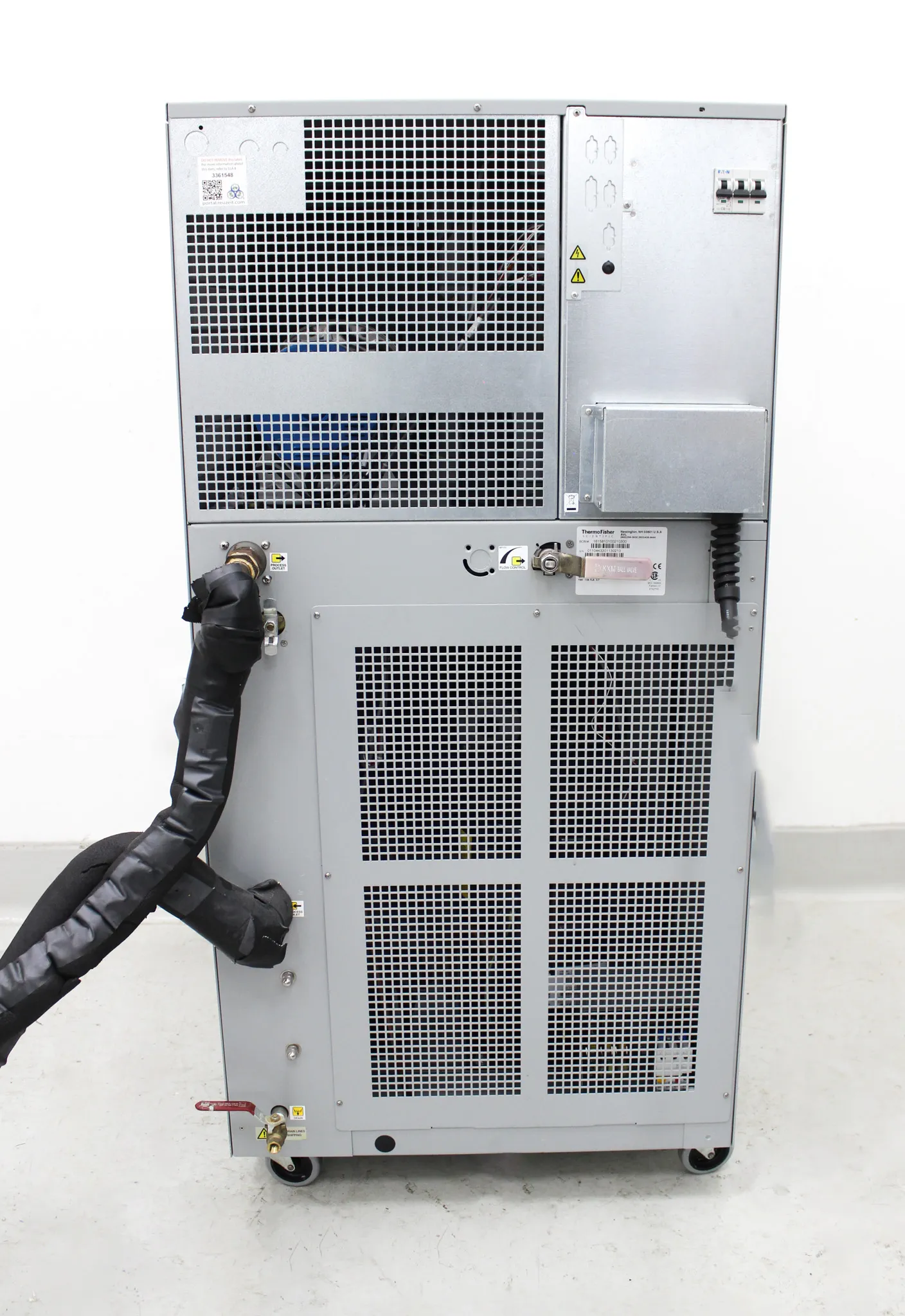

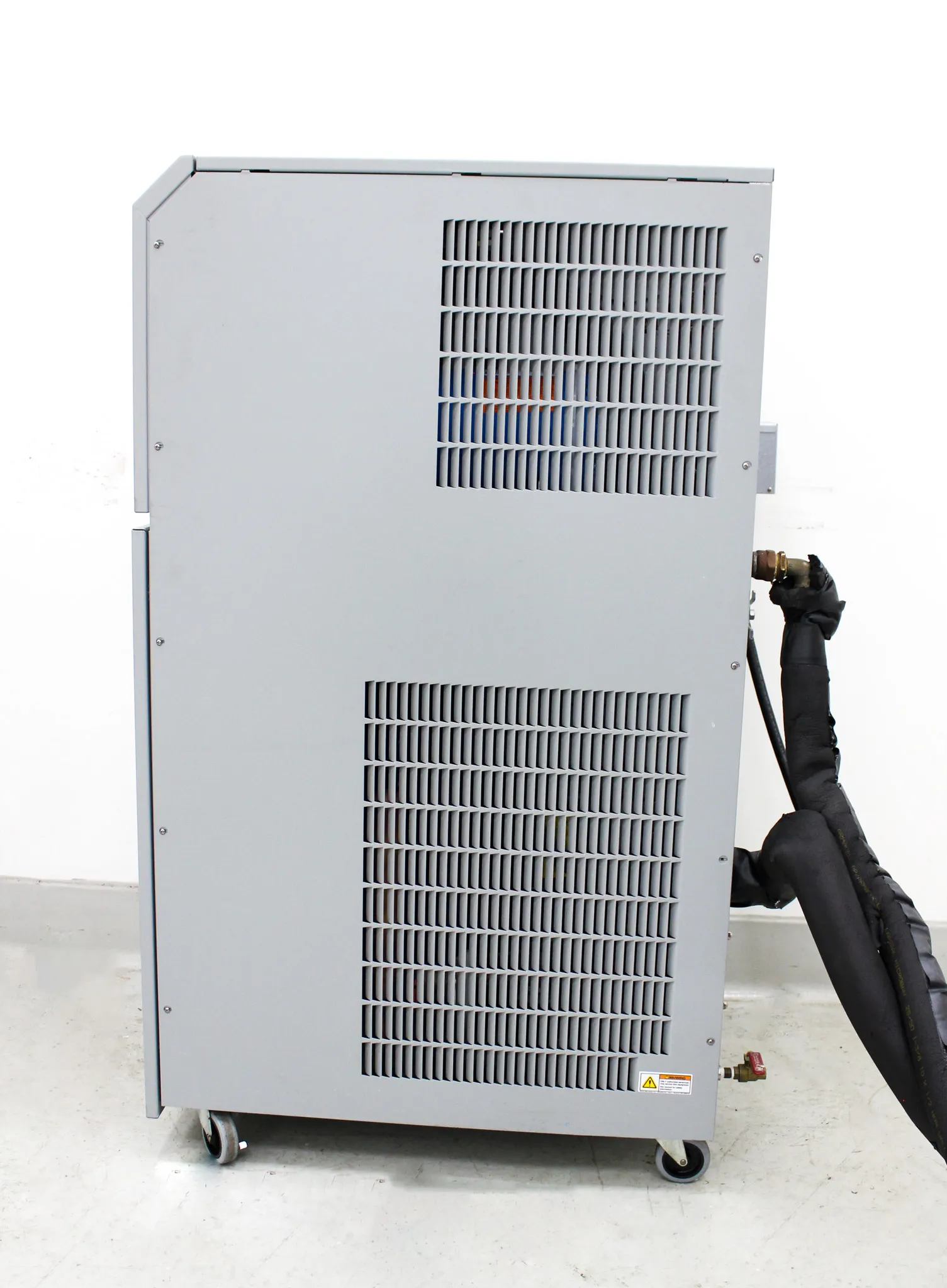

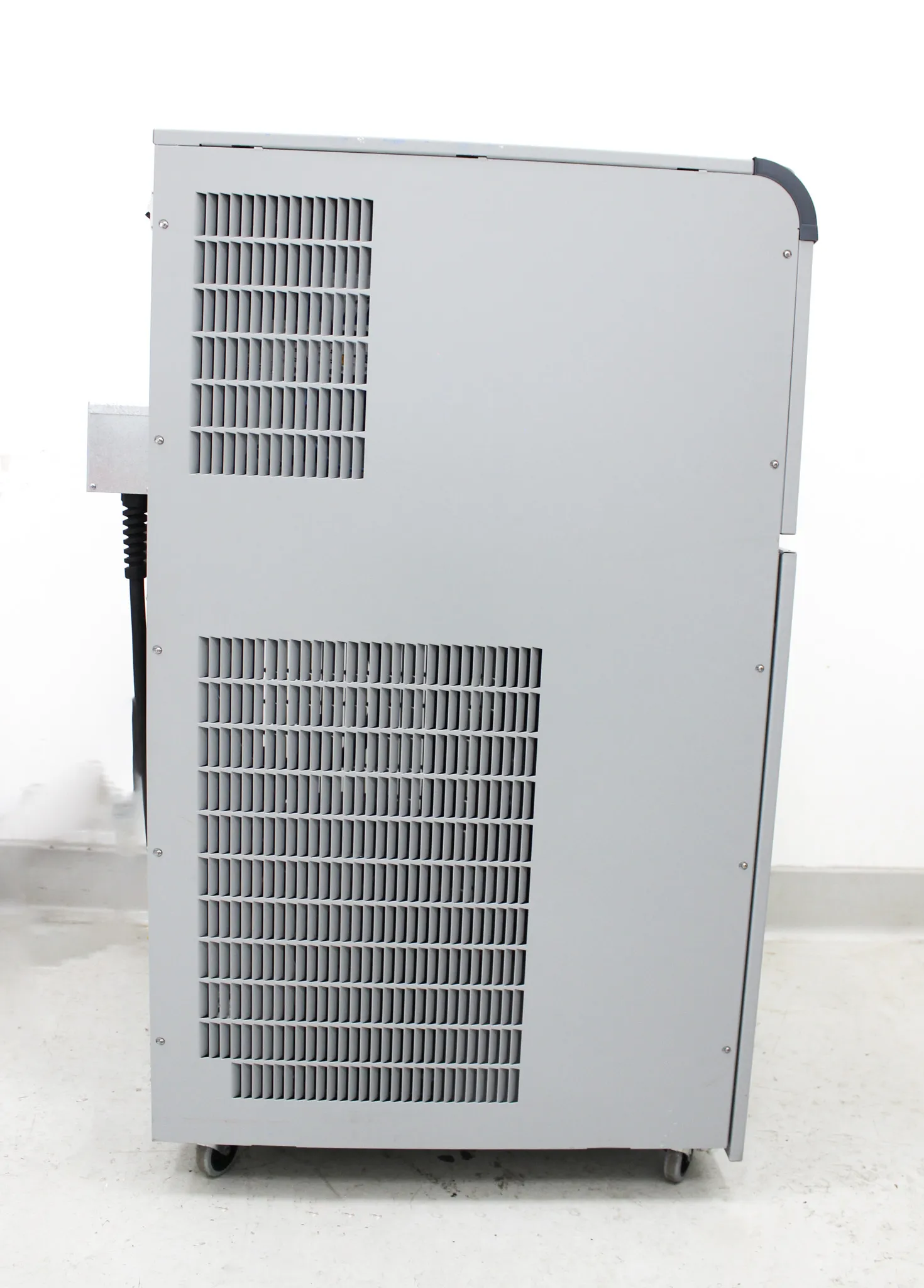

Thermo CH-1000 ThermoFlex 10000 Industrial Recirculating Chiller by Thermo. This used unit is listed as nonfunctional at time of listing and is offered in Very Good cosmetic condition with minor scuffs; see photos. Backed by a 30-day parts warranty. Designed for demanding laboratory and industrial cooling and heating tasks, the ThermoFlex platform delivers precise temperature control with 0.1 C stability. Standard process range is approximately +5 C to +40 C, with a high-temperature option to +90 C. Cooling capacity is 10,000 W at 20 C, 60 Hz, with low-noise operation on select models. Features include an intuitive interface, replaceable air and water filters while running, and quick-install packaging. Typical electrical requirement is 208 to 230 V, 50/60 Hz; label may indicate multi-voltage configurations. Refrigerant is R407C with a 4.75 gal (17.9 L) reservoir. Suitable for aerospace, analytical, biotech, chemical, industrial, medical, pharmaceutical, research, and university applications. Includes power cord.

• 10 kW cooling capacity at 20 C, 60 Hz for high-demand process loads
• Temperature stability of 0.1 C for precise thermal control
• Standard process range +5 C to +40 C; high-temperature option to +90 C
• Low-noise operation on select models, under 58 dBA across operating range
• R407C refrigerant with 4.75 gal 17.9 L reservoir
• User-friendly interface and quick-start for rapid deployment
• Air and water filters can be changed while the unit is running
• Multiple pump configurations available, up to 20 gpm and 60 psid
• Typical electrical 208 to 230 V, 50/60 Hz; site label may indicate multi-voltage
• ThermoFlex platform engineered for reliability and ease of maintenance

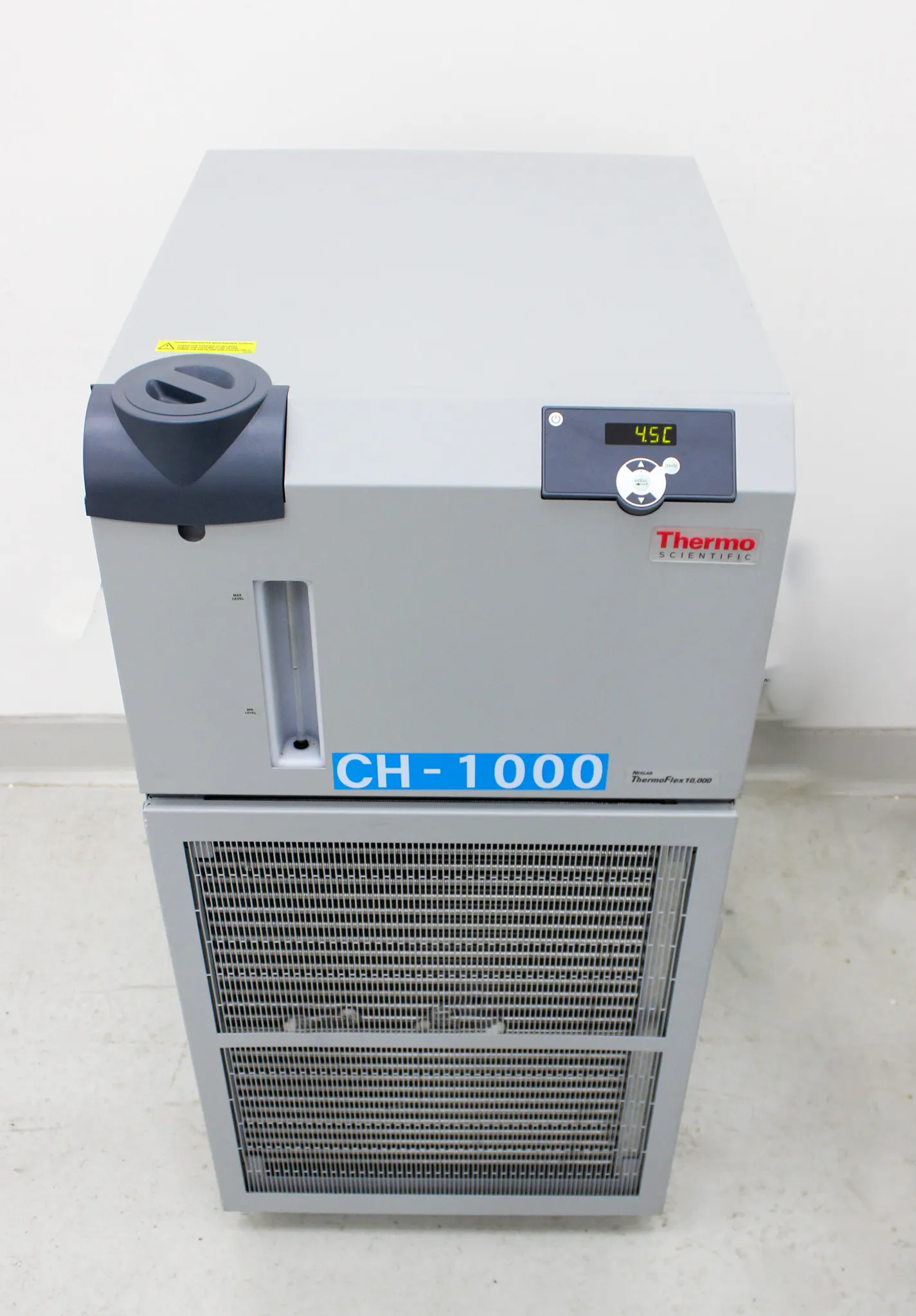

• Make and Model: Thermo ThermoFlex 10000, Model CH-1000
• Condition: Used, Very Good cosmetics; nonfunctional at time of listing
• Warranty: 30-day parts warranty
• Cooling Capacity: 10,000 W at 20 C, 60 Hz (approximately 34,100 BTU hr)
• Temperature Range: Standard +5 C to +40 C; high-temperature configuration +5 C to +90 C
• Temperature Stability: 0.1 C
• Ambient Operating Range: +10 C to +40 C
• Setpoint Range: Approximately +41 F to +104 F standard; up to +194 F with high-temp option

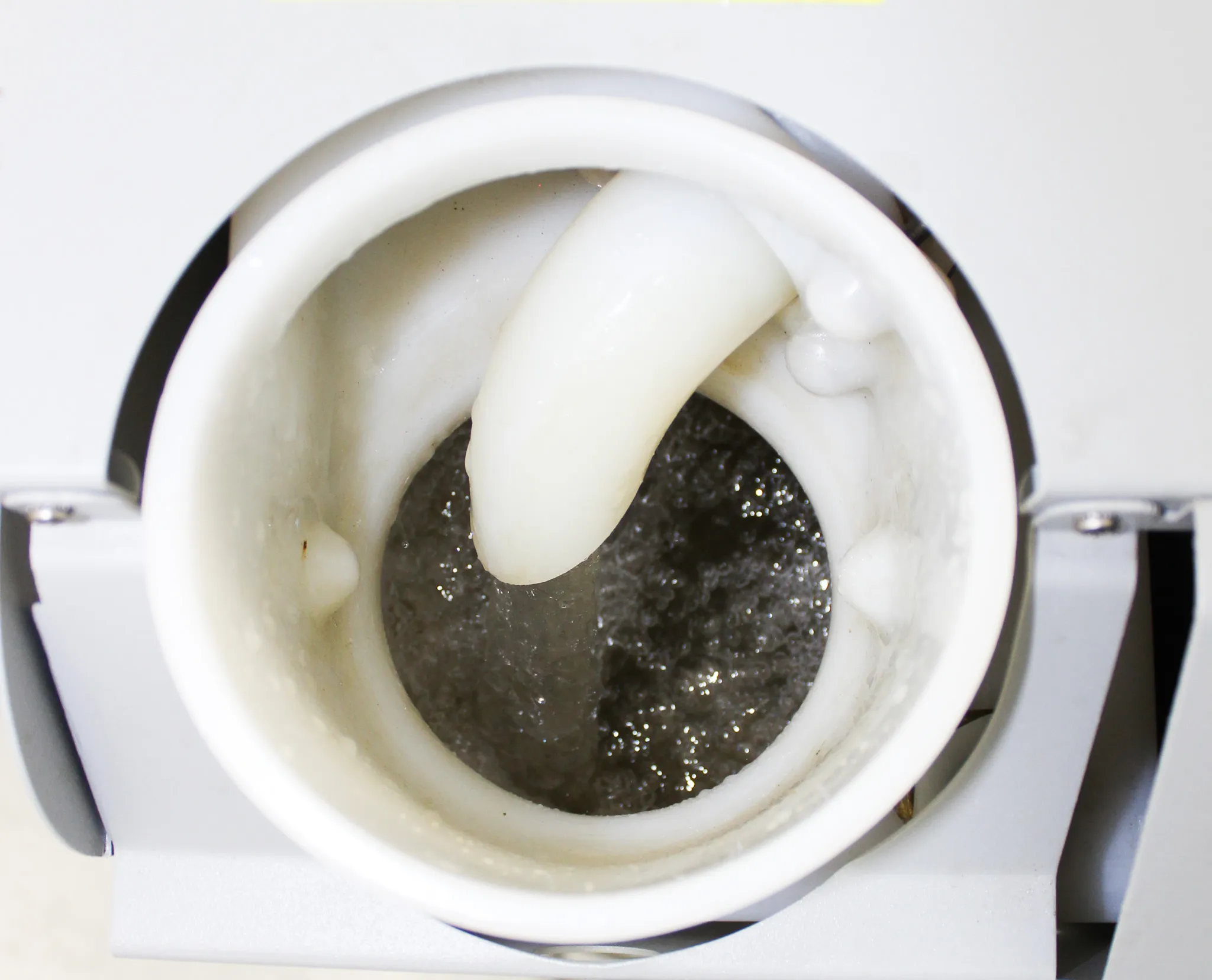

• Reservoir Volume: 4.75 gallons 17.9 liters
• Refrigerant: R407C
• Heater Power: 5.0 kW at 208 V, 6.1 kW at 230 V
• Pump Performance: Configurable; examples include up to 20 gpm at up to 60 psid 75.7 lpm, 4.1 bar
• Noise Level: Low-noise select models under 58 dBA across operating range
• Electrical: Typically 208 to 230 V, 50 60 Hz; input indicates 120 220 V compatibility on some builds

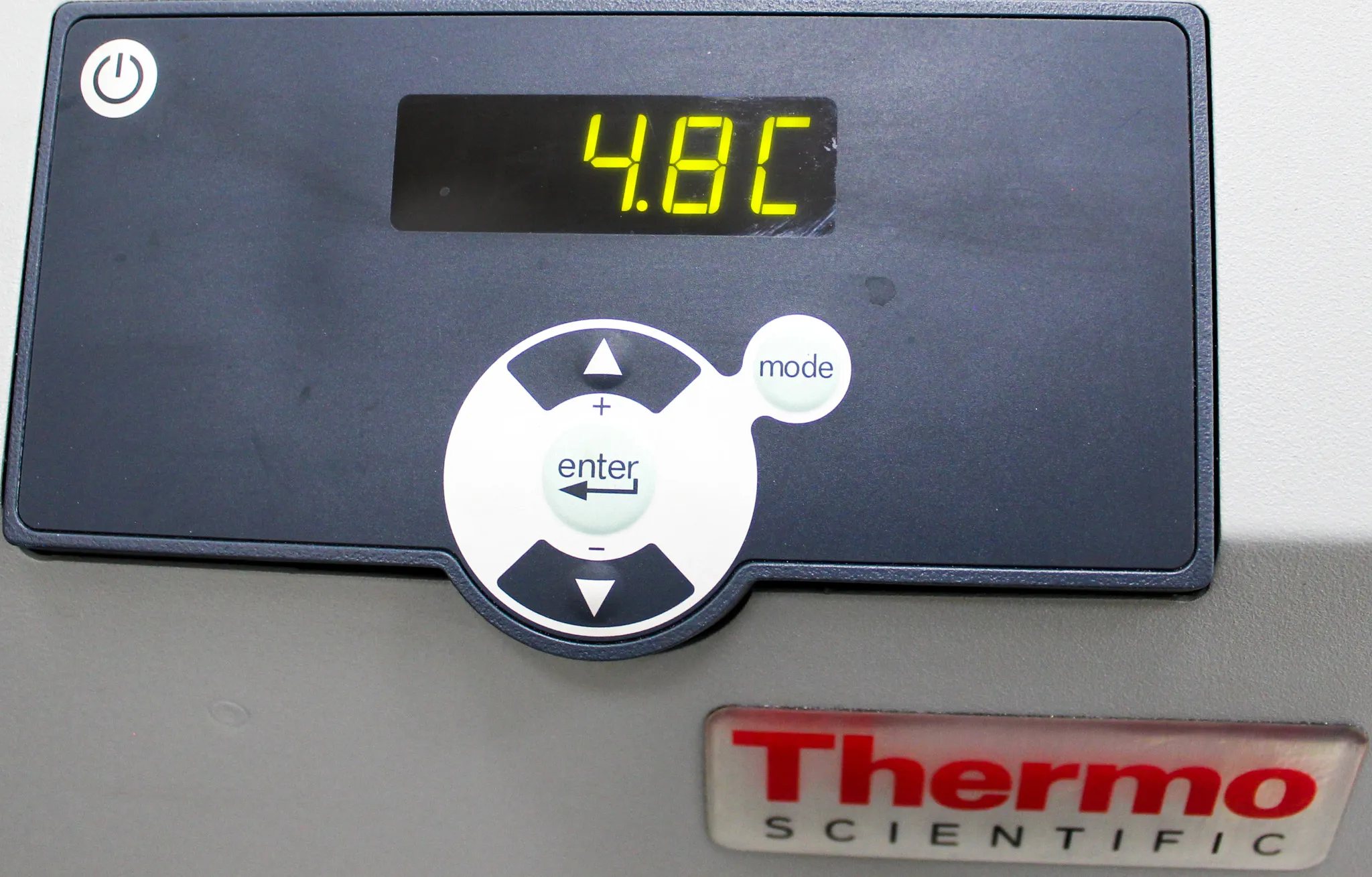

• User Interface: Intuitive digital controls for setpoint, alarms, and status
• Serviceability: Air and water filters accessible and replaceable during operation
• Applications: Laser cooling, analytical instruments, reactors, bioreactors, pilot plant processes, HPLC GC support, general process temperature control
• Includes: Power cord; no computer, data cables, manuals, or software

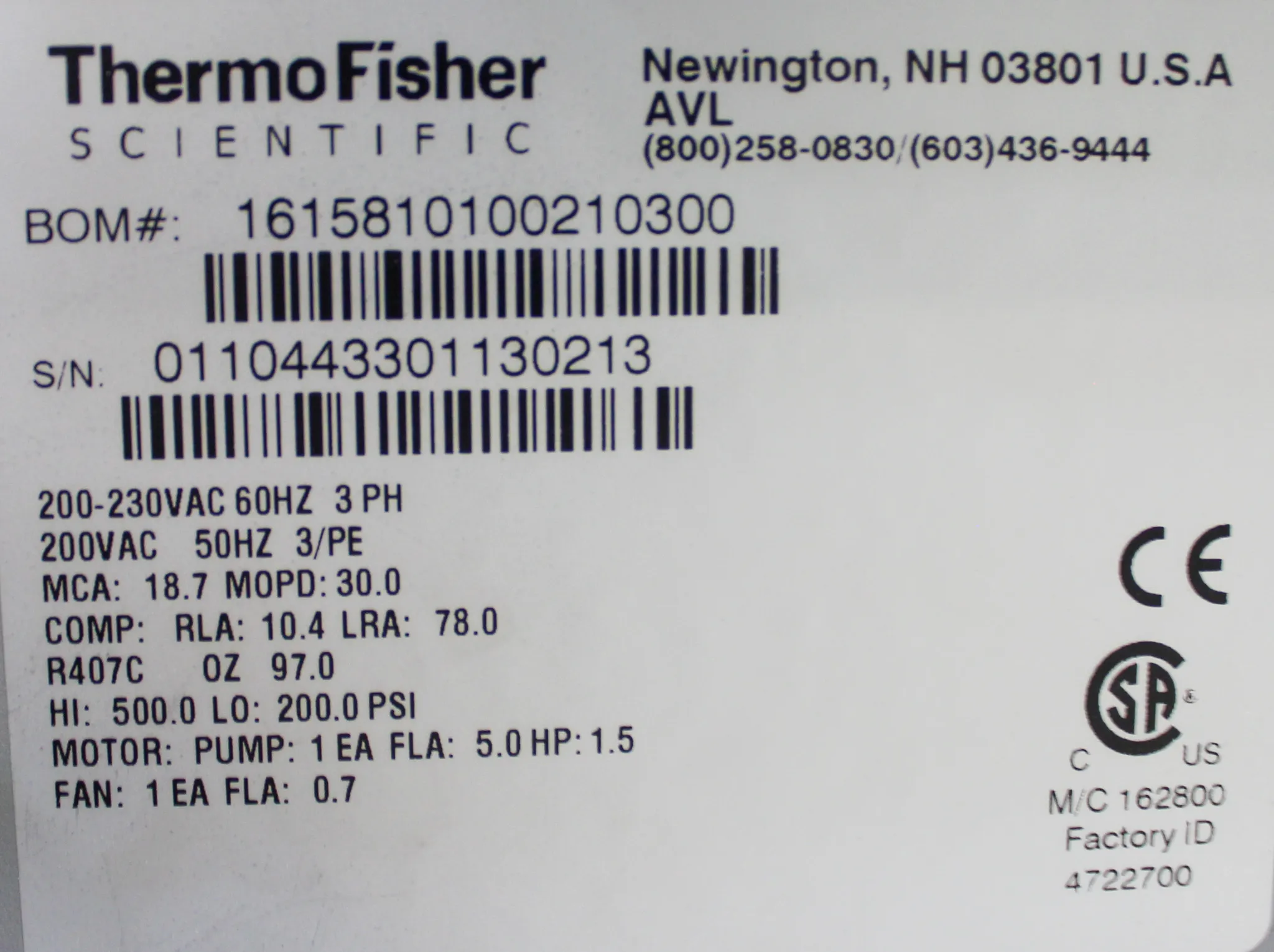

• Serial Number: 0110443301130213
• Country of Origin: United States
• BOM Reference: Chiller BOM 1615810100210300
• Approx Dimensions H x W x D: 52 x 26 x 35 in 132.1 x 66.0 x 88.9 cm
• Approx Weight: 360 lb 163 kg

Imperial: 432.0 Pounds

Metric: 195.95 Kilograms

Imperial: 42.0 lb x 31.2 lb x 62.4 lb

Metric: 106.68 cm x 79.25 cm x 158.5 cm

841989

HS 8419.89 Machinery for the treatment of materials by a process involving a change of temperature other than those of heading 84.18. Recirculating laboratory process chillers fall under 8419 as temperature treatment equipment.
