Spot Insight 14.5 Camera Monochrome Microscope Imager Turnkey 4 Megapixel Ready
Spot Insight
Details
-
CategoryMicroscope / Imager
-
Dimension10.0in x 4.0in x 3.0in
-
Serial266584
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Price factors
-
Demand
This item is applicable for recycling. We can pick up the item and recycle it. A certificate of destruction is available upon request
-
Inflation
Inflation has little effect on the price of a product, as other factors (such as demand, competition, and technological innovation) play a more important role
-
Condition
The price of the equipment directly depends on its condition. New equipment is more expensive than used ones
-
Time
The product is on display in the store from 10.01.2025
The price is currently affected by :
-
Demand
-
Inflation
-
Condition
-
Time
Description
Product Information

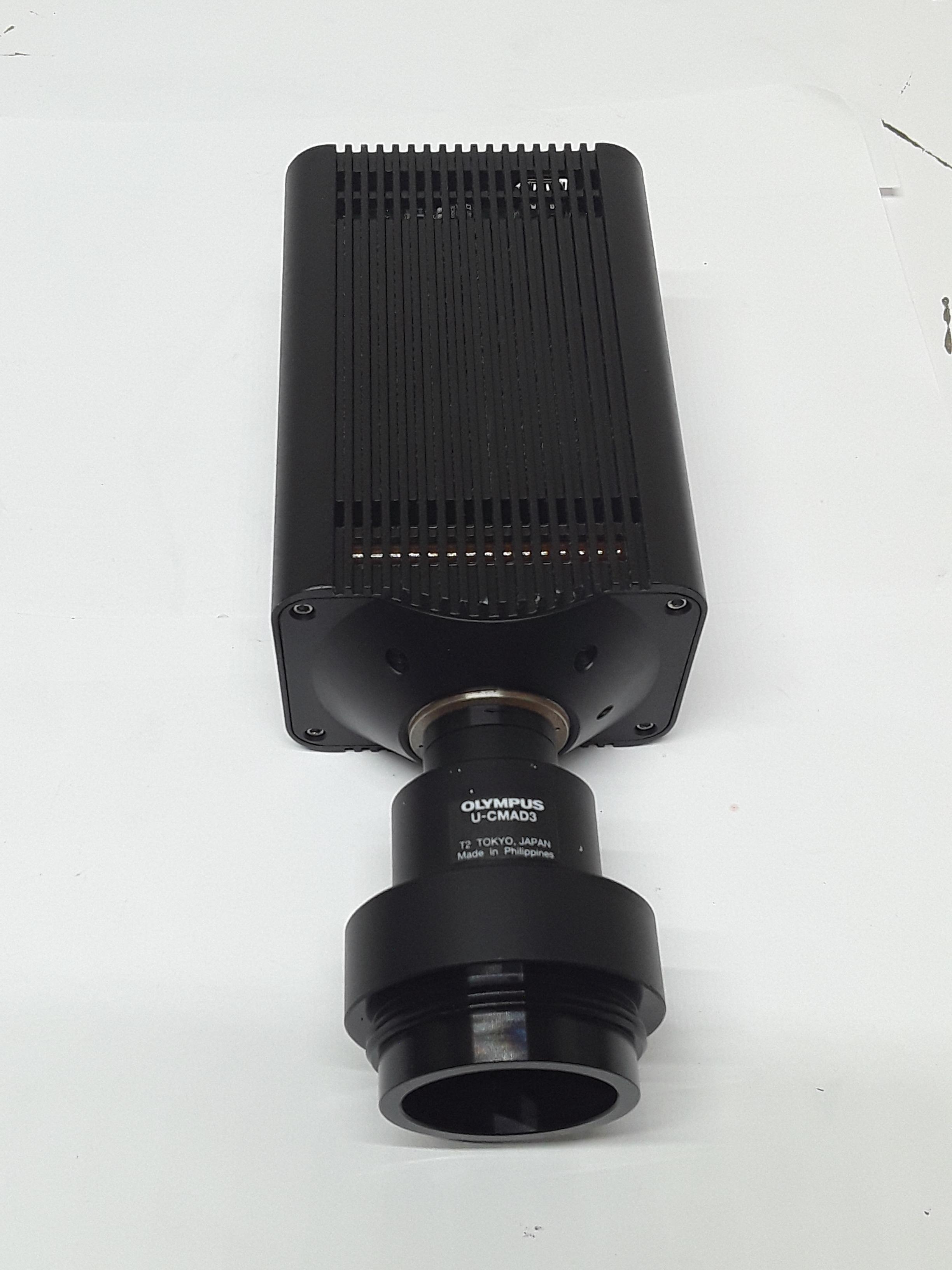

The Spot Insight Model 14.5 is a 4.0 Megapixel monochrome camera designed for high-quality digital imaging in scientific and industrial applications. Manufactured by Spot Insight, this used turnkey system is fully functional and includes an Olympus U-CMAD3 lens. It features a large Kodak CCD sensor for capturing 22 mm wide-field views, making it an excellent choice for pathology, clinical, life sciences, educational, and industrial uses. Equipped with a 40 MHz live mode and FireWire interface, it supports high-speed real-time imaging and easy connectivity with Mac and PC systems. The camera's IR filter increases contrast for bright field samples, while a programmable gain and a 14-bit capture depth enhance image detail. This equipment is sold as-is without warranties and includes a power cord.
Key Features
- 4.0 Megapixel monochrome imaging
- Kodak CCD sensor with 22 mm field of view

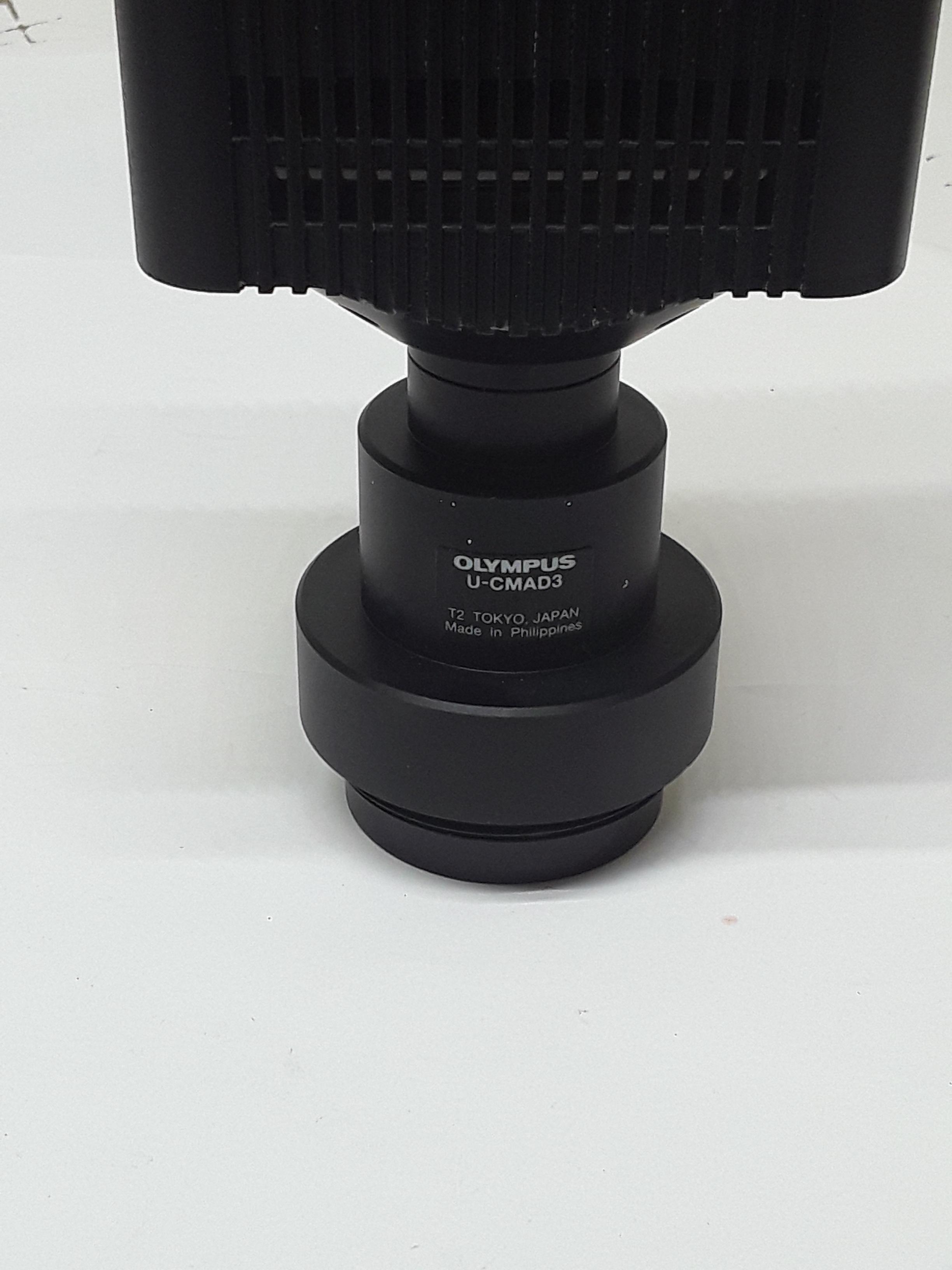

- Includes Olympus U-CMAD3 lens
- 40 MHz high-speed live mode
- Programmable gain (1-20x) for low-light imaging
- 14-bit capture for image enhancement
- FireWire interface for easy Mac and PC connectivity
Specifications
- Resolution: 2048 x 2048 (4 Megapixel)
- Live mode frequency: 40 MHz
- Capture depth: 14-bit x 20 MHz
- Field of view: 15.2mm x 15.2mm imaging area
- IR filter: Blocks wavelengths above 650 nm
- Interface: FireWire for effortless installation, hot-swapping
- Compatibility: Mac and PC
- Shuttering: Electronic interline progressive scan CCD
Weight
Imperial: 2.4 Pounds
Metric: 1.09 Kilograms
Shipping Dimensions
Imperial: 12.0 lb x 4.8 lb x 3.6 lb
Metric: 30.48 cm x 12.19 cm x 9.14 cm
Harmonized Code
9006910000
Harmonized Code Details
The harmonized code 9006910000 pertains to parts and accessories for photographic cameras and equipment, including photocopying and digital cameras. This code is justified as the Spot Insight camera, while fully functional and ready for scientific applications, also technically fits as a part or accessory within broader imaging systems.
