Semrock FF01 Bandpass Filter 25mm Multiband High Transmission
Semrock FF01 Bandpass Filter 25mm Multiband High Transmission

Semrock FF01 Bandpass Filter 25mm Multiband High Transmission

sku: 7000937
1 In Stock

SEMROCK

FF01-440/521/607/694/809-25
EU REUZEit Netherlands - R
30-Day Warranty On Part
$350.00
Make Offer Enquiry Here
Add to cart Download flyer

Details

  • Category
    Spectrometer - Multi-Well
  • Dimension
    5.0cm x 5.0cm x 8.0cm
  • Serial
    Does Not Apply
  • Shipping Type
    FedEx Ground
  • Manufacturing
    Does Not Apply
  • Voltage / Hertz
    Does Not Apply / Does Not Apply

Listing price

$350.00
W6
$350.00
W5
$350.00
W4
$350.00
W3
$350.00
W2
$350.00
W1
$350.00

Projected price increase

Today
T

Price factors

  • Demand

    This item is applicable for recycling. We can pick up the item and recycle it. A certificate of destruction is available upon request

  • Inflation

    Inflation has little effect on the price of a product, as other factors (such as demand, competition, and technological innovation) play a more important role

  • Condition

    The price of the equipment directly depends on its condition. New equipment is more expensive than used ones

  • Time

    The product is on display in the store from 10.01.2025

The price is currently affected by :

  • Demand
  • Inflation
  • Condition
  • Time

Description

Product Information

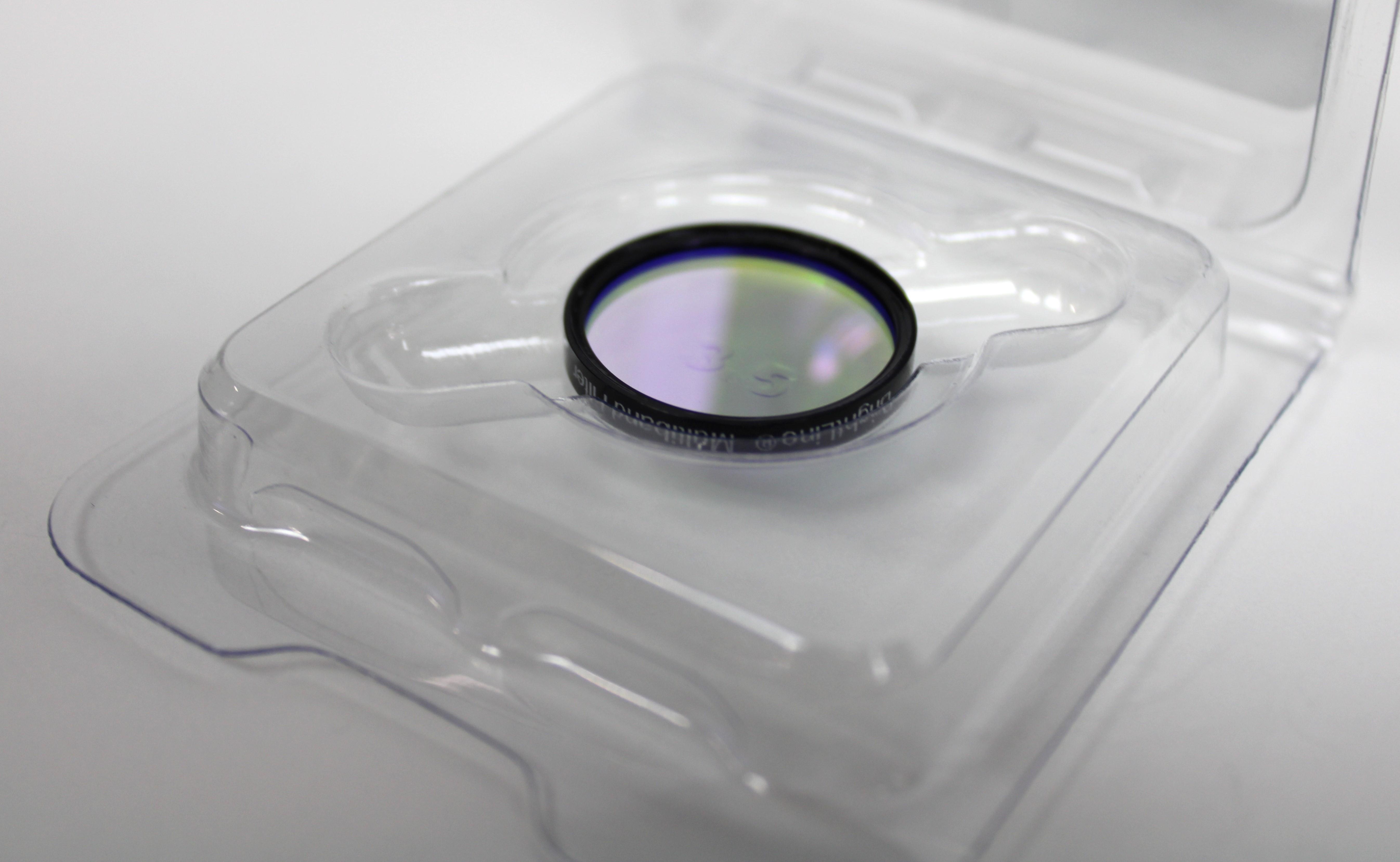

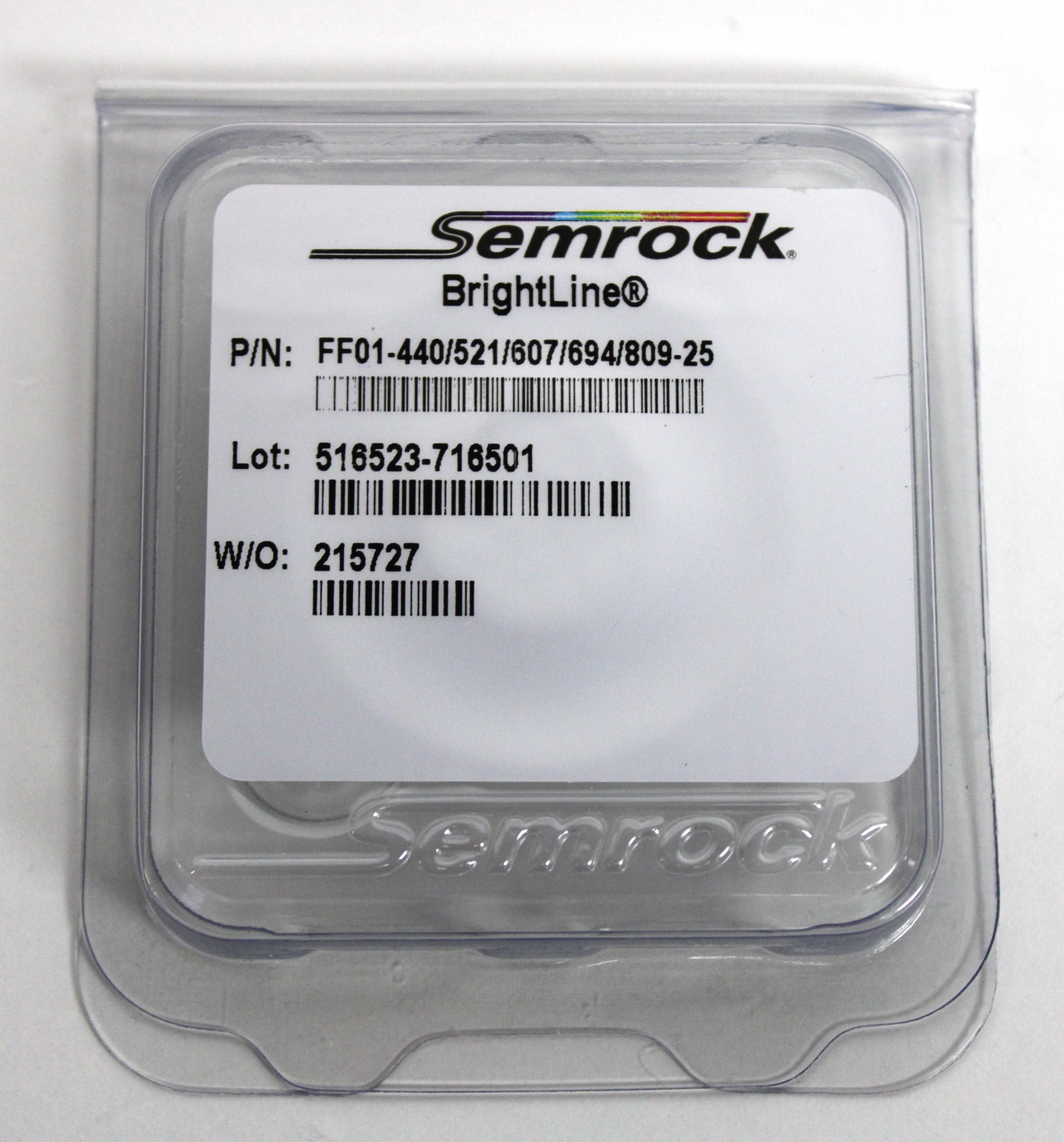

Introducing the SEMROCK FF01-440/521/607/694/809-25 BrightLine Penta-band Bandpass Filter. This innovative multiband fluorescence filter employs Semrock's patented single-substrate construction for superior performance and reliability. The filter boasts extremely high transmission rates with sharp and well-defined edges, ensuring outstanding blocking between passbands. Key optical specifications include a greater than 90% average transmission across specific bands ranging from 420 nm to 849.5 nm, alongside robust blocking efficiency across multiple bands. Constructed with a thin-film, hard-coated design, it offers unwavering durability. Ideal for applications requiring precise spectral control and high optical performance.


Key Features
  • Patented single-substrate construction for superior performance
  • High transmission rates (Tavg > 90%) across five bands
  • Effective blocking (ODavg > 8) in critical regions
  • Thin-film, hard-coated for durability
  • 25 mm diameter with a clear aperture ≥ 22 mm

Specifications
  • Transmission Bands: 420–460 nm, 510–531 nm, 589.5–623.5 nm, 677–711.5 nm, 768.5–849.5 nm.
  • Blocking Bands: Covering ranges from 200 to 1100 nm with ODavg > 5 to 8.
  • Transverse Dimensions: 25 mm diameter with a +0.0 / -0.1 mm tolerance.
  • Mounted Filter Thickness: 3.5 mm with ± 0.1 mm tolerance.
  • Unmounted Filter Thickness: 2.0 mm with ± 0.1 mm tolerance.
  • Scratch-Dig: 60-40.
  • Center Wavelengths: 440 nm, 520.5 nm, 606.5 nm, 694.3 nm, 809 nm.

Weight

Imperial: 0.24 Pounds

Metric: 0.11 Kilograms


Shipping Dimensions

Imperial: 2.4 lb x 2.4 lb x 3.6 lb

Metric: 6.1 cm x 6.1 cm x 9.14 cm


Harmonized Code

900290


Harmonized Code Details

9002: Lenses, prisms, mirrors and other optical elements, other than goods of Chapter 71, unmounted, other than such elements of glass not optically worked. The code was chosen as it corresponds to elements used in optical instruments, which aligns with the specification of the bandpass filter being a key optical component used in microscopy and spectroscopy.
