ILX Lightwave LDC-3722B Laser Diode Controller
- Make ILX Lightwave
- Hertz 50Hz/60Hz
- Model LDC -3722B
- Serial 37222099
- Weight 26.0 Lb
- Voltage 120V/220V
- Includes Power cord included |
- Warranty 30-Day Warranty On Part
- Dimensions 22.0in x 20.0in x 13.0in
- Shipping Type FedEx Ground
- Item Condition Good
- Manufacturing Date Does Not Apply

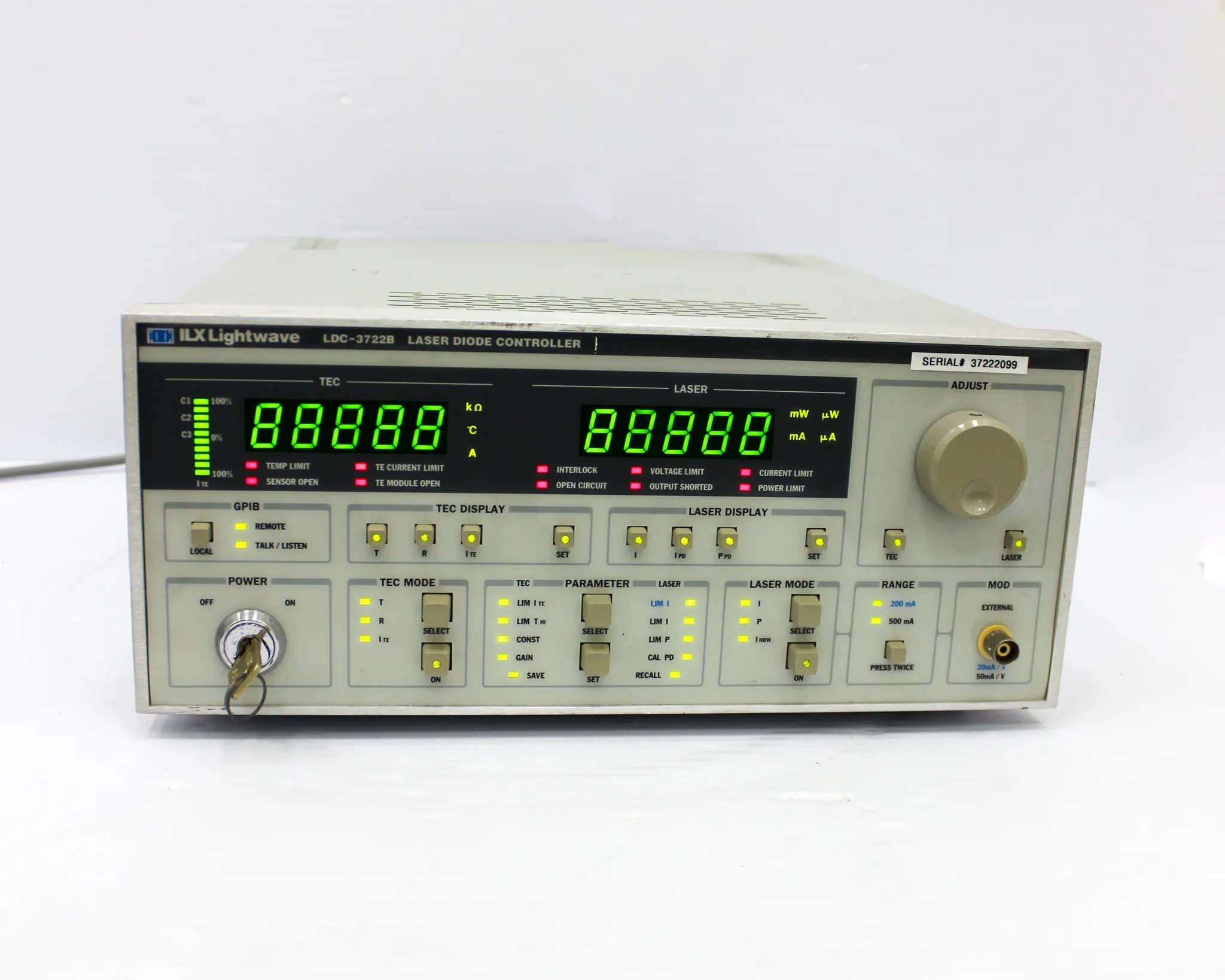

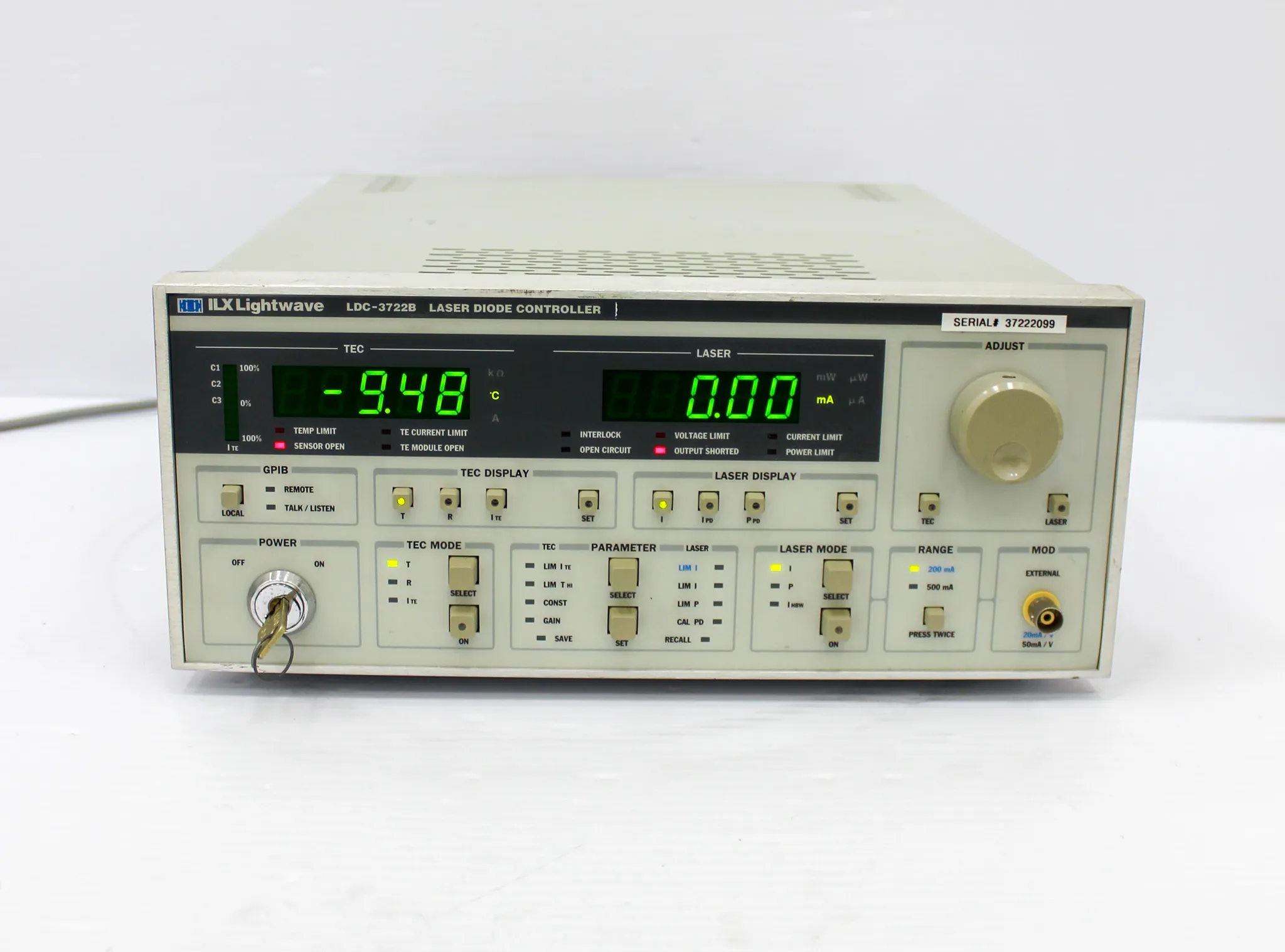

ILX Lightwave LDC-3722B Laser Diode Controller with integrated LC/TEC drive circuits, GPIB, digital display. Provides precision current and temperature control for low and medium power semiconductor lasers. Known for high stability, low noise performance, and 32W TEC controller specifically designed for controlling the current and temperature of laser diodes.
Key Features
- Precision current and temperature control
- Integrated LC/TEC drive circuits
- GPIB interface for easy setup
- 32W TEC controller
- High stability and low noise performance
Specifications
- 500mA High Stability Current Source
- 32 Watt TEC Controller
- Output Current Range: 0 - 500 mA
- Compliance Voltage (max): 10V
- Current Setpoint Resolution: < 2 uA
- Current Setpoint Accuracy: +/- 0.05%
- Current Stability (24 hour): < 40 ppm / C
- Current Limit Range: 0 - full scale
- Voltage Measurement Accuracy: +/- 2.5%
- TEC Output Current: -4 Amps to +4 Amps
- Maximum TEC Output Power: 32W
- Temperature Setpoint Resolution: 0.1 C
- TEC Current Limit Range: 0 to 4 Amps
- PD Measurement Range: 5 to 5000 uA
- PD Setpoint Accuracy: +/- 0.05%
- Bandwidth (3 dB): DC to 1MHz
- Input Range: 0 to 10V
- Input Impedance: 10 K ohm
Weight
Imperial: 25.2 Pounds
Metric: 11.43 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 15.6 lb x 7.2 lb
Metric: 45.72 cm x 39.62 cm x 18.29 cm
Harmonized Code
9014200000
Harmonized Code Details
9014200000 - Lasers, other than laser diodes. This code encompasses equipment designed for precision control and measurement of laser power and wavelengths, making it the most suitable harmonized code for this laser diode controller.
