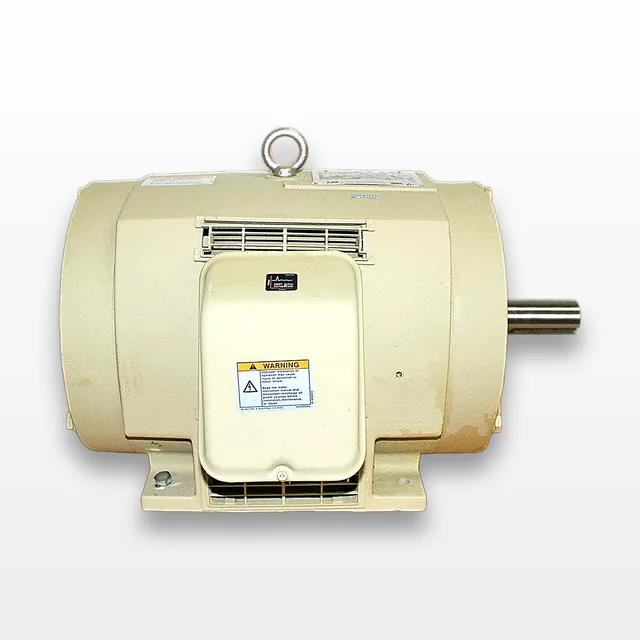

GE 5KS256ATE205A Facility Motor 20 HP 1765 RPM 3 Phase 230 460V NEMA256T ODP VFD
GE
Details
-
CategoryFacility
-
Dimension18.0in x 22.0in x 15.0in
-
Serial014718
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz5974992083 / 50Hz/60Hz
Price factors
-
Demand
This item is applicable for recycling. We can pick up the item and recycle it. A certificate of destruction is available upon request
-
Inflation
Inflation has little effect on the price of a product, as other factors (such as demand, competition, and technological innovation) play a more important role
-
Condition
The price of the equipment directly depends on its condition. New equipment is more expensive than used ones
-
Time
The product is on display in the store from 10.01.2025
The price is currently affected by :
-
Demand
-
Inflation
-
Condition
-
Time
Description
Product Information
GE Model 5KS256ATE205A three phase AC induction motor, Energy Saver Premium series, 20 HP, designed for reliable industrial duty and energy savings. This unit is preowned in Good condition; it powers on but could not be fully load tested and will require hardwiring for full verification. Rated 1764 to 1765 RPM at 60 Hz and compatible with VFD control, it suits pumps, fans, compressors, conveyors, and general plant equipment. Key attributes include NEMA 256T frame, ODP enclosure, NEMA Design A, Class F insulation, continuous duty with 1.15 service factor at 40 C, and NEMA nominal efficiency of 93 percent with a power factor of 83.5. Dual voltage 230 or 460 V, 3 phase; 50 Hz data: 1455 RPM, 20 HP at 200 or 400 V. Grease type is lithium. Cat E733, S N 014718. Ships with a 30 day parts warranty from REUZEit.
Technician comment

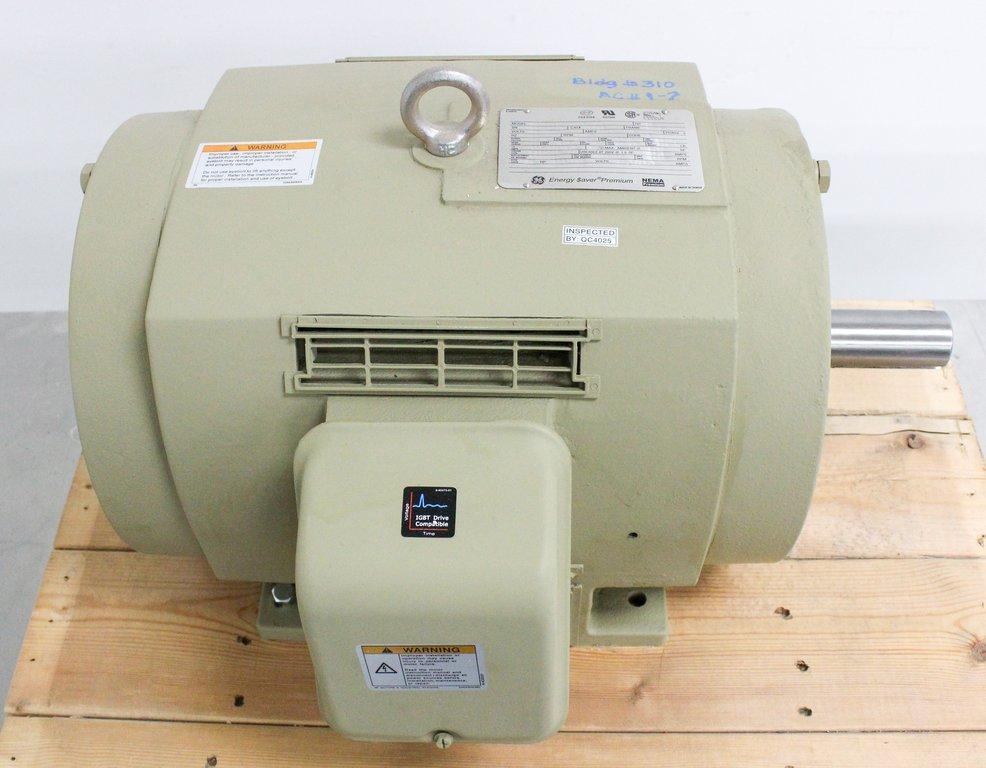

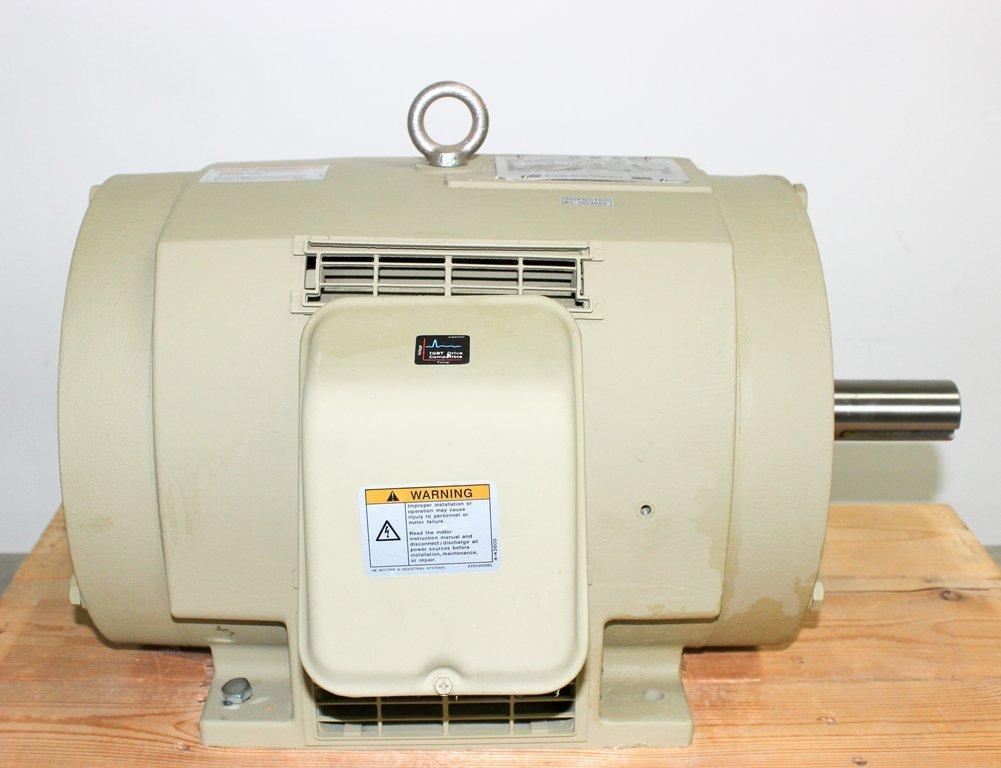

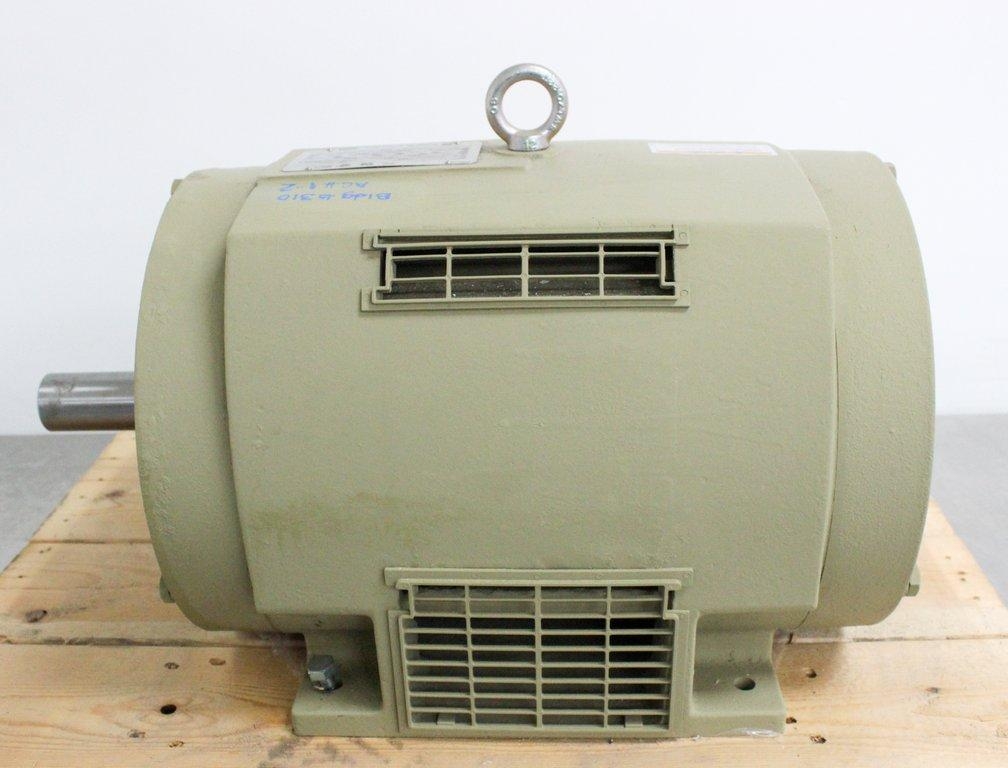

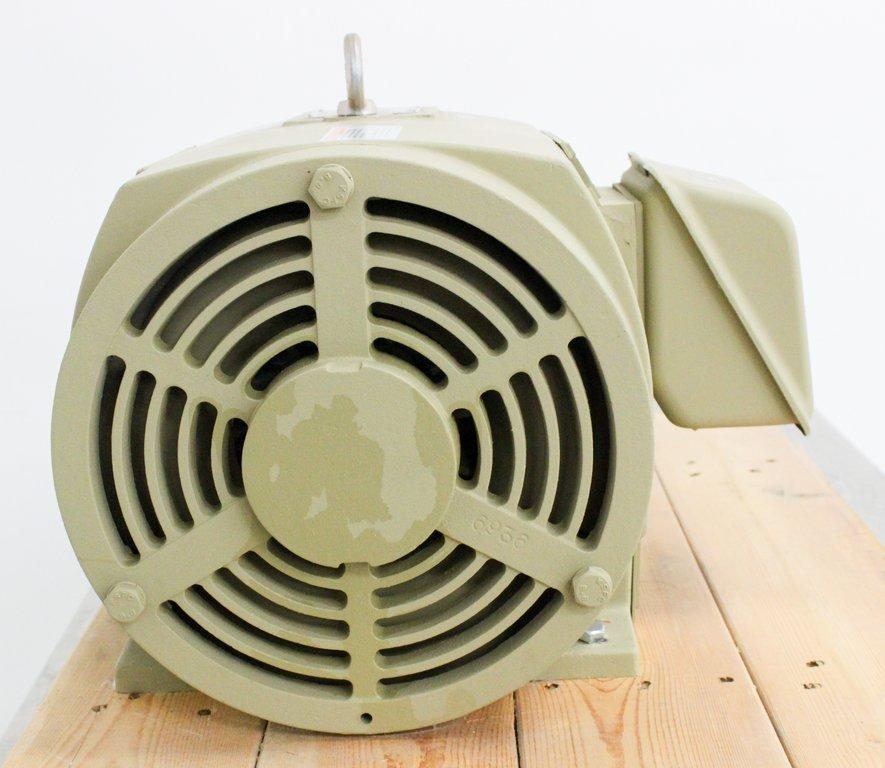

GE motor is preowned with slight wear from normal use. Unit will need to be hardwired to fully test. See photos for details.
Key Features
- Energy Saver Premium three phase AC induction motor for efficient industrial duty
- 20 HP output, NEMA nominal efficiency 93 percent for reduced energy consumption
- Rated 1765 RPM at 60 Hz and 1455 RPM at 50 Hz for global compatibility
- Dual voltage 230 or 460 V, 3 phase; VFD compatible for speed control
- NEMA 256T frame, horizontal foot mount for straightforward installation
- ODP enclosure with Class F insulation; NEMA Design A torque characteristics
- Continuous duty rating with 1.15 service factor at 40 C ambient
- Power factor 83.5 and max KVAR 6.0 for improved electrical performance
- Lithium grease lubrication; robust construction for pumps, fans, compressors, conveyors
- Good used condition; powers on, requires hardwiring to fully test; 30 day parts warranty
Specifications

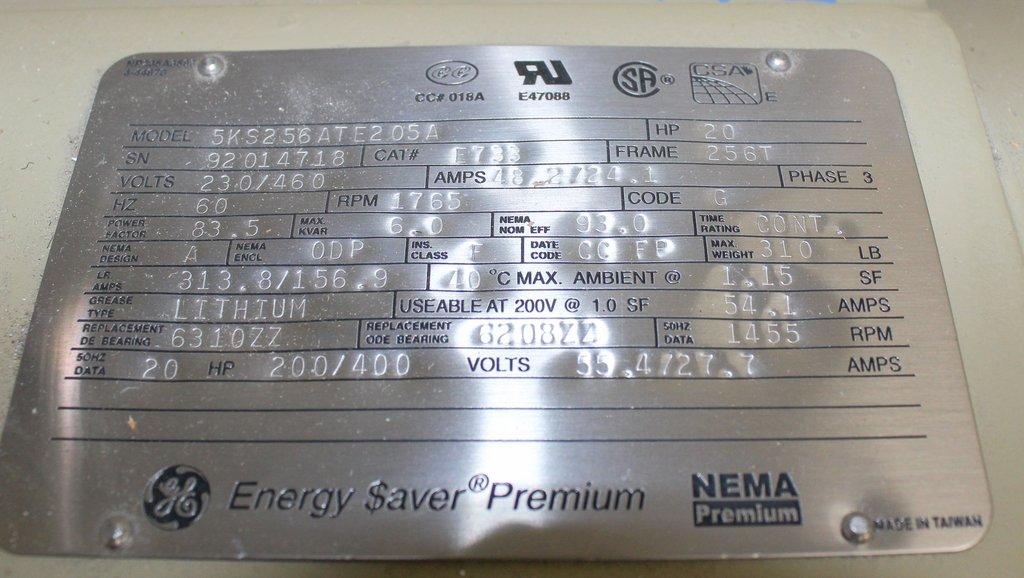

- Make and Model: GE 5KS256ATE205A (Cat E733), S N 014718
- Motor Type: Three phase AC induction motor, Energy Saver Premium line
- Horsepower: 20 HP
- Speed: 1764 to 1765 RPM at 60 Hz; 1455 RPM at 50 Hz
- Voltage and Phase: 230 or 460 V, 3 phase (60 Hz); 200 or 400 V (50 Hz)
- Frequency: 50 Hz and 60 Hz
- Frame Size: NEMA 256T, horizontal foot mount
- Enclosure: ODP open drip proof
- Insulation Class: F
- NEMA Design: A
- Duty Rating: Continuous, service factor 1.15 at 40 C ambient
- Efficiency: NEMA nominal efficiency 93 percent
- Power Factor: 83.5
- Reactive Power: Max KVAR 6.0
- Lubrication: Lithium grease
- Applications: Pumps, fans, blowers, compressors, conveyors, HVAC, general industrial machinery
- Control Compatibility: Suitable for VFD variable frequency drive speed control
- Condition: Good; powers on, unable to fully load test; requires hardwiring for complete test
- Warranty: 30 day warranty on part from REUZEit
- Approximate Weight: 310 lb (140.6 kg)
- Approximate Dimensions: 18 x 22 x 15 in (45.7 x 55.9 x 38.1 cm)
Weight
Imperial: 372.0 Pounds
Metric: 168.74 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 26.4 lb x 18.0 lb
Metric: 54.86 cm x 67.06 cm x 45.72 cm
Harmonized Code
8501.52
Harmonized Code Details
HS 8501.52 covers AC motors, multi phase, of an output exceeding 750 W but not exceeding 75 kW. This motor is a three phase AC induction motor rated 20 HP approximately 15 kW, fitting this category.
