Thermo Dionex UltiMate 3000 HPLC System DAD Pump Autosampler Column Oven 2017 RS

Product Information

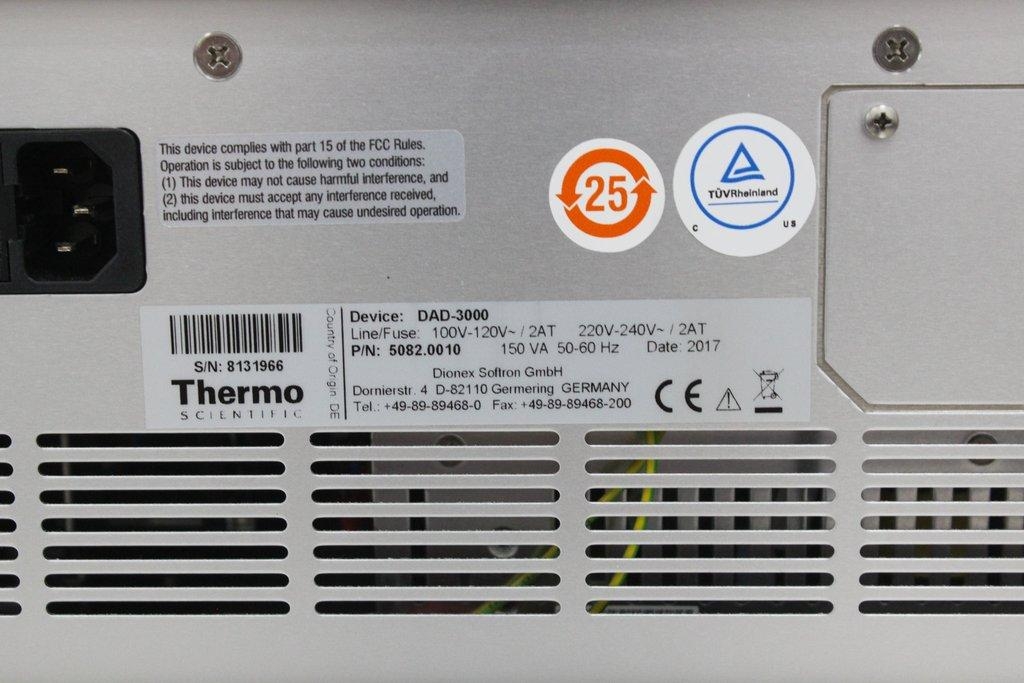

2017 Thermo Dionex UltiMate 3000 modular HPLC system comprising five integrated modules: SRD-3600 solvent rack with degasser (PN 5035.9230), HPG-3400RS high-pressure gradient pump (PN 5040.0046), WPS-3000TRS thermostatted autosampler (PN 5840.0020), TCC-3000SD column compartment (PN 5730.0010), and DAD-3000 diode array detector (PN 5082.0010). Condition G Good: unit powers on, passes basic self-tests, and appears functional based on limited checks; validation and calibration are recommended to ensure analytical accuracy. Software not included. Power cord included; no computer or data cables. Universal power 100-240 V, 50/60 Hz. Origin: Germany. Serial number 8131966. Sold AS-IS. This stack supports analytical HPLC and RSLC workflows for method development, pharmaceutical QC, and routine separations with UV-DAD detection and precise temperature control.

Has been tested to specifications. System will need to be validated/calibrated to ensure accurate results. Everything in pictures is included. Software not included. See photos for details.

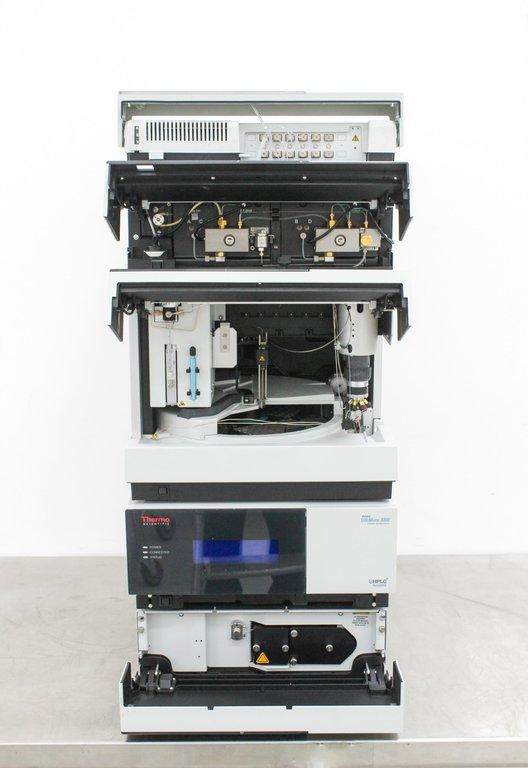

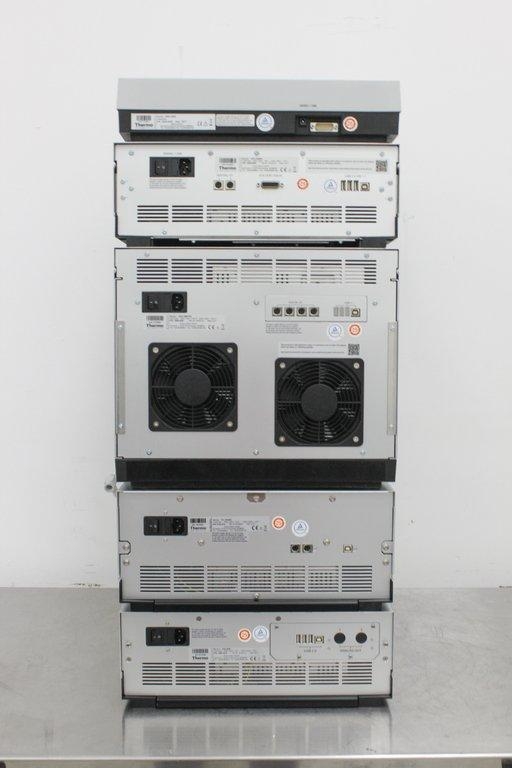

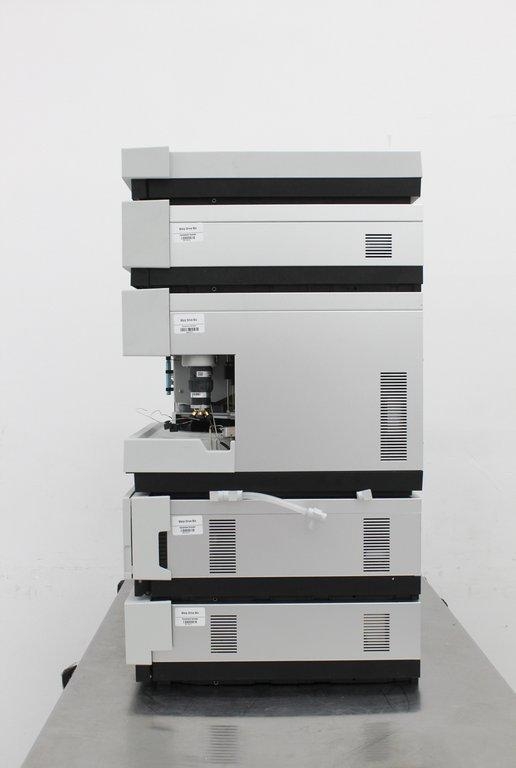

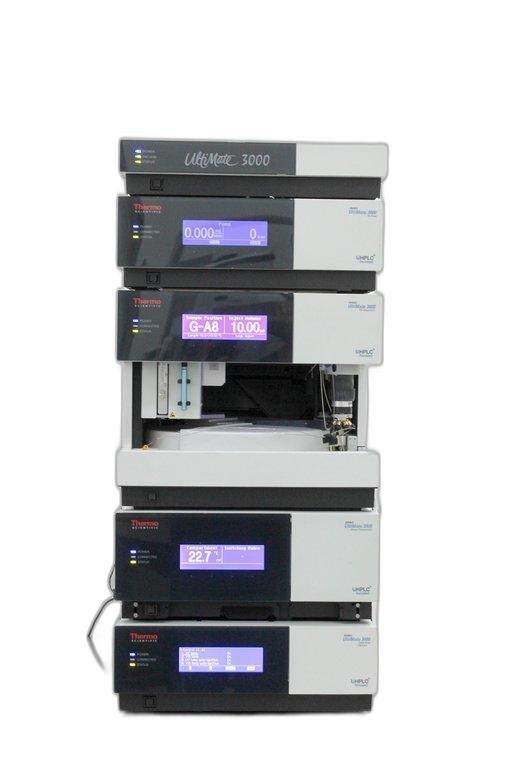

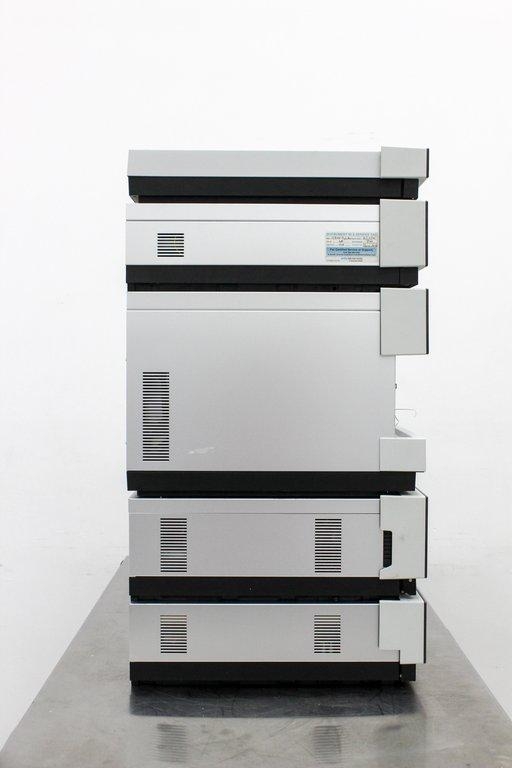

• Complete UltiMate 3000 HPLC stack with pump, autosampler, column oven, DAD, and solvent rack
• HPG-3400RS high-pressure gradient pump for fast, precise binary or quaternary gradients
• WPS-3000TRS thermostatted autosampler for accurate, reproducible injections
• TCC-3000SD column compartment with stable temperature control for robust retention times
• DAD-3000 diode array detector for full-spectrum UV-Vis acquisition and peak purity
• SRD-3600 solvent rack with integrated multi-channel vacuum degassing
• Typical analytical flow range to 10 mL min and pressure capability up to ~62 MPa
• UV-Vis spectral coverage typically 190 to 800 nm for broad application flexibility
• Universal power input 100-240 V, 50/60 Hz for global lab compatibility
• 2017 manufacture; Condition G Good, powers on and passes basic checks; sold AS-IS

• Make and Model: Thermo Dionex UltiMate 3000 modular HPLC system (2017), SN 8131966
• Included Modules and Part Numbers: SRD-3600 solvent rack with degasser (PN 5035.9230); HPG-3400RS high-pressure gradient pump (PN 5040.0046); WPS-3000TRS thermostatted autosampler (PN 5840.0020); TCC-3000SD column compartment (PN 5730.0010); DAD-3000 diode array detector (PN 5082.0010)

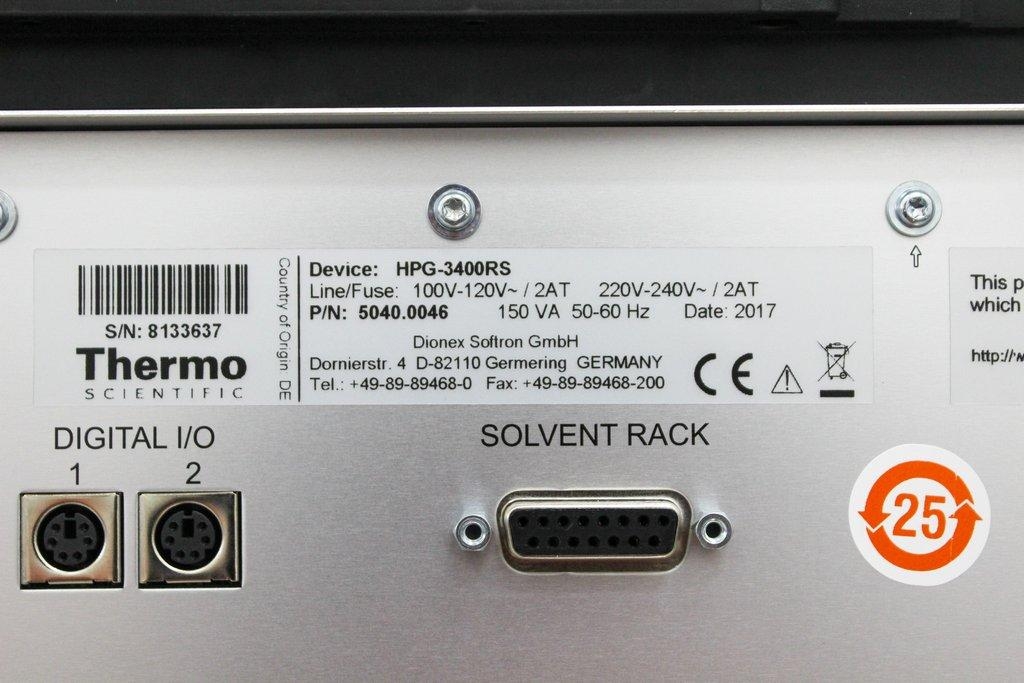

• Pump (HPG-3400RS) – typical: High-pressure gradient; flow range approx 0.001–10 mL/min; max pressure up to ~62 MPa 9000 psi depending on configuration; excellent gradient precision for analytical HPLC and RSLC

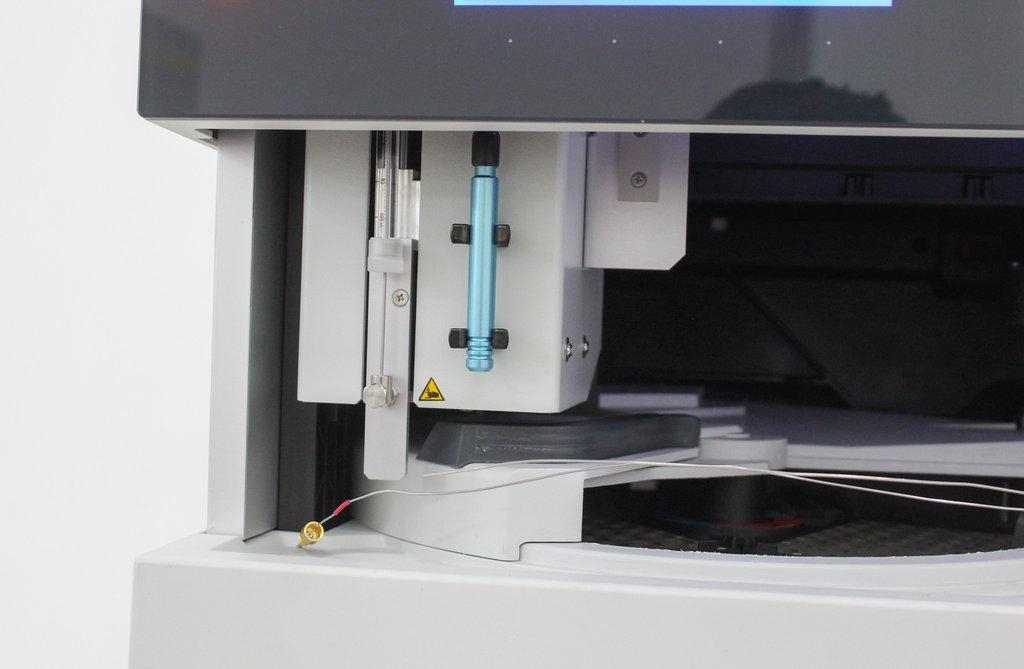

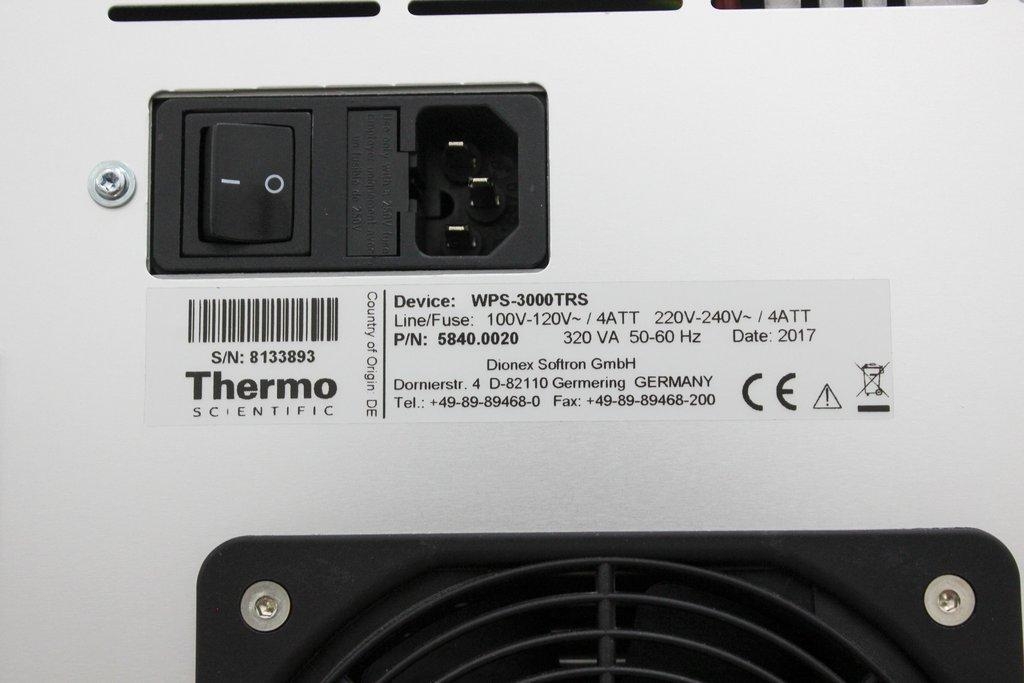

• Autosampler (WPS-3000TRS) – typical: Thermostattable sample compartment; broad injection volume range (sub-µL to 100 µL class); supports microplates and vials; carryover-minimizing flow path

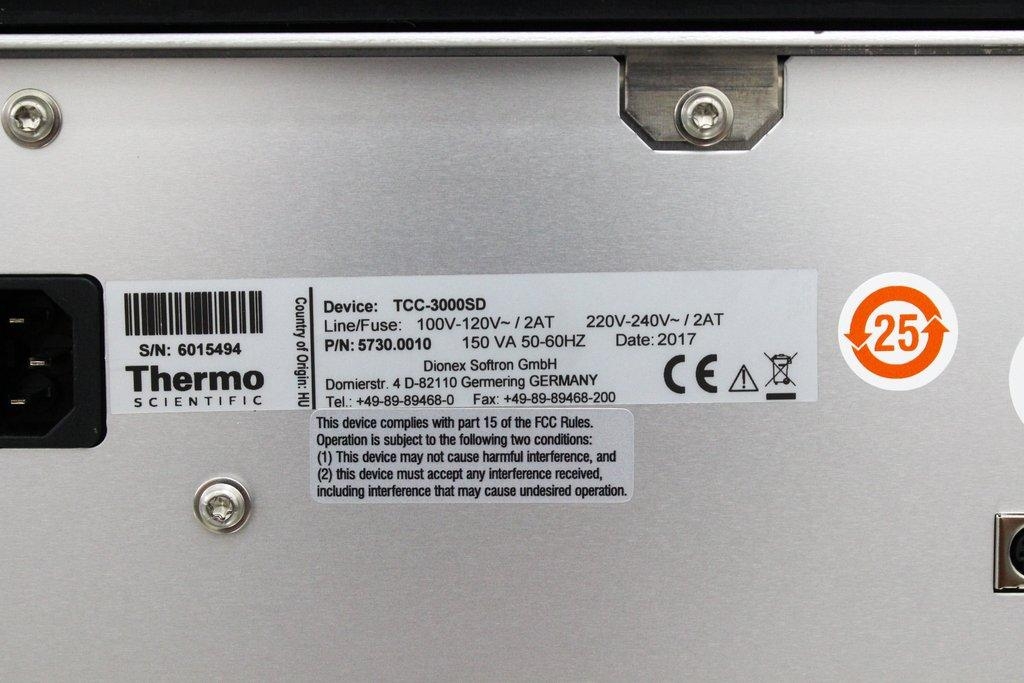

• Column Compartment (TCC-3000SD) – typical: Temperature control roughly ambient +5 C to 85 C; stability to ~±0.1 C; accommodates multiple columns and switching valves depending on configuration

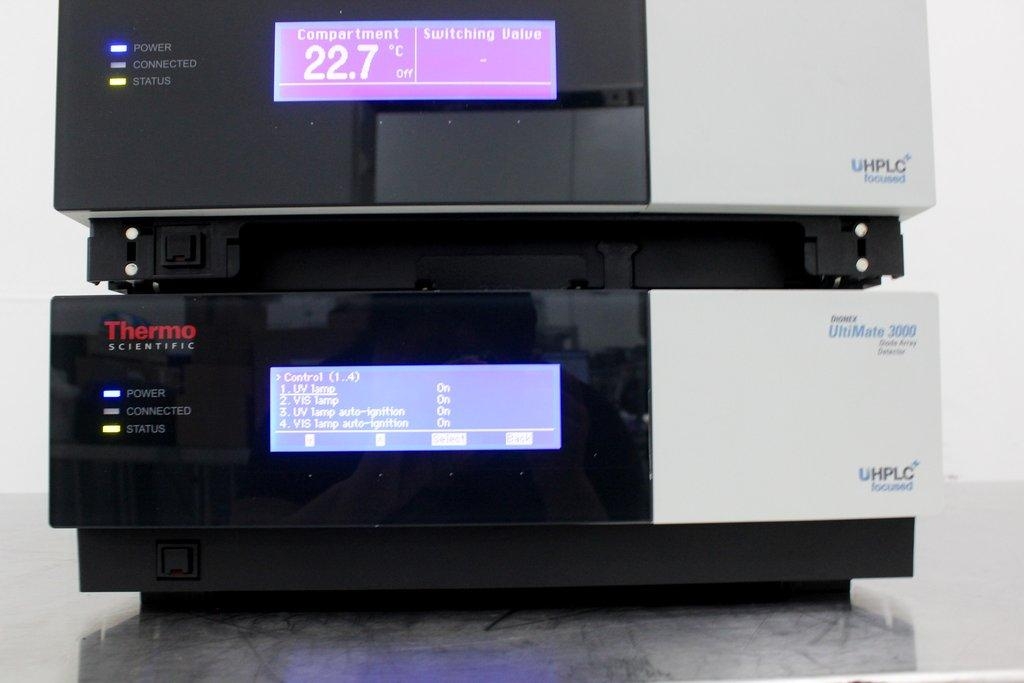

• Detector (DAD-3000) – typical: UV-Vis diode array, spectral range approx 190–800 nm; multi-wavelength and full-spectrum acquisition for peak purity and spectral libraries

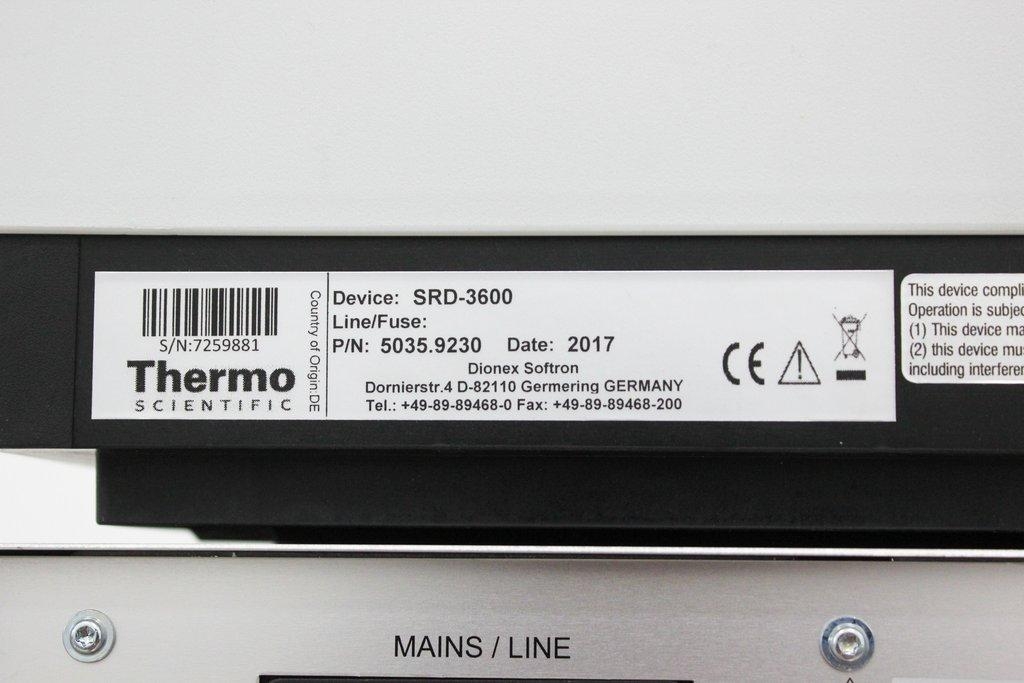

• Solvent Rack/Degasser (SRD-3600) – typical: Multi-channel vacuum degasser to reduce baseline noise and improve gradient stability; organized solvent management
• Applications: Analytical HPLC, RSLC methods, pharmaceutical QC, method development, small-molecule separations, peptides, metabolites, and routine assay workflows
• Power Requirements: 100–240 V, 50/60 Hz (universal input); country of origin Germany
• Condition and Inclusions: Condition G Good; powers on and passes basic checks; limited functional testing performed; calibration/validation recommended; includes power cord only; software and computer not included; warranty AS-IS

Imperial: 270.0 Pounds

Metric: 122.47 Kilograms

Imperial: 24.0 lb x 20.4 lb x 43.2 lb

Metric: 60.96 cm x 51.82 cm x 109.73 cm

9027.20.0000

HS 9027.20.0000 – Chromatographs and electrophoresis instruments. Selected because this listing is a complete HPLC chromatography system with pump, autosampler, column oven, detector, and degasser.
