Baldor Reliance M3154 Motor | General Purpose Steel Frame 3-Phase 1.5HP
Baldor Reliance
Details
-
CategoryFacility
-
Dimension12.0in x 16.0in x 11.0in
-
Serial34B061X116G1
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz208-230V / 50Hz/60Hz
Description
Product Information
The Baldor Reliance M3154 Motor is a robust and efficient option for your industrial needs, known for handling rigorous operational demands reliably. With a power output of 1.5 HP and built within a sturdy steel frame, this three-phase motor operates at a synchronous speed of 1800 RPM. Ideal for a range of applications, it offers voltage versatility (208V, 230V, and 460V at 60 Hz) and features a high service factor of 1.15 for added flexibility under variable loads. This unit, in excellent condition, reflects minimal usage and lacks significant cosmetic damage, ensuring a near-new operational experience. Manufactured in the United States, it holds CURUS approval, demonstrating compliant safety and performance standards. With a duty rating of continuous and a reasonable efficiency rate of 77% at full load, it is ideal for general-purpose use. Please note, no auxiliary boxes, power cables, or software are included. Backed by a 30-Day Parts Warranty.
Technician comment

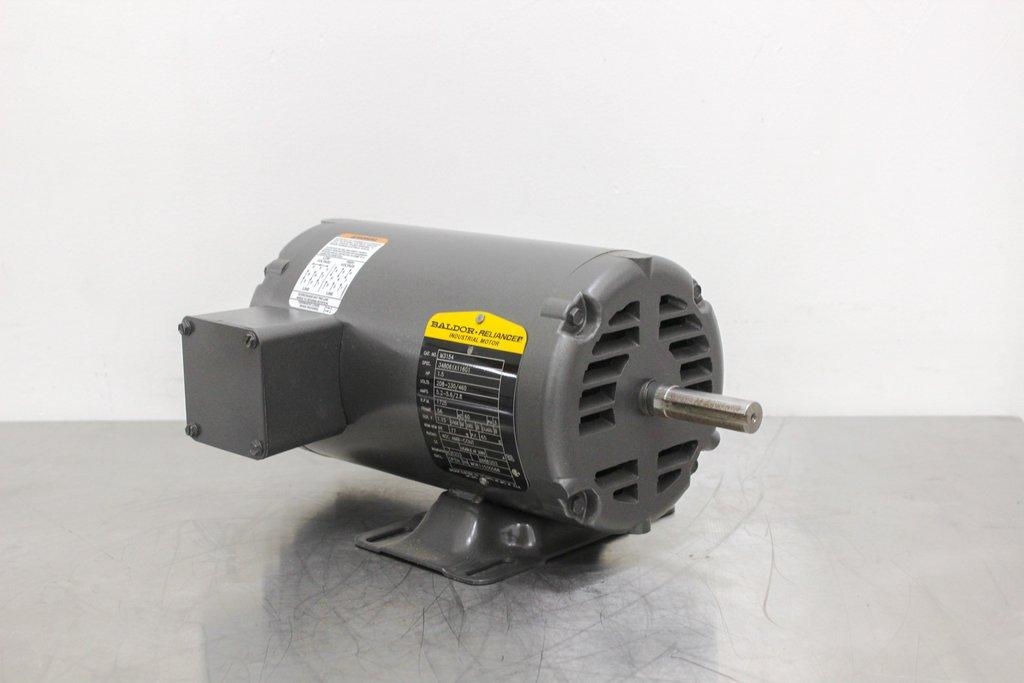

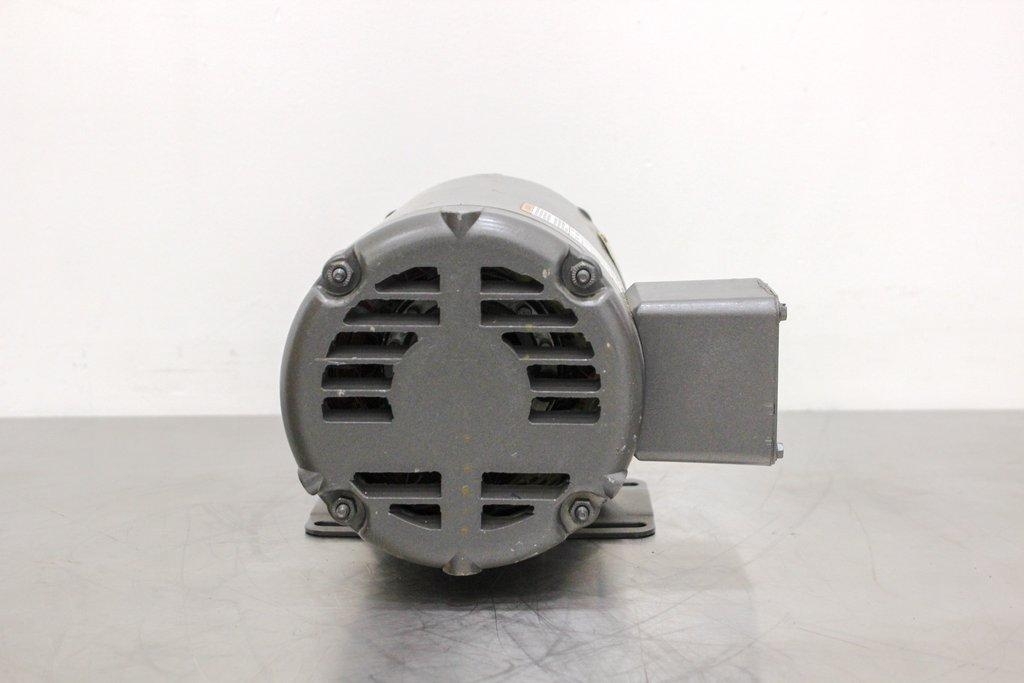

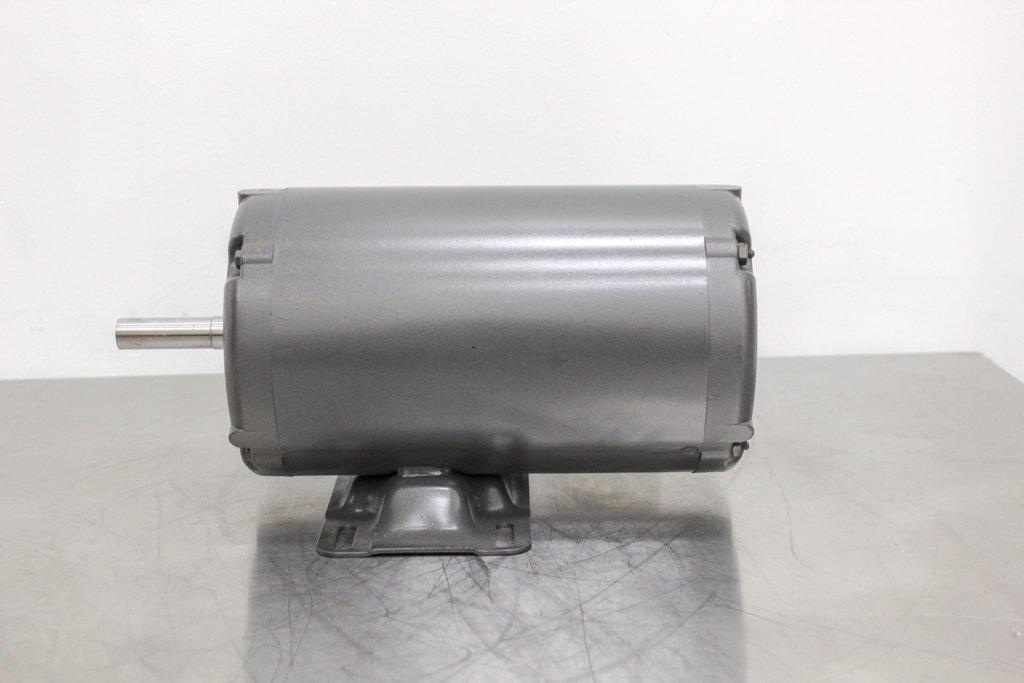

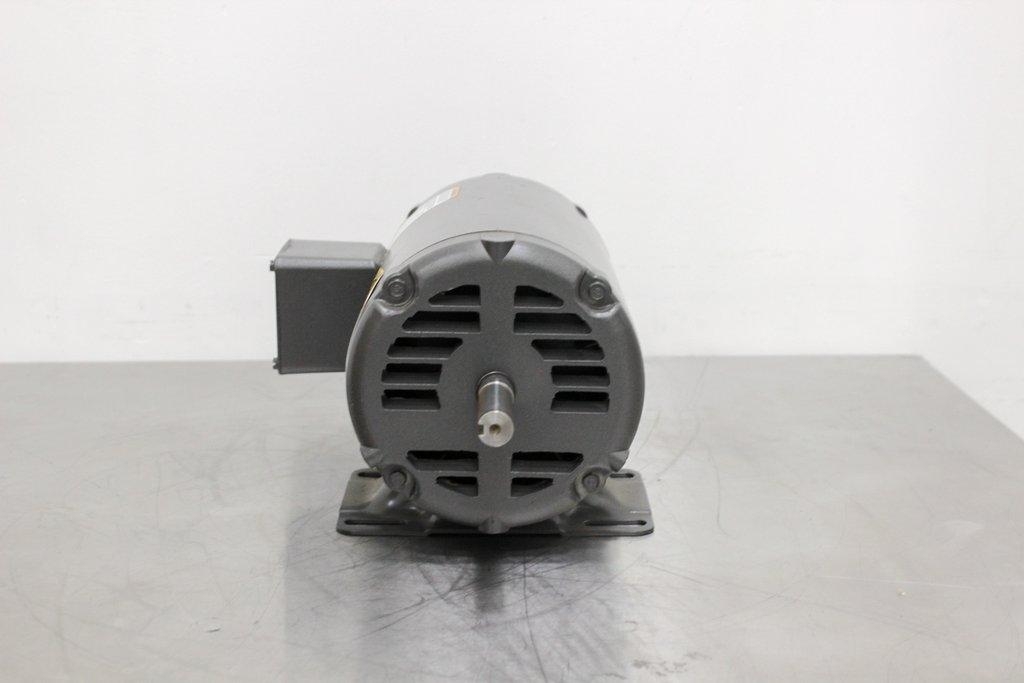

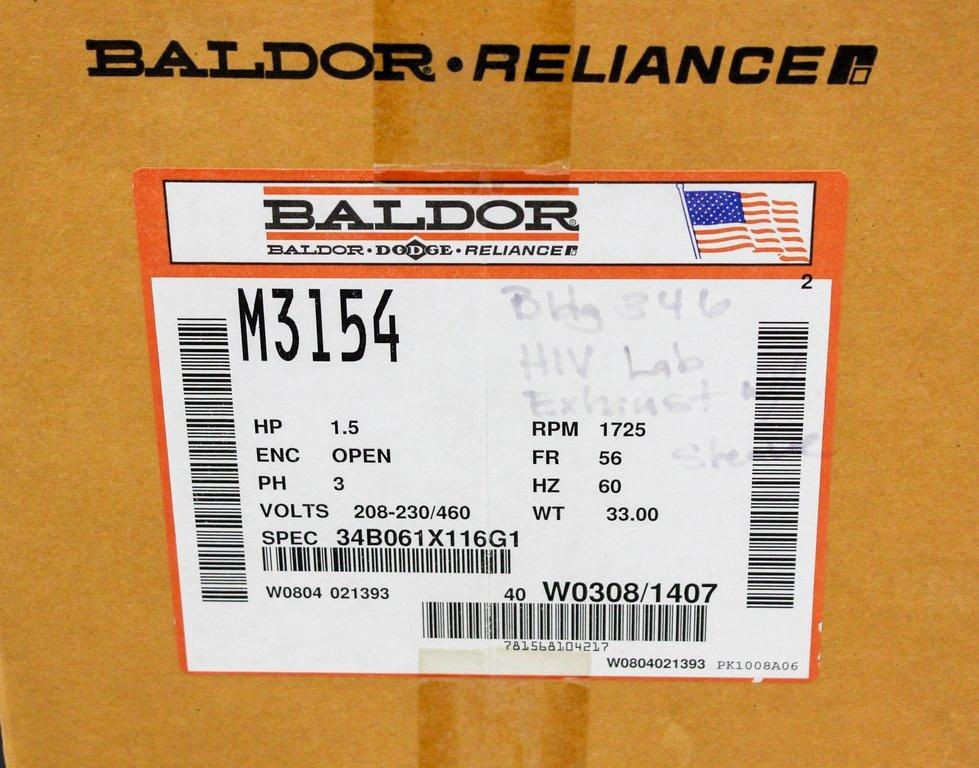

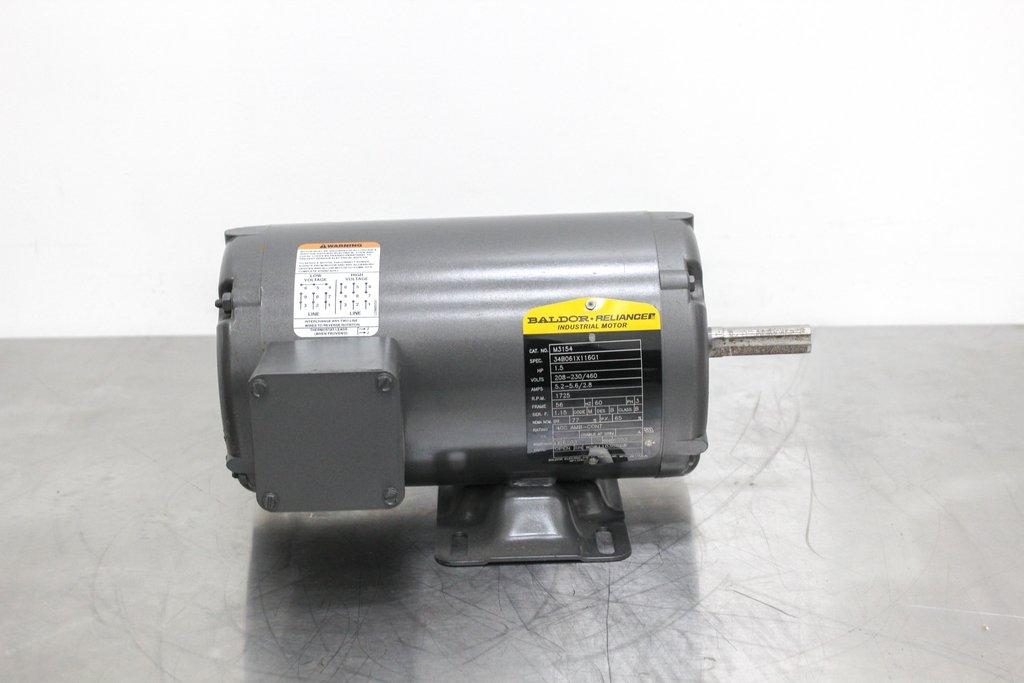

Looks like new in open case. Buyer can expect same unit as pictures. See photos
Key Features
- 1.5 HP Three-Phase Motor
- Steel Frame with ODP Enclosure
- Synchronous Speed: 1800 RPM
- Voltage Compatibility: 208V/230V/460V
- CURUS Certified for Compliance
- Service Factor: 1.15
- Continuous Duty Rating
- 77% Efficiency at Full Load

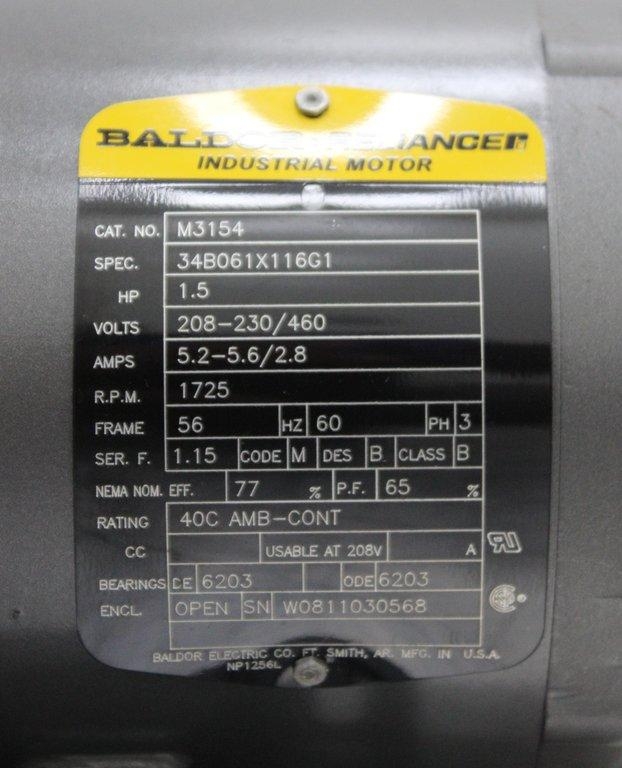

Specifications
- Catalog Number: M3154
- Enclosure: Open Drip Proof (ODP)
- Frame: 56, Material: Steel
- Phase: 3
- Voltage: 208.0 V/230.0 V/460.0 V @ 60 Hz
- Ambient Temperature: 40°C
- Mounting Arrangement: F1
- Insulation Class: B
- Ball Bearing Type with Polyrex EM Grease (-20F to +300F)
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Power Factor: 65
- Locked Bearing Indicator: None
Weight
Imperial: 42.0 Pounds
Metric: 19.05 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 19.2 lb x 13.2 lb
Metric: 36.58 cm x 48.77 cm x 33.53 cm
Harmonized Code
85015230
Harmonized Code Details
Code 85015230: AC motors, multi-phase, over 750 W but not exceeding 75 kW. This code is suitable due to the motor's three-phase nature and its power rating falling within the specified range.
