Trane CVHF070 Chiller HVAC 400V 453kW 38000lb R514a L192in W98in
Trane
Details
-
CategoryChiller / Heater
-
Dimension192.0in x 98.0in x 114.0in
-
Serial121802376
-
Shipping TypeFreight
-
Manufacturing2021-01-11
-
Voltage / Hertz400 volts / Does Not Apply
Description
Product Information

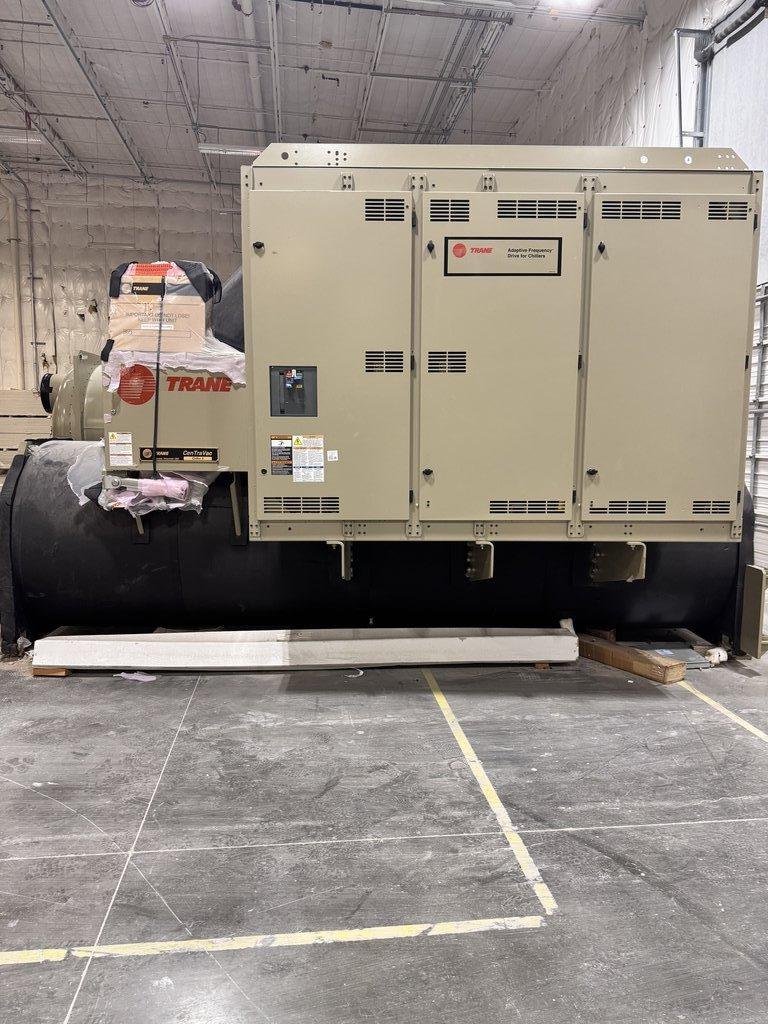

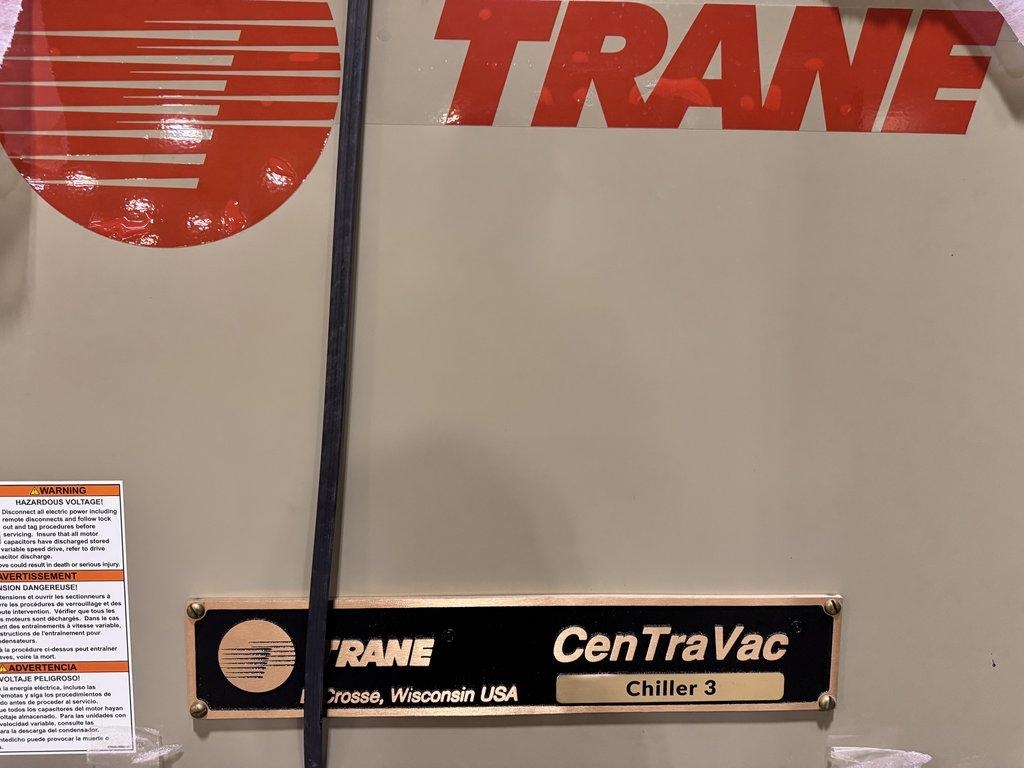

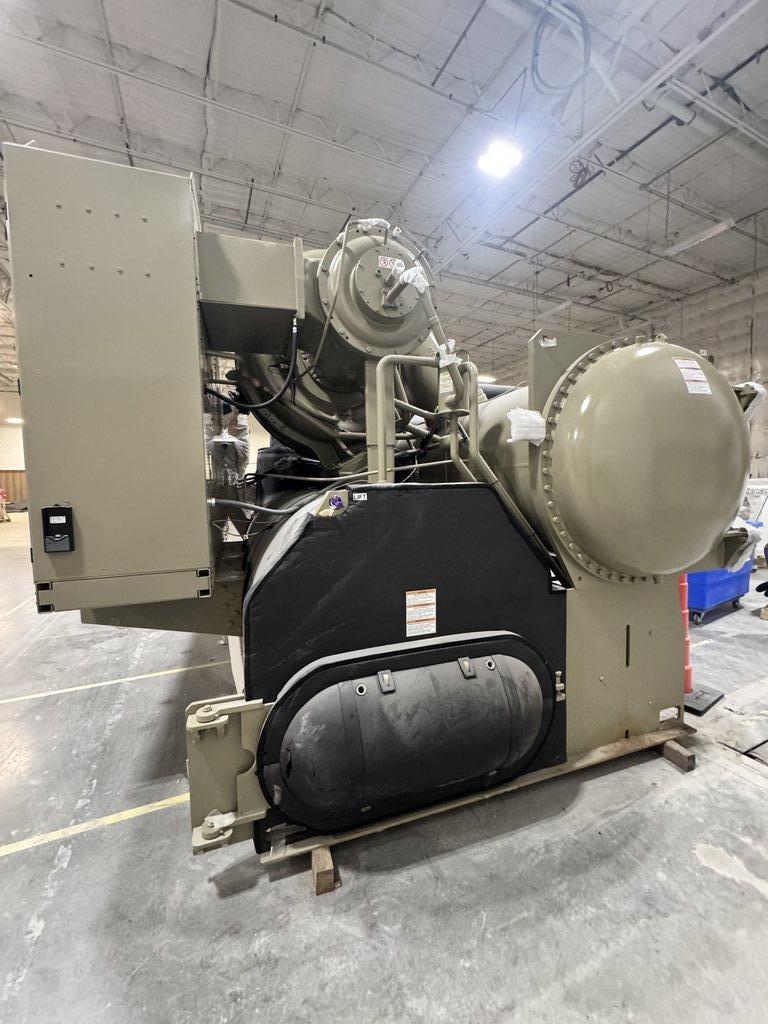

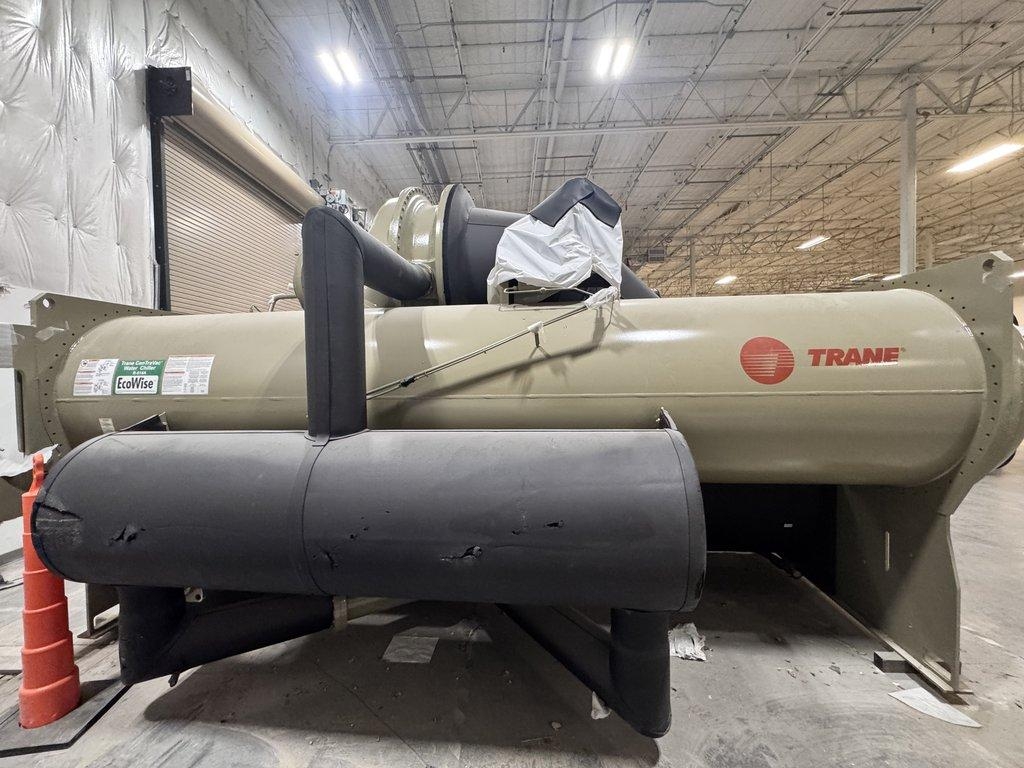

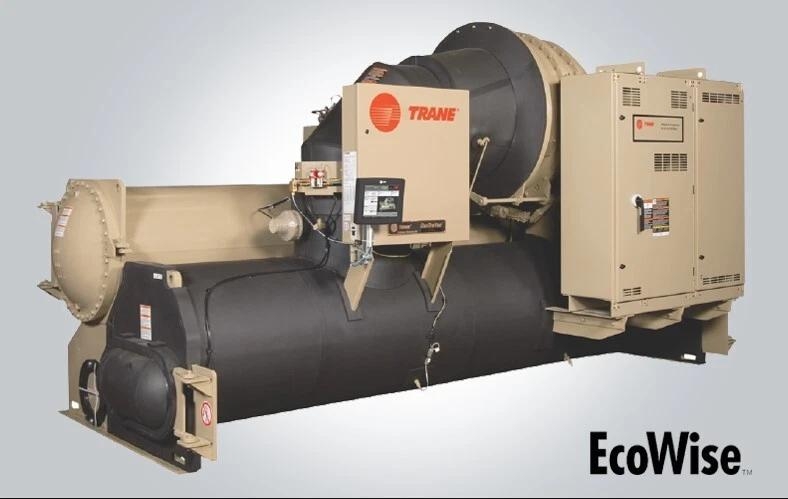

The Trane CVHF070 Centravac Chiller, manufactured on January 11, 2021, is a robust high-performance solution tailored for heating, ventilation, and air conditioning (HVAC) applications. Engineered as a centrifugal chiller, it utilizes R-514a refrigerant to provide efficient cooling with minimal environmental impact. With a three-phase 400-volt power input and a robust power rating of 453 kW, this chiller is poised to deliver optimal performance in demanding settings. The unit's specifications include a substantial current load of 520 amps, reflecting its heavy-duty capacity. Weighing in at 38,000 pounds with dimensions of 192 inches in length, 98 inches in width, and 114 inches in height, it's a formidable addition to any large-scale facility. This unit, while showcased with cosmetic scratches or dents, is unused, ensuring the integrity of its operational capability. A 30-day warranty is included, ensuring parts reliability and customer satisfaction.
Technician comment
Trane 870 Ton Centrifugal Water Chiller, CVHF870 CenTraVac Variable Speed New Trane chillers are available in a variety of models, including water-cooled, air-cooled, and heat pump chillers. Trane chillers are designed to be energy efficient, low noise, and environmentally friendly. Water-cooled chillers Series E™ CenTraVac™ CVHH/CDHH A low-pressure, low-GWP refrigerant chiller with a multi-stage design and integrated economizer Optimus™ Water-Cooled Chillers Model RTHD A lightweight, bolt-together chiller with a small footprint and factory-installed refrigerant and oil charges Air-cooled chillers Air-Cooled Oil-Free Magnetic Bearing Chillers A low-pressure chiller with a centrifugal compressor and a capacity range of 120 to 4,000+ tons Ascend® Air-to-Water Heat Pump A chiller with a capacity range of 140 to 230 tons cooling and 1500 to 2500 MBh heating Other Trane chiller features Rapid Restart A feature that allows the chiller to quickly regain full operational capacity after a power interruption Free cooling A feature that taps free colder outdoor air to cool the environment inside your building Symbio® 800 controller An intuitive user interface that enables seamless and secure integration with any building automation system
Key Features
- Centrifugal chiller design

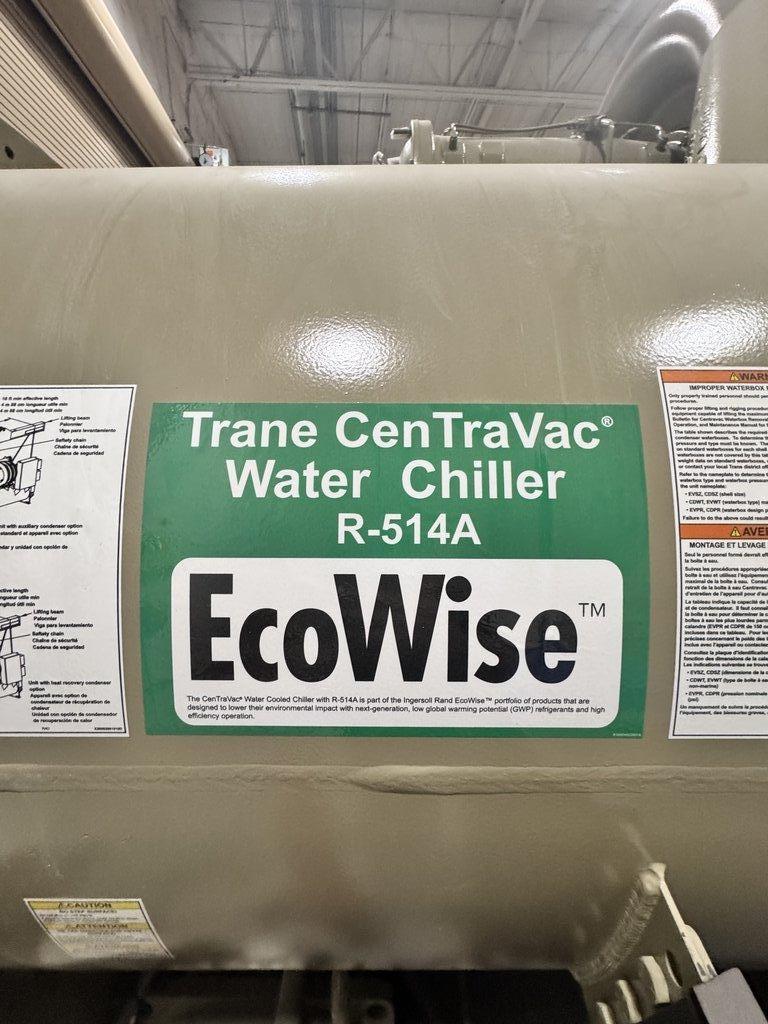

- Utilizes environmentally friendly R-514a refrigerant
- Three-phase power input
- High power rating of 453 kW
- Robust current capacity of 520 amps
- Constructed for HVAC applications

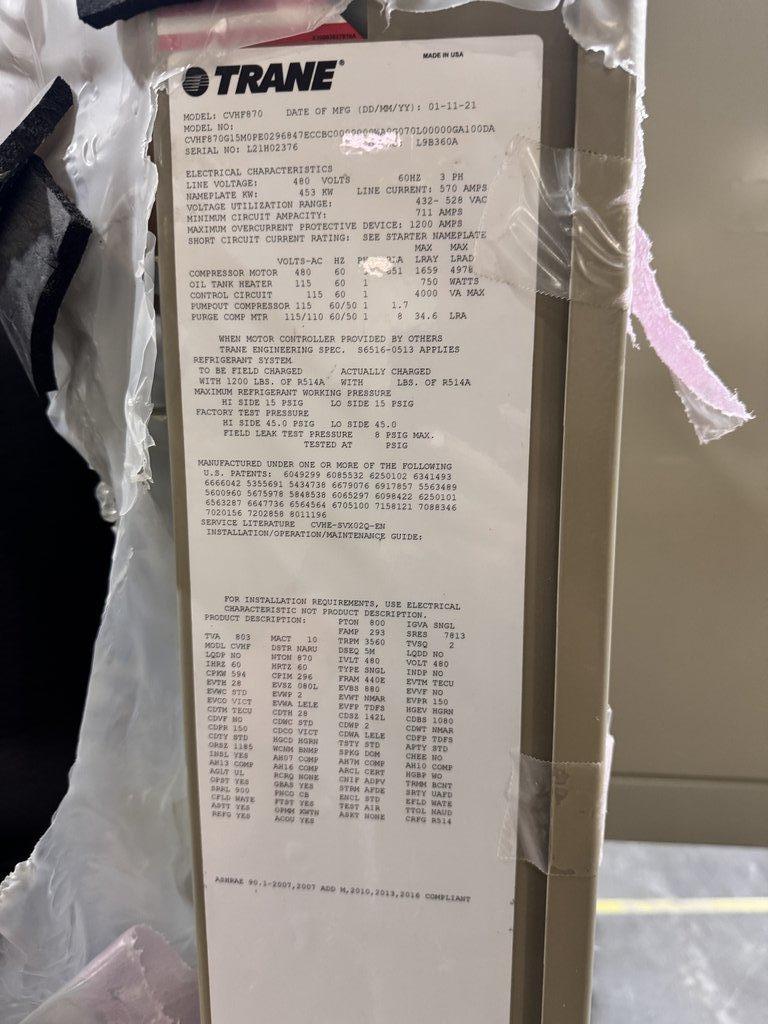

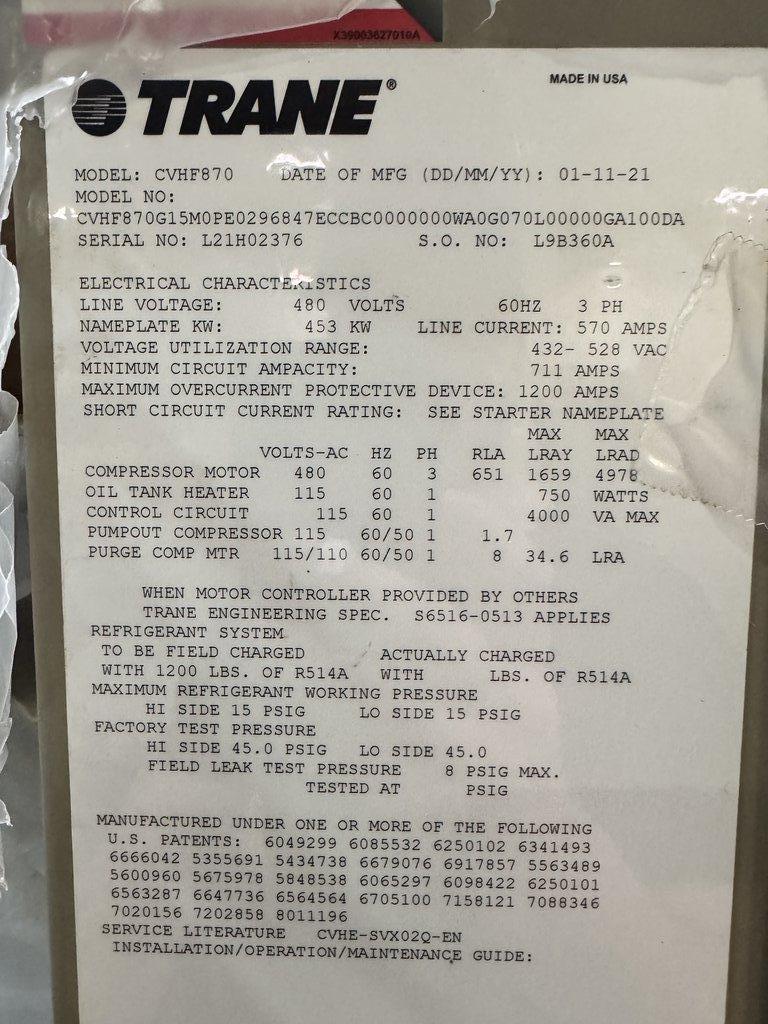

Specifications
- Voltage: 400 volts
- Frequency: 60 Hz
- Phase: 3
- Current: 520 amps
- Power Rating: 453 kW
- Refrigerant Type: R-514a
- Actual Weight: 38,000 lbs
- Actual Dimensions: Length: 192 in, Width: 98 in, Height: 114 in
- 30-Day Warranty On Parts
Weight
Imperial: 45600.0 Pounds
Metric: 20683.8 Kilograms
Shipping Dimensions
Imperial: 230.4 lb x 117.6 lb x 136.8 lb
Metric: 585.22 cm x 298.7 cm x 347.47 cm
Harmonized Code
8418.69.0020
Harmonized Code Details
8418.69.0020 - Refrigeration equipment. This code is suitable as it classifies equipment designated for cooling applications such as chillers used in HVAC systems.
