IEC HBD2000309171 Fan Facility Horizontal Belt Drive 600-4000 CFM Operation
IEC
Details
-
CategoryFacility
-
Dimension64.0in x 59.0in x 28.0in
-
Serial376931-10-1
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
Product Information

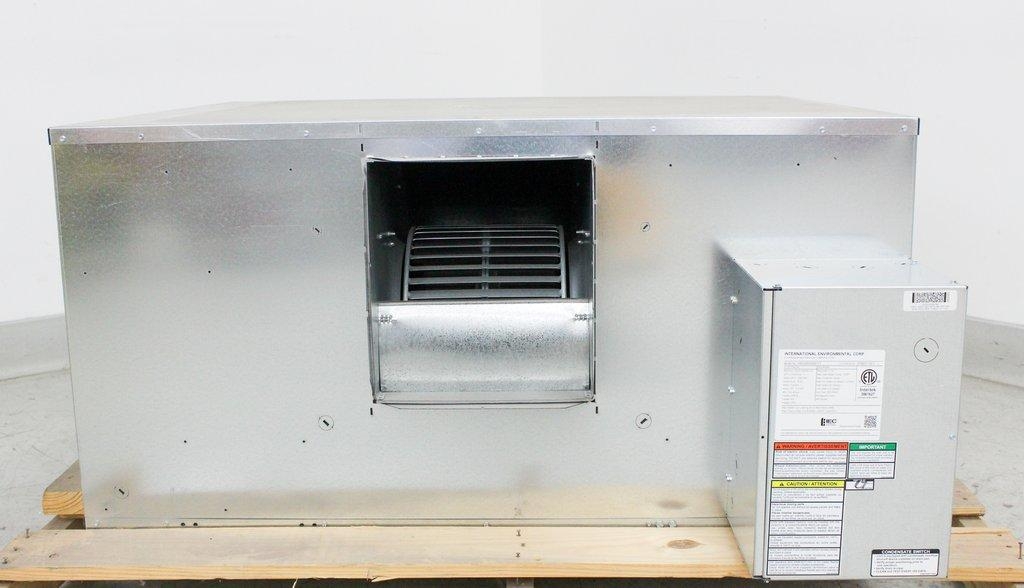

The IEC Horizontal Belt Drive Fan, model HBD2000309171, stands as a versatile solution in the domain of ducted applications. Manufactured in the USA, this fan coil unit is reputed for its compact blower coils, capable of managing a nominal CFM range of 600 to 4000, accommodating diverse ducted installations, and supporting total static pressure up to 2.5+ w.g. Whether for cooling or heating, the unit harmonizes the functionality of a traditional fan coil with that of a central air handling unit, making it ideal for varying climate settings. Key design features include large access panels for maintenance ease, a removable non-corrosive stainless steel drain pan, and an isolated blower assembly that ensures quiet operation. Pre-assembled units with factory-installed electric heater controls offer simplified setup and reduced field labor. Despite cosmetic wear from previous use, functionality remains unaffected, evidenced by power-on diagnostics passing basic tests.
Key Features
- Nominal CFM range: 600-4000
- Compact blower coils for ducted applications
- Total static pressure: Up to 2.5+ w.g.

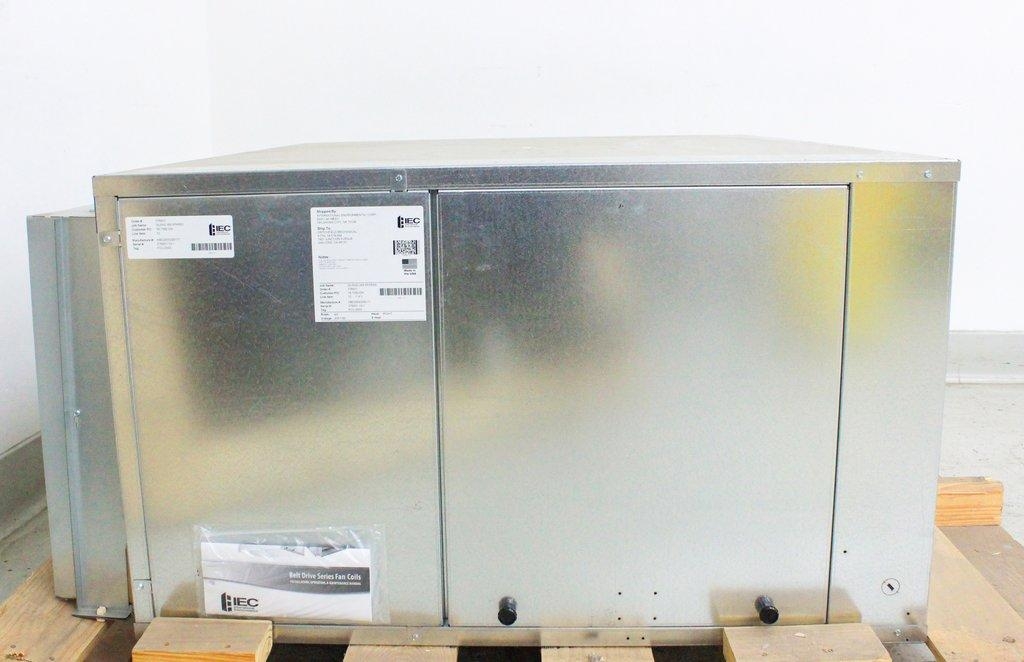

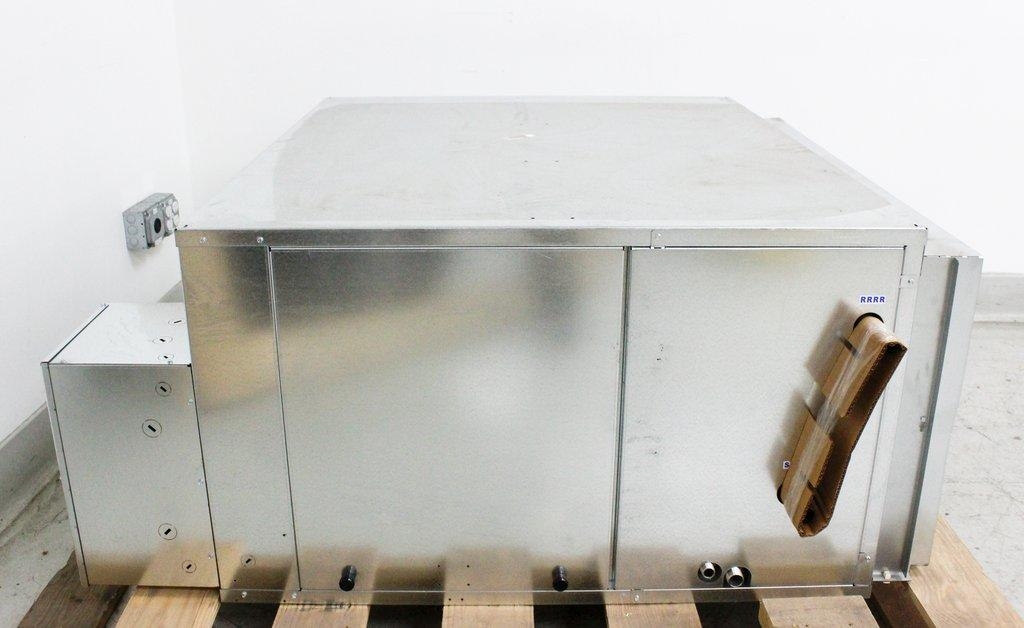

- Large access panels for easy maintenance
- Non-corrosive stainless steel drain pan

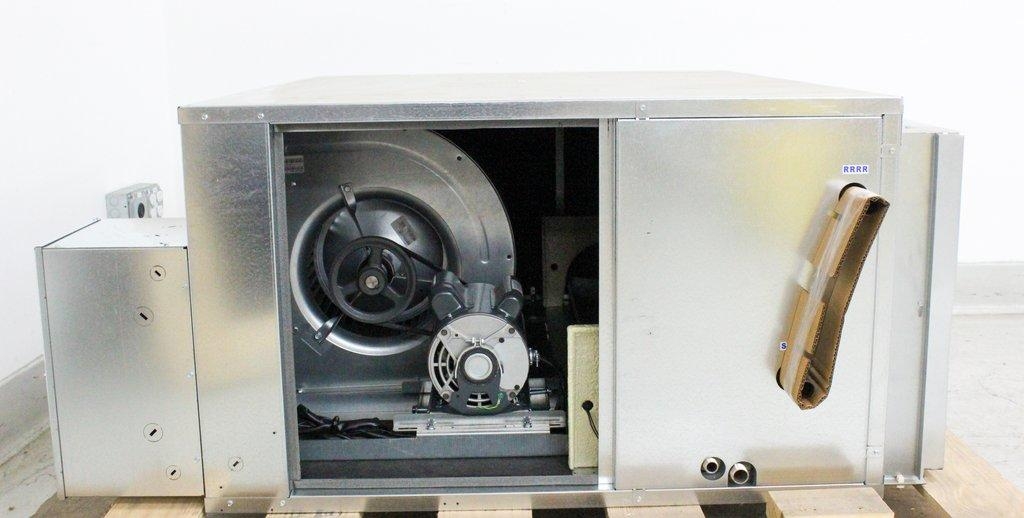

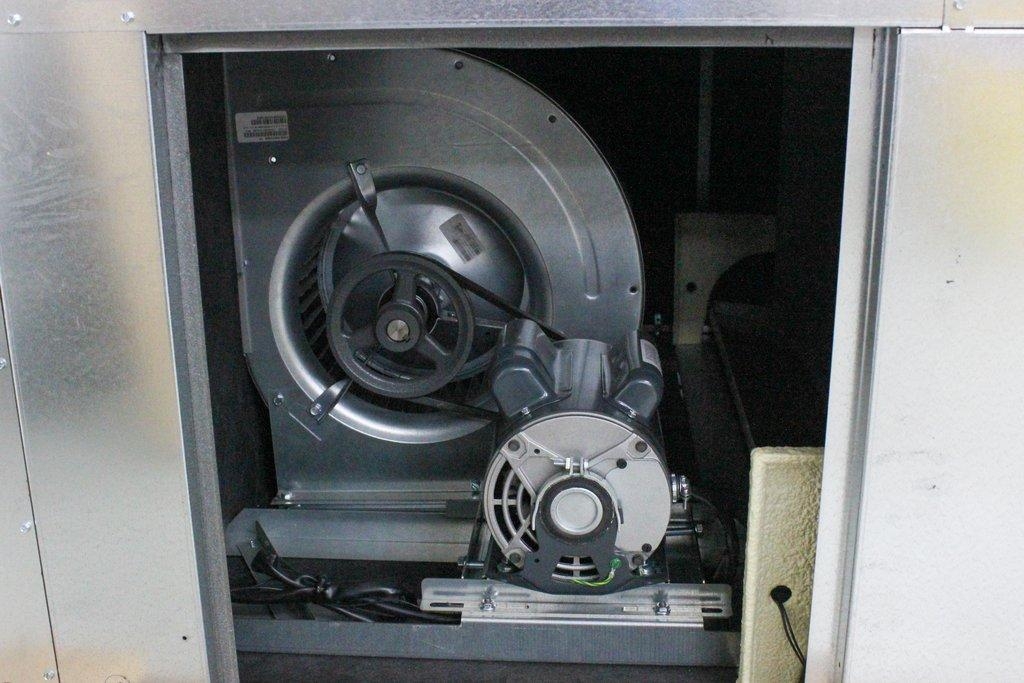

- Quiet operation with isolated blower assembly
Specifications
- Country of Origin: United States
- Brand / Manufacturer: IEC

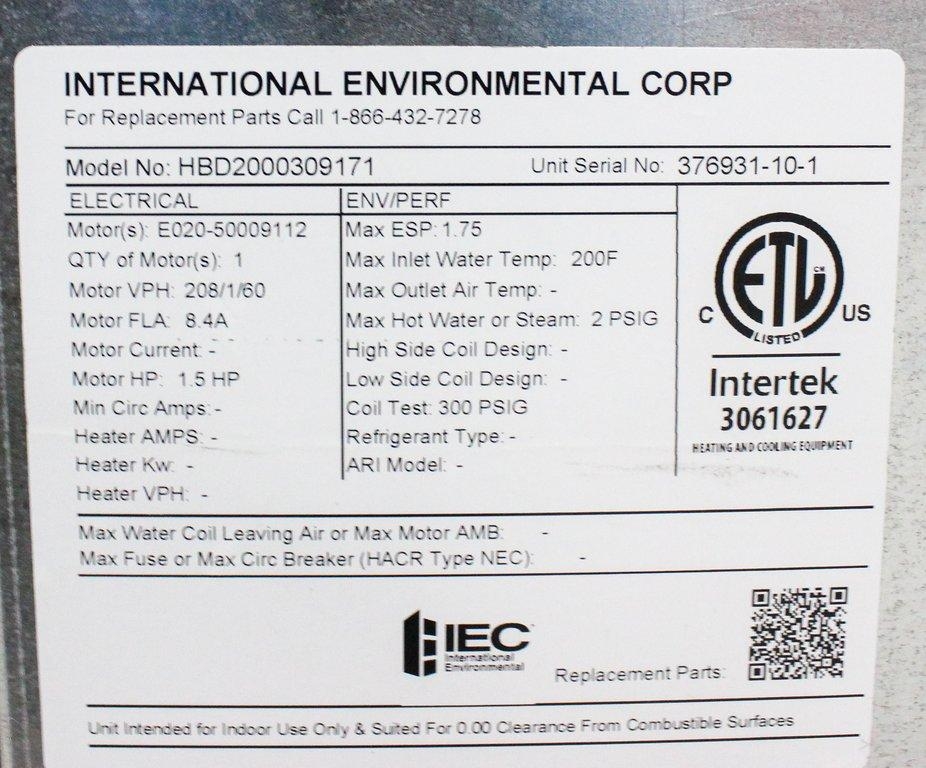

- Model: HBD2000309171
- Sub-Model: Horizontal Belt Drive HBD Fan Coil
- Condition: Good, power-tested with basic tests passed

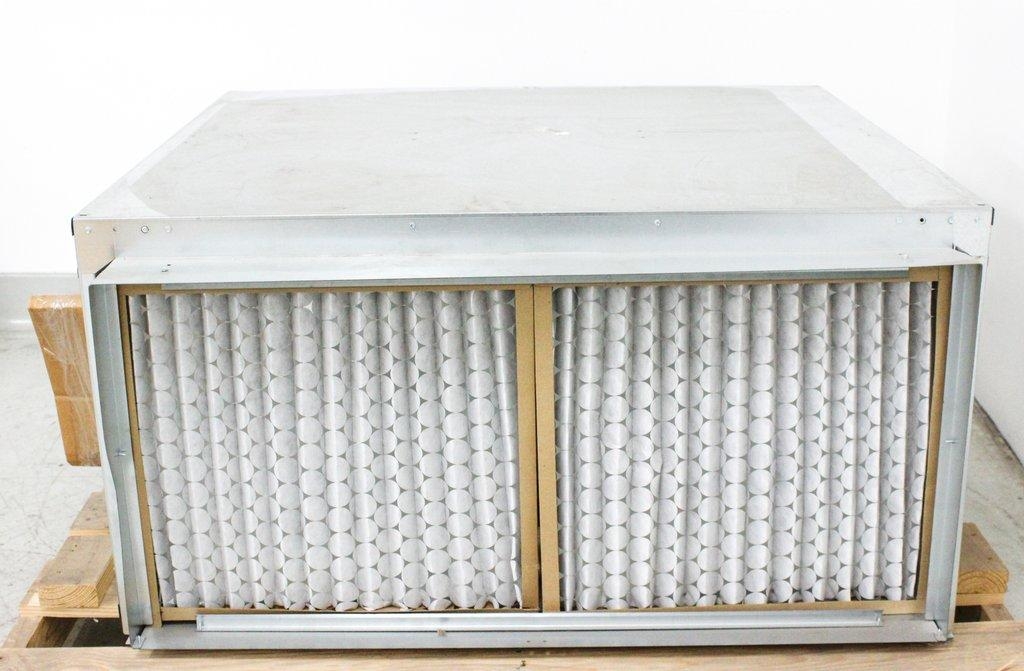

- Maintenance: Tool-free filter access, factory-installed electric heater controls
- Installation: Floor or ceiling mounted capability
- Warranty: 30-Day Warranty On Part
Weight
Imperial: 720.0 Pounds
Metric: 326.59 Kilograms
Shipping Dimensions
Imperial: 76.8 lb x 70.8 lb x 33.6 lb
Metric: 195.07 cm x 179.83 cm x 85.34 cm
Harmonized Code
841459
Harmonized Code Details
841459 - Air or vacuum pumps, air or gas compressors, and fans; Hoods with a fan, not elsewhere specified or included. This code was selected based on the fan's design and operating characteristics for managing airflow in HVAC systems.
