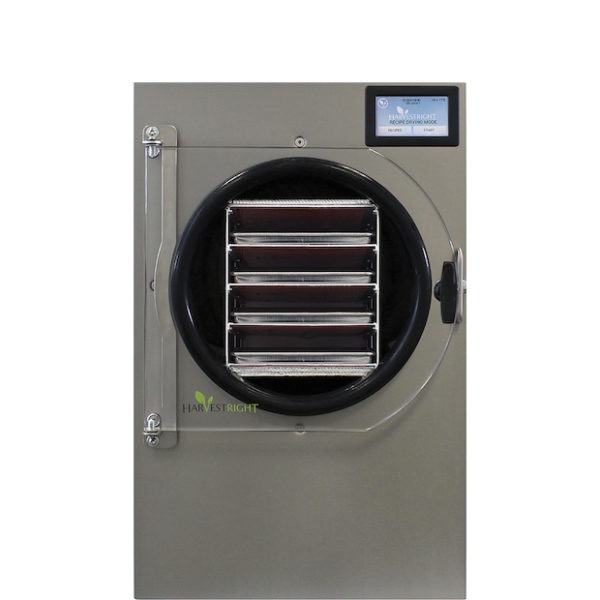

Harvest Right Scientific Freeze Dryer Lyophilizer 4 L -46 F Oil Free Turn Key SS

Product Information

Make: Harvest Right | Model: Scientific Freeze Dryer Stainless Steel. Bench top lyophilizer engineered for laboratory sample preservation, formulation development, and process R and D. This turnkey package includes a commercial grade oil free scroll vacuum pump, four stainless steel trays, power cord 115 V, owners manual, and insulator door pad. The 4 liter ice condenser cools to approximately -46 F, with manual or automated operation via a full color 4.3 inch touchscreen. Users can design recipes with up to 10 thermal treatment and 12 drying steps, control freeze rate and ultimate freeze temperature, set multi phase shelf temperatures to manage primary and secondary drying, and log real time pressure and temperature. Shelf heaters regulate sublimation and attendant vacuum for reproducible cycles. Data can be exported to a nearby PC over ethernet. Stainless steel collector and chamber, purge valve included. Condition: TK Turnkey, fully functional and ready to use. Typical lead time is 8 to 10 weeks in the USA and longer internationally. REUZEit 30 day parts warranty. Units are drop shipped from the manufacturer.

• Turnkey benchtop lyophilizer with oil free 7 CFM scroll vacuum pump
• 4 L ice condenser capacity supports 6 to 10 lb wet load throughput
• Collector cools to approximately -46 F for efficient primary drying
• Stainless steel collector, chamber, and four stainless steel trays

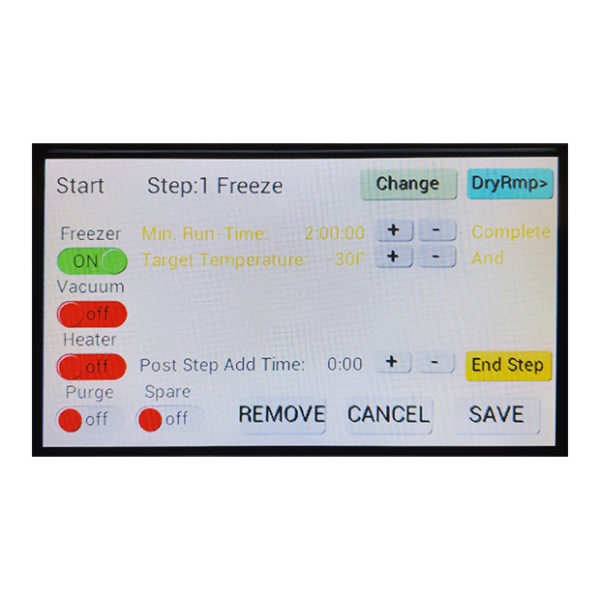

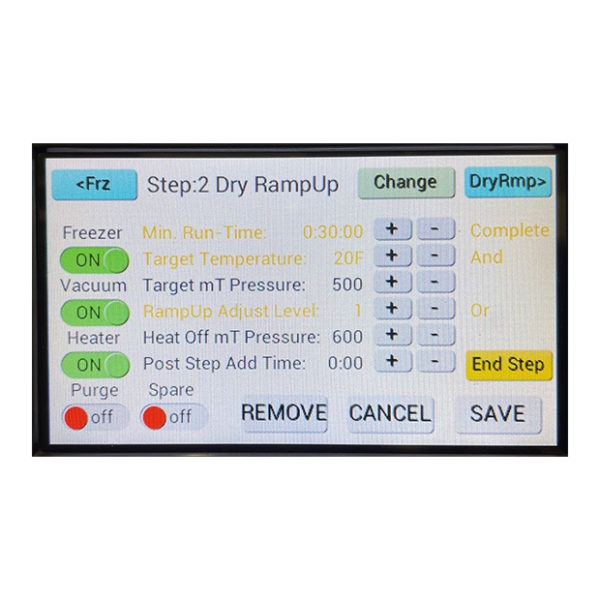

• Full color 4.3 inch touchscreen interface, manual or automated modes

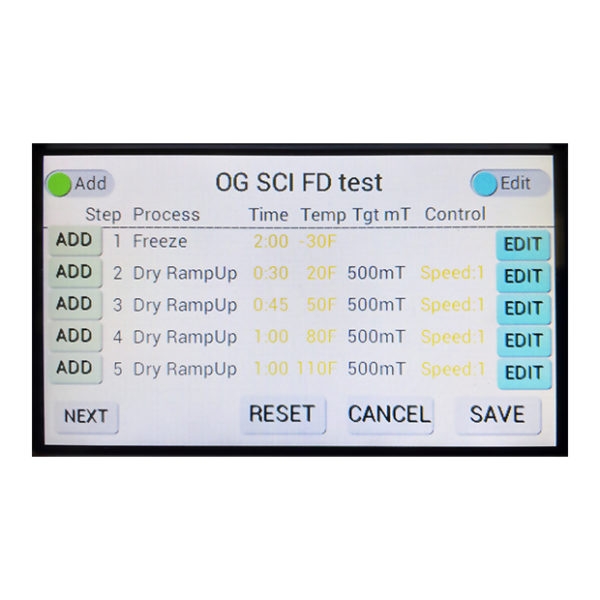

• Recipe customization with up to 10 thermal and 12 drying steps
• Programmable freeze rate, ultimate freeze temperature, and hold time
• Multi phase shelf temperature control to optimize sublimation
• Integrated shelf heaters regulate sublimation and vacuum pressure
• Real time pressure and temperature display with data logging
• Ethernet connectivity for exporting cycle data to a nearby PC
• Included purge valve and insulator door pad for process integrity
• 115 V, 20 A electrical requirement on a dedicated circuit
• Turn key package includes power cord and owners manual

• Application: Laboratory lyophilization of biologicals, APIs, tissues, reagents, and QC samples
• Configuration: Bench top, table top freeze dryer
• Ice Condenser Capacity: 4 liters of sublimated ice per cycle
• Condenser Temperature: To approximately -46 F
• Drying Chamber: Stainless steel, includes purge valve
• Shelving: Shelf unit for 4 trays (stainless steel trays included)
• Process Control: Manual or automated with recipe programming
• Programmable Steps: Up to 10 thermal treatment and 12 drying steps
• Freeze Control: Adjustable freezing rate and ultimate freeze temperature
• Hold Control: Programmable hold time at final freeze prior to drying
• Shelf Temperature Control: Multi stage setpoints to phase drying from low to higher temperatures
• Sublimation Management: Shelf heaters regulate sublimation rate and attendant vacuum
• Monitoring and Data: Real time pressure and temperature display; automatic data logging
• Connectivity: Ethernet port for exporting cycle data to nearby PC
• User Interface: Full color touchscreen, 4.3 inch diagonal
• Materials of Construction: Stainless steel collector and exterior or powder coated aluminum exterior
• Electrical: 115 VAC, 60 Hz, 20 A

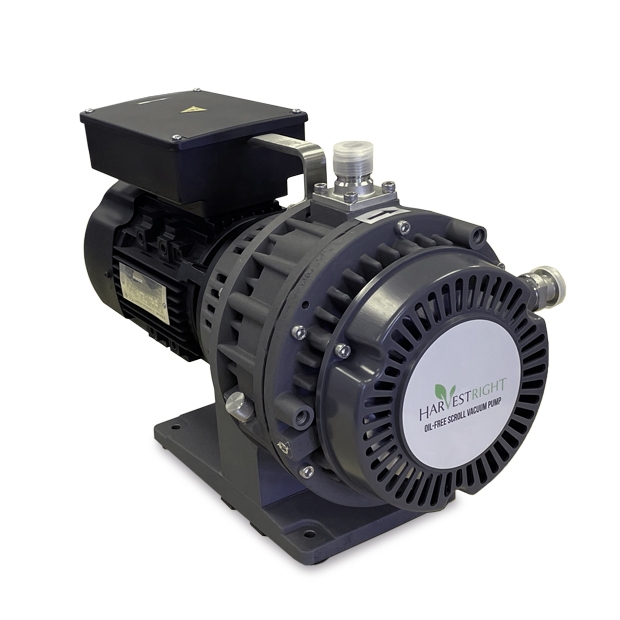

• Vacuum Pump: Commercial grade oil free scroll pump, 7 CFM
• Dimensions Approximate: 30 in H x 25 in D x 20 in W
• Included Accessories: Oil free vacuum pump, 4 trays, insulator door pad, owners manual, 115 V power cord
• Country of Origin: United States
• Warranty: REUZEit 30 day warranty on parts
• Logistics Note: Typical lead time 8 to 10 weeks for USA; longer for international orders; drop shipped from manufacturer

Imperial: 480.0 Pounds

Metric: 217.72 Kilograms

Imperial: 57.6 lb x 48.0 lb x 48.0 lb

Metric: 146.3 cm x 121.92 cm x 121.92 cm

8419.39

HS 8419.39 – Dryers; other. Lyophilizers are specialized dryers that remove water by sublimation, fitting within the dryers category for machinery treating materials by a change of temperature.
