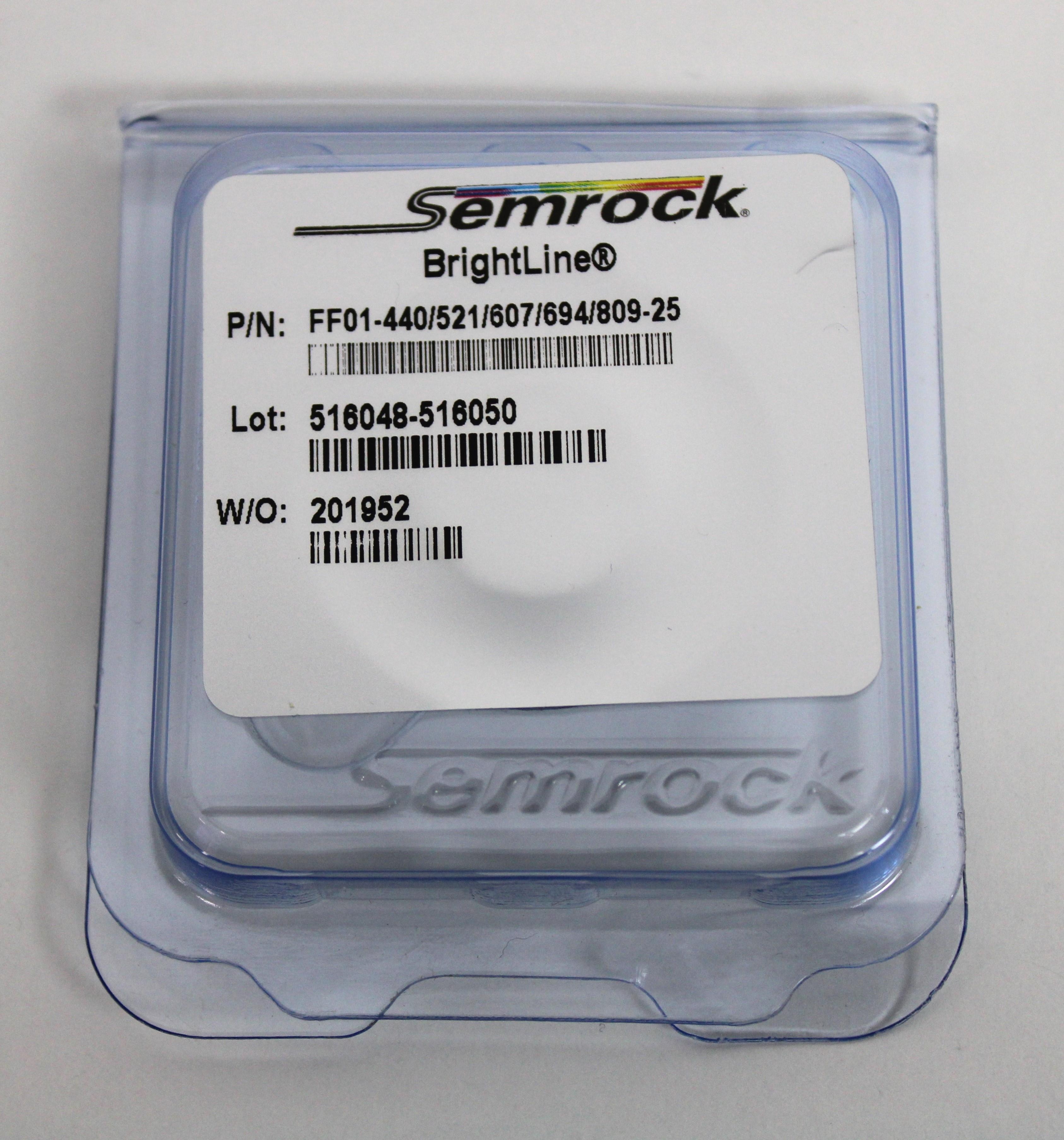

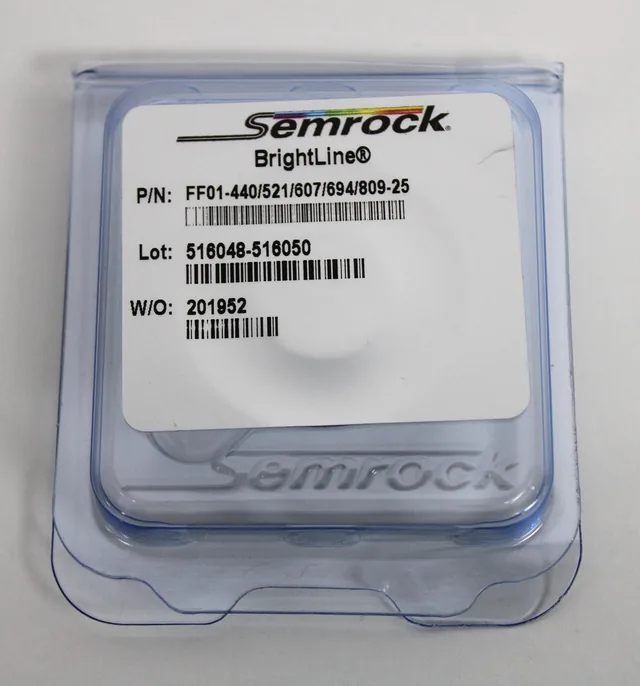

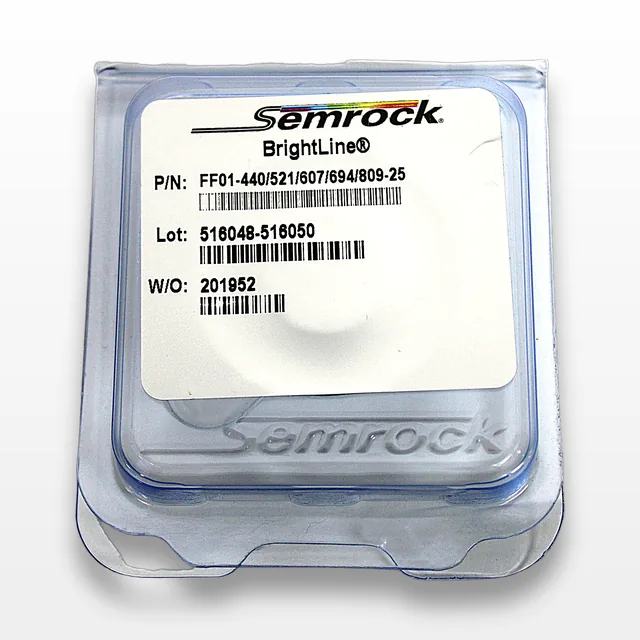

SEMROCK FF01-440/521/607/694/809-25 BrightLine Bandpass Filter 25mm Diameter
SEMROCK
Details
-
CategoryAnalytical
-
Dimension5.0cm x 5.0cm x 8.0cm
-
SerialDoes Not Apply
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Listing price
Price factors
-
Demand
This item is applicable for recycling. We can pick up the item and recycle it. A certificate of destruction is available upon request
-
Inflation
Inflation has little effect on the price of a product, as other factors (such as demand, competition, and technological innovation) play a more important role
-
Condition
The price of the equipment directly depends on its condition. New equipment is more expensive than used ones
-
Time
The product is on display in the store from 10.01.2025
The price is currently affected by :
-
Demand
-
Inflation
-
Condition
-
Time
Description
Product Information

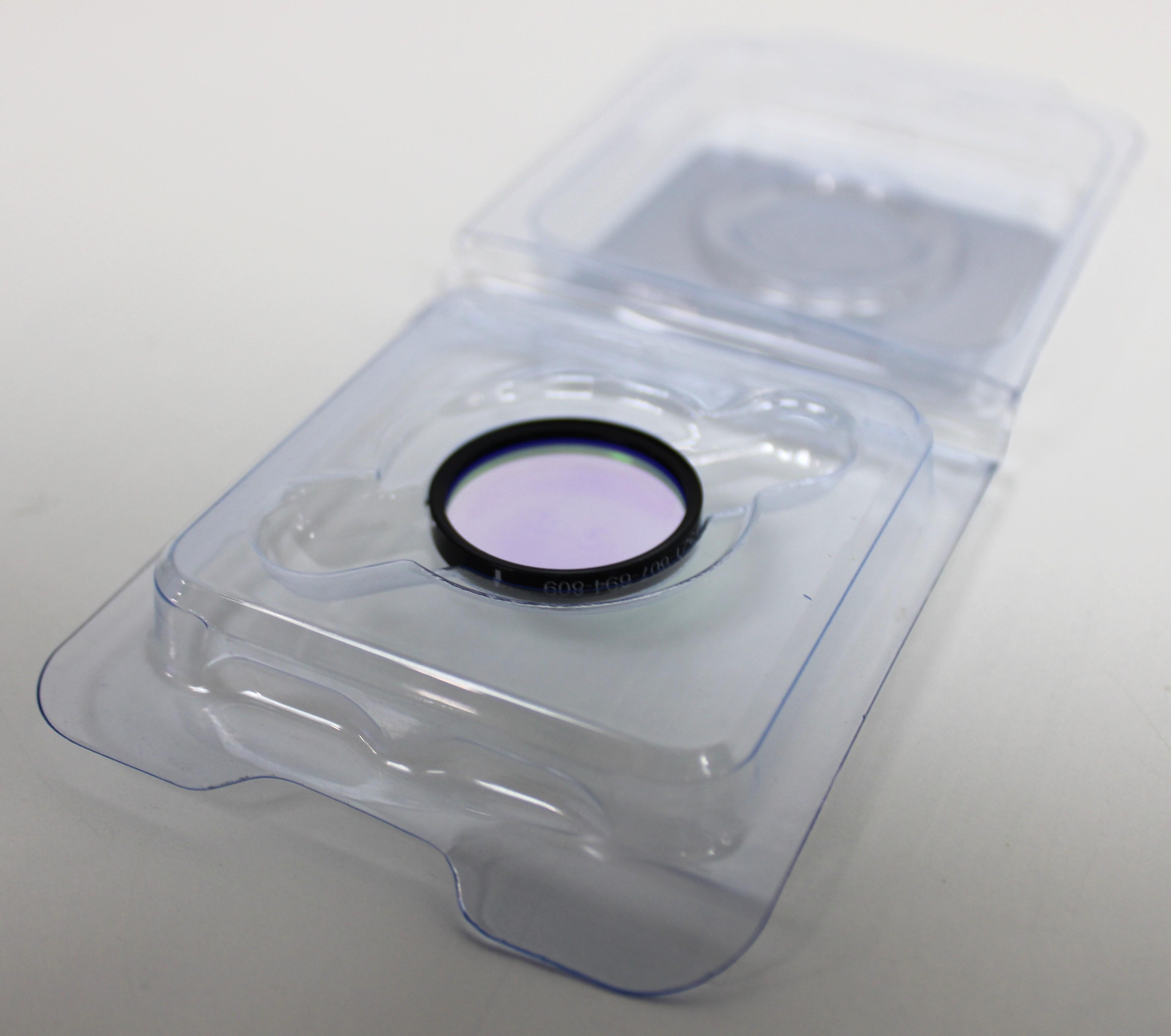

The SEMROCK FF01-440/521/607/694/809-25 BrightLine penta-band bandpass filter is designed to offer unmatched performance and reliability in fluorescence applications. Utilizing Semrock's patented single-substrate construction, this filter provides extremely high transmission with steep, well-defined edges and robust blocking between passbands. This all-thin-film, hard-coated filter is ideal for precision demanding laboratory environments. This model features five main transmission bands with average transmission over 90% across specified wavelengths, and multiple blocking bands to ensure minimal cross-talk. The filter is 25mm in diameter with transverse tolerance of +0.0 / -0.1 mm. It remains unmounted with a thickness of 2.0 mm, accommodating a clear aperture size of ≥ 22 mm. Manufactured in the United States, this product is designed for performance-critical settings such as medical and life sciences laboratories.
Key Features
- Patented single-substrate construction for high transmission
- Steep and well-defined edges
- Outstanding blocking between passbands
- All thin-film, hard-coated for reliability
- Five main transmission bands, >90% Tavg
Specifications
- Transmission Bands: 420–460 nm, 510–531 nm, 589.5–623.5 nm, 677–711.5 nm, 768.5–849.5 nm
- Blocking Bands: 200–381.5 nm, 381.5–392.5 nm, 475–495 nm, 547–572 nm, 643–656 nm, 733.5–746.5 nm, 869.3–900 nm, 900–1080 nm, 1080–1100 nm
- Center Wavelengths: 440 nm, 520.5 nm, 606.5 nm, 694.3 nm, 809 nm
- Transverse Dimensions: 25 mm diameter, with Tolerance +0.0 / -0.1 mm
- Filter Thickness (Unmounted): 2.0 mm
Weight
Imperial: 0.24 Pounds
Metric: 0.11 Kilograms
Shipping Dimensions
Imperial: 2.4 lb x 2.4 lb x 3.6 lb
Metric: 6.1 cm x 6.1 cm x 9.14 cm
Harmonized Code
90019040
Harmonized Code Details
90019040 - Optical elements of any material, unmounted. This code is appropriate as the product is an optical filter, consisting chiefly of unmounted optical elements.
