Agilent 8453 Spectrophotometer P/N G1103A UV-Vis

Product Information

The Agilent 8453 Spectrophotometer P/N G1103A with G1120A Multicell Transport is a single-beam, microprocessor-controlled, UV-visible spectrophotometer with collimating optics. The Agilent 8453 UV-Vis system offers powerful data analysis and data archival to ensure compliance with good laboratory practices (GLP) and pharmacopoeia requirements. It is known for its diode-array technology, providing fast scanning, excellent sensitivity, and virtually absolute wavelength reproducibility. The spectrophotometer is capable of UV-Vis spectral acquisition and analysis in less than 1 second, with stable optics, low noise electronics, and no moving parts. The system comes pre-aligned with deuterium and tungsten lamps that can be exchanged easily, along with self-test and revisions built into the software/firmware. This equipment is suitable for various applications like DNA/RNA analysis, protein quantification, enzyme kinetics, and drug stability testing.

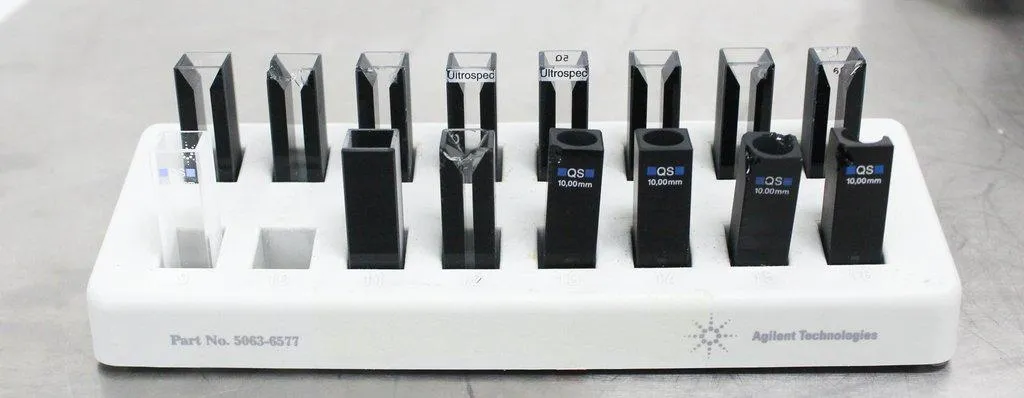

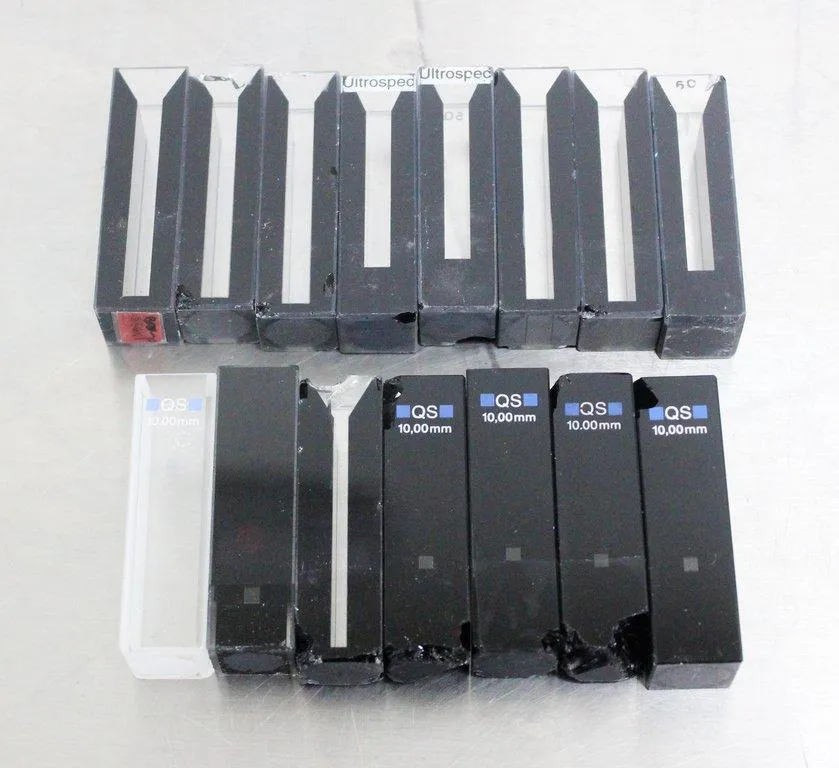

Includes Tray for 16 spectrophotometer cells with 10mm pathlength. (Minor cosmetic damage on cells, see photos for details.)

• Single-beam, microprocessor-controlled spectrophotometer with diode-array technology
• Fast scanning, excellent sensitivity, and virtually absolute wavelength reproducibility
• Stable optics, low noise electronics, and no moving parts
• Pre-aligned deuterium and tungsten lamps exchanged easily
• Powerful data analysis and archival for compliance with good laboratory practices and pharmacopoeia requirements

• Wavelength Range: 190-1100 nm
• Slit Width: 1 nm
• EP Resolution Test: > 1.6 toluene in hexane, ratio abs. at 269 nm/266 nm
• Stray Light: < 0.03% at 340 nm (NaNO2, ASTM), < 0.05% at 220 nm (NaI, ASTM), < 1% at 198 nm (KCl, EP)
• Wavelength Accuracy: < 0.5 nm 0.5-second scan (NIST 2034), < 0.2 nm at 486.0 nm and 656.1 nm
• Wavelength Reproducibility: < 0.02 nm ten consecutive scans (NIST 2034)
• Photometric Accuracy: < 0.005 A at 440.0, 465.0, 546.1, 590.0, and 635.0 nm, 1 A (NIST 930e)
• Photometric Noise: < 0.0002 A sixty 0.5-second scans at 0 A, 500 nm, rms
• Photometric Stability: < 0.001 A/h at 0 A, 340 nm, after 1-hour warm-up, measured over 1 hour, every 5 seconds, constant ambient temp.
• Baseline Flatness: < 0.001 A 0.5-second blank, 0.5-second scan, rms
• Typical Scan Time: 1.5 seconds full range
• Shortest Scan Time: 0.1 seconds full range
• Time Until Next Scan: 0.1 seconds full range, 0.1-second scan, up to 150 consecutive scans

Metric: 19.5 kg

Imperial: 43.0 lb

Metric: 26.4 cm x 31.2 cm x 9.6 cm
Imperial: 10.39 in x 12.28 in x 3.78 in

9027300000

The harmonized code 9027300000 is for spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR). This code represents the equipment's primary function, and it is most suitable given the product's description and specifications.
