Ace Glass 8648-29 Pressure Tubes and Plunger Valves

sku: 3364887
1 In Stock
Condition : TK (Turnkey)
Warranty : 30-Day Warranty, 100% Parts and Labor
Region : US
$200.00
Apply For Finance
Make Offer
Enquiry Here
ADD TO CART
  • Make Ace Glass
  • Hertz Does Not Apply
  • Model 8648-29
  • Serial N/A
  • Weight 8.0 Lb
  • Voltage Does Not Apply
  • Warranty 30-Day Warranty, 100% Parts and Labor
  • Dimensions 18.0in x 16.0in x 12.0in
  • Shipping Type FedEx Ground
  • Item Condition TK (Turnkey)
  • Manufacturing Date Does Not Apply

Product Information

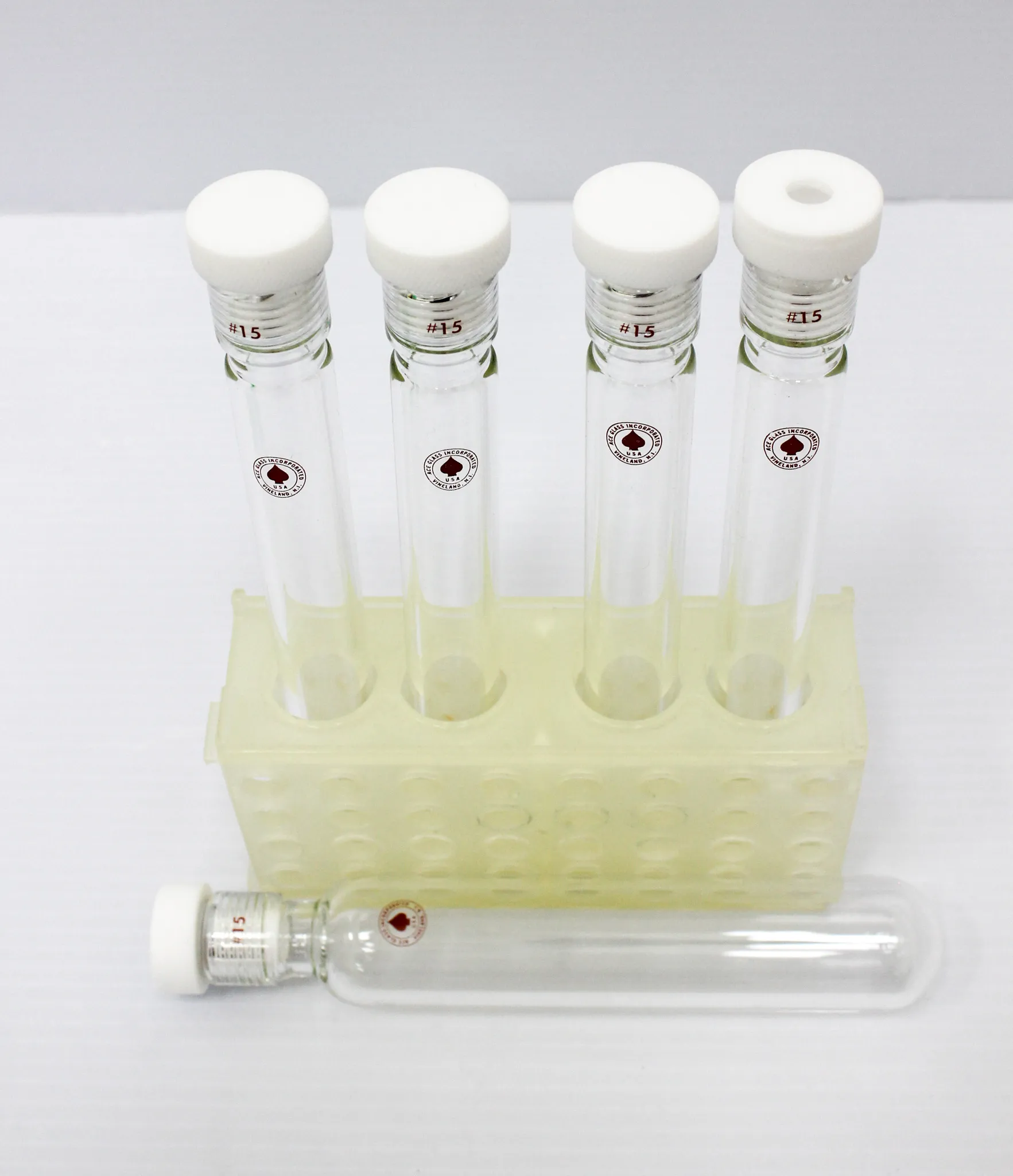

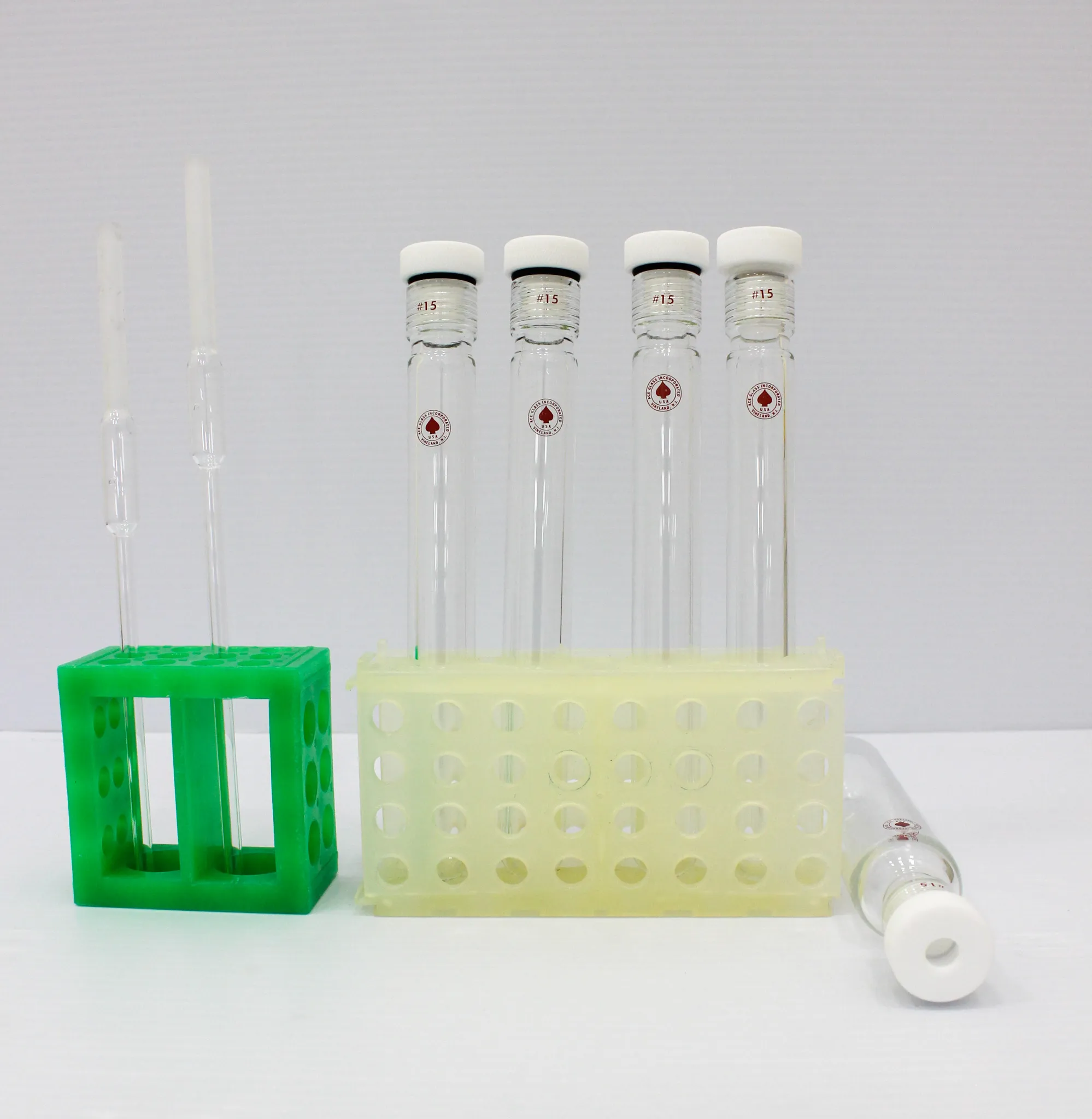

ACE Glass 8648-29 Pressure Tubes and plunger valves are new pressure tubes with two pressure vessels ready to be used. These premier glass pressure vessels in the industry are rated at 150psi at as much as 120 degrees C, setting them apart from flat-bottomed bottles rated at 60psi at room temperature. Due to varying conditions, Ace cannot guarantee glass vessels from breaking under pressure. The pressure tubes come with specifications including #15 Tubes with heavy walls and plunger valves that allow purging of the tube. They are designed for applications where high-pressure conditions are needed to carry out experiments or processes in a laboratory setting. The model is manufactured by Ace Glass, and the current condition is 'New other (see details)'. Typical applications include chemical synthesis, material testing, and high-pressure reaction studies.

Key Features

  • Two new pressure vessels included
  • Rated at 150psi at as much as 120 degrees C
  • Heavy walls and plunger valves for purging
Specifications

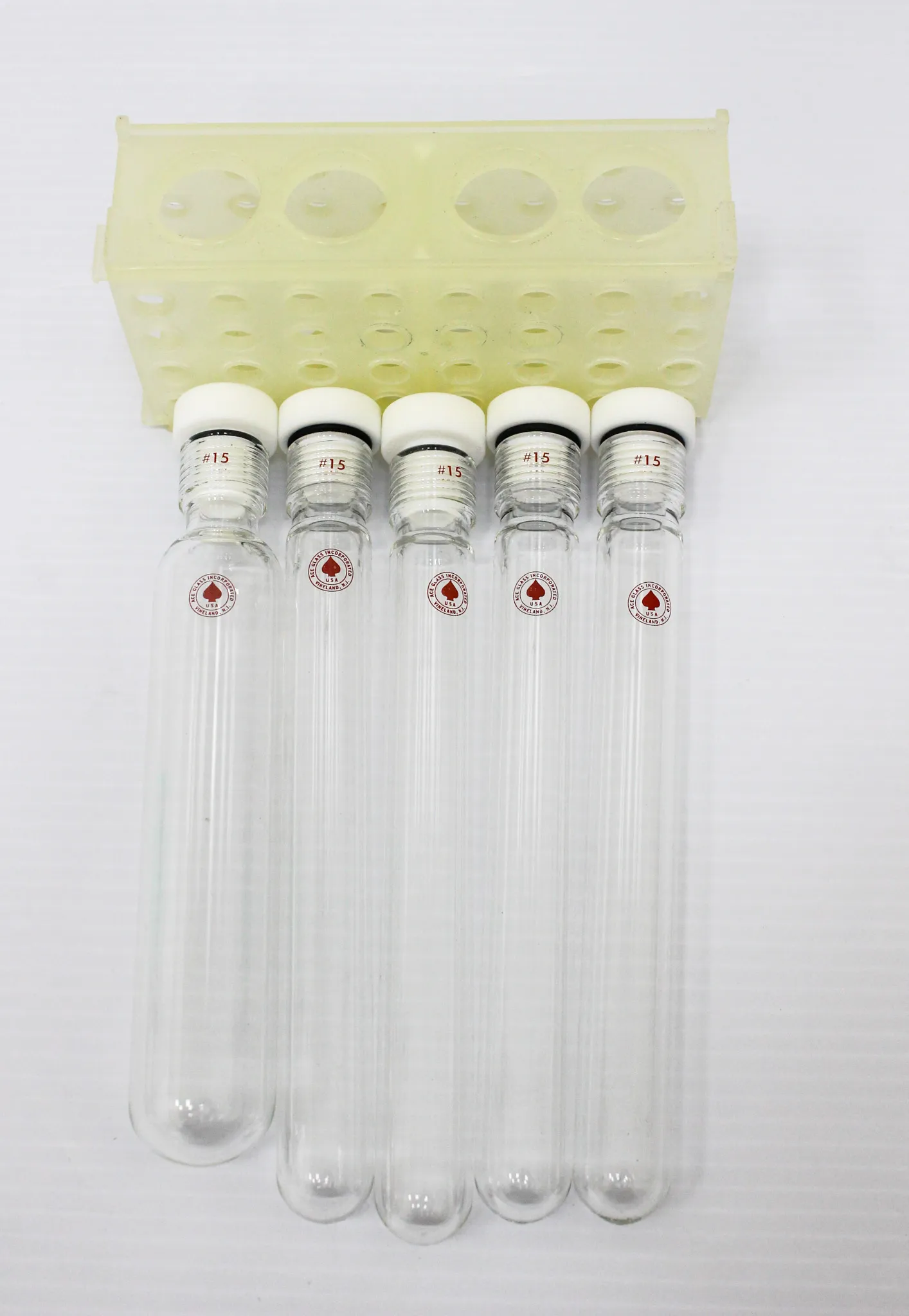

  • Pressure Tubes: #15 Tube only, pressure, 38mL, 25.4mmod, 20.3cm (8'') long, no plug
  • Pressure Tubes: #15 Tube only, pressure, 35mL, 25.4mmod, 17.8cm (7'') long, no plug

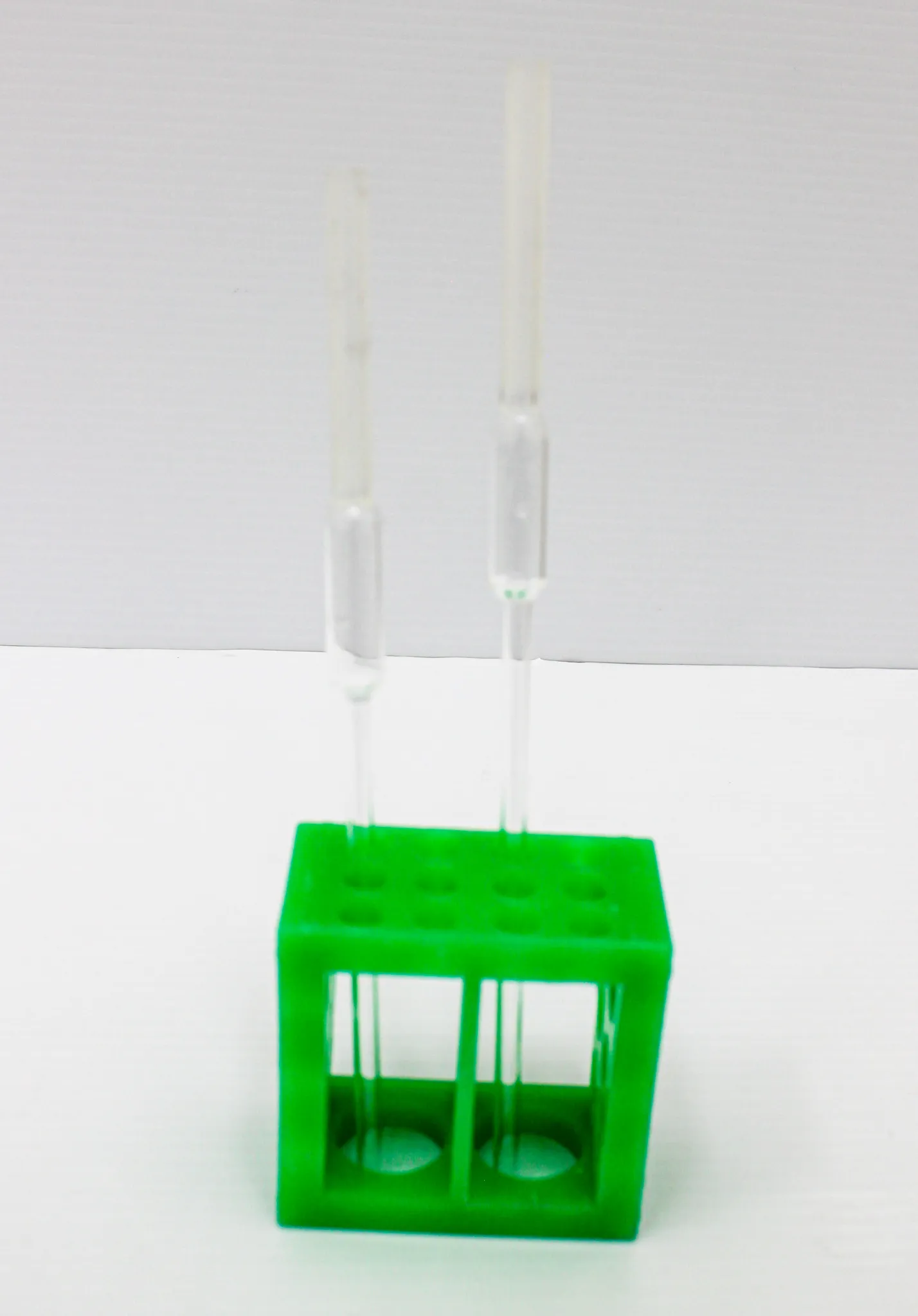

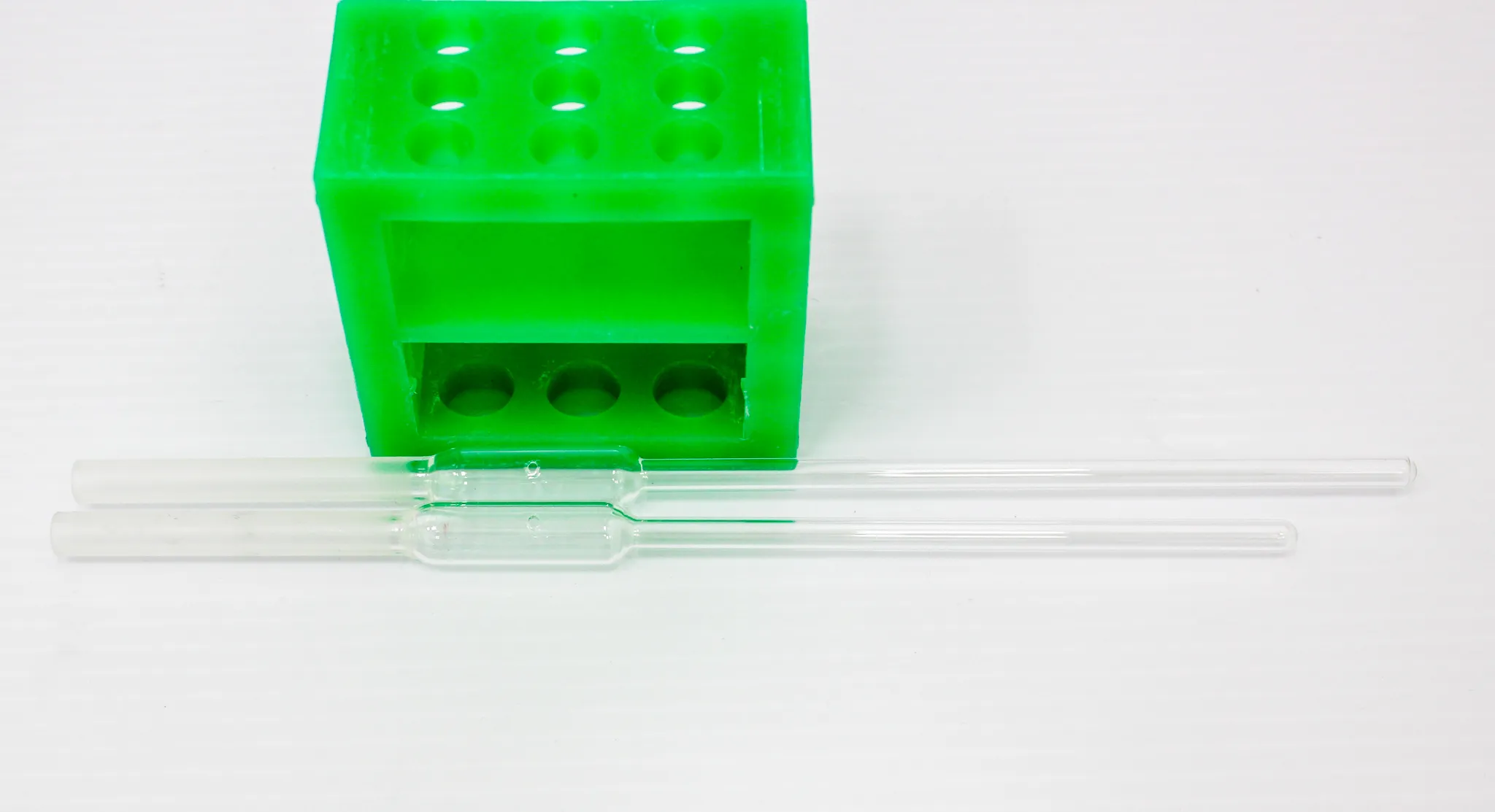

  • Plunger Valves: 2 included
  • Material: Glass
  • Maximum Pressure: 150psi
  • Operating Temperature: Up to 120°C
  • Capacity: 38mL and 35mL
  • Dimensions: Multiple dimensions mentioned for the pressure tubes
  • Condition: New other (see details)
Weight

Metric: 3 kg
Imperial: 6.61 lb

Dimensions

Metric: 20.3 cm x 25.4 cm x 17.8 cm
Imperial: 8 in x 10 in x 7 in

Harmonized Code

701720

Harmonized Code Details

Glassware for laboratory, hygienic or pharmaceutical use: Of fused quartz or other fused silica
