Applikon My-Control Bioreactor Controller for Small Scale Bioreactors 3L
Applikon
Details
-
CategoryBioreactor / Fermenter
-
Dimension14.0in x 8.0in x 16.0in
-

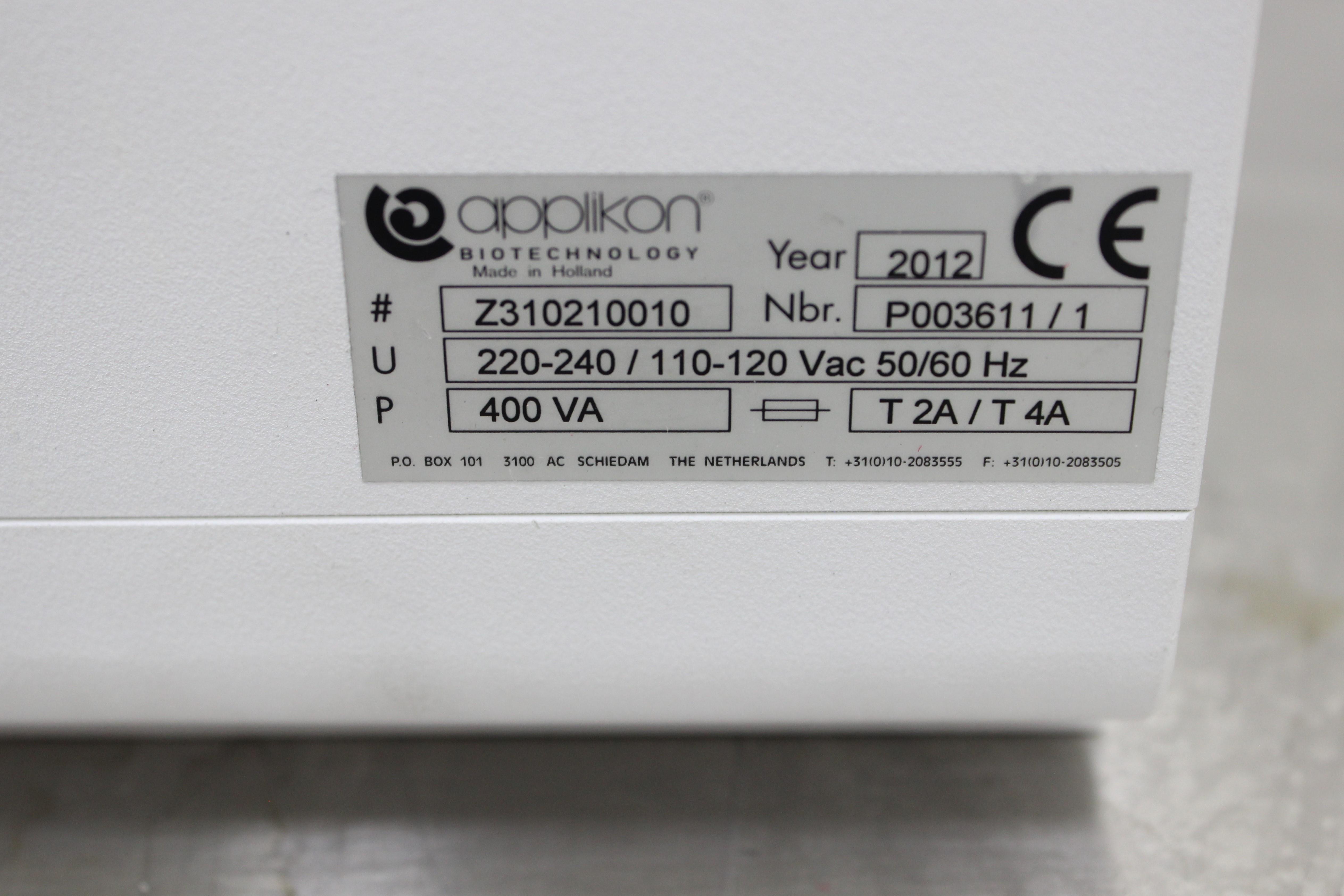

SerialZ310210010
-
Shipping TypeGround
-
Manufacturing2012-01-01
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Price factors
-
Demand
This item is applicable for recycling. We can pick up the item and recycle it. A certificate of destruction is available upon request
-
Inflation
Inflation has little effect on the price of a product, as other factors (such as demand, competition, and technological innovation) play a more important role
-
Condition
The price of the equipment directly depends on its condition. New equipment is more expensive than used ones
-
Time
The product is on display in the store from 10.01.2025
The price is currently affected by :
-
Demand
-
Inflation
-
Condition
-
Time
Description
Product Information

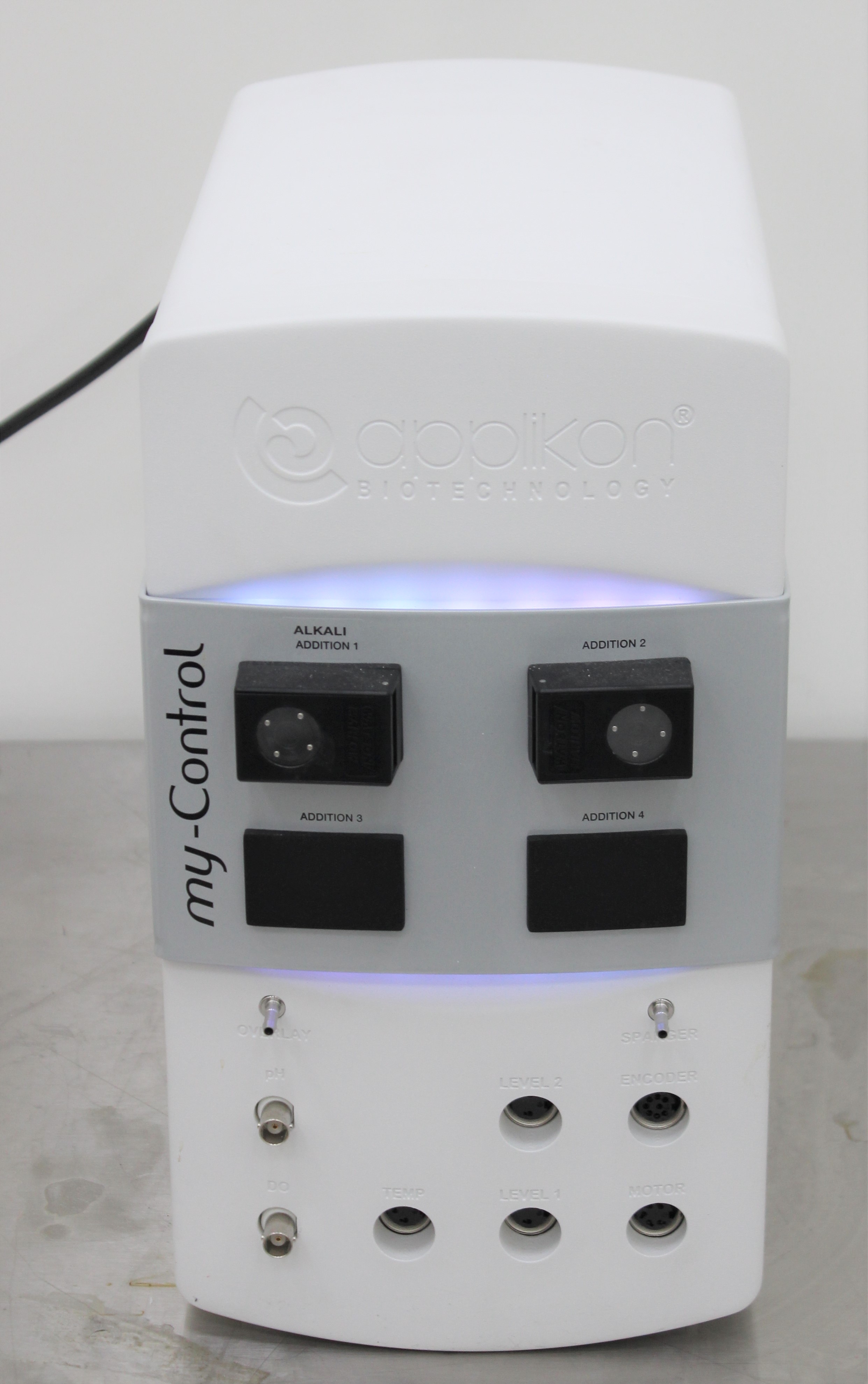

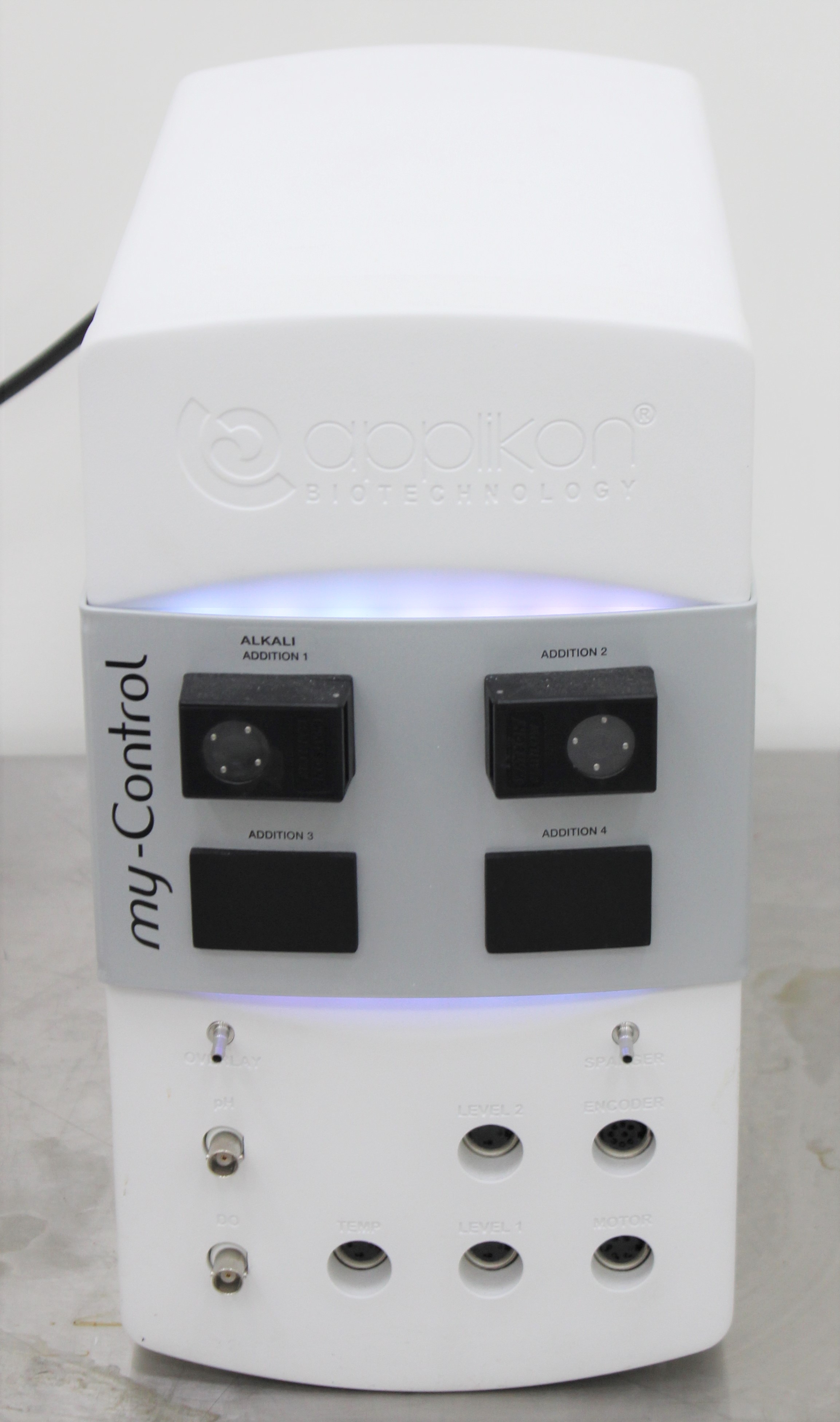

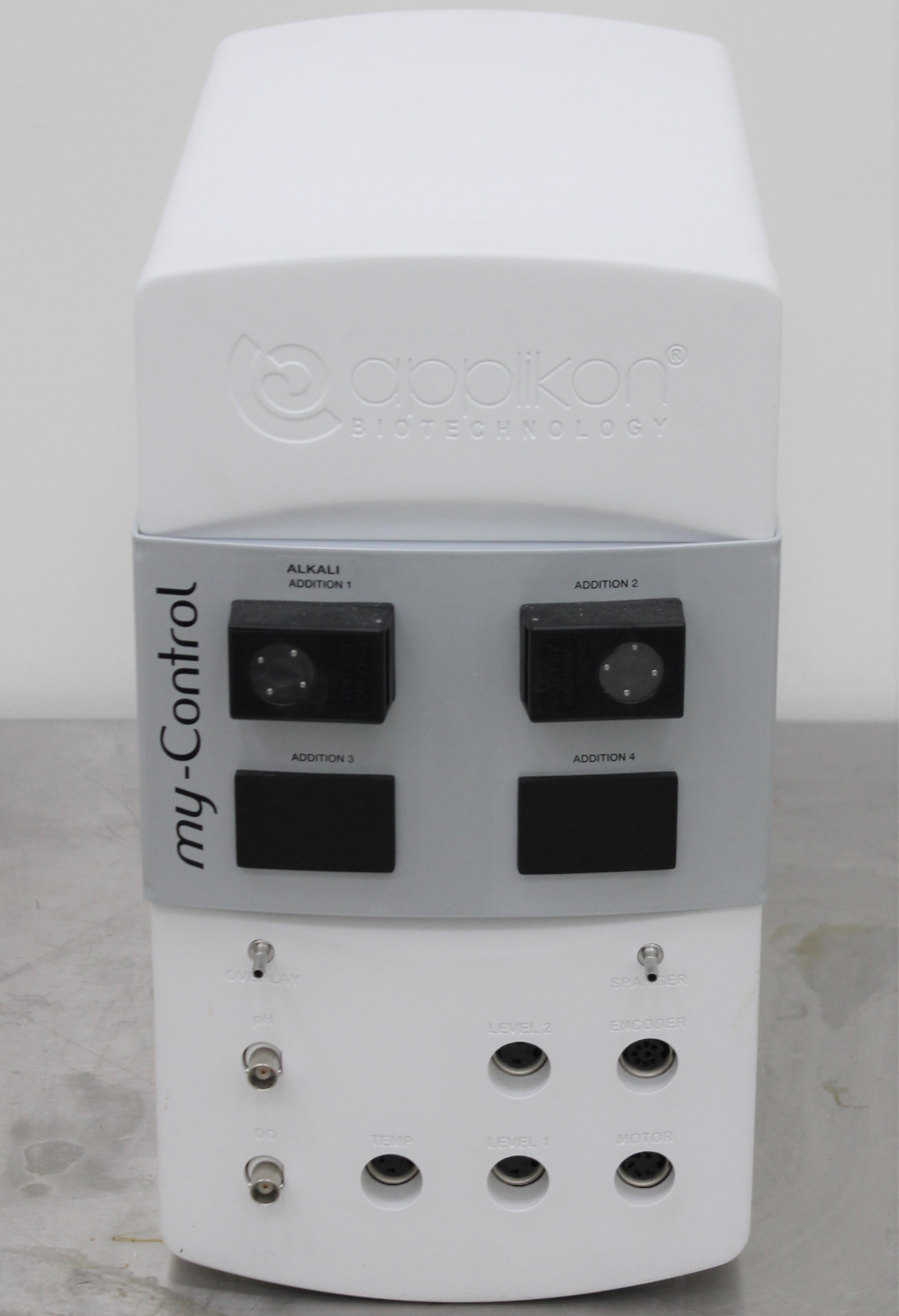

The Applikon My-Control is a highly advanced bioreactor controller designed for small scale bioreactors with a working volume of 50 ml, up to a maximum total volume of 3 L. Manufactured by Applikon in 2012, this controller is suitable for both cell culture and microbial cultures. It is in Very Good (VG) condition, functioning as intended with minimal cosmetic damage, backed by a confident warranty. The system boasts impressive features such as pH, temperature, dissolved oxygen, agitation, foam, and level control. Optional inputs include capacitive biomass, fluorophor pH, and dissolved oxygen, as well as smart sensors, balances, and optical density sensors. The control type is PID with selectable autotuning adaptive control. The My-Control supports up to 6 variable speed pumps or micro addition valves, 4 Mass Flow Controllers or 4 solenoid valves for gas flow control, and provides electrical bioreactor heating and cooling via Peltier elements. It also includes spare I/O for digital and analog outputs.
Key Features- Advanced bioreactor controller for small scale up to 3L
- Suitable for both cell culture and microbial cultures
- Supports pH, temperature, dissolved oxygen, agitation, and more
- Offers options for smart sensors and various inputs
- PID control with selectable autotuning adaptive control
- Supports various actuators including pumps, valves, and heating/cooling elements
- Make and Model: Applikon My-Control
- Year of Manufacture: 2012
- Condition: Very Good (VG)
- Working Volume: 50 ml to 3 L
- Inputs: pH, temperature, dissolved oxygen, agitation, foam, level, optional capacitive biomass, fluorophor pH, and fluorophor dissolved oxygen
- Control Type: PID with selectable autotuning adaptive control
- Actuators: Up to 6 variable speed pumps or micro addition valves, up to 4 Mass Flow Controllers or 4 solenoid valves for gas flow control, electrical bioreactor heating and cooling via Peltier elements

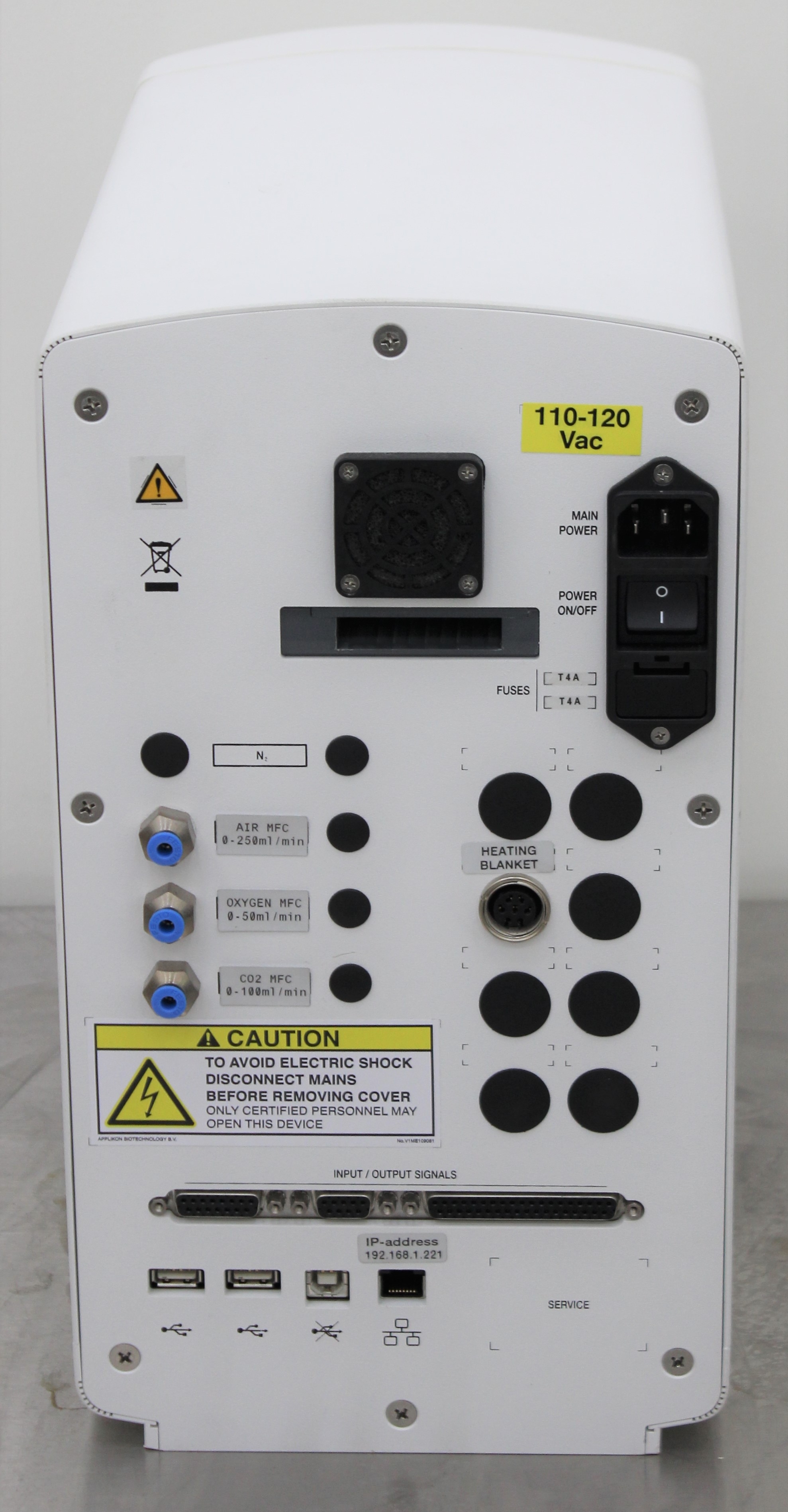

- Included I/O: 8 x digital output, 4 x analog output (0/4 - 20 mA)
Metric: 13 kg
Imperial: 29 lb
Metric: 35.56 cm x 40.64 cm x 60.96 cm
Imperial: 14 in x 16 in x 24 in
841989
Harmonized Code Details841989 - Machines and mechanical appliances having individual functions, not specified or included elsewhere; parts thereof
