Huber UC020-S12 Chiller/Heater Water Bath Recirculator -20 to +40C
- Make Huber
- Hertz 60Hz US
- Model UC020-S12
- Serial 53422/ 02
- Weight 132.0 Lb
- Voltage 240V
- Includes Power cord included |
- Warranty AS-IS
- Dimensions 31.0in x 23.0in x 38.0in
- Shipping Type Freight
- Item Condition Good
- Manufacturing Date Does Not Apply

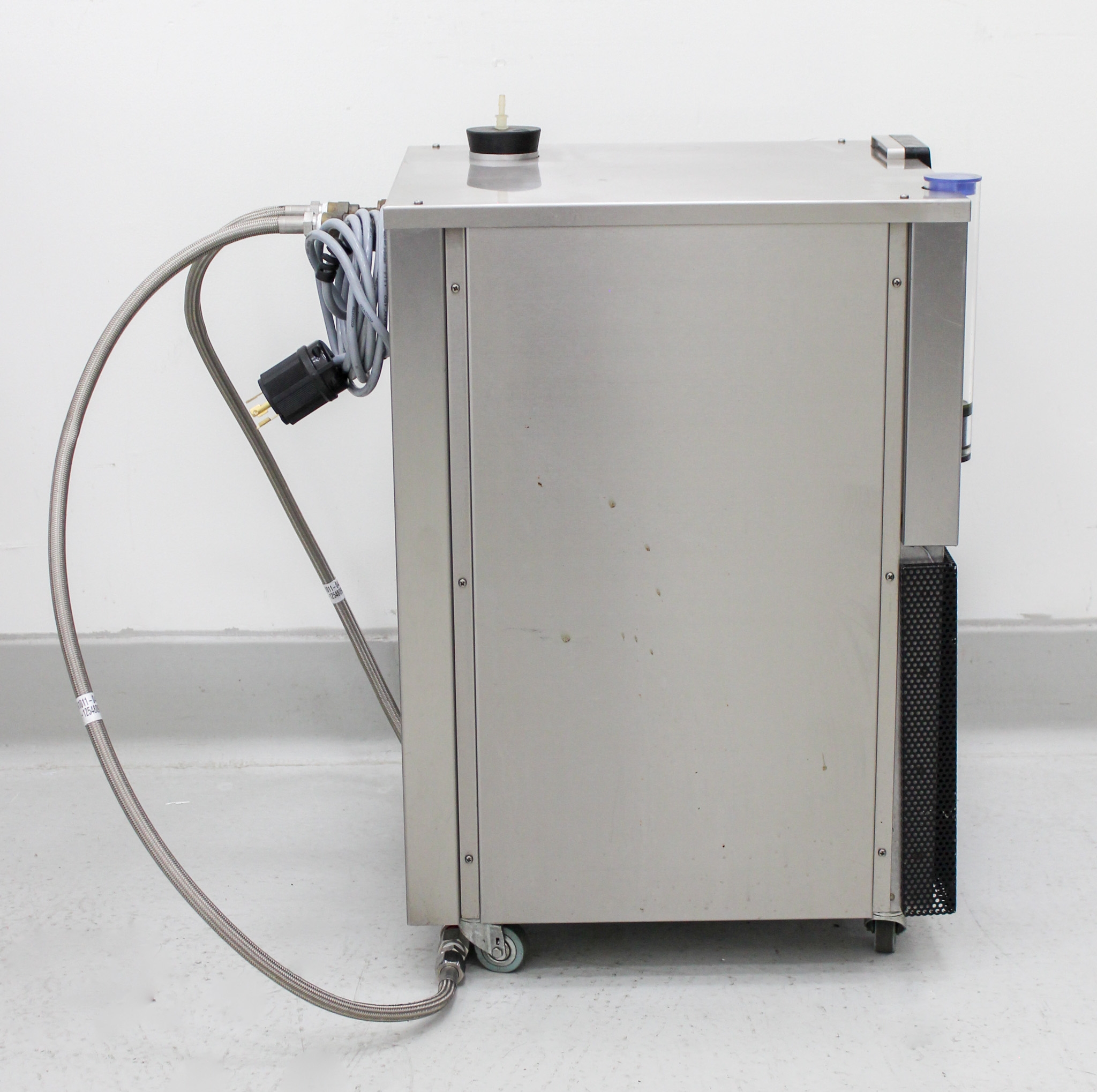

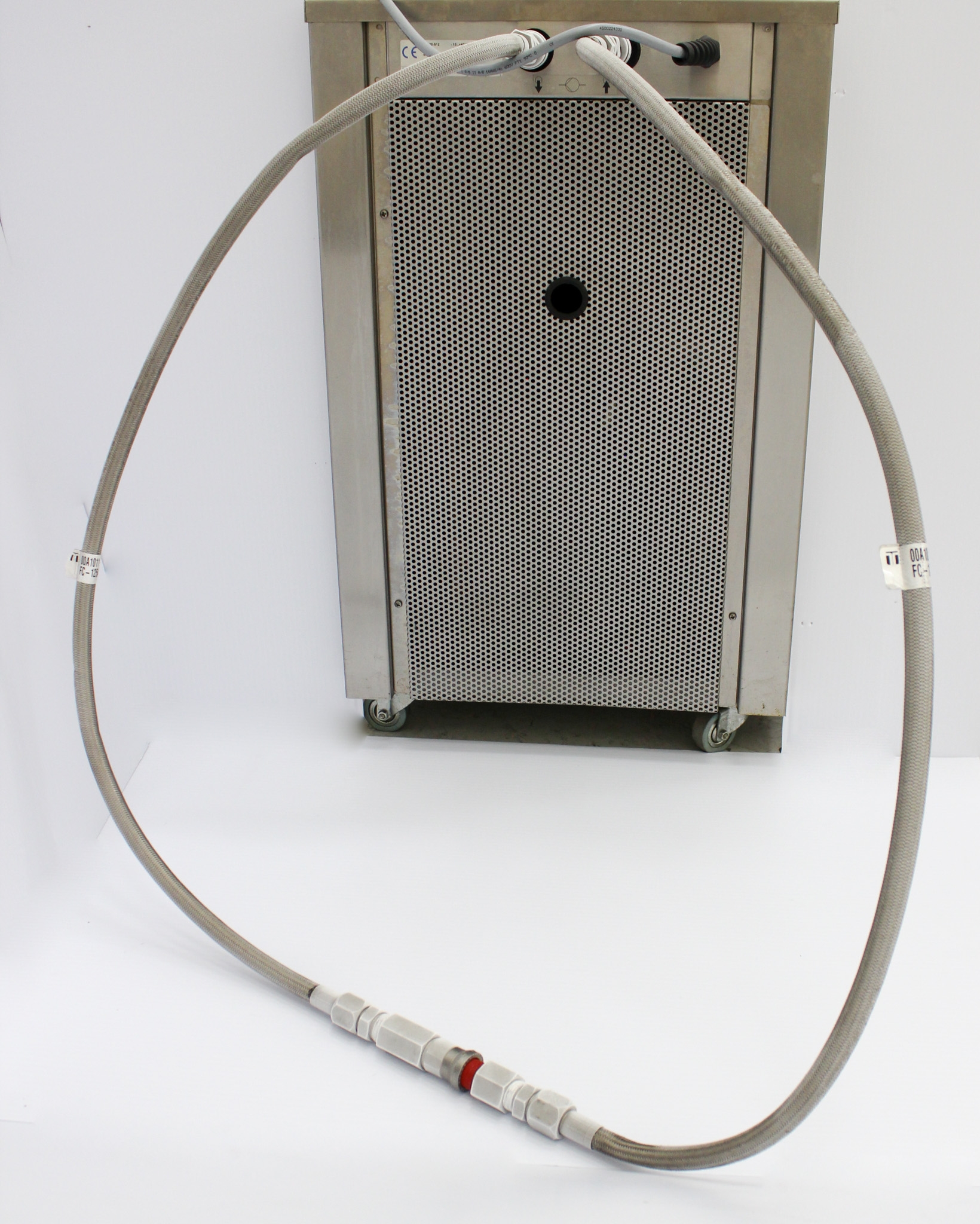

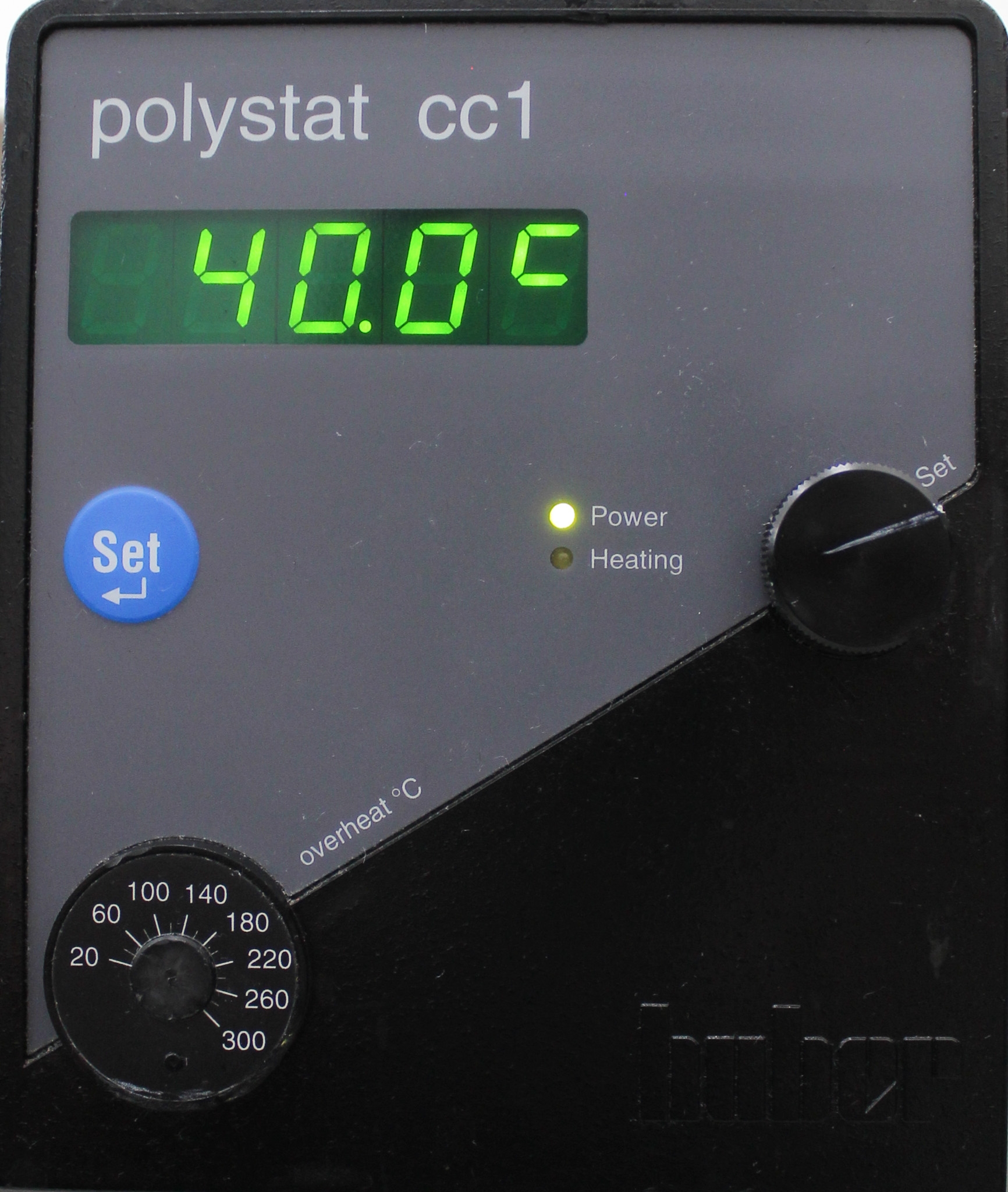

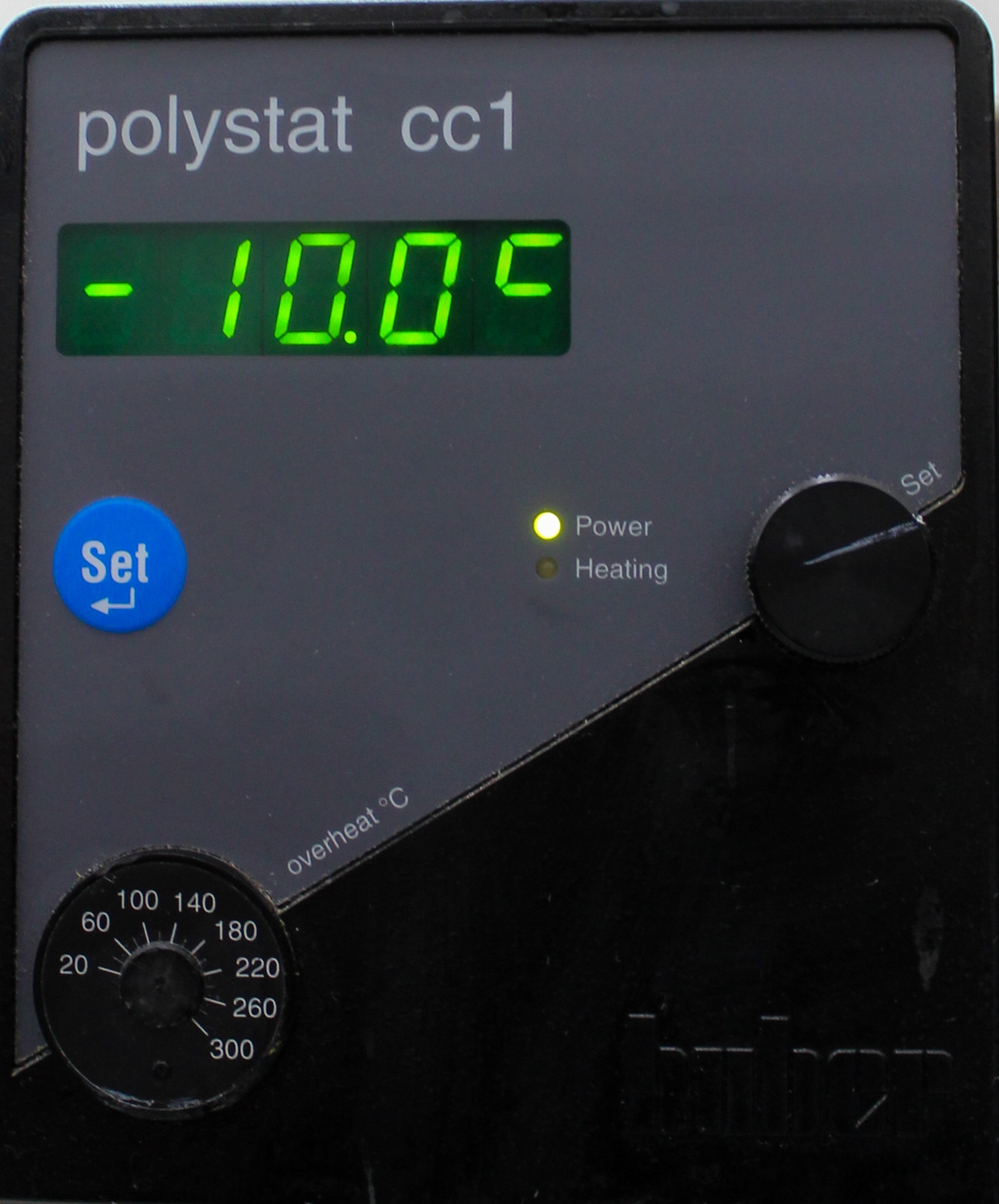

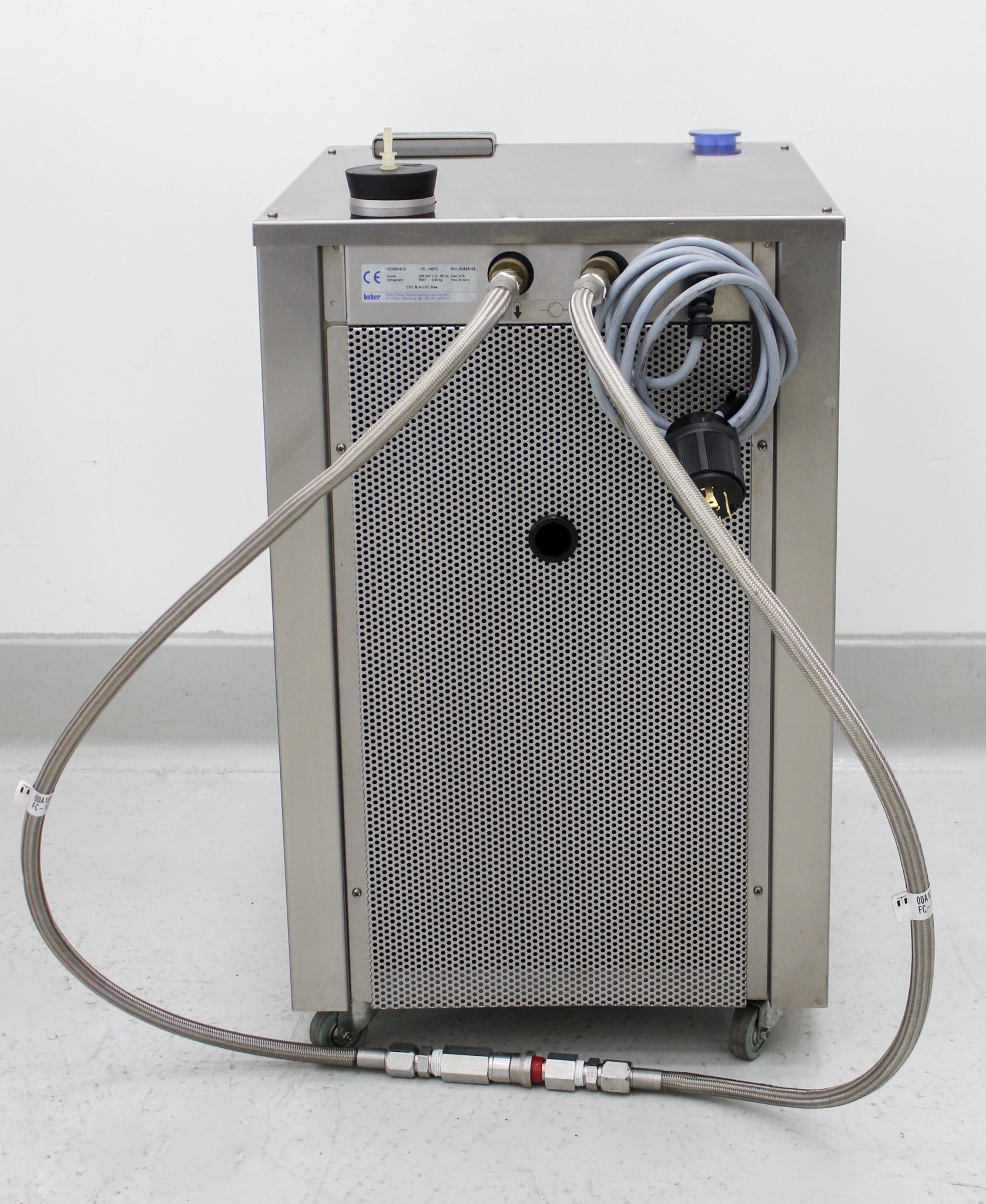

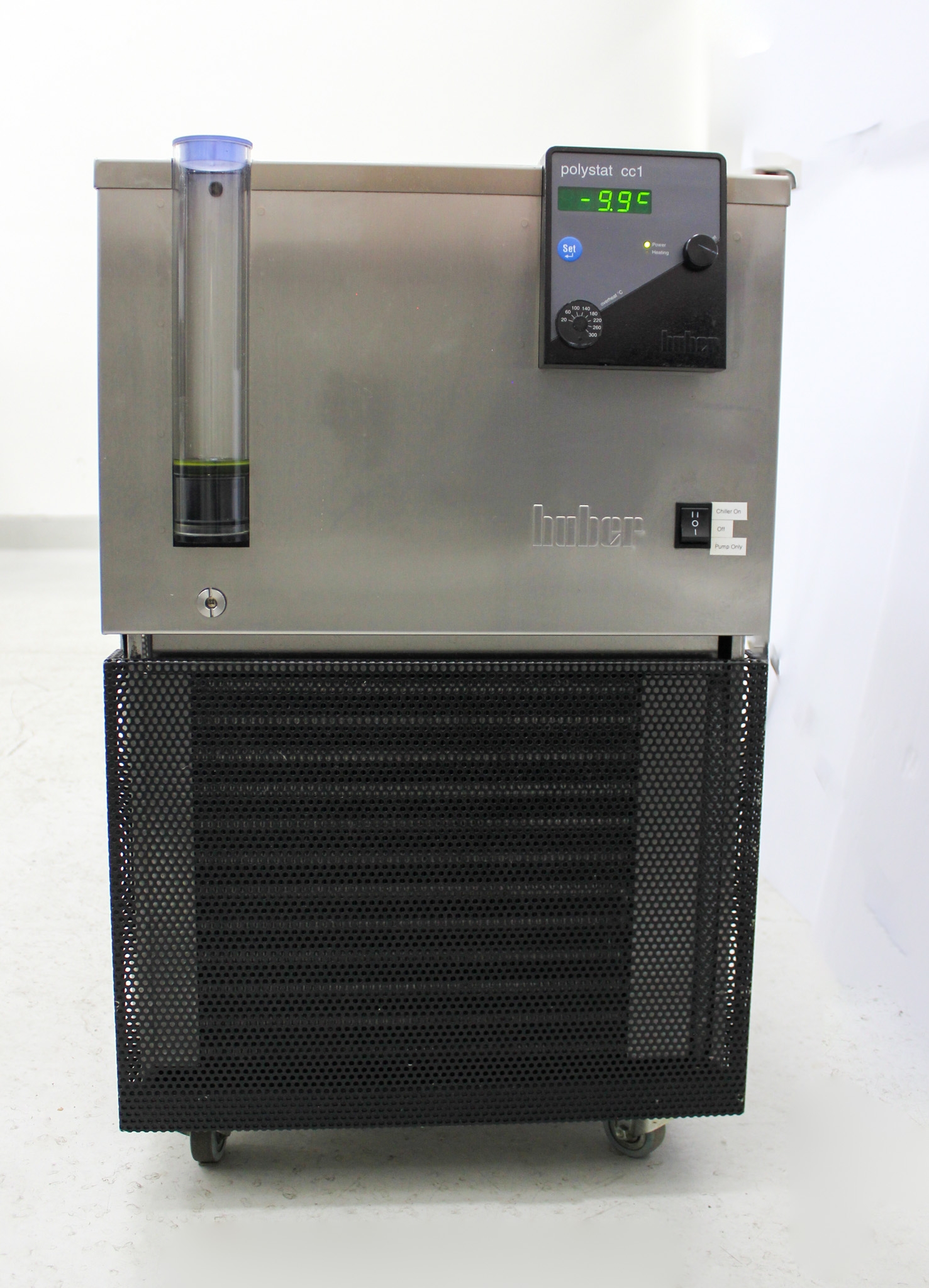

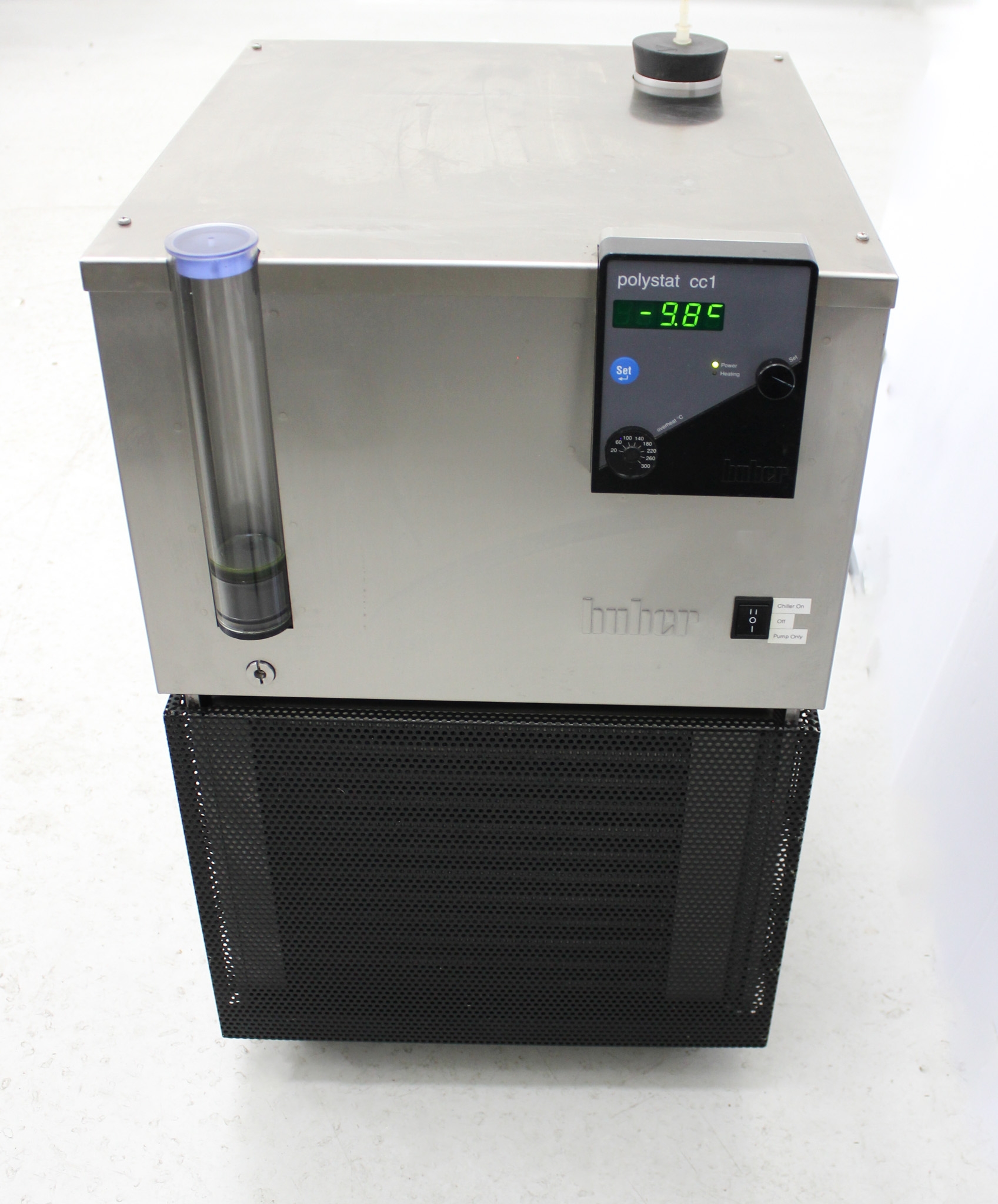

The Huber UC020-S12 Polystat CC1 Chiller is a high-efficiency recirculating chiller designed for laboratory use. Manufactured by Huber, this model offers a temperature range of -20°C to +40°C, making it suitable for removing heat from chemical processes, cooling technical plants, or serving as a central cooling water supply in research environments. The chiller features a stable water temperature, reducing water consumption and operational costs. It is built with a water-cooled refrigeration system, a circulation pump, and components made of stainless steel and brass. Enhanced with an overflow outlet and safety cut-out switch, this unit prevents interior damage from overfilling and ensures safe operation. The microprocessor control unit allows for precise temperature settings and can be calibrated to meet ISO9000ff standards. Please note: the unit is used and retains slight cosmetic damage; consult photos for details. Operational specifications include a minimum fill volume of 1.7L, a maximum pump capacity of 20L/min, and electrical requirements of 208-240V, 3-60Hz.
Key Features
- Recirculating chiller with water-cooled refrigeration plant
- Designed for efficient cooling in labs and chemical processes
- Temperature range of -20°C to +40°C with stability of 0.1K at -10°C

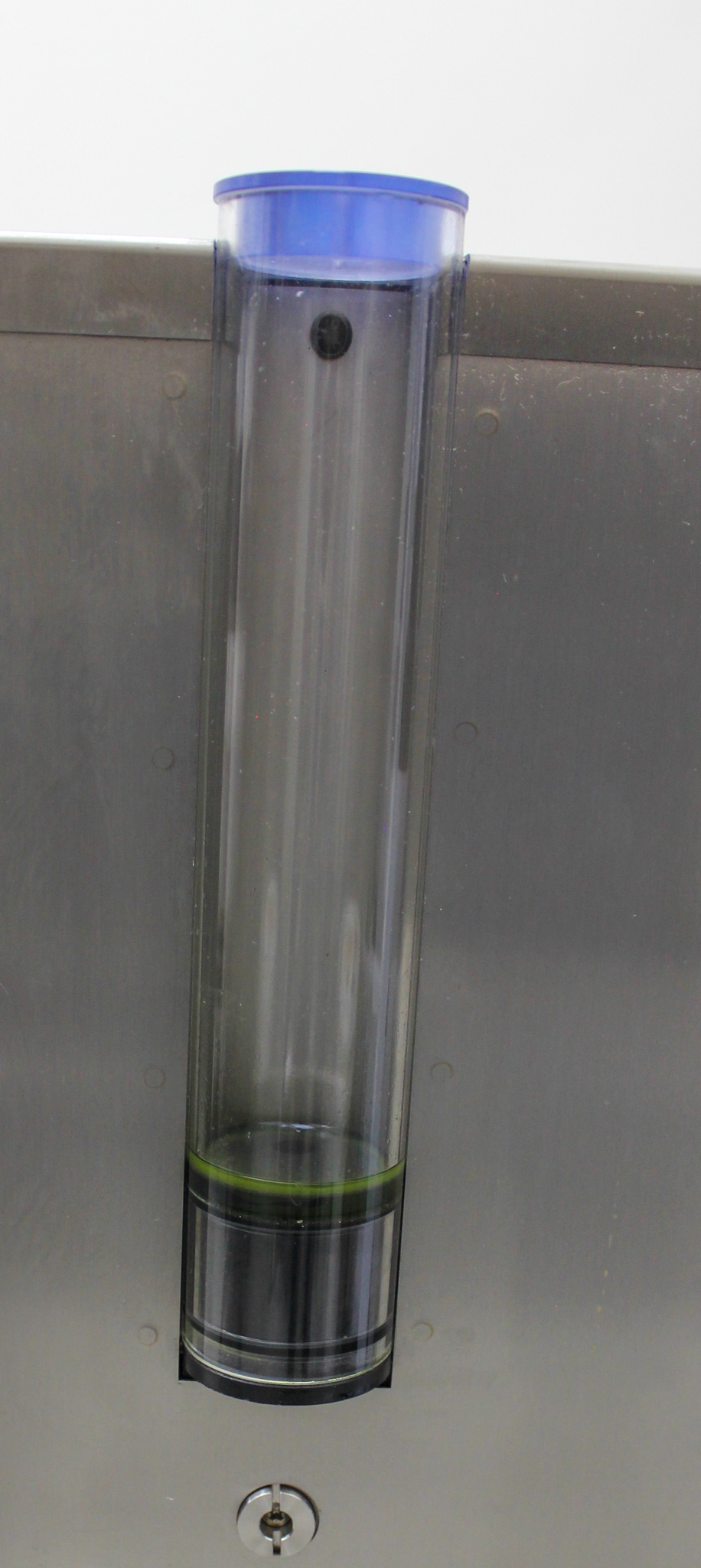

- Minimum fill volume of 1.7L and expansion volume of 3.8L
- Max force pump capacity of 20L/min
- Electrical requirements: 208-240V, 3-60Hz, max 10A
- Utilizes R507 refrigerant with max pressure of 25 bars
- Safety features include overflow outlet and cut-out switch
Specifications
- Type: UC020-S12
- Temperature Range: -20°C to +40°C
- Temperature Stability at -10°C: 0.1K
- Fill Volume Minimum: 1.7L
- Volume of Expansion: 3.8L
- Force Pump Max: 20L/min

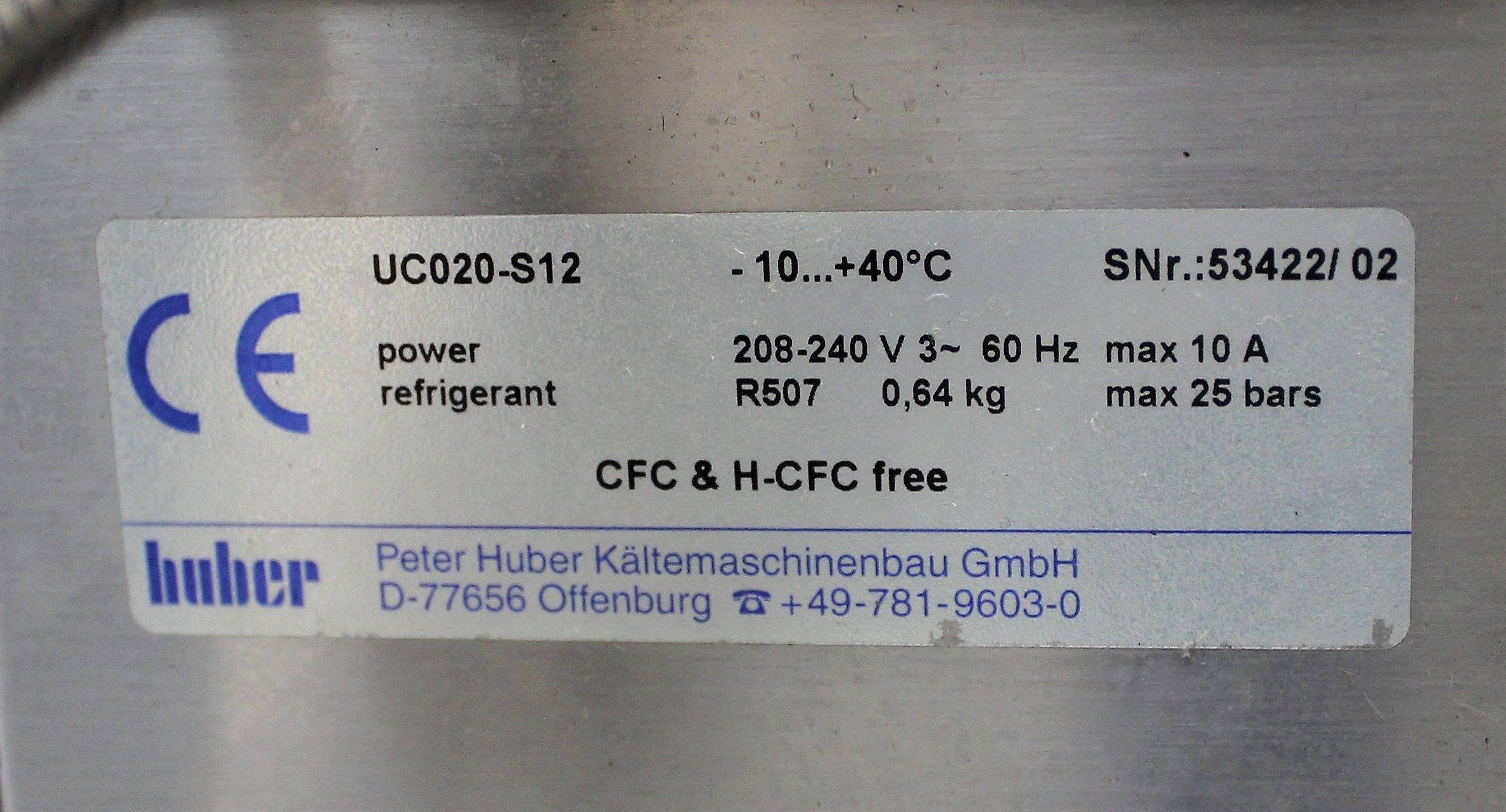

- Electrical Requirements: 208-240V, 3-60Hz, max 10A
- Refrigerant: R507, 0.64kg, max 25bars
Weight
Imperial: 132.0 Pounds
Metric: 59.87 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 22.8 lb x 38.4 lb
Metric: 79.25 cm x 57.91 cm x 97.54 cm
Harmonized Code
841869
Harmonized Code Details
841869 - Refrigerating or freezing equipment; heat pumps. Chosen based on the chiller's recirculating system and its function in providing efficient lab cooling solutions.
